Grandstream GWN7701 UNMANAGED 8-PORT SWITCH (PLASTIC CASE)

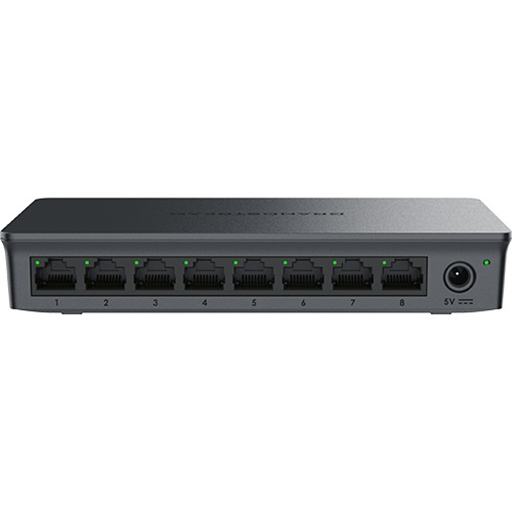

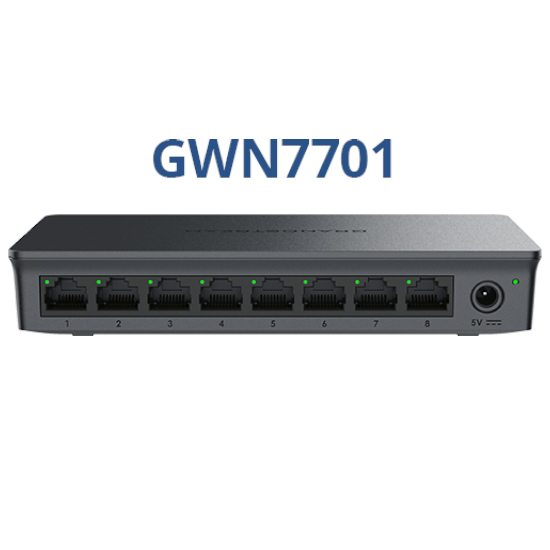

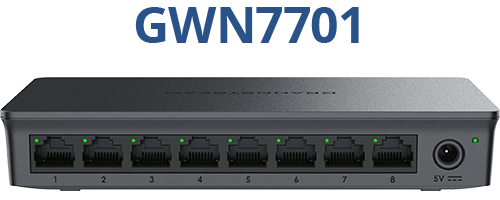

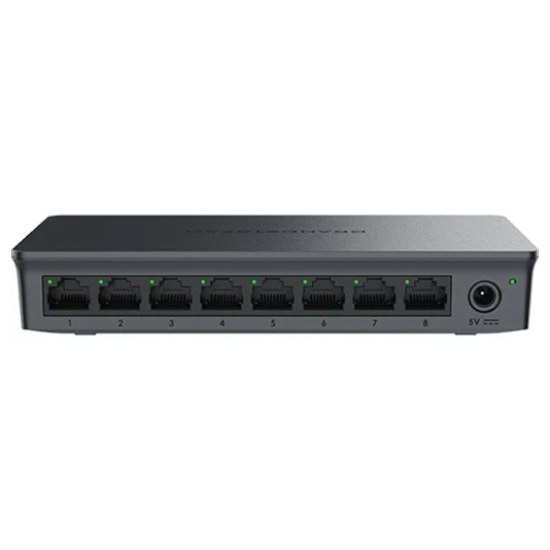

Grandstream GWN7701 8-Port Gigabit Unmanaged Switch

The Grandstream GWN7701 is a plug-and-play 8-port Gigabit unmanaged switch designed to add high-speed wired connectivity to offices and small-to-medium businesses. It provides eight 10/100/1000Mbps RJ45 ports in a lightweight plastic case, supporting straightforward network expansion for workstations, printers, servers, routers and other wired devices.

Each port supports auto-negotiation and Auto MDI/MDIX, allowing the switch to recognise connected device speeds and remove the need for crossover cables. With 16Gbps switching capacity, an 8K MAC address table and 9KB jumbo frame support, the GWN7701 provides reliable Gigabit performance in a compact desk or wall-mounted design.

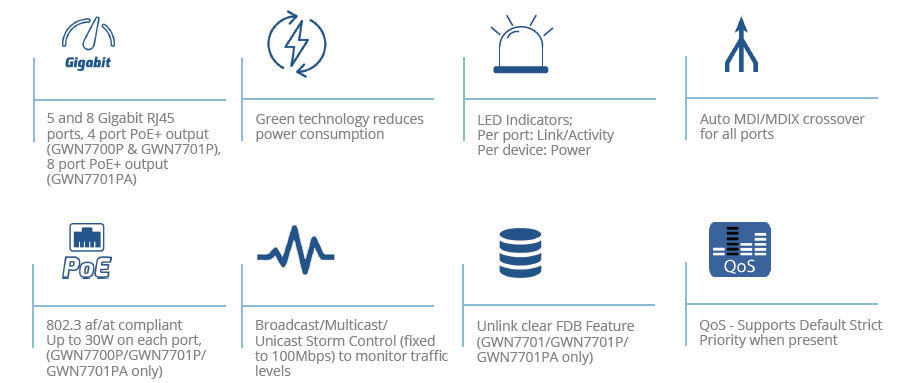

Key Features

• 8 x 10/100/1000Mbps Gigabit RJ45 ports
• Unmanaged plug-and-play operation for straightforward deployment
• 16Gbps switching capacity with an 8K MAC [Media Access Control] address table
• 9KB jumbo frame support for compatible high-volume network traffic
• Auto-negotiation and Auto MDI/MDIX on all ports
• Plastic case for desk or wall-mounted installation
• IEEE 802.3x flow control and 802.1p/DSCP QoS [Quality of Service]
• IGMP [Internet Group Management Protocol] fast-leave, snooping, route port autolearn and query refresh member port support
• Unlink clear FDB [Forwarding Database] support
• Broadcast, multicast and unicast storm control fixed to 100Mbps
• Low 2.7W maximum base-system power consumption

Simple 8-Port Gigabit Expansion

The GWN7701 provides additional wired capacity wherever a router or existing switch needs more Gigabit Ethernet ports. Its eight-port design is well suited to offices, reception areas, workgroups and other locations that need reliable connectivity for several locally powered network devices.

Key Benefits

• Adds eight Gigabit ports for straightforward wired network expansion
• Supports workstations, printers, servers, routers and other network devices
• Reduces installation time with plug-and-play unmanaged operation
• Automatically adapts to connected 10Mbps, 100Mbps and Gigabit devices
• Offers flexible placement on a desk, shelf or wall

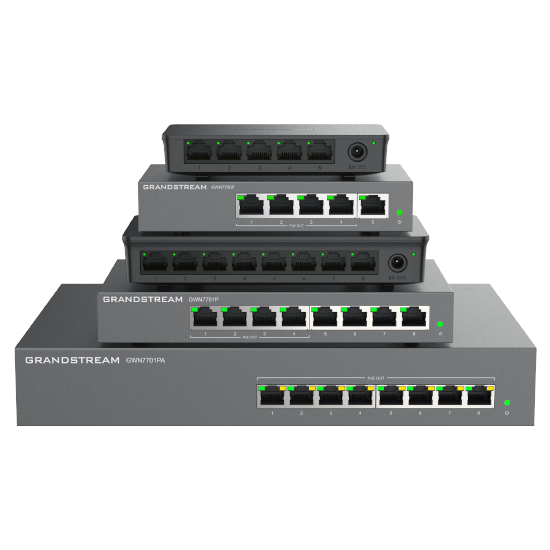

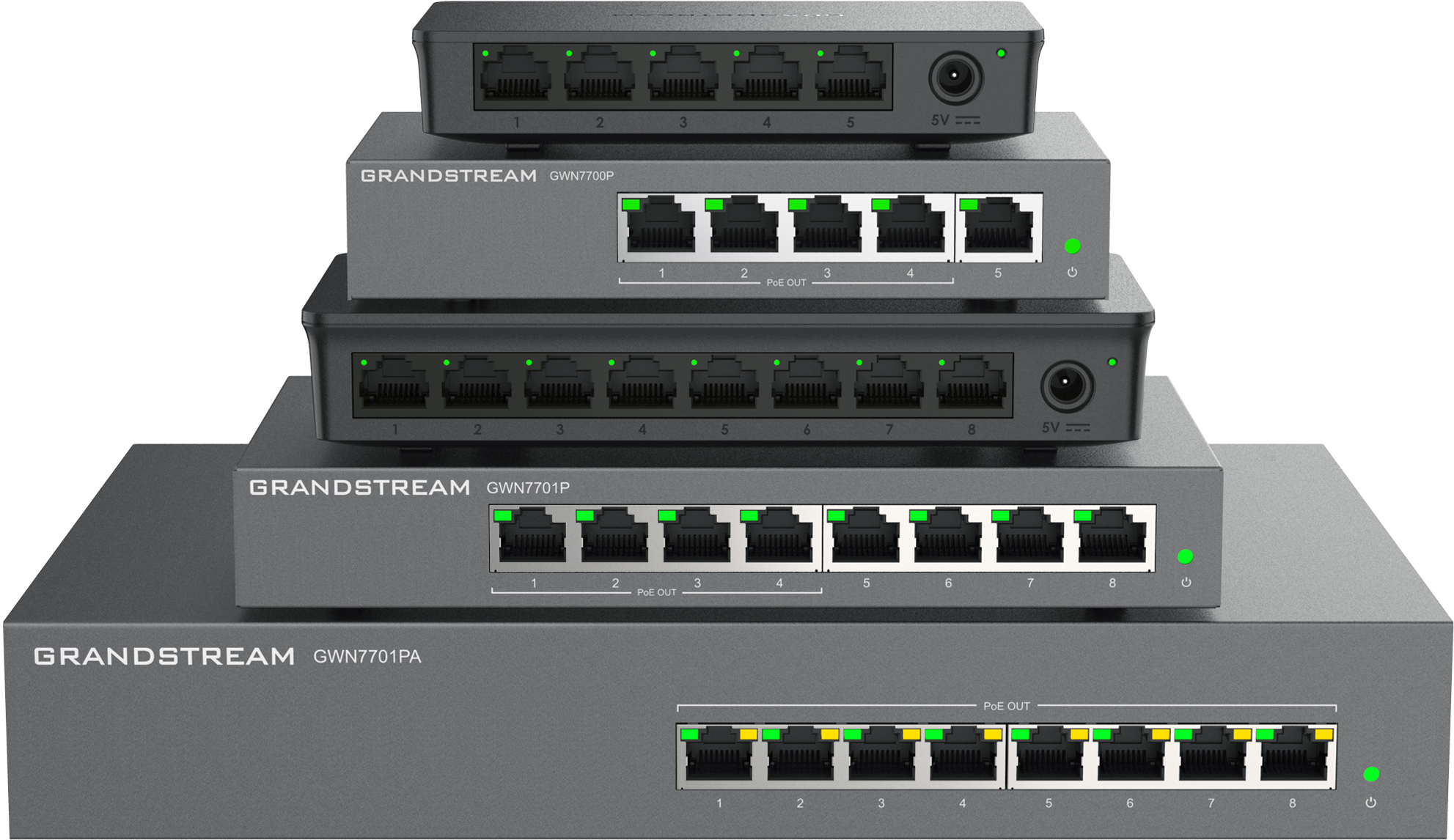

Comms Express offers GWN7701 series switches including:
GWN7701 - 8 Gigabit ports, plastic case, 16Gbps switching
GWN7701P - 8 Gigabit ports, 4 PoE/PoE+ ports, 60W PoE budget, metal case, 16Gbps switching
GWN7701PA - 8 Gigabit ports, 8 PoE/PoE+ ports, 145W PoE budget, metal case, desk/rack-mount, 16Gbps switching
GWN7701M - 8 x 2.5GbE, 1 x 1/10G SFP+, metal case, fanless, 60Gbps switching
along with many others, in Grandstream Unmanaged Switches.

For wider network builds, Comms Express also offers:
Grandstream Switches for many other Grandstream switch options
Network Switches for an impressive range of switches from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for connecting workstations, printers, routers and other wired network devices.

The package includes the GWN7701 switch, an external power adapter and a Quick Installation Guide.

*For complete specifications see the documentation tab above
