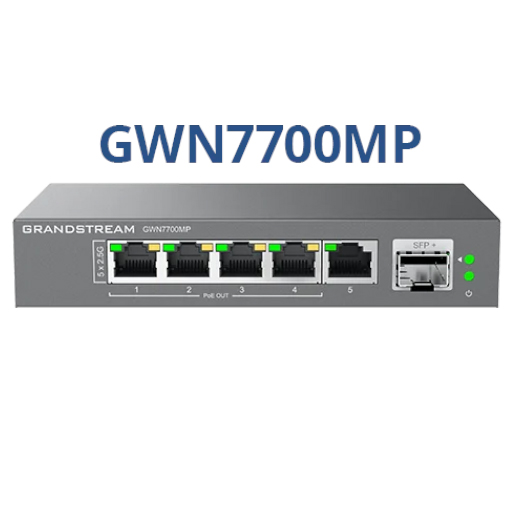

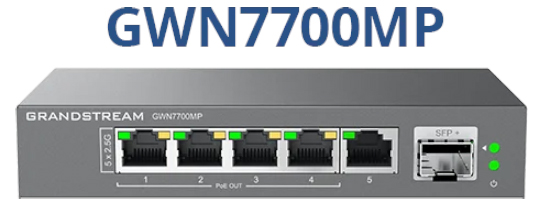

Grandstream GWN7700MP unmanaged multi-Gigabit Network Switch

Grandstream GWN7700MP 5 x 2.5GbE Unmanaged Multi-Gigabit Switch with SFP+ and PoE/PoE+

The Grandstream GWN7700MP is one of three closely related unmanaged multi-Gigabit switches in the GWN7700M series, designed to add high-speed wired connectivity to home offices and small-to-medium businesses. It combines five 100/1000/2500Mbps RJ45 ports with a 1/10Gbps SFP+ fibre port, supporting workstations, servers, storage devices, Wi-Fi access points, IP phones, IP cameras and other high-bandwidth network equipment.

With 45Gbps switching capacity, a 4K MAC address table and 9KB jumbo frame support, the GWN7700MP provides the performance required for demanding local network traffic. Four RJ45 ports support IEEE 802.3af/at PoE/PoE+ with a 57W total PoE budget, while the fanless metal enclosure supports quiet desk or wall-mounted installation.

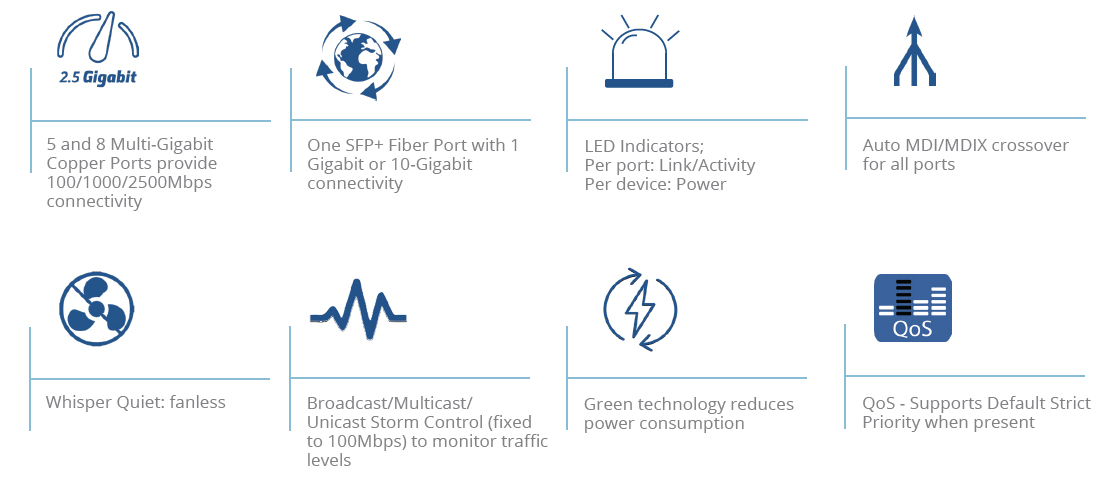

Key Features

• 5 x 100/1000/2500Mbps RJ45 multi-Gigabit copper ports
• 1 x SFP+ [Small Form-factor Pluggable Plus] fibre port supporting 1Gbps or 10Gbps connectivity
• 4 x IEEE 802.3af/at compliant PoE/PoE+ output ports with a 57W total PoE budget
• Unmanaged plug-and-play operation for straightforward deployment
• 45Gbps switching capacity with a 4K MAC [Media Access Control] address table
• 9KB jumbo frame support for compatible high-volume network traffic
• Auto-negotiation and Auto MDI/MDIX on all ports
• Fanless metal case for quiet desk or wall-mounted installation
• IEEE 802.3x flow control and 802.1p/DSCP QoS [Quality of Service]
• IGMP [Internet Group Management Protocol] fast-leave, snooping, route port autolearn and query refresh member port support
• Broadcast, multicast and unicast storm control fixed to 100Mbps
• IEEE 802.3az Energy Efficient Ethernet with 7.2W maximum base-system power consumption

Multi-Gigabit Switching with PoE

The GWN7700MP allows compatible 2.5GbE devices to communicate at more than twice standard Gigabit speed while also powering PoE endpoints directly from the switch. Its additional SFP+ port provides a flexible 1Gbps or 10Gbps fibre connection for linking the switch to compatible network infrastructure.

Key Benefits

• Adds multi-Gigabit capacity for high-performance wired devices and uplinks
• Powers compatible PoE devices such as access points, IP phones and IP cameras
• Provides a high-speed SFP+ connection for compatible fibre uplinks
• Automatically adapts to connected 100Mbps, Gigabit and 2.5GbE devices
• Supports quiet operation in offices, meeting rooms and other noise-sensitive locations
• Offers flexible placement on a desk, shelf or wall

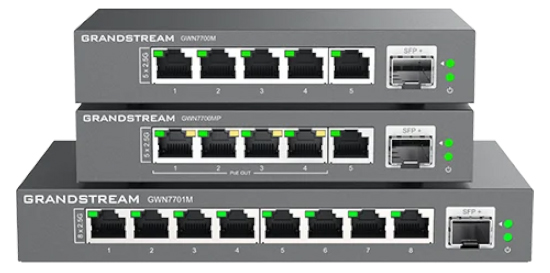

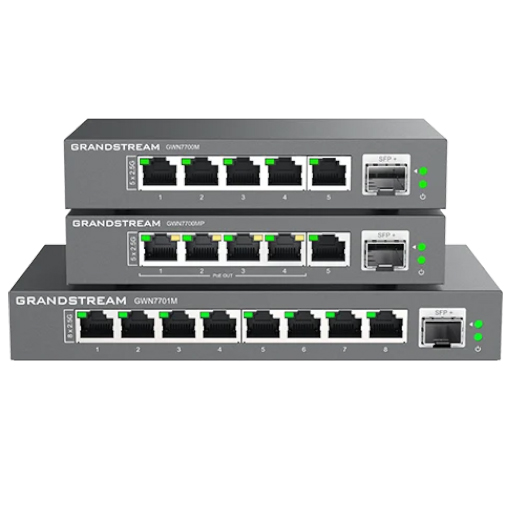

Comms Express offers all three GWN7700M series models, as well as many others, in Grandstream Unmanaged Switches:
GWN7700M - 5 x 2.5GbE, 1 x 1/10G SFP+, 45Gbps switching
GWN7700MP - 5 x 2.5GbE, 1 x 1/10G SFP+, 4 PoE/PoE+ ports, 57W PoE budget, 45Gbps switching
GWN7701M - 8 x 2.5GbE, 1 x 1/10G SFP+, 60Gbps switching

For wider network builds, Comms Express also offers:
Grandstream Switches for many other Grandstream switching options
Network Switches for an impressive range of switches from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for connecting workstations, printers, routers and other wired network devices.

The package includes the GWN7700MP switch, an external power adapter and a Quick Installation Guide.

*For complete specifications see the documentation tab above
