A range of mounting options are available for the Excel Keystone Tool-less Jacks that allow them to be installed in a number of situations. This flexibility results in the ability to have the same jacks terminating the cable in the patch panel and at the outlet.
The shutters are available in the Euromod 25 x 50mm and the 6C (LJ6C) 22.5 x 37mm sizes. Both come with windows and labels fitted to complete the installation. Blanking plates available in half and single size are available in the Euromod size to configure single or triple outlets.
Features and Benefits
Office range
Available in white/grey
Angled design optimises space whilst ensuring minimal stress to installed cables

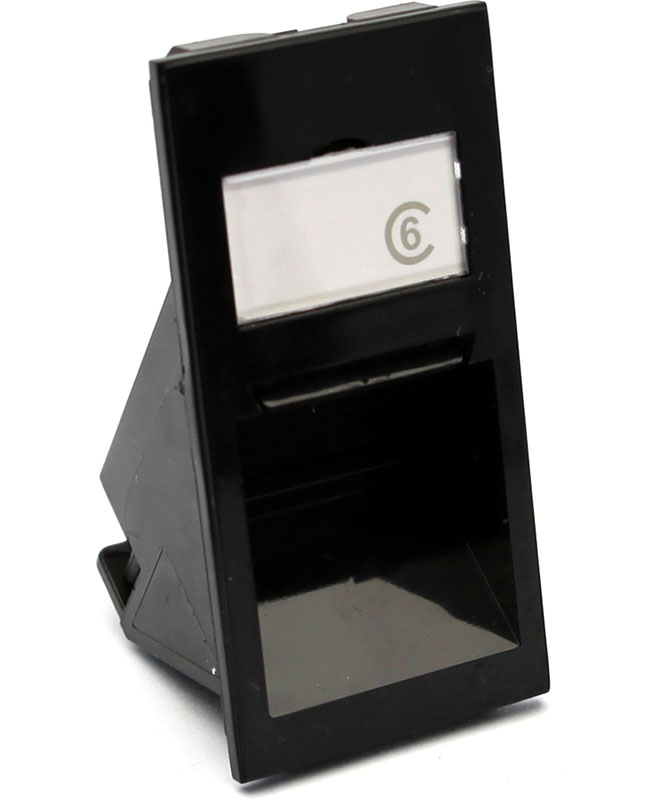

25x50mm Angled shutter
Compatible with a range of faceplates
Labelling field
Product specifications for these products can be found in the Documentation tab
A range of mounting options are available for the Excel Keystone Tool?less Jacks that allow them to be installed in a number of situations. This flexibility results in the ability to have the same jacks terminating the cable in the patch panel and at the outlet.
The shutters are available in the Euromod 25 x 50mm and the 6C (LJ6C) 22.5 x 37mm sizes. Both come with windows and labels fitted to complete the installation. Blanking plates available in half and single size are available in the Euromod size to configure single or triple outlets.
Product Features
Fits Industry Standard LJ6C apertures
Available in black/white

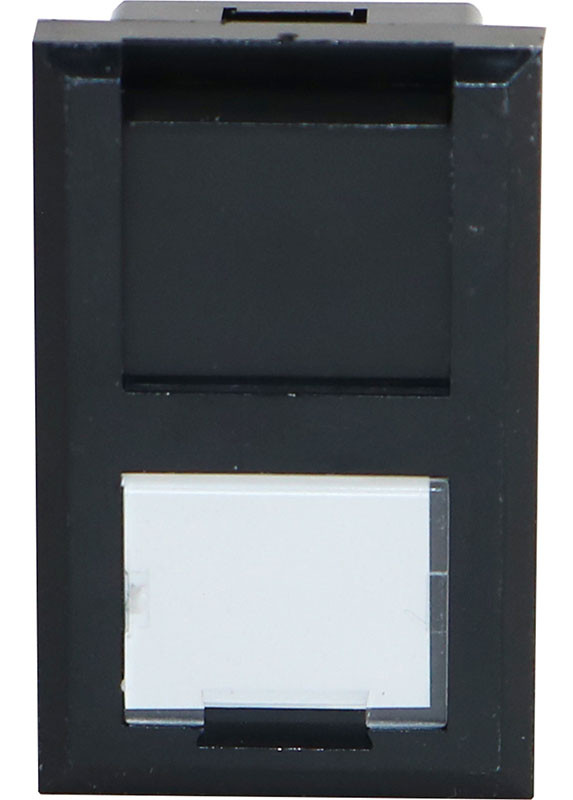

22x37mm Flat shutter
Compatible with a range of faceplates
Labelling field
Colour: |
A range of mounting options are available for the Excel Keystone Toolless Jacks that allow them to be installed in a number of situations. This flexibility results in the ability to have the same jacks terminating the cable in the patch panel and at the outlet.
The shutters are available in the Euromod 25 x 50mm and the 6C (LJ6C) 22.5 x 37mm sizes. Both come with windows and labels fitted to complete the installation. Blanking plates available in half and single size are available in the Euromod size to configure single or triple outlets.
Product Features
Euromod size
Angled design optimises space whilst ensuring minimal stress to installed cables
Available in black/white
Compatible with a range of faceplates
Labelling field
Colour: |
Excel Back Boxes complement any industry-standard single/double gang faceplate. The back boxes are constructed of ABS and include breakaway cable entries to accommodate different situations.
Features and Benefits
Choice of depths
Single gang/double gang options
Excellent impact resistance
RoHS Compliant
ABS material can be recycled
25 Year system warranty
Product specifications for this product can be found in the Documentation tab
PABX Voice Converter
Tailed Voice Adaptors convert RJ45 sockets to LJU presentation to allow telephones and modems to be connected to structured cabling systems.

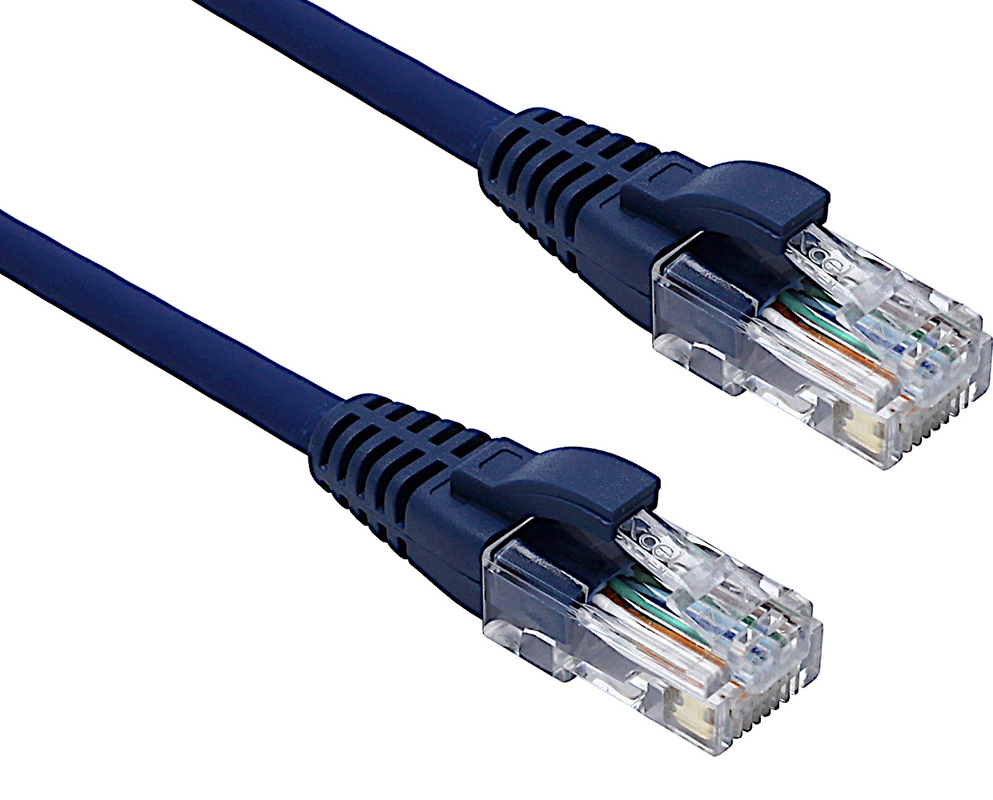

Excel Category 5e U/UTP Patch Leads are manufactured and tested to ISO11801 Category 5e and EIA/TIA 568 standards.
Each cable consists of 8 colour coded stranded 24AWG conductors twisted together to form 4 pairs with varying lay lengths. Cables are fitted with plastic strain relief boots, for applications that may require continuous patching or a degree of stress relief applied.
Product Features
Cat5e compliant
Independently verified
Supports Gigabit ethernet
Choice of colours
T568B wiring
Blade style 'slimline' moulded strain relief boot with clip protector
Individually packaged
LS0H outer sheath
Length: | |
Colour: |
Excel Back Boxes complement any industry-standard single/double gang faceplate. The back boxes are constructed of ABS and include breakaway cable entries to accommodate different situations.
Features and Benefits
Choice of depths
Single gang/double gang options
Excellent impact resistance
RoHS Compliant
ABS material can be recycled
25 Year system warranty
Product specifications for this product can be found in the Documentation tab
Excel Office Category 5e Low Profile RJ45 module have been designed to fit with the Excel Office Range of mounting hardware, which brings style and enhanced aesthetics to any Excel installation, thanks to the its curved plate finish and built in labeling fields.
Excel Category 5e Low Profile RJ45 modules comply with the standards for enhanced Category 5. Each shuttered module is supplied with a slide label field and space above, this is allowed for use of self adhesive or further labelling if required. Termination can be made using LSA compatible tooling. The low profile design makes this module ideal for installations in shallow dado trunking.
Features and Benefits
Excel Office Product colour matched
One Piece, Snap-in Design
Built in Slide Label System
Low Profile Design
LSA Style Termination Blocks
Choice of colours
Product specifications for these products can be found in the Documentation tab
2/1A PSTN Surface Mount Line Jack Unit
Single Outlet Surface Mounted Line Jack Units. Supplied complete with Back Box and Fixings.
3/2A PABX Flush Mount Line Jack Unit
Single Outlet Flush Mounted Line Jack Units. Supplied complete with fixings but without a back box.
Excel Category 5e 6c modules are ideal for floor box installations. The compact two piece design allows for a fast and easy installation and results in a low profile finish.
Features and Benefits
Low profile depth
Category 5e
For use in floor box installations
Independently verified
Built in slide label system
25 Year system warranty
Product specifications for this product can be found in the Documentation tab
3/1A PSTN Flush Mount Line Jack Unit
Single Outlet Flush Mounted Line Jack Units. Supplied complete with fixings but without a back box.
Product Features
The Excel Vertical Cable Management rings have been introduced to complement the Patch Rack System however they can be installed in all cabinets to assist in the management of patch cables.
Manufactured from high quality ABS plastic, the larger rings have the capacity to manage over 100 patch leads
They come complete with cage nuts and screws to mount them to the side of the 19" profiles of the Excel Environ cabinets or the Patch Rack.
83mm Cable Ring
Supplied with mounting hardware
2 sizes available
Manage over 100 patch leads
ABS plastic
25 Year system warranty

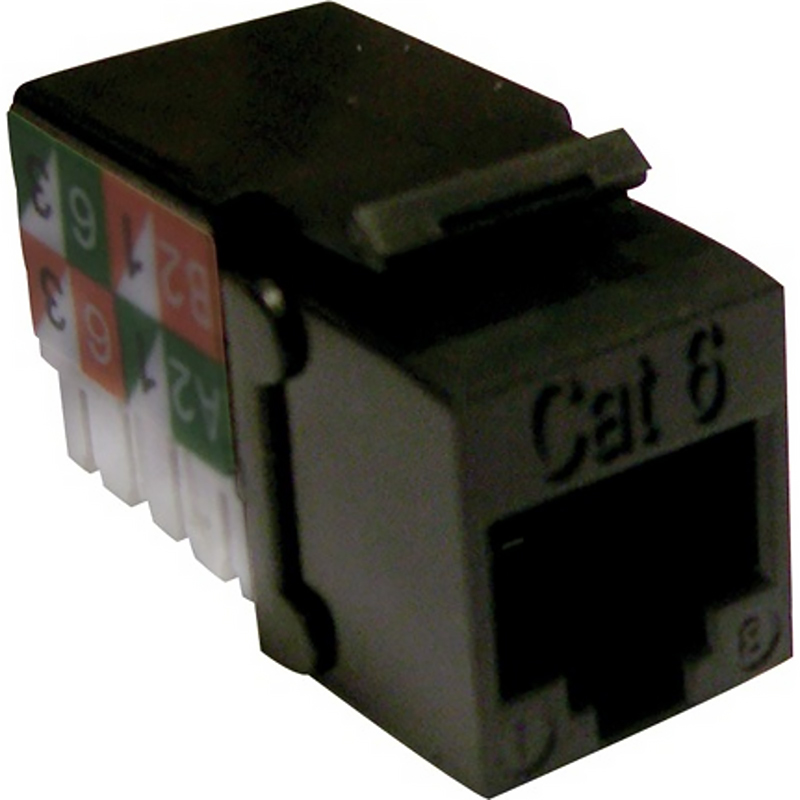

To complement the extensive range of single piece modules, the range has been expanded with the introduction of the keystone jack. Ideal for the user with a preference for a jack and shutter install these independentley verifed outlets offer exceptional performance and fast reliable installation with either LSA or 110 style tooling. A choice of colours are offered to suit the required housing, White jacks for the shutter, and Black for the patch frame. The patch panel frame offers great flexibility either through part loading to suit the installations and manage cost, or for preterminated requirements, allowing terminated jacks to be snapped into place quickly and easily.
Features:
Category 6 Compliant
IDC point at 90° to jack
Choice of colour
Mounts in either panel frame* or shutter
Lifetime product warranty
25 year system warranty available
* Only black keystone jacks are compatible with patch panel frame
Keystone Jack Fits The Following Modular Panels:
PANK24 - Excel 24 port 1U Unloaded Black Keystone Frame
PANK16-6A - Excel 16 port 1U Unloaded Chrome Keystone Frame
PANK24-6A - Excel 24 port 1U Unloaded Chrome Keystone Frame
PANK24V - Excel 24 port Keystone V Patch Panel Frame
PANK24H - Excel Low Profile 24 port Keystone Patch Panel Frame
Colour: | |
Pack Size: |
Excel Category 6 RJ45 modules comply with the EIA TIA Standard for Category 6. Each shuttered module is supplied with a slide label field and space above, this is allowed for use of self adhesive or further labelling if required.
Termination can be made using Krone tooling, a cable tie base is positioned to the side of the IDC blocks to relieve cable stress.
Features and Benefits
Category 6
Fits 27mm back box when used with bevelled faceplate
Built-in slide label system
Choice of colours
Low profile
25 Year system warranty
Product specifications for this product can be found in the Documentation tab

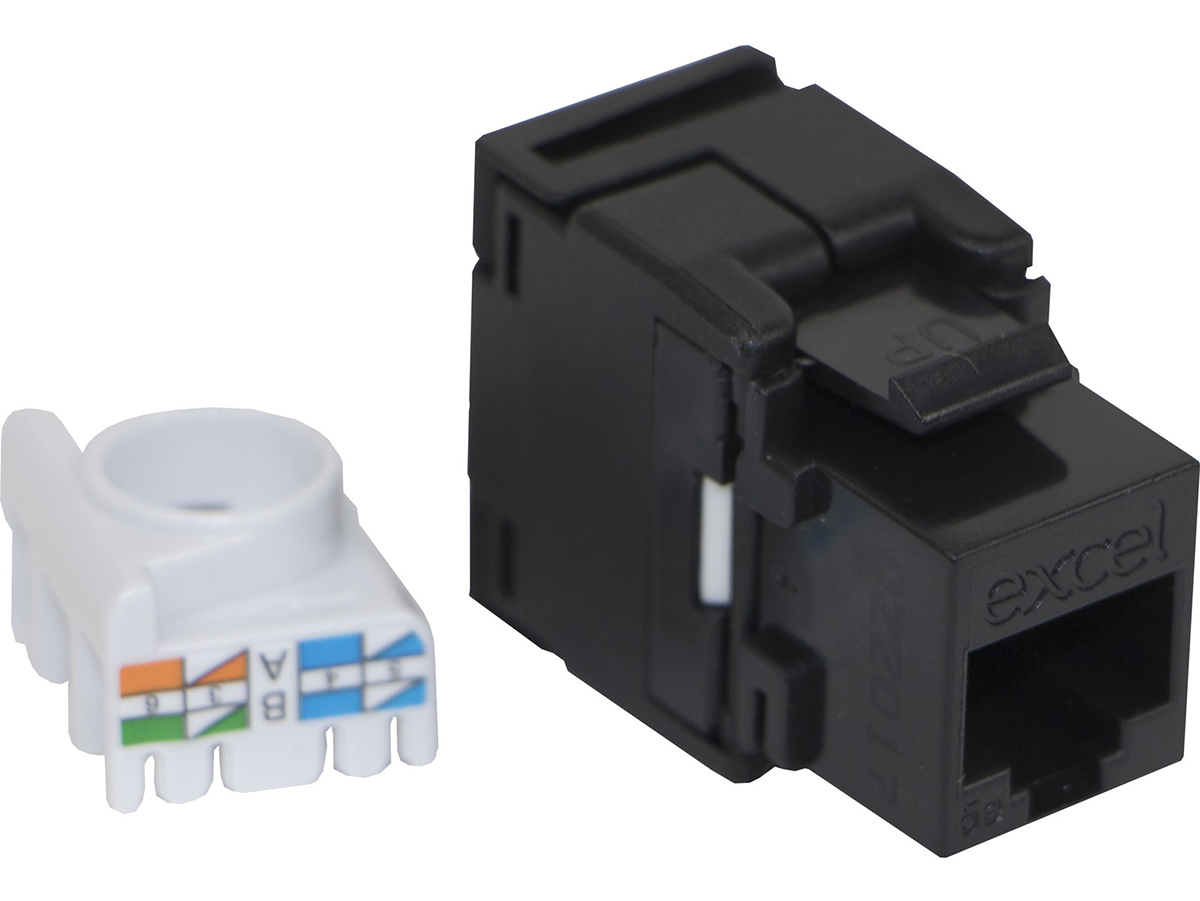

Excel Cat5e UTP Unscreened Keystone Jack Toolless, available as part of our range of excel Cat5e keystone jacks for RJ45 network connections. Excel toolless jack is one of the simplest methods of providing a high level of repeatable quality of fast termination. Suitable for both traditional and pre-terminated installations, each jack has a standard RJ45 keystone jack footprint and is suitable for mounting in the Excel shutters, faceplates and patch panel frames detailed in this catalogue.
Termination is a quick and simple two stage process, prepare and position the pairs from each cable within the colour coded termination cap, once in place the termination cap is snapped onto the IDC block providing a high quality termination first time, every time without the need for separate tooling.
Product Features
IDC point at 180 degrees to jack
Toolless termination design
ETL Verified
UL94V-0 fire retardant plastic
Supports Gigabit Ethernet
ISO, EN & TIA compliant
Colour: | |
Pack Size: |
The Excel Category 5e Low Profile Unscreened Keystone Jack, is a reduced size toolless termination RJ45 socket. The reduced size allows for multiple cable entry directions to be accommodated when this jack is mounted in a standard depth back box. This permits many mounting options including flush shutters at the outlet as well as more common angled shutter used with keystone jacks. A choice of compatible Patch Panel frames with either 16 or 24 port density in both black and chrome are available for this Low Profile Jack. The low profile design allows this jack to fit in the Excel 0.5U 24 Port Patch Panel resulting in a maximum port density of 48 per 1U. The socket itself is housed in a high quality fire retardant plastic cast housing, which opens at the rear in a butterfly manner to reveal the IDC termination points. Once the pairs are arranged in the cable management cap and trimmed it is a simple case of closing the butterfly together to complete the termination.
Features:
25 Year System Warranty
Low Profile - 28mm overall depth
Supports Gigabit Ethernet
Toolless termination design
Lifetime Product Warranty
Keystone Jack Fits The Following Modular Panels:
PANK24 - Excel 24 port 1U Unloaded Black Keystone Frame
PANK16-6A - Excel 16 port 1U Unloaded Chrome Keystone Frame
PANK24-6A - Excel 24 port 1U Unloaded Chrome Keystone Frame
PANK24V - Excel 24 port Keystone V Patch Panel Frame
PANK24H - Excel Low Profile 24 port Keystone Patch Panel Frame
Colour: | |
Pack Size: |
The Excel Category 6 Low Profile Unscreened Keystone Jack, is a reduced size toolless termination RJ45 socket. The reduced size allows for multiple cable entry directions to be accommodated when this jack is mounted in a standard depth back box. This permits many mounting options including flush shutters at the outlet as well as more common angled shutter used with keystone jacks. A choice of compatible Patch Panel frames with either 16 or 24 port density in both black and chrome are available for this Low Profile Jack. The low profile design allows this jack to fit in the Excel 0.5U 24 Port Patch Panel resulting in a maximum port density of 48 per 1U. The socket itself is housed in a high quality fire retardant plastic cast housing, which opens at the rear in a butterfly manner to reveal the IDC termination points. Once the pairs are arranged in the cable management cap and trimmed it is a simple case of closing the "butterfly" together to complete the termination. Third party verification by Delta assures this high performance jack exceeds the requirements of the ISO, EN & TIA component standards.
Features:
Low Profile - 28mm overall depth
Delta 3rd Party Verified
Supports Gigabit Ethernet
25 Year System Warranty
Toolless termination design
Lifetime Product Warranty
Keystone Jack Fits The Following Modular Panels:
PANK24 - Excel 24 port 1U Unloaded Black Keystone Frame
PANK16-6A - Excel 16 port 1U Unloaded Chrome Keystone Frame
PANK24-6A - Excel 24 port 1U Unloaded Chrome Keystone Frame
PANK24V - Excel 24 port Keystone V Patch Panel Frame
PANK24H - Excel Low Profile 24 port Keystone Patch Panel Frame
Colour: | |
Pack Size: |
Excel Cat6 UTP Unscreened Keystone Jack Toolless, available as part of our range of excel Cat6 keystone jacks for RJ45 network connections. A toolless termination RJ45 socket suitable for mounting in a range of housings from patch panels, faceplates and shutters to sub-floor boxes and distribution enclosures. The socket is manufactured in a high quality ABS housing, with butterfly style Toolless IDC termination points.
Once the pairs are arranged in the cable management cap and trimmed it is a simple case of closing the ‘butterfly’ together to complete the termination.
Third party verification by Delta assures this high performance jack exceeds the requirements of the ISO, EN & TIA component standards.
Product Features
IDC point at 180 degrees to jack
Toolless termination design
Delta 3rd party verified
UL94V-0 fire retardant plastic
Supports Gigabit Ethernet
ISO, EN & TIA compliant
Colour: | |
Pack Size: |
