Product Overview
Excel keystone jack patch panel frames are available for mounting of the range of screened and unscreened Excel toolless keystone jacks. A new chrome finish which when used with the recently introduced chrome patch cable management bars brings an entirely new, aesthetically enhanced finish to cabinet installations. Available with a maximum port density of either 16 or 24 keystone jacks in 1U of rack space. A rear management tray with purposely designed cable tie positions, is supplied with each panel which is fitted without the need for any tools or fixings by simply snapping it into place. To complete the installation an earthing kit, and a set of M6 cage nuts is also supplied with the patch panel frame.
Features
Compatible with Excel Cat 5e, Cat 6 & Cat 6A Jacks
Option to part or fully load
Supplied with earthing kit
Compatible with Excel toolless screened and unscreened keystone jacks
Modular design is ideal for standard and preterminated installations
No.3 cabling system by market share, as reported by BSRIA
Supplied with snap on rear management tray
Choice of port density - 16, 24 ports per 1U
Modular design is ideal for standard and preterminated installations
To see our range Of Keystone Jacks click HERE
Ports: |
Excel keystone jack patch panel frames are available for mounting of the range of screened and unscreened Excel toolless keystone jacks.
A rear management tray with purposely designed cable tie positions, is supplied with each panel which is fitted without the need for any tools or fixings by simply snapping it into place.
Product Features
Choice of category
Available in black or chrome
Choice of port density
Earthing kit, cage nuts and mini cable ties included
Fast fit rear cable management
For Screened and Unscreened systems
Ports: |
Product Features
The Excel Fast RJ45 plug is easy to use on both Category 6 and Category 5e unscreened cables
Supplied in a handy pack of 100 pieces using plastic free packaging the plug is simple to use, terminate and crimp especially when using the Excel Fast Termination Tool (Sold separately).
The Tool features an ergonomic ratchet & release cushion handle making easy work of crimping the RJ45 Plug whilst trimming the excess wire leaving the end of the plug completely flush
When using the Excel Fast Boots, the tool will help align the boots to the RJ45 plug.
Suitable for UUTP Category 5e and 6 cables
Supplied in handy packs of 100 pieces
Plastic free packaging
Fast Termination Tool (100-115)
Plugs + Boots option (100-117-100)

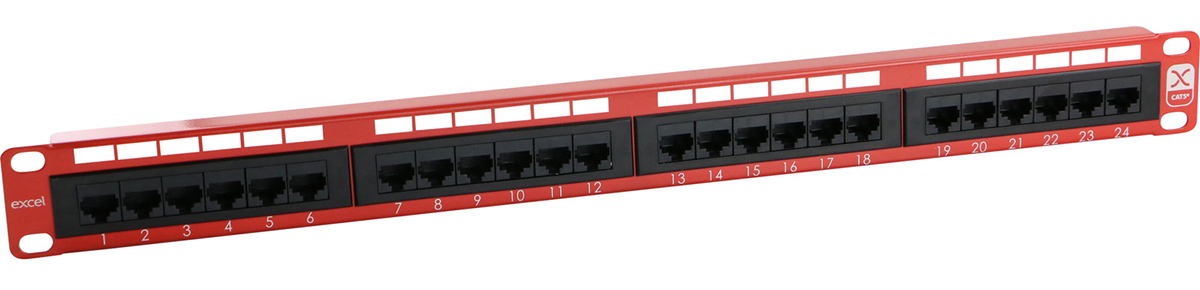

24 Port 1U Excel Category 5e Patch Panels comply with the current standards for enhanced Category 5. Each panel offers a choice of labelling with the option to use the screen printed fields on the panel facia or the slide label system or pre printed 1-96 labelling scheme which is enclosed with each panel. Ease of installation is assured with ample rear cable management positions and LSA IDC blocks. Each panel is available in a choice of colours to allow identification of either applications, departments or services. Cage nuts and mini cable ties are included with each panel.
Key Features of Excel 24 Port Cat5e Patch Panel - 1u RJ45 UTP:
Category 5e compliant
Choice of Colours
Supports Gigabit Ethernet
Cage nuts and mini cable ties included
LSA Style Termination Blocks
T568A/B Wiring Configuration
Pre Printed 1-96 Self Adhesive Labelling included
Performance Overview
Excel Category 5e Patch Panels are manufactured to and tested to the current Category 5 enhanced standards as defined by the TIA and ISO standards’ bodies. Swept frequency tests are applied to each critical performance characteristic, such as near end cross talk (NEXT) and far end cross talk (FEXT). Both Worst Case and Power Sum Test methods are applied. Actual performance exceeds the required standard by a considerable margin ensuring sufficient headroom for even the most demanding applications.
Accessories
(Sold Separately)
Cat5e Patch Leads
IDC Punchdown Tool
Cat5e Solid Cable
Cat5e Modules
Colour: |
Product Overview

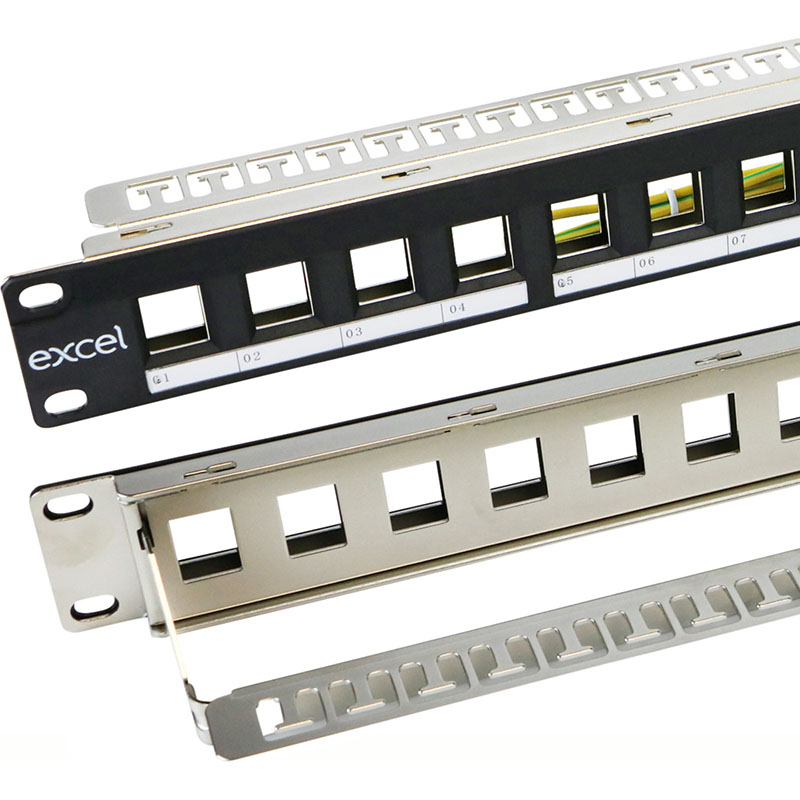

The angled keystone jack patch panel frame is available to support a range of Screened and Unscreened jacks. It uses the innovative Excel Angled Toolless Keystone Jack range available in Category 6 & 6A variants to deliver solution options. The same angled jacks are mounted 12 pointing left and 12 pointing right to give a total of 24 ports in a 1U patch panel with a centre parting of the patch cords. The angled jack directs the cable to one side which reduces the bend on the patch cable. This in turn reduces the space required between the front of the patch panel and the cabinet doors. The angled nose piece of the jack achieves this while maintaining a conventional flat panel format. Directing the patch cords to the side allows them to be managed directly into the cabinet or frame’s containment. This reduces bending of the patch cord and offers the option to exclude horizontal cable management bars, freeing up valuable cabinet mounting positions. Keeping the patch panel front flat maintains the aesthetics of the entire cabinet installation by matching the look of conventional panes and equipment.
The patch panel, combined with the Angled Toolless Keystone Jacks, maintains cable entry perpendicular to the rear of the panel via the integrated cable manager. This allows the cable management at the rear of the panel to be installed in a way to suit numerous methods – 24 Left or 24 Right or a mix of left and right. It also means part filled panels can easily be added to.
Chrome finish patch panel comes complete with earth bonding kit and is suitable for installation of screened and unscreened jacks. The Black finish patch panel is suitable for the unscreened range of jacks only. Both patch panels are supplied complete with cable ties and cabinet fitting fit (cage nuts and screws).
Features
Compatible with Excel Cat 6 & Cat 6A Jacks
Superior rear cable management
Supports Unscreened & Screened – Cat 6 & Cat 6A
Two rows of jacks distributes the patch cords
Increased cabinet density – no cable managers required
24 Port modular design ideal for standard and preterminated installations
Increased Cabinet Utilisation
Option to part or fully load
Accepts Excel Angled Toolless Keystone Jacks
Uniform cable termination – added flexibility of cable entry
No.3 cabling system by market share, as reported by BSRIA
For compatible Keystone Jacks click Here
The Excel 24 Port 0.5U Keystone Patch Panel delivers a high density offering with the benefit of a single row of keystone jacks. The single row of jacks means that the installation is straight forward and allows an individual jack to be removed if required. As the panel is only 0.5U in height it allows, by using two panels together, the ability to present 48 keystone jacks in 1U of rack space. Using two 0.5U panels ensures that the jacks are all aligned the correct way up. Most 48 Port 1U panels require the bottom row of jacks to be mounted upside down.
Features
High Density 24 Jacks 0.5U
Supplied Unloaded
Compatible with Excel Category 5e, 6 & 6A Jacks
Ideal for standard and pre-terminated installations
Supplied with earthing kit Supplied with cable management bar
To see our range Of Keystone Jacks click HERE
Excel range of power distribution units are designed for installation and use within 19" networking cabinets and enclosures. Each unit comprises a high quality aluminium extruded housing into which are loaded up to 12 sockets.
The 10 Amp PDUs benefit from having a master power switch.
Features and Benefits
IEC 60320 C13 style sockets
High quality, light weight aluminium housing
LED indicated unit power
Choose from vertical and horizontal mounting options
250 volt AC, 50/60Hz Rating
CE compliant, ROHS complaint
External earth facility
3 metre PVC input lead terminated with IEC 60320 C14 plug
Product specifications for this product can be found in the Documentation tab

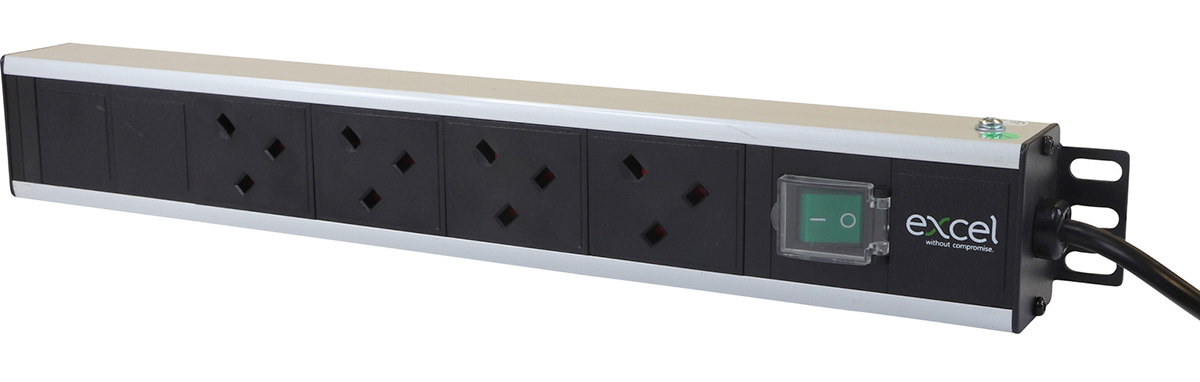

The Excel range of power distribution units are designed for installation and use within 19" networking cabinets and enclosures. Each unit comprises a high quality aluminium extruded housing into which are loaded up to 12 sockets.
In this particular range each socket is UK style, manufactured in accordance with the BS1363 standard, the 3 metre input lead is terminated with a 13Amp rated 3 pin BS1363 plug top. The sockets are mounted at a 45° angle on the vertical PDUs and a 90° angle on the horizontal PDUs to aid with cable management.

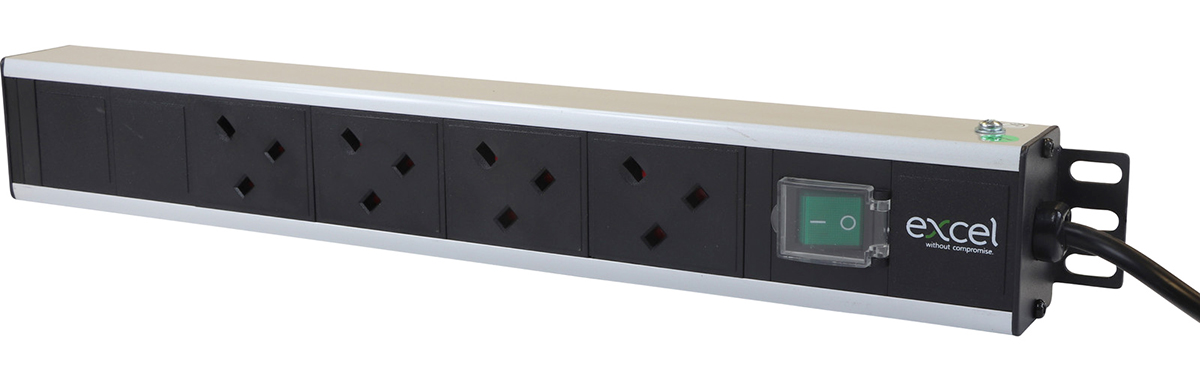

The range of available units includes 19" horizontally mounted, and higher density vertical mounted options, each unit contains a fully shrouded switch to control input power, and a LED indicator to confirm power to the unit.
Features and Benefits
Comprehensive choice of sockets
Standard 3m PVC power lead with 13 Amp BS 1363 UK plug
Choice of mounting options
Fully shrouded switch
LED indicator to confirm power to the unit
Product specifications for this product can be found in the Documentation tab
No. Sockets: |
The Excel range of power distribution units are designed for installation and use within 19" networking cabinets and enclosures. Each unit comprises a high quality aluminium extruded housing into which are loaded up to 12 sockets.
In this particular range each socket is UK style, manufactured in accordance with the BS1363 standard, the 3 metre input lead is terminated with a 13Amp rated 3 pin BS1363 plug top. The sockets are mounted at a 45° angle on the vertical PDUs and a 90° angle on the horizontal PDUs to aid with cable management.
The range of available units includes 19" horizontally mounted, and higher density vertical mounted options, each unit contains a fully shrouded switch to control input power, and a LED indicator to confirm power to the unit.
Features and Benefits
Comprehensive choice of sockets
Standard 3m PVC power lead with 13 Amp BS 1363 UK plug
Choice of mounting options
Fully shrouded switch
LED indicator to confirm power to the unit
Product specifications for this product can be found in the Documentation tab
No. Sockets: |
Excel professional grade power distribution units (PDUs) are designed for installation and use within 19" networking racks and enclosures. Each unit is loaded with up to 12 sockets, which are housed in a high quality aluminium extruded housing.
Mounting Options
Horizontal Mounting:
PDUE4UK/C16 (D16-4H-EXL)
PDUE6UK/C16 (D16-6H-EXL)
Vertical Mounting:
PDUE8UK/C16 (D16-8-EXL)
PDUE10UK/C16 (D16-10-EXL)
PDUE12UK/C16 (D16-12-EXL)
Features and Benefits
Comprehensive choice of sockets
Standard 3m PVC power lead with 16 Amp plug
Choice of mounting options
Fully shrouded switch
LED indicator to confirm power to the unit
Product specifications for this product can be found in the Documentation tab
No. Sockets: |
The Environ Depth Adjustable Shelf can be used to support both active and non-active data equipment within the rack that is not 19" rack-mountable. The adjustable shelf can be used to support equipment from any industry to create the desired solution.
Installation is achieved by attaching to both the front and rear 19" profiles using M6 hardware, the shelf is vented which allows for air circulation around the equipment. The design of the shelf has an extremely large range of mounting depths which allows it to be placed in a wide range of racks and fitted at depths dictated by server and switch deployments.
Features and Benefits
Adjustable mounting depth option
Available in Grey White and Black
Perforated design
25 year system warranty
Product specifications for this product can be found in the Documentation tab
Colour: |
Excel range of power distribution units are designed for installation and use within 19" networking cabinets and enclosures. Each unit comprises a high quality aluminium extruded housing into which are loaded up to 12 sockets.
The 10 Amp PDUs benefit from having a master power switch.
Features and Benefits
IEC 60320 C13 style sockets
High quality, light weight aluminium housing
LED indicated unit power
Choose from vertical and horizontal mounting options
250 volt AC, 50/60Hz Rating
CE compliant, ROHS complaint
External earth facility
3 metre PVC input lead terminated with IEC 60320 C14 plug
Product specifications for this product can be found in the Documentation tab
No. Sockets: |
Excel range of power distribution units are designed for installation and use within 19" networking cabinets and enclosures. Each unit comprises a high quality aluminium extruded housing into which are loaded up to 12 sockets.
The 10 Amp PDUs benefit from having a master power switch.
Features and Benefits
IEC 60320 C13 style sockets
High quality, light weight aluminium housing
LED indicated unit power
Choose from vertical and horizontal mounting options
250 volt AC, 50/60Hz Rating
CE compliant, ROHS complaint
External earth facility
3 metre PVC input lead terminated with IEC 60320 C14 plug
Product specifications for this product can be found in the Documentation tab
No. Sockets: |
Excel Category 6A Screened RJ45 Modules comply with the EIA TIA Standard for Category 6A. Each shuttered module is supplied with a slide label field and space above.
This allows for the use of self adhesive labels or further labelling if required. Termination can be made using Krone tooling. A cable tie base is positioned to the side of the IDC blocks to relieve cable stress.
Features and Benefits
Low profile
Fits 27mm back box when used with bevelled faceplate
Built in slide label system
Product specifications for this product can be found in the Documentation tab
The Excel high density RJ45 patch panel is designed specifically for use with high pair count voice multipair cables, such as Category 3 or CW1308.
A standard 1U panel frame is populated with 25 ports. It comes with an integral rear cable management tray positioned at a right angle to the panel front. As well as providing a stress free area in which to dress the multiple pairs, the tray also houses the LSA compatible termination blocks.
The 25 Port Patch Panels supports 3 pair connectivity per port.
Product Features
The Excel Fast RJ45 plug + Boots are easy to use on both Category 6 and Category 5e unscreened cables
Supplied in a handy pack of 100 pieces using plastic free packaging the plug and boot are simple to use, terminate and crimp especially when using the Excel Fast Termination Tool (Sold separately).
The Tool features an ergonomic ratchet & release cushion handle making easy work of crimping the RJ45 Plug whilst trimming the excess wire leaving the end of the plug completely flush at the same time aligning the transparent boots perfectly to the RJ45 plug.
Suitable for UUTP Category 5e and 6 cables
Supplied in handy packs of 100 pieces
Plastic free packaging
Transparent colour boots
Plugs only option (100-116-100),
Fast Termination Tool (100-115)
The Excel Surge Protected Power Distrubution Units are an extensive range of professional grade power distribution units designed specifically for the 19" electronic enclosure markets. These units feature an on-board protection system to guard against surges, spikes and other mains borne transients.
Each unit comprises a high quality aluminium extruded housing into which are loaded up to 12 sockets. In this particular range each socket is UK style, manufactured in accordance with the BS1363 standard, the 3 metre input lead is terminated with a 13Amp rated 3 pin BS1363 plug top.
The sockets are mounted at a 45 degree angle on the vertical PDUs and a 90 degree angle on the horizontal PDUs to aid with cable management. The range of available units includes 19" horizontally mounted, and higher density vertical mounted options, each unit contains a fully shrouded switch to control input power (except 6 Way horizontal).
Features and Benefits
Surge protected
LED status indicators
UK BS1363 style sockets
Up to 12 sockets per unit
4, 5 and 6 way PDU's provide horizontal mounted sockets
8, 10 and 12 way PDU's provide vertical mounted sockets
Choice of mounting options
Product specifications for this product can be found in the Documentation tab
No. Sockets: |
Product Features
Excel sleeving is designed in such a way as to allow the diameter to expand either by compressing the sleeving or by the insertion of cable and/or components
It is perfect for looming a number of different data cables together.
Flame Resistance: Self Extinguishing (V2 UL94)
VL UL94
EN 45545
NF F16-101 / F16-102
Halogen free
Excel 48-Port 2U Category 5e Patch Panel | High-Density Gigabit Solution
The Excel Category 5e Patch Panel is a professional-grade 2U solution engineered to exceed "Enhanced Category 5" standards. Designed for high-demand networking environments, this panel supports Gigabit Ethernet with significant performance headroom, ensuring reliable data transmission for critical enterprise applications.
Performance & Testing Rigor
Exceeds Industry Standards: Rigorously tested to TIA and ISO Category 5e specifications.
Advanced Frequency Analysis: Every panel undergoes swept frequency testing for critical characteristics, including Near-End Crosstalk (NEXT) and Far-End Crosstalk (FEXT).
Power Sum Certified: Verified using both Worst Case and Power Sum test methods to ensure maximum signal integrity and reduced interference.
Installation & Versatile Labeling
LSA Style Termination: Features industry-standard LSA IDC blocks for fast, reliable punchdown termination.
Dual Wiring: Supports both T568A and T568B wiring configurations for global compatibility.
Advanced Labeling System: Offers three distinct labeling methods to suit any workflow:
Screen-printed fields on the panel fascia.
An integrated slide label system.
Included pre-printed 1-96 self-adhesive labels.
Design & Included Hardware
High-Capacity 2U Form Factor: Provides 48 ports in a standard 19-inch 2U footprint, perfect for high-density rack setups.
Enhanced Cable Management: Designed with ample rear positions to ensure neat cable dressing and strain relief.
Complete Kit: Ships with cage nuts and mini cable ties included, making it ready for immediate deployment.
Technical Specifications
Feature
Specification Details
Category
Category 5e (Enhanced)
Performance
Supports Gigabit Ethernet (1000Base-T)
Port Count
48-Port RJ45
Rack Height
2U (19-inch Rackmount)
Termination Type
LSA Style IDC
Wiring Standard
T568A / T568B
Testing Standards
TIA/EIA-568-B.2-2001, ISO/IEC 11801:2002
Expert Note: The Excel 2U design provides extra vertical space between ports compared to 1U high-density panels, making it easier to manage patch cords in high-traffic cabinets.
Accessories
(Sold Separately)
Cat5e Patch Leads
IDC Punchdown Tool
Cat5e Solid Cable
Cat5e Modules
Universal RJ45 Plug Termination Tool (100-127)
The Excel fast RJ45 termination tool is the simplest way to crimp Excel RJ45 plugs with a built-in trim-and-flush action, ergonomic handles and a ratchet release. Now compatible with the full range of Excel RJ45 plugs.
Key Features:
Suitable for all Excel RJ45 plugs
Setting A: plugs 100-116, 100-117, 100-118ZN, 100-128
Setting B: plug 100-118
Compatible with shielded and booted plugs
Includes two spare cutting blades
Design & Ergonomics
Ergonomic ratchet and release cushion handles ensure smooth termination and trimming of excess conductor, resulting in a clean, flush plug end.
Compatibility & Versatility
New version supports termination of the full Excel RJ45 plug range - double-check the correct setting per plug type. Also aligns Excel Fast Boots (sold separately) onto the plugs.
Specifications
Length: 210 mm
Operation: Mechanical, ratchet-release
Usage Tips
Make sure the tool is set to the correct setting (A or B) based on plug type. Regularly replace blades to maintain clean trims. Use with Excel Fast Boots for optimal alignment.
