| Part No: | FETSW212 |
| Manufacturer No: | TSW212 |
| Delivery: | In Stock: 7-10 Days |
 |

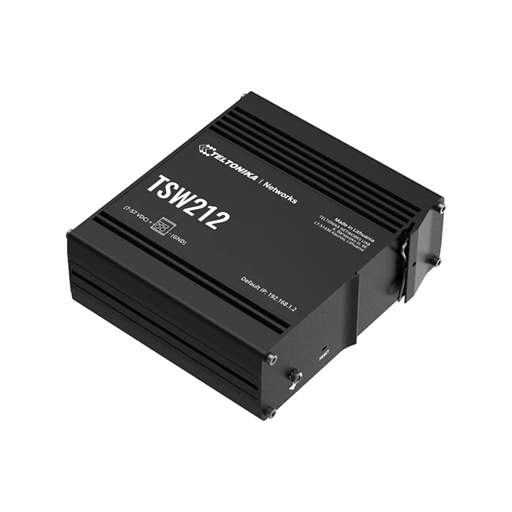

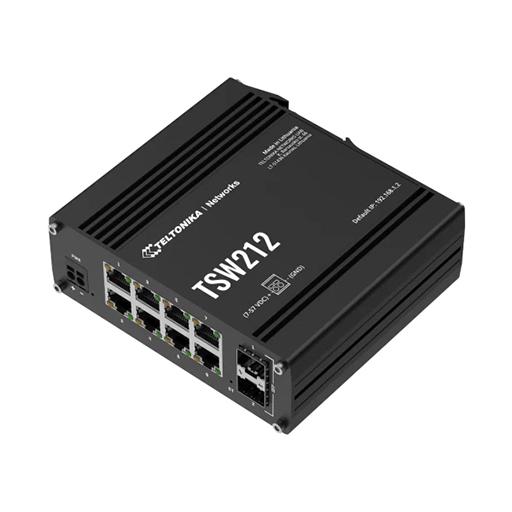

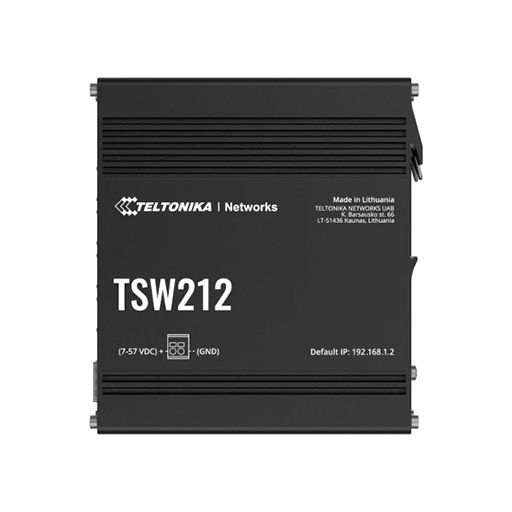

The Teltonika TSW212 is a managed Ethernet switch that combines eight Gigabit Ethernet ports with two SFP ports for flexible copper and fibre network connectivity. It provides Layer 2 management with additional Layer 3 functions, including static IPv4 and IPv6 routing and DHCPv6 client support. Support for EtherNet/IP, PROFINET and MRP makes it suitable for industrial networking environments, while VLAN, STP/RSTP, QoS, port mirroring and bandwidth control provide detailed control over network traffic.

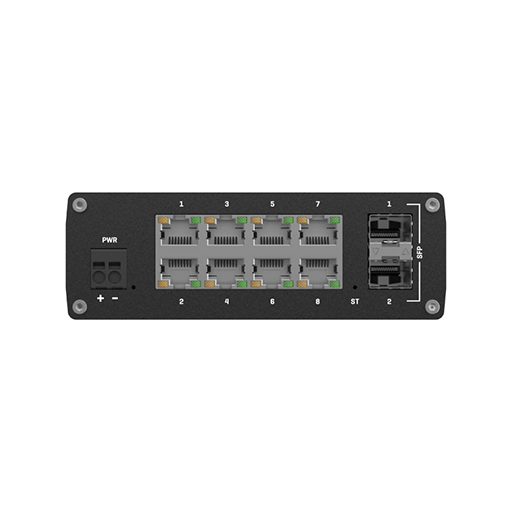

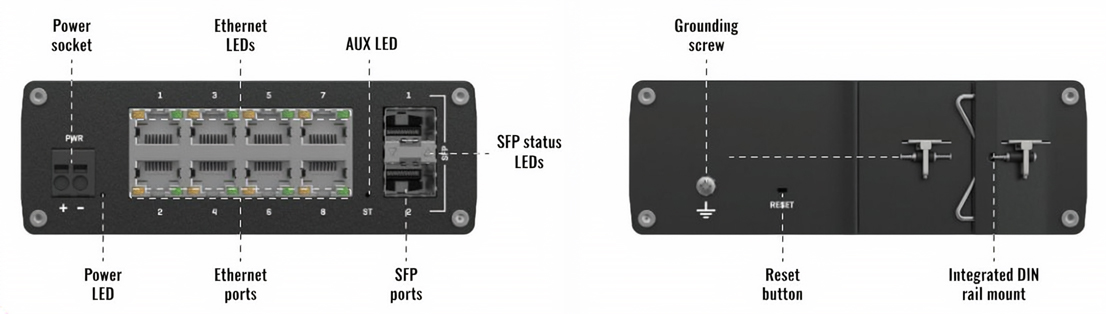

The eight Gigabit Ethernet ports for connecting network devices at speeds of up to 1000 Mbps, together with two SFP ports for fibre connections. Auto MDI/MDIX support simplifies Ethernet connections, while the combination of copper and fibre interfaces allows the switch to accommodate different network layouts.
Network administrators can manage VLANs, STP/RSTP, loop protection, port isolation and port mirroring through the switch. Additional Layer 3 capabilities include static IPv4 routing, static IPv6 routing and DHCPv6 client support, providing greater control over network traffic and connected devices.
Support for industrial networking protocols including PROFINET, EtherNet/IP and MRP allows the switch to integrate with industrial automation equipment. MRP support can be used for ring network configurations, while PROFINET features support industrial Ethernet applications.
Quality of Service features provide options for prioritising network traffic using port, DSCP, IEEE 802.1p and TOS priorities. Rate limiting, storm control and scheduling methods such as SP, WFQ and WRR provide additional control over how data is handled across the network.

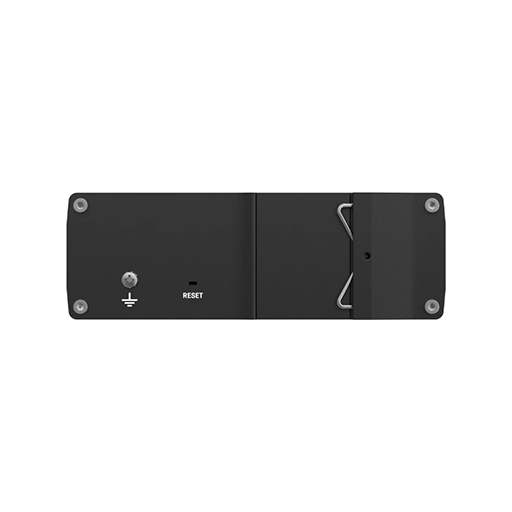

The switch uses a full aluminium housing and supports DIN rail mounting for convenient installation in industrial cabinets and equipment areas. The 9-57 VDC input range supports a variety of industrial power arrangements, while the compact housing measures 132 x 44.2 x 122 mm.
TSWOS provides the operating environment for configuring and managing the switch, with Web UI access for network settings and device administration. RMS support enables remote firmware updates and configuration management for compatible deployments.
The Teltonika TSW212 is a managed Ethernet switch that combines eight Gigabit Ethernet ports with two SFP ports for flexible copper and fibre network connectivity. It provides Layer 2 management with additional Layer 3 functions, including static IPv4 and IPv6 routing and DHCPv6 client support. Support for EtherNet/IP, PROFINET and MRP makes it suitable for industrial networking environments, while VLAN, STP/RSTP, QoS, port mirroring and bandwidth control provide detailed control over network traffic.
The eight Gigabit Ethernet ports for connecting network devices at speeds of up to 1000 Mbps, together with two SFP ports for fibre connections. Auto MDI/MDIX support simplifies Ethernet connections, while the combination of copper and fibre interfaces allows the switch to accommodate different network layouts.
Network administrators can manage VLANs, STP/RSTP, loop protection, port isolation and port mirroring through the switch. Additional Layer 3 capabilities include static IPv4 routing, static IPv6 routing and DHCPv6 client support, providing greater control over network traffic and connected devices.
Support for industrial networking protocols including PROFINET, EtherNet/IP and MRP allows the switch to integrate with industrial automation equipment. MRP support can be used for ring network configurations, while PROFINET features support industrial Ethernet applications.
Quality of Service features provide options for prioritising network traffic using port, DSCP, IEEE 802.1p and TOS priorities. Rate limiting, storm control and scheduling methods such as SP, WFQ and WRR provide additional control over how data is handled across the network.
The switch uses a full aluminium housing and supports DIN rail mounting for convenient installation in industrial cabinets and equipment areas. The 9-57 VDC input range supports a variety of industrial power arrangements, while the compact housing measures 132 x 44.2 x 122 mm.
TSWOS provides the operating environment for configuring and managing the switch, with Web UI access for network settings and device administration. RMS support enables remote firmware updates and configuration management for compatible deployments.
