| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FETSW110 |
| Manufacturer No: | TSW110 |
| Delivery: | In Stock: Next Day |
 |

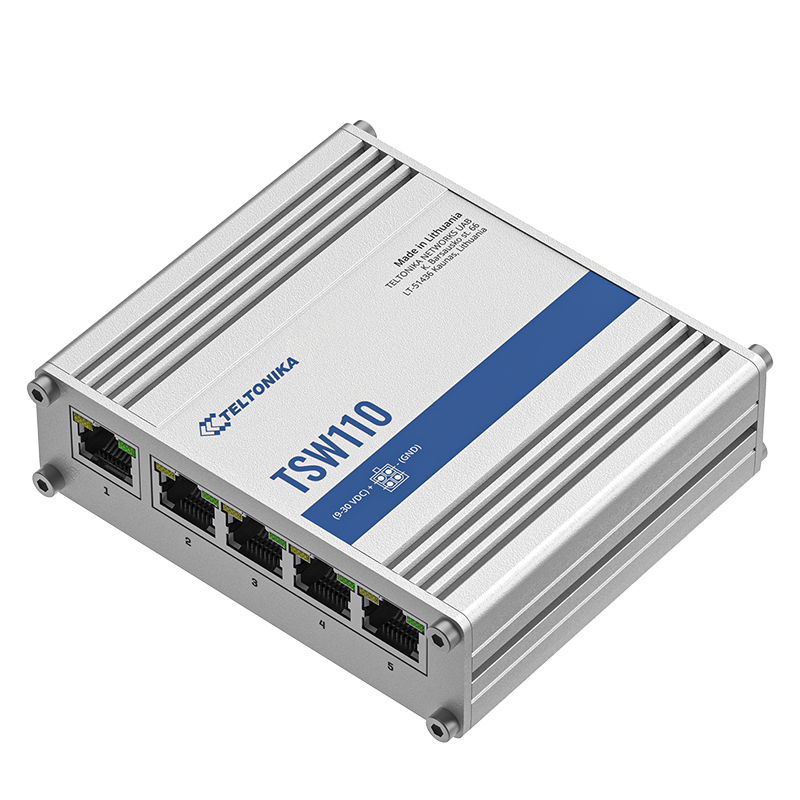

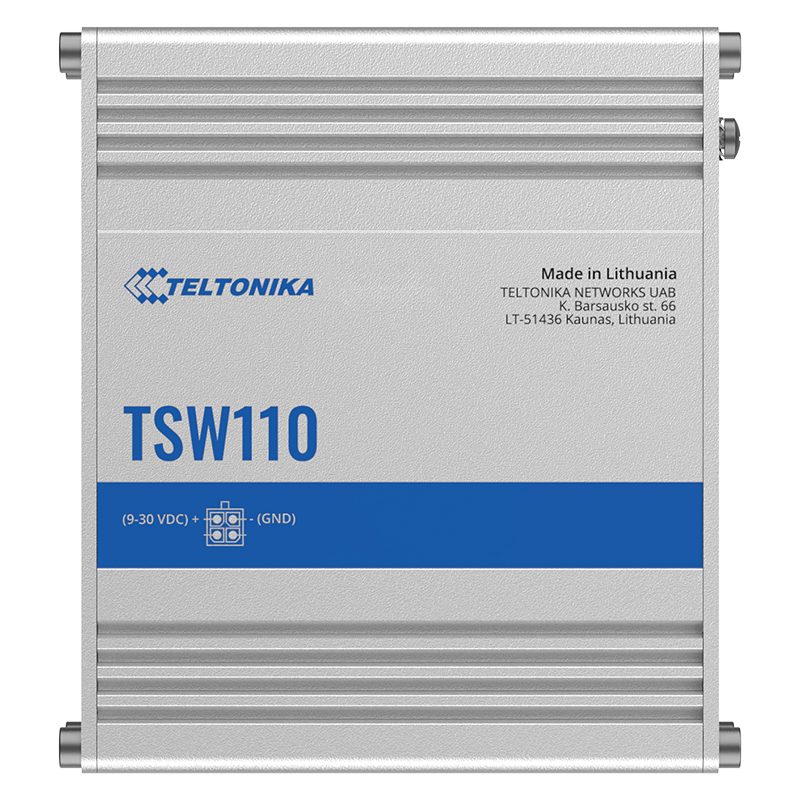

Teltonika TSW110 L2 Unmanaged x5 Port Switch
TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100.
Possible to power up through the first LAN port.
It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
It offers a wide range of supported power supply voltages (9-30 V).
Ideal for professional high bandwidth applications to provide reliable data connection.
No additional configuration needed
DIN rail and surface mounting options
Wide range of supported power supply voltages
Rugged aluminium housing
1 x Power, 10 x Ethernet
5 x Gigabit Ethernet with speeds up to 1000 Mbps
| Ethernet | |
| LAN | 5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Performance specifications | |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Connector | 4 pin industrial DC power socket |
| Input voltage range | 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
| Power consumption (idle/max) | < 0.4 W/ <1.8 W |
| Physical interfaces (ports, LEDs) | |

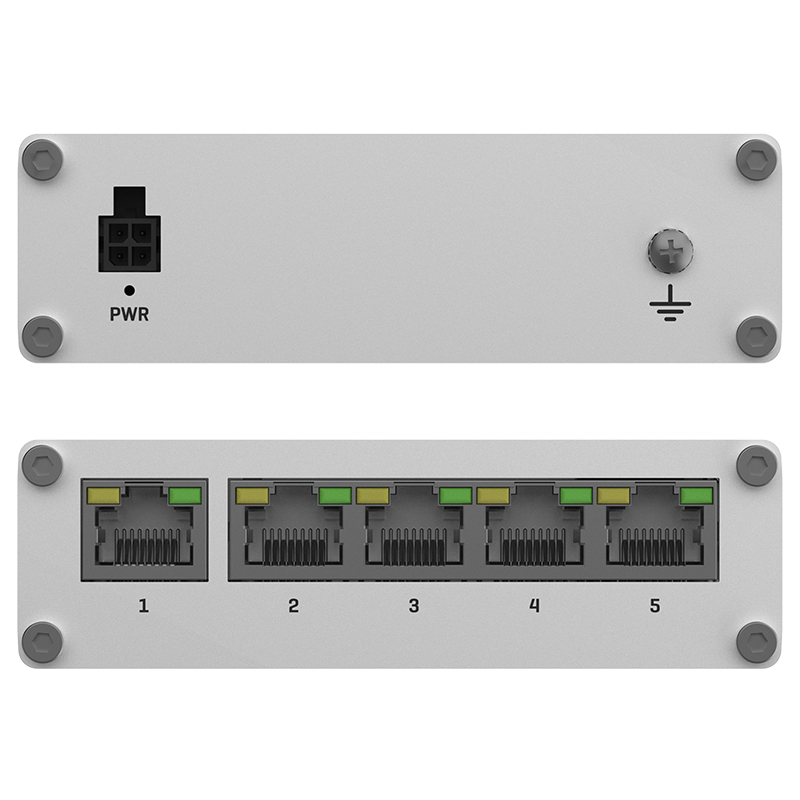

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x LAN status LED’s |
| Power | 1 x 4 pin DC connector |
| Ground | 1 x Grounding screw |
| Physical specification | |
| Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 100 x 30 x 85 mm |
| Weight | 227 g |
| Mounting options | DIN rail or wall mounting (additional kit needed), flat surface placement |
| Operating environment | |
| Operating temperature | -40 C to 75 C |
| Operating humidity | 10 % to 90 % non-condensing |
| Hardware | |
| Ethernet | 5 x LAN ports 10/100/1000 Mbps |
| Power supply | 9 - 30 V, 4 pin DC connector |
| Power consumption | idle: < 0.4 W, max: < 1.8 W |
| PoE input (passive) | Passive PoE over 4,5 (power) and 7,8 (ground) pins. Possibility to power up through first LAN port, not compatible with IEEE802.3af and 802.3at standards |
| Connectors | 1 x 4 pin DC, 5 x Ethernet |
| Status LEDs | 1 x Power, 10 x Ethernet |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with wall or DIN rail mounting option and grounding capability |
| Dimensions | 100 x 30 x 85 mm |
| Weight | 227 g |
| Installation | Desktop, wall or DIN Rail mountable (additional kit needed) |
Full specification and details can be found in the Product Datasheet PDF file
A quick start guide can be found in the Quick Start Guide PDF file
A product flyer can be found in the Product Flyer PDF file
