| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FETSW101 |
| Manufacturer No: | TSW101 |
| Delivery: | In Stock: Next Day |
 |

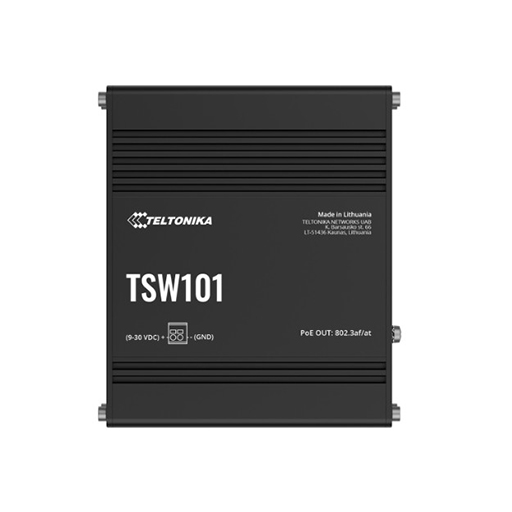

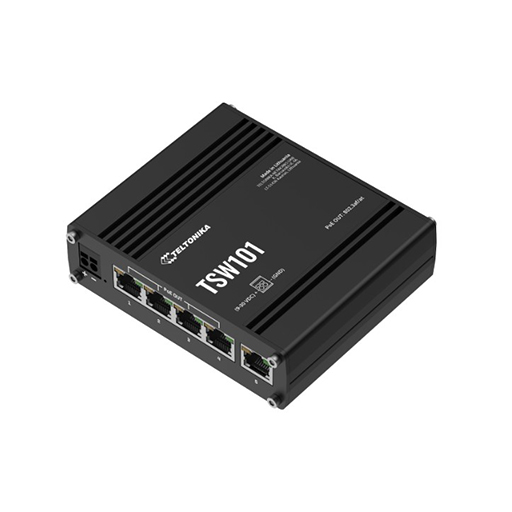

The Teltonika TSW101 is an automotive unmanaged Ethernet switch built for in-vehicle networking, providing five Gigabit Ethernet ports with four supporting PoE+ for simultaneously connecting and powering compatible devices. It accepts a 9-30 VDC input, allowing direct connection to common 12 V and 24 V vehicle power systems without requiring an additional power supply. Its compact aluminium housing, wide operating temperature range and flexible mounting options make it suitable for vehicle-based connectivity installations.

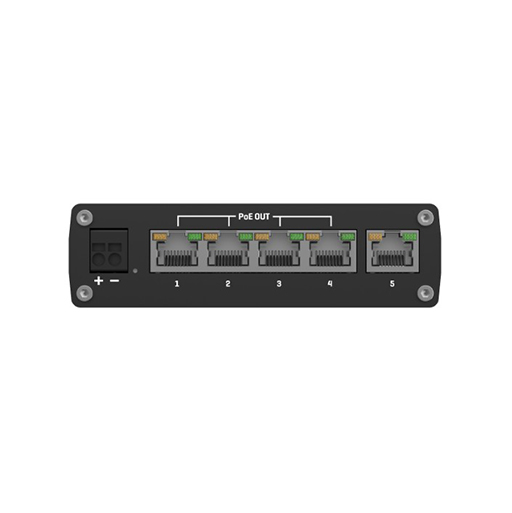

Five 10/100/1000 Mbps Ethernet ports provide Gigabit network connectivity for in-vehicle equipment. Four ports support PoE+, while the fifth port can be used as an uplink for connecting the switch to a router, modem or wider network.
Four Ethernet ports support IEEE 802.3af and IEEE 802.3at PoE standards, allowing compatible devices to receive network connectivity and electrical power through a single Ethernet connection. Each PoE port can provide up to 30 W, with a total PoE power budget of 60 W at the power sourcing equipment.
As an unmanaged switch, the unit operates without requiring network configuration. Auto MDI/MDIX support provides automatic cable crossover detection, while the 10 Gbps non-blocking bandwidth, 128 KB packet buffer and 2K MAC address table support everyday Gigabit Ethernet switching requirements.
The Teltonika TSW101 is an automotive unmanaged Ethernet switch built for in-vehicle networking, providing five Gigabit Ethernet ports with four supporting PoE+ for simultaneously connecting and powering compatible devices. It accepts a 9-30 VDC input, allowing direct connection to common 12 V and 24 V vehicle power systems without requiring an additional power supply. Its compact aluminium housing, wide operating temperature range and flexible mounting options make it suitable for vehicle-based connectivity installations.
Five 10/100/1000 Mbps Ethernet ports provide Gigabit network connectivity for in-vehicle equipment. Four ports support PoE+, while the fifth port can be used as an uplink for connecting the switch to a router, modem or wider network.
Four Ethernet ports support IEEE 802.3af and IEEE 802.3at PoE standards, allowing compatible devices to receive network connectivity and electrical power through a single Ethernet connection. Each PoE port can provide up to 30 W, with a total PoE power budget of 60 W at the power sourcing equipment.
As an unmanaged switch, the unit operates without requiring network configuration. Auto MDI/MDIX support provides automatic cable crossover detection, while the 10 Gbps non-blocking bandwidth, 128 KB packet buffer and 2K MAC address table support everyday Gigabit Ethernet switching requirements.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
