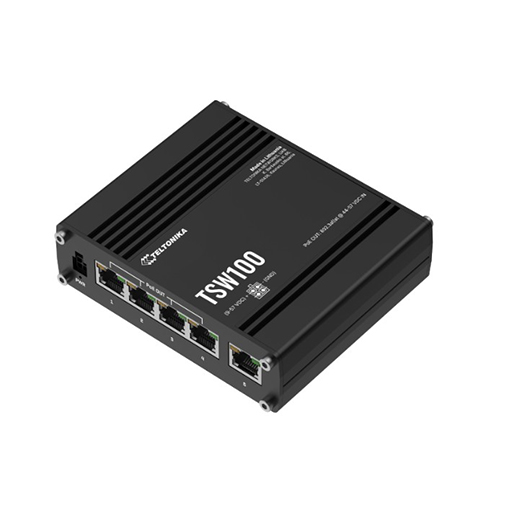

Teltonika TSW100 Industrial Unmanaged PoE+ Switch

The Teltonika TSW100 is an industrial unmanaged Gigabit Ethernet switch with four PoE+ ports and one dedicated uplink port. It supports IEEE 802.3af and 802.3at PoE standards, delivering up to 30 W per PoE port with a total PSE power budget of up to 120 W. Five 10/100/1000 Mbps Ethernet ports provide high-speed wired connectivity, while DIN rail and surface mounting options allow flexible installation in industrial environments.

Key Features of Teltonika TSW100

• 5 x Gigabit Ethernet ports
• 4 x PoE+ ports and 1 x uplink port
• IEEE 802.3af and 802.3at PoE support
• Up to 30 W PoE power per port
• Up to 120 W total PoE power budget at PSE
• 10/100/1000 Mbps Ethernet speeds
• 10 Gbps non-blocking bandwidth
• 128 KB packet buffer
• 2K MAC address table
• 9216-byte jumbo frame support
• Automatic MDI/MDI-X cable detection
• DIN rail and surface mounting options

Gigabit Ethernet Connectivity

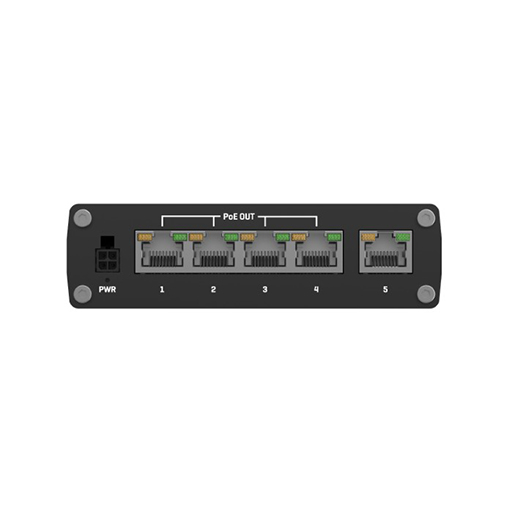

The switch provides five RJ45 Ethernet ports supporting 10/100/1000 Mbps connections. Four ports provide PoE+ output, while the remaining port serves as an uplink for connecting the switch to a wider network.

PoE+ Power Delivery

Four Ethernet ports support IEEE 802.3af and 802.3at PoE standards, allowing compatible devices to receive both network data and electrical power through a single Ethernet cable. Each PoE port can provide up to 30 W, with a total PSE power budget of up to 120 W.

Industrial Power Input

A four-pin industrial DC power socket accepts an input range of 7-57 VDC. PoE output requires an input voltage between 44 VDC and 57 VDC, while lower input voltages allow the unit to operate as a standard Ethernet switch without PoE output.

Switching Performance

The switch provides 10 Gbps of non-blocking bandwidth, a 128 KB packet buffer and a 2K-entry MAC address table. Jumbo frames up to 9216 bytes are supported, while automatic MDI/MDI-X detection simplifies Ethernet cable connections.

Unmanaged Operation

As an unmanaged switch, the unit operates without a software management interface or configuration process. Switching and PoE functions are handled by the integrated hardware, allowing connected Ethernet devices to communicate without additional switch configuration.
