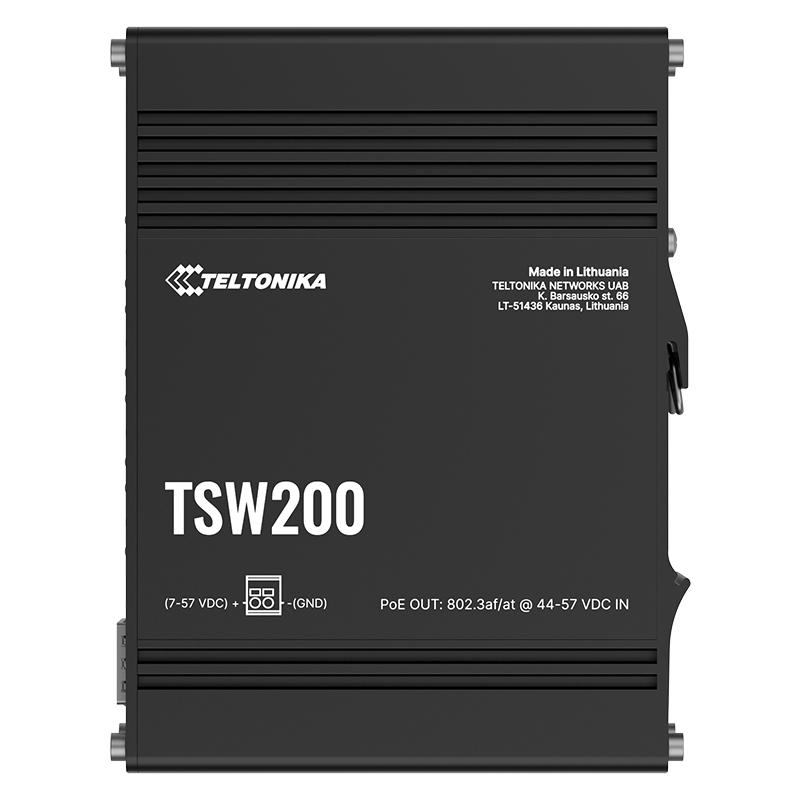

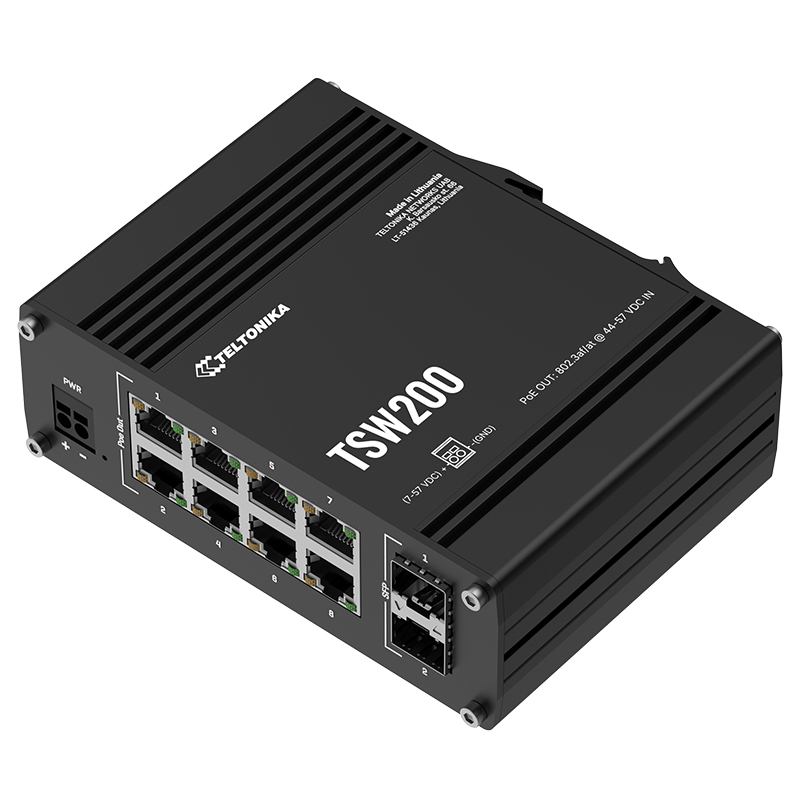

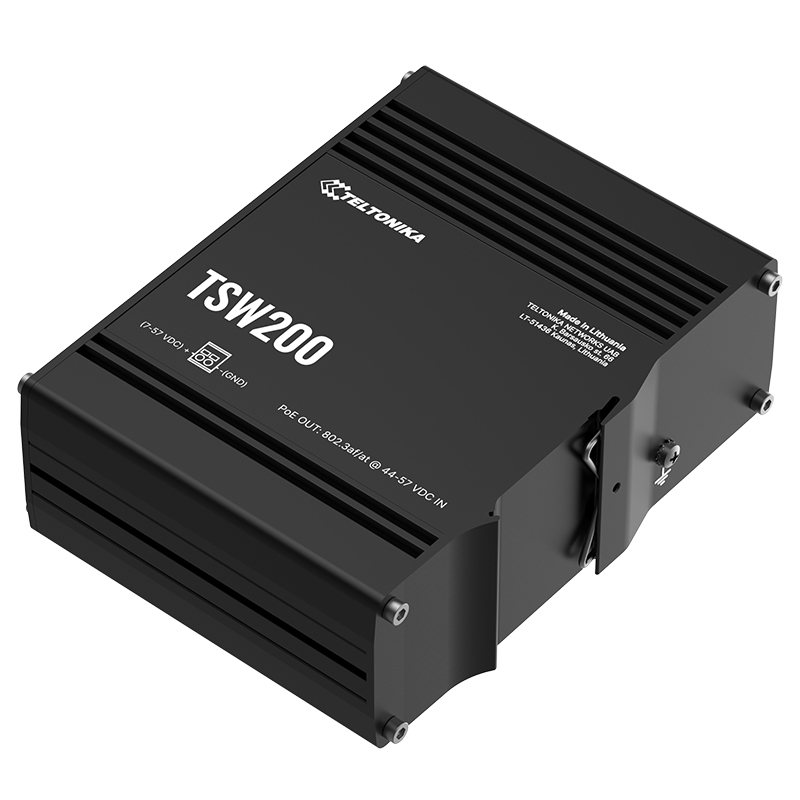

Teltonika TSW200 PoE+ Gigabit Ethernet x8 Port Switch
TSW200 is industrial unmanaged switch from Teltonika Networks.
TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.
Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.
8x PoE ports with 802.3af and 802.3at support
Total power budget at PSE up to 240 W
2 x SFP ports for long-range Fiber-optic communication voltages
Rugged aluminium housing
8 x Gigabit Ethernet with speeds up to 1000 Mbps

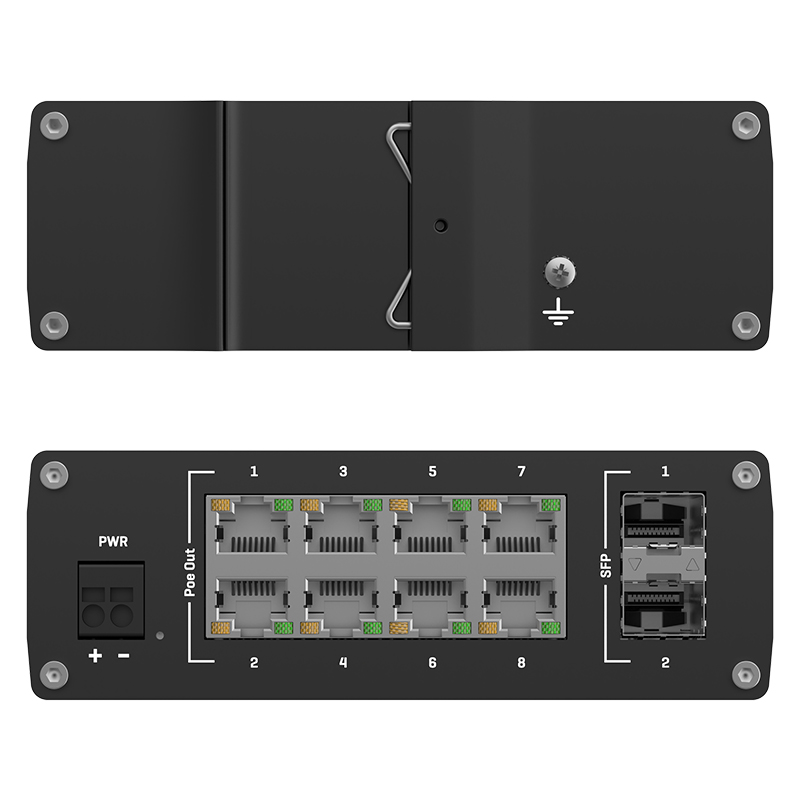

DIN rail and surface mounting options
| Ethernet | |
| LAN | 8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Fiber | 2 x SFP ports |
| POE | |
| PoE ports | Port 1 - 8 |
| PoE standards | 802.3af and 802.3at |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 240 W |
| Performance specifications | |
| Bandwidth (Non-blocking) | 20 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| Power | |
| Connector | 2 pin industrial DC power socket |
| Input voltage range | 7 - 57 VDC |
| Input voltage range for PoE | 44 - 57 VDC |
| Power consumption (idle/max no PoE/max) | 1,81 W/5.5 W/245.5 W |
| Physical interfaces (ports, LEDs) | |
| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s |
| Power | 1 x 2 pin industrial DC power socket |
| Ground | 1 x Grounding screw |
| Fiber | 2 x SFP ports |
| Physical specification | |
| Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 456 g |
| Mounting options | DIN rail or wall mounting (additional kit needed), flat surface placement |
| Operating environment | |
| Operating temperature | -40 °C to +75 °C |
| Operating humidity | 10 % to 90 % non-condensing |
| Ingress Protection Rating | IP30 |
| Hardware | |
| Power connector | 2 pin industrial DC power socket |
| Input voltage range | 7-57 VDC |
| Input voltage range for PoE | 44-57 VDC |
| Power consumption | Idle: 1.81W, Max: 5.5W (no PoE device connected) |
| PoE standard | 802.3af/at (up to 30 W per port, total power budget - 240 W) |
| Ethernet | 8 x 10/100/1000 Mbps Ethernet ports |
| SFP | 2 x SFP ports for Optical interfaces |
| Status LEDs | 16 x Ethernet, 1 x Power, 2 x SFP activity |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with wall or DIN rail mounting option and grounding capability |
| Dimensions | 132 x 44.2 x 95.1 mm |
| Weight | 456 g |
| Installation | Desktop, wall or DIN Rail mountable (additional kit needed) |
Full specification and details can be found in the Product Datasheet PDF file
A quick start guide can be found in the Quick Start Guide PDF file
A product flyer can be found in the Product Flyer PDF file
