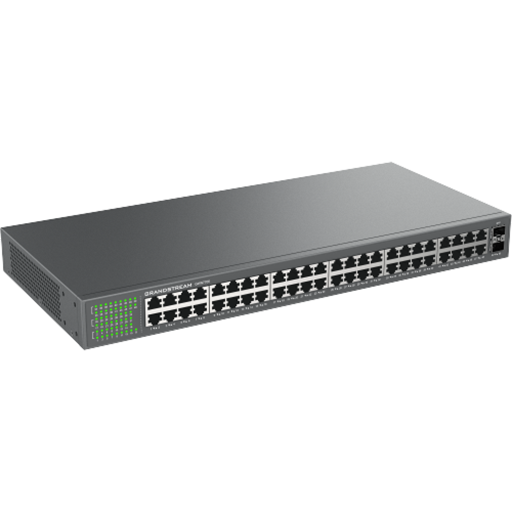

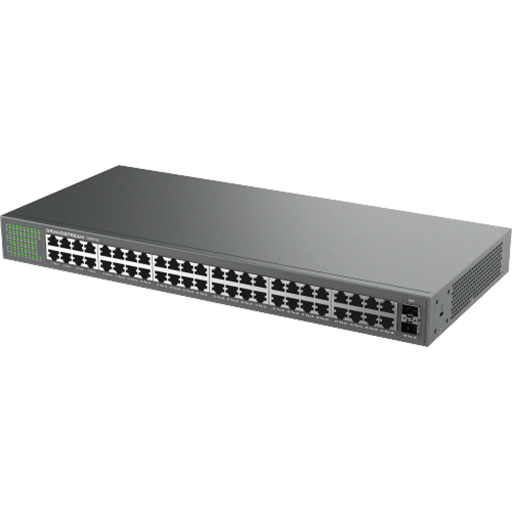

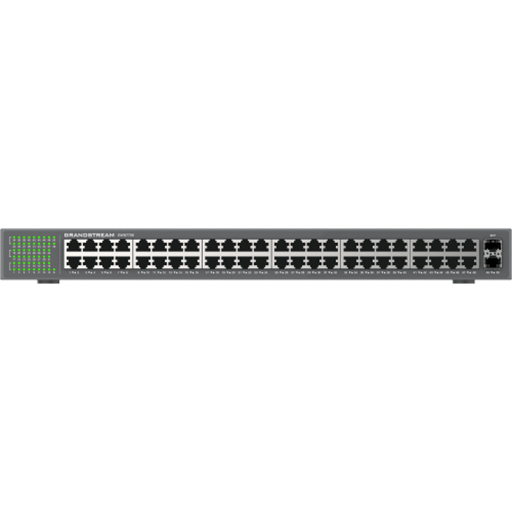

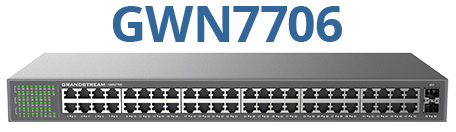

Grandstream GWN7706 UNMANAGED 48XGE + 2XSFP SWITCH

Grandstream GWN7706 48-Port Gigabit Unmanaged Switch with 2 SFP Fibre Ports

The Grandstream GWN7706 is a plug-and-play unmanaged switch designed to provide high-density wired connectivity for offices, workgroups, server rooms and other business networks. It combines forty-eight 10/100/1000Mbps RJ45 ports with two 1000Base-X Gigabit SFP fibre ports for linking compatible switches and other network infrastructure.

With 100Gbps switching capacity, a 16K MAC address table and 9KB jumbo frame support, the GWN7706 provides reliable performance for larger Gigabit networks. Its durable metal case supports desk or rack-mounted installation.

Key Features

• 48 x 10/100/1000Mbps Gigabit RJ45 ports
• 2 x 1000Base-X Gigabit SFP [Small Form-factor Pluggable] fibre ports, each supporting a separate 1Gbps full-duplex link
• Unmanaged plug-and-play operation for straightforward deployment
• 100Gbps switching capacity with a 16K MAC [Media Access Control] address table
• 9KB jumbo frame support for compatible high-volume network traffic
• Auto-negotiation and Auto MDI/MDIX on all RJ45 ports
• Metal case for desk or rack-mounted installation
• IEEE 802.3x flow control and 802.1p/DSCP QoS [Quality of Service]
• Half/full-duplex operation with MAC address auto-learning and auto-aging
• Link/activity LED for each port and a system power LED
• Internal 100-240V AC, 50/60Hz, 40W power supply with 30W maximum base-system consumption at 220V/50Hz

48-Port Gigabit Switching with Dual SFP Fibre Connections

The GWN7706 provides substantial wired capacity wherever an existing network needs more Gigabit Ethernet connections. Its 48-port design is well suited to larger offices, workgroups, server rooms and network distribution points. The two 1000Base-X SFP ports can each carry a separate 1Gbps full-duplex fibre link through a compatible transceiver, allowing up to 2Gbps of combined traffic in each direction across the two independent connections.

Key Benefits

• Adds forty-eight Gigabit RJ45 ports for high-density wired network expansion
• Provides two separate 1000Base-X Gigabit SFP fibre links for connecting compatible switches and other network infrastructure
• Connects workstations, printers, servers and other wired equipment through one switch
• Reduces deployment time with plug-and-play unmanaged operation
• Automatically adapts to connected 10Mbps, 100Mbps and Gigabit RJ45 devices
• Supports flexible installation on a desk, shelf or rack

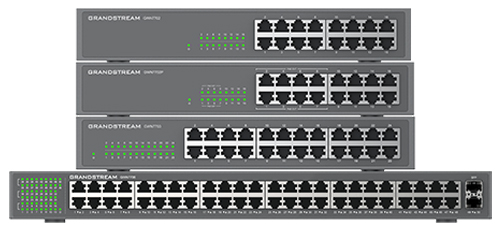

Comms Express offers GWN7700 series switches, along with many others in Grandstream Unmanaged Switches including:

• GWN7702 - 16 Gigabit ports, metal case, desk/rack-mount, 32Gbps switching
• GWN7703 - 24 Gigabit ports, metal case, desk/rack-mount, 48Gbps switching
• GWN7706 - 48 Gigabit ports, 2 x SFP ports, metal case, desk/rack-mount, 100Gbps switching
• GWN7702P - 16 Gigabit ports, 8 PoE/PoE+ ports, 138W PoE budget, metal case, desk/rack-mount, 32Gbps switching

For a wider choice of networking equipment, Comms Express also offers:

• Grandstream Switches for many other Grandstream switch options
• Network Switches for an impressive range of switches from other leading manufacturers
• RJ45 Ethernet Cables & Patch Leads for connecting workstations, printers, routers and other wired network devices.

The package includes the GWN7706 switch, a 1.2m AC power cable, rack-mounting standard brackets, four rubber feet, a grounding cable and a Quick Installation Guide.

*For complete specifications see the documentation tab above
