Grandstream GWN7702P UNMANAGED 16-PORT 8 X POE GE SWITCH

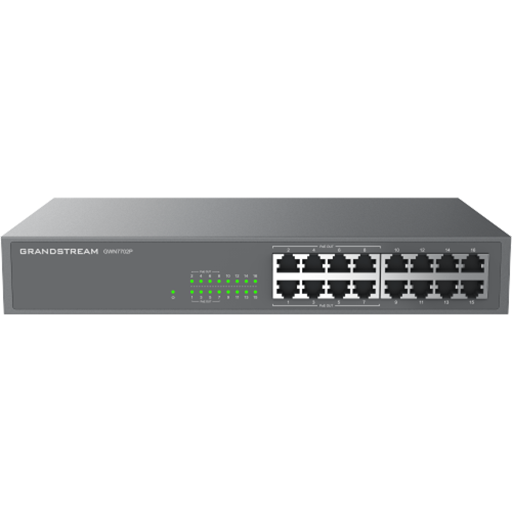

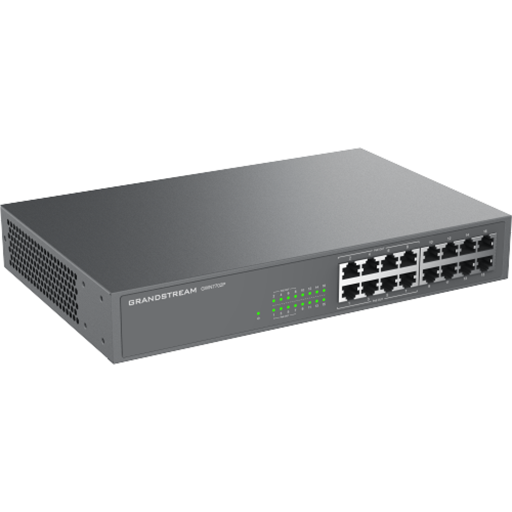

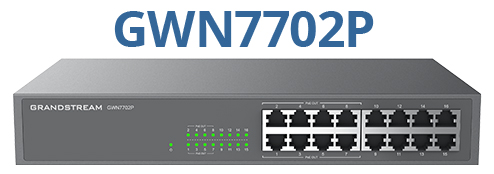

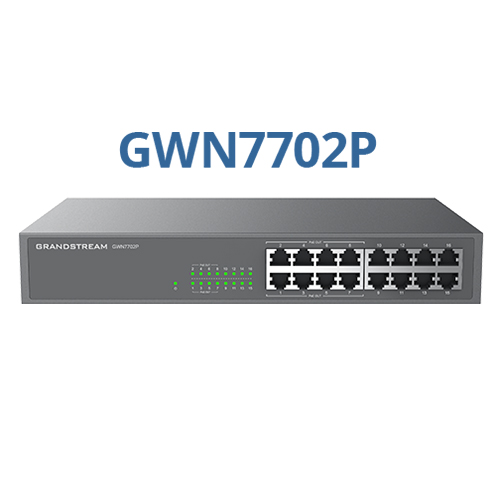

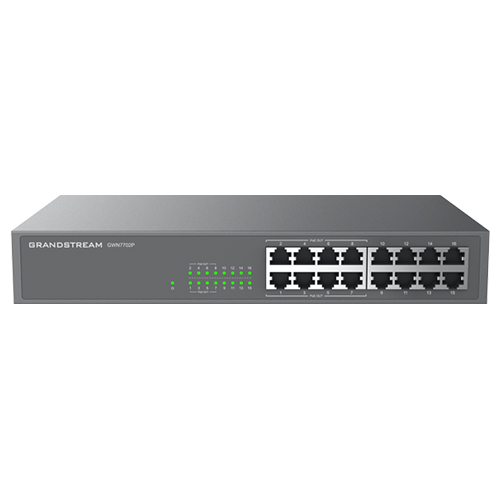

Grandstream GWN7702P 16-Port Gigabit Unmanaged PoE Switch

The Grandstream GWN7702P is a plug-and-play 16-port Gigabit unmanaged switch designed to add high-speed wired connectivity and PoE power to offices and small-to-medium businesses. It provides sixteen 10/100/1000Mbps RJ45 ports, including eight IEEE 802.3af/at PoE/PoE+ ports for powering compatible IP phones, IP cameras, wireless access points and other network devices.

Each PoE port can deliver up to 30W, supported by a 138W total PoE budget. With 32Gbps switching capacity, an 8K MAC address table and 10KB jumbo frame support, the GWN7702P provides reliable Gigabit performance in a durable metal case suitable for desk or rack-mounted installation.

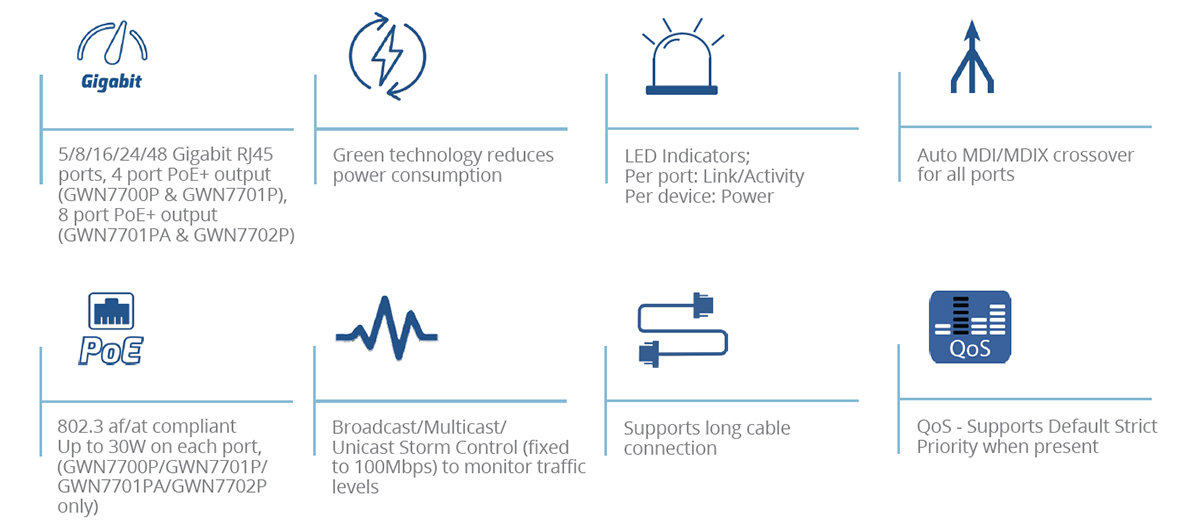

Key Features

• 16 x 10/100/1000Mbps Gigabit RJ45 ports
• 8 x IEEE 802.3af/at PoE/PoE+ output ports
• Up to 30W output per PoE port with a 138W total PoE budget
• Unmanaged plug-and-play operation for straightforward deployment
• 32Gbps switching capacity with an 8K MAC [Media Access Control] address table
• 10KB jumbo frame support for compatible high-volume network traffic
• Auto-negotiation and Auto MDI/MDIX on all ports
• Metal case for desk or rack-mounted installation
• IEEE 802.3x flow control and 802.1p QoS [Quality of Service] with default strict priority
• Half/full-duplex operation with half-duplex backpressure
• Broadcast, multicast and unicast storm control fixed to 100Mbps
• Internal 100-240V AC power supply with 10.1W maximum base-system power consumption at 220V/50Hz, excluding PoE output

16-Port Gigabit Switching with PoE

The GWN7702P combines sixteen-port Gigabit network expansion with power delivery for up to eight compatible PoE devices. This allows network data and electrical power to be carried over the same Ethernet cable, helping simplify installations for IP phones, security cameras and wireless access points where separate power sockets may be inconvenient.

Key Benefits

• Adds sixteen Gigabit ports for reliable wired network expansion
• Powers up to eight compatible PoE or PoE+ devices directly from the switch
• The 138W PoE budget supports installations with multiple powered endpoints
• Combines network data and power over the same Ethernet cabling
• Automatically adapts to connected 10Mbps, 100Mbps and Gigabit devices
• Supports flexible installation on a desk, shelf or rack

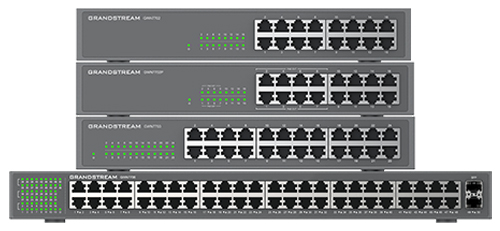

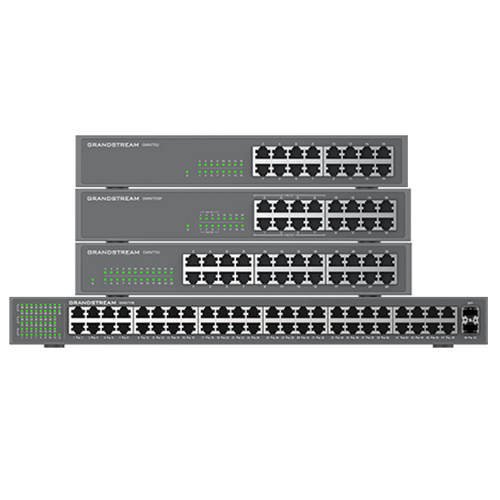

Comms Express offers GWN7700 series switches, along with many others in Grandstream Unmanaged Switches including:

• GWN7702 - 16 Gigabit ports, metal case, desk/rack-mount, 32Gbps switching
• GWN7703 - 24 Gigabit ports, metal case, desk/rack-mount, 48Gbps switching
• GWN7706 - 48 Gigabit ports, 2 x SFP ports, metal case, desk/rack-mount, 100Gbps switching
• GWN7702P - 16 Gigabit ports, 8 PoE/PoE+ ports, 138W PoE budget, metal case, desk/rack-mount, 32Gbps switching

For a wider choice of networking equipment, Comms Express also offers:

• Grandstream Switches for many other Grandstream switch options
• Network Switches for an impressive range of switches from other leading manufacturers
• RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections

The package includes the GWN7702P switch, a 1.2m AC power cable, rack-mounting standard brackets, four rubber feet and a Quick Installation Guide.

*For complete specifications see the documentation tab above
