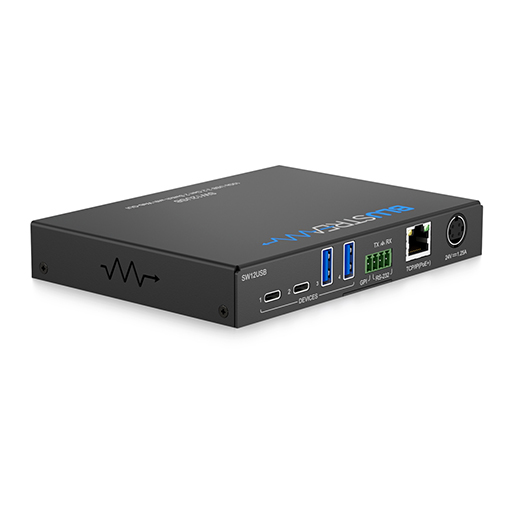

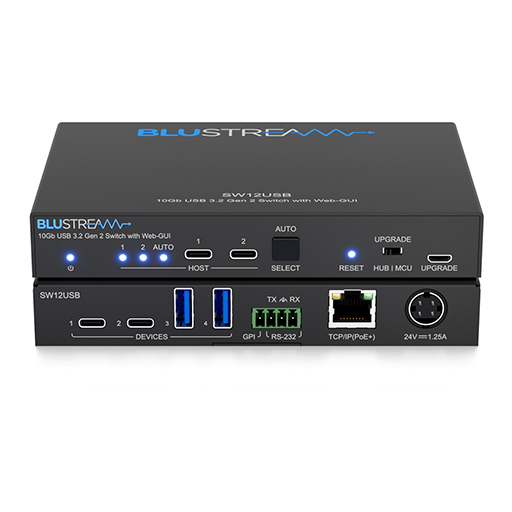

Blustream SW12USB USB3.2 Gen 2 Hub - 2x Host Switching Hub

The Blustream SW12USB USB 3.2 Gen2 Hub allows multiple USB devices to be shared between two host systems with fast data transfer speeds and simple switching options. Supporting both USB-C and USB-A peripherals, the hub is designed for professional AV setups, collaboration environments, and workspace systems where reliable USB connectivity and flexible control are needed. It provides automatic or manual host switching while offering multiple control interfaces for easy integration into existing setups.

Key Features of BlueStream SW12USB

• USB 3.2 Gen2 switch allowing up to 4 x USB peripheral devices to connect to 2 x USB hosts
• Features 2 x USB-C and 2 x USB-A device inputs and 2 x USB-C hosts
• USB 3.2 Gen2 connectivity with data transfer rate up to 10Gbps
• Backwards compatible with USB 2.0 and 1.1
• Auto or manual switching
• Plug-and-play with no drivers, downloads, or software required
• Features 1 x GPI port for integration with 3rd party products
• Features 802.3at PoE+ for powering of product from PoE+ network
• Local 24V power supply input for when network switch does not support PoE+
• Web interface module for control and configuration of SW12USB
• Control via front panel buttons, RS-232, or TCP/IP

Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through

Flexible Device and Host Management

The SW12USB hub allows two USB hosts to access four connected USB devices, including both USB-C and USB-A types. Switching between hosts can be automatic based on activity or manually controlled for precise operation.

High-Speed Data Transfer

With USB 3.2 Gen2 connectivity, data can move at speeds up to 10Gbps while maintaining compatibility with older USB standards. This ensures fast, reliable performance for peripherals such as storage devices, cameras, and interactive tools.

Integration and Control

The hub can be managed using front panel buttons, RS-232, TCP/IP, or a web interface, and includes a GPI port for integration with third-party systems. Power options include PoE+ from a network switch or a local 24V DC supply, offering flexibility for different installation environments.
