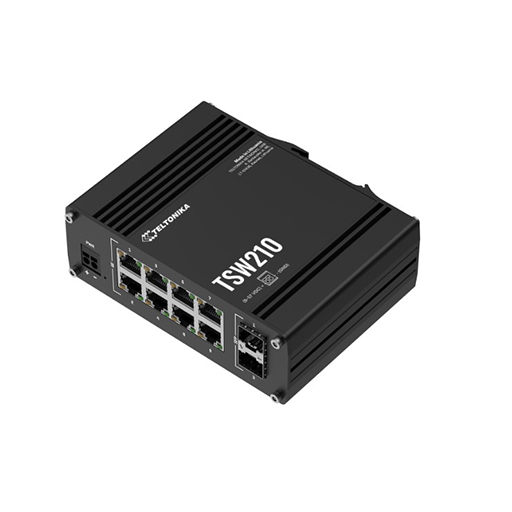

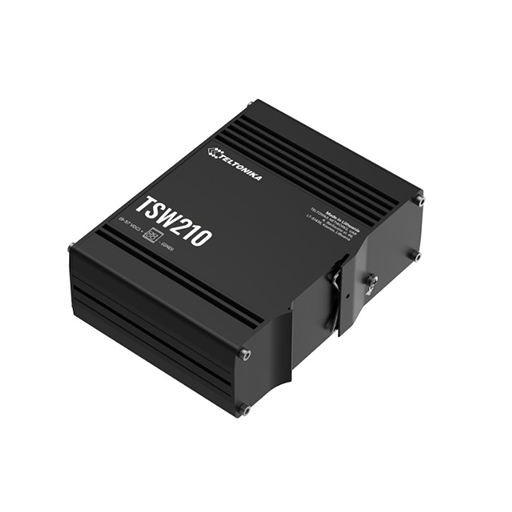

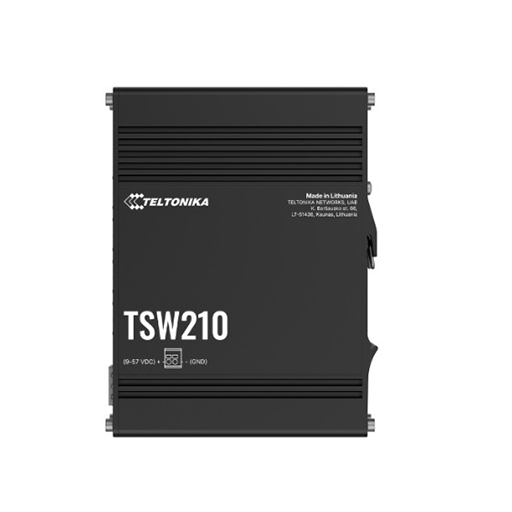

The Teltonika TSW210 is an unmanaged industrial Ethernet switch that combines eight Gigabit Ethernet ports with two SFP interfaces for flexible copper and fibre network connections. The eight RJ45 ports support speeds of up to 1000 Mbps, while the SFP ports provide connectivity for longer-distance fibre links. Plug-and-play operation allows connected equipment to communicate without additional configuration, and the 2-pin industrial DC power input supports a wide 7-57 VDC range. An aluminium housing, DIN rail and surface mounting options, and an operating temperature range of -40 °C to 75 °C make the switch suitable for a variety of industrial installations.

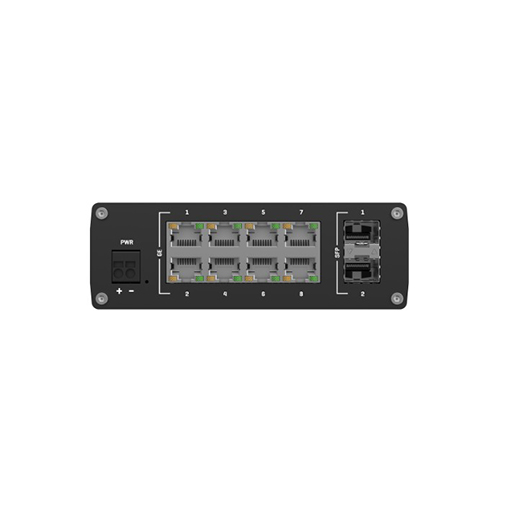

The switch provides eight RJ45 Ethernet ports supporting 10/100/1000 Mbps connections, allowing multiple network devices to communicate at Gigabit speeds. Auto MDI/MDIX crossover support simplifies cabling by automatically accommodating different Ethernet connection types.
Two SFP ports provide an additional option for connecting fibre-optic network links. This allows devices located farther apart to be connected through compatible SFP transceivers while retaining high-speed network communication.
As an unmanaged switch, the unit provides straightforward network connectivity without requiring additional configuration. Connected equipment can be linked through the Ethernet and SFP ports as soon as the switch is powered and installed.
The switch provides 20 Gbps of non-blocking bandwidth, a 128 KB packet buffer and a 2K-entry MAC address table. Jumbo frames up to 9216 bytes are supported, while IEEE 802.3i, 802.3u, 802.3ab, 802.3x and 802.3az standards provide compatibility with a range of Ethernet networking equipment.

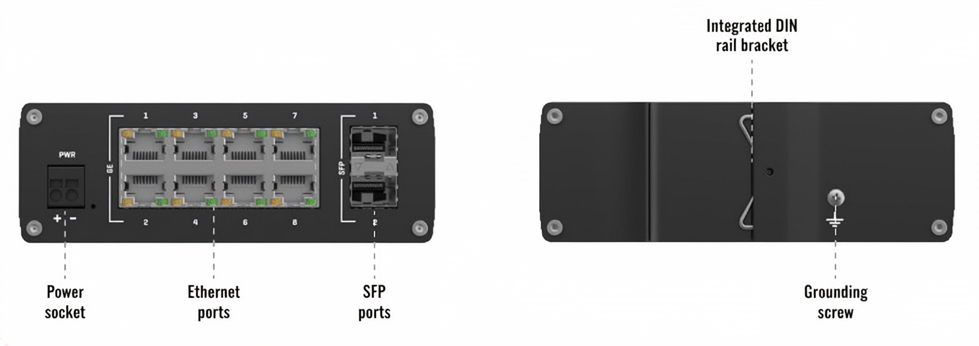

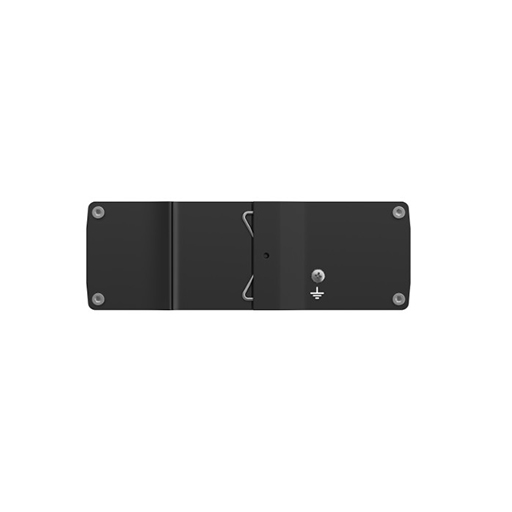

A 2-pin industrial DC power socket supports a 7-57 VDC input range. The full aluminium housing measures 132 x 44.2 x 95.1 mm and weighs 500 g. An integrated DIN rail bracket is available on the standard order code, with wall and flat-surface mounting also supported using an additional kit.
The Teltonika TSW210 is an unmanaged industrial Ethernet switch that combines eight Gigabit Ethernet ports with two SFP interfaces for flexible copper and fibre network connections. The eight RJ45 ports support speeds of up to 1000 Mbps, while the SFP ports provide connectivity for longer-distance fibre links. Plug-and-play operation allows connected equipment to communicate without additional configuration, and the 2-pin industrial DC power input supports a wide 7-57 VDC range. An aluminium housing, DIN rail and surface mounting options, and an operating temperature range of -40 °C to 75 °C make the switch suitable for a variety of industrial installations.
The switch provides eight RJ45 Ethernet ports supporting 10/100/1000 Mbps connections, allowing multiple network devices to communicate at Gigabit speeds. Auto MDI/MDIX crossover support simplifies cabling by automatically accommodating different Ethernet connection types.
Two SFP ports provide an additional option for connecting fibre-optic network links. This allows devices located farther apart to be connected through compatible SFP transceivers while retaining high-speed network communication.
As an unmanaged switch, the unit provides straightforward network connectivity without requiring additional configuration. Connected equipment can be linked through the Ethernet and SFP ports as soon as the switch is powered and installed.
The switch provides 20 Gbps of non-blocking bandwidth, a 128 KB packet buffer and a 2K-entry MAC address table. Jumbo frames up to 9216 bytes are supported, while IEEE 802.3i, 802.3u, 802.3ab, 802.3x and 802.3az standards provide compatibility with a range of Ethernet networking equipment.
A 2-pin industrial DC power socket supports a 7-57 VDC input range. The full aluminium housing measures 132 x 44.2 x 95.1 mm and weighs 500 g. An integrated DIN rail bracket is available on the standard order code, with wall and flat-surface mounting also supported using an additional kit.
