| Part No: | FETSW030 |
| Manufacturer No: | TSW030 |
| Delivery: | In Stock: Next Day |
 |

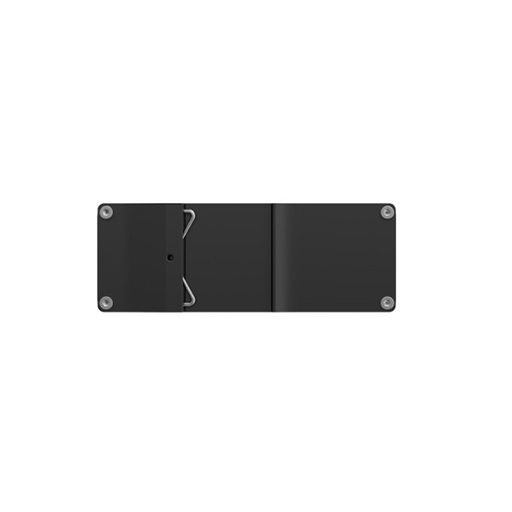

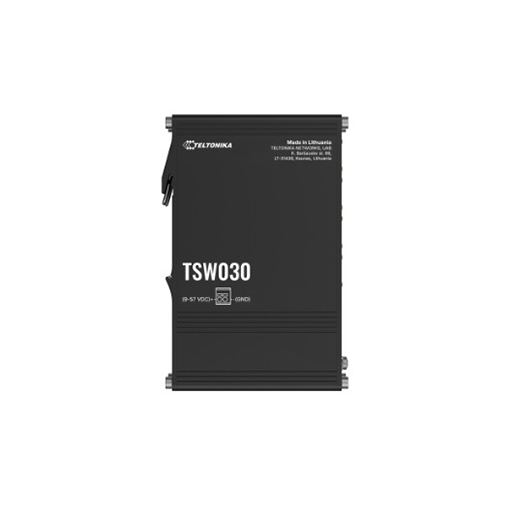

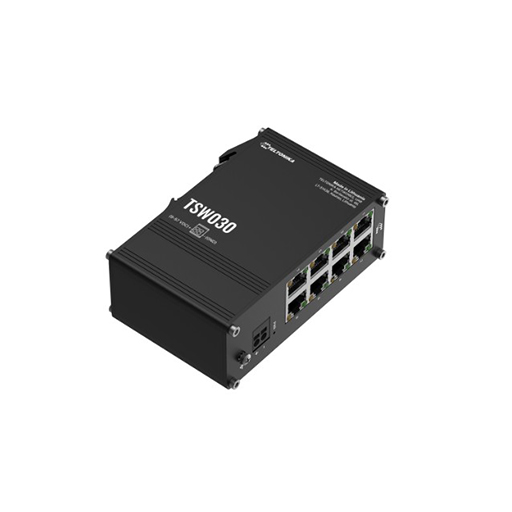

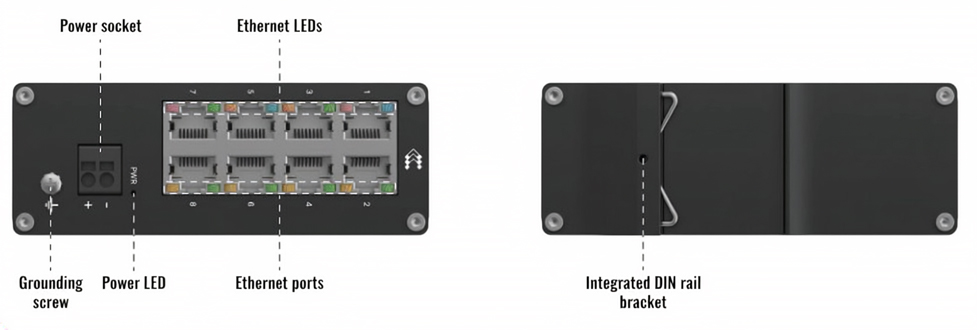

The Teltonika TSW030 is an 8-port unmanaged Ethernet switch providing eight 10/100 Mbps RJ45 connections for linking network equipment in industrial and automation environments. Its integrated DIN rail bracket supports straightforward cabinet installation, while the 2-pin industrial DC power socket accepts a wide 7-57 VDC input range. With plug-and-play operation, low power consumption and a compact anodised aluminium housing, the switch provides a practical way to connect multiple Ethernet devices without requiring network configuration.

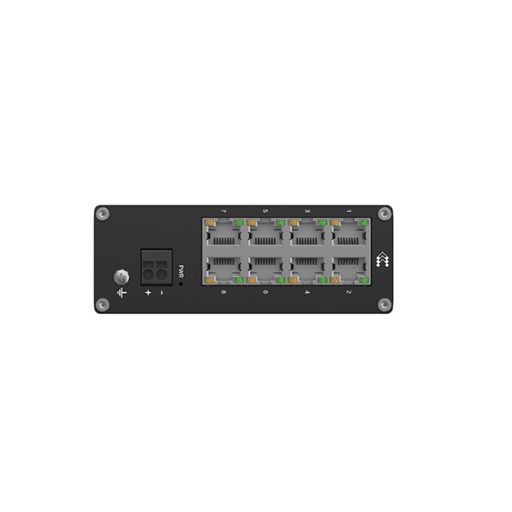

The switch provides eight RJ45 Ethernet ports supporting 10/100 Mbps connections, allowing multiple network devices to communicate over a single local Ethernet installation. Auto MDI/MDIX crossover support simplifies connections by automatically handling straight-through and crossover cable configurations.
As an unmanaged switch, the unit provides Ethernet connectivity without requiring software configuration or network management. This makes it suitable for installations where connected equipment simply needs to be linked together through a local wired network.
A 2-pin industrial DC power socket accepts 7-57 VDC. The power input includes overvoltage, reverse-polarity and surge protection, while power consumption is rated at 0.5 W when idle and up to 1.5 W at maximum.
The switch provides 20 Gbps of non-blocking bandwidth, a 128 KB packet buffer and a 2K-entry MAC address table. Jumbo frames up to 9216 bytes are supported, providing additional flexibility for Ethernet networks handling larger data frames.
The Teltonika TSW030 is an 8-port unmanaged Ethernet switch providing eight 10/100 Mbps RJ45 connections for linking network equipment in industrial and automation environments. Its integrated DIN rail bracket supports straightforward cabinet installation, while the 2-pin industrial DC power socket accepts a wide 7-57 VDC input range. With plug-and-play operation, low power consumption and a compact anodised aluminium housing, the switch provides a practical way to connect multiple Ethernet devices without requiring network configuration.
The switch provides eight RJ45 Ethernet ports supporting 10/100 Mbps connections, allowing multiple network devices to communicate over a single local Ethernet installation. Auto MDI/MDIX crossover support simplifies connections by automatically handling straight-through and crossover cable configurations.
As an unmanaged switch, the unit provides Ethernet connectivity without requiring software configuration or network management. This makes it suitable for installations where connected equipment simply needs to be linked together through a local wired network.
A 2-pin industrial DC power socket accepts 7-57 VDC. The power input includes overvoltage, reverse-polarity and surge protection, while power consumption is rated at 0.5 W when idle and up to 1.5 W at maximum.
The switch provides 20 Gbps of non-blocking bandwidth, a 128 KB packet buffer and a 2K-entry MAC address table. Jumbo frames up to 9216 bytes are supported, providing additional flexibility for Ethernet networks handling larger data frames.
