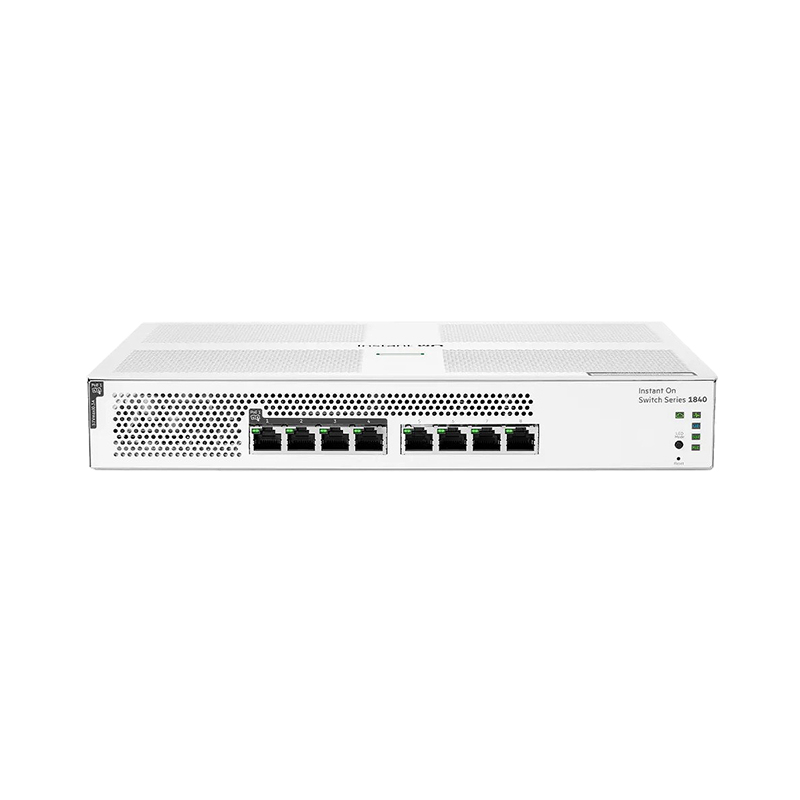

HPE S5E26A#ACC HPE Networking Instant On Switch 8p Gigabit 4p CL4 PoE 65W 1840 UK en

The HPE Networking Instant On Switch 8p Gigabit 4p CL4 PoE 65W 1840 provides eight Gigabit Ethernet ports with four ports supporting Class 4 PoE for powering compatible devices such as wireless access points, IP phones, cameras and other network equipment. With a 65W total PoE budget and up to 30W available per PoE port, it offers a practical combination of wired connectivity and device power for smaller network installations.

Key Features of HPE S5E26A#ACC

• 8 Gigabit Ethernet Ports: Eight RJ-45 10/100/1000BASE-T ports provide Gigabit wired network connectivity.
• 4-Port Class 4 PoE: Four ports support IEEE 802.3at Class 4 PoE for compatible powered devices.
• 65W PoE Budget: Provides a total PoE power budget of 65W across the four PoE-capable ports.
• Up to 30W Per PoE Port: Class 4 PoE ports can provide up to 30W to individual compatible devices.
• Layer 2 Switching: Supports VLANs, Spanning Tree Protocol, Rapid Spanning Tree Protocol, link aggregation, LLDP, IGMP snooping and port mirroring.
• Instant On Management: Supports management through the Instant On mobile app, cloud-based web portal and local web interface.
• Network Security: Includes VLAN controls, TPM 2.0 security, automatic denial-of-service protection and global storm control.
• Energy Efficiency: Supports IEEE 802.3az Energy Efficient Ethernet and automatic port shutdown for inactive ports.
• Fanless Operation: Fanless construction supports quiet operation in acoustically sensitive environments.
• Jumbo Frames: Supports frame sizes up to 9216 bytes.
• MAC Address Table: Supports up to 16,000 MAC address entries.

Gigabit Wired Connectivity

Eight autosensing RJ-45 ports support 10/100/1000BASE-T Ethernet, providing flexible connections for computers, printers, access points, IP phones, cameras and other network devices. Auto MDI/MDI-X and auto-negotiation simplify connection and speed configuration.

Class 4 PoE Power

Four of the eight Gigabit ports provide IEEE 802.3at Class 4 PoE, with up to 30W available per port. The 65W total power budget allows several compatible powered devices to receive both network connectivity and electrical power through their Ethernet connections.

Instant On Network Management

The switch can be configured and monitored through the HPE Networking Instant On mobile application, cloud-based web portal or local web management interface. These management options provide access to configuration, monitoring, firmware updates and network troubleshooting.

Layer 2 Network Control

Layer 2 features include VLAN support, 802.1D Spanning Tree Protocol, Rapid Spanning Tree Protocol, loop protection, link aggregation, LLDP, LLDP-MED, IGMP snooping and port mirroring. These functions provide control over traffic segmentation, redundancy and network monitoring.

Security Features

Built-in security capabilities include TPM 2.0-based security, automatic denial-of-service protection and global storm control. VLANs and traffic filtering can also be used to control access and separate network traffic.

Quiet Operation

The 8-port PoE model uses fanless operation, making it suitable for offices, retail locations and other environments where low acoustic output is important. Energy Efficient Ethernet and automatic port shutdown also help reduce power consumption during periods of low network activity.
