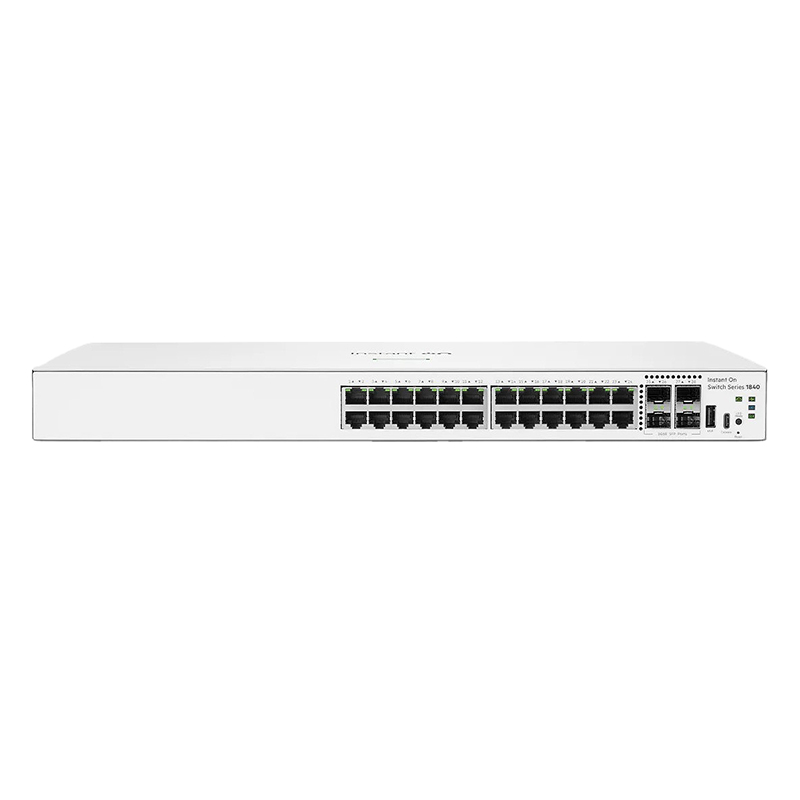

HPE S5E28A#ACC HPE Networking Instant On Switch 24p Gigabit 4p SFP 1840 UK en

The HPE Networking Instant On Switch 24p Gigabit 4p SFP 1840 provides 24 Gigabit Ethernet connections together with four dedicated 1GbE SFP uplink ports for flexible wired networking. With Layer 2 switching features, VLAN support, traffic management and multiple administration options, it provides a practical platform for connecting computers, printers, access points, servers and other Ethernet devices across small and medium-sized networks.

Key Features of HPE S5E28A#ACC

• 24 Gigabit Ethernet Ports: Provides 24 autosensing 10/100/1000BASE-T RJ-45 ports for wired network connections.
• 4 x 1GbE SFP Ports: Four dedicated SFP ports provide additional 1GbE uplink connectivity.
• Layer 2 Switching: Supports VLANs, Spanning Tree Protocol, Rapid Spanning Tree Protocol, link aggregation, LLDP, LLDP-MED, IGMP snooping and port mirroring.
• Smart Management: Supports management through the Instant On mobile application, cloud-based web portal and local web interface.
• 64 VLANs: Supports up to 64 VLANs for separating and managing network traffic.
• 16K MAC Addresses: Supports a MAC address table with up to 16,000 entries.
• Jumbo Frames: Supports frame sizes up to 9216 bytes.
• Link Aggregation: Supports up to eight link aggregation groups with up to four member ports per group.
• Network Security: Includes VLAN controls, IEEE 802.1X, access control lists, loop protection, global storm control and automatic denial-of-service protection.
• Quality of Service: Supports traffic prioritisation for voice, video and other network applications.
• Energy Efficient Ethernet: Supports IEEE 802.3az Energy Efficient Ethernet and automatic port shutdown.

24-Port Gigabit Connectivity

Twenty-four autosensing RJ-45 ports support 10/100/1000BASE-T Ethernet, giving the switch capacity for connecting a wide range of wired network devices. The ports support automatic speed and duplex negotiation for straightforward deployment across mixed-speed networks.

1GbE SFP Uplinks

Four dedicated 1GbE SFP ports provide additional uplink connections using compatible SFP transceivers. They can be used for fibre-based links or supported copper SFP connections, giving network administrators more flexibility when connecting the switch to other network equipment.

Layer 2 Network Features

The switch provides a range of Layer 2 functions including VLANs, Spanning Tree Protocol, Rapid Spanning Tree Protocol, link aggregation, LLDP, LLDP-MED, IGMP snooping and port mirroring. These features help administrators organise network traffic and manage connected devices.

Flexible Management

Administrators can manage the switch using the Instant On mobile application, cloud-based web portal or local web interface. The cloud management platform supports monitoring and configuration across Instant On sites, while local management provides an alternative for networks that prefer direct device administration.

Network Security

Security functions include IEEE 802.1X authentication, access control lists, VLAN-based controls, loop protection, global storm control and automatic denial-of-service protection. These features provide administrators with additional controls for managing access and network traffic.

Traffic Management

Quality of Service features allow traffic to be prioritised according to application requirements, including voice and video. Link aggregation can also combine multiple physical connections into logical groups to support higher aggregate bandwidth and link redundancy.
