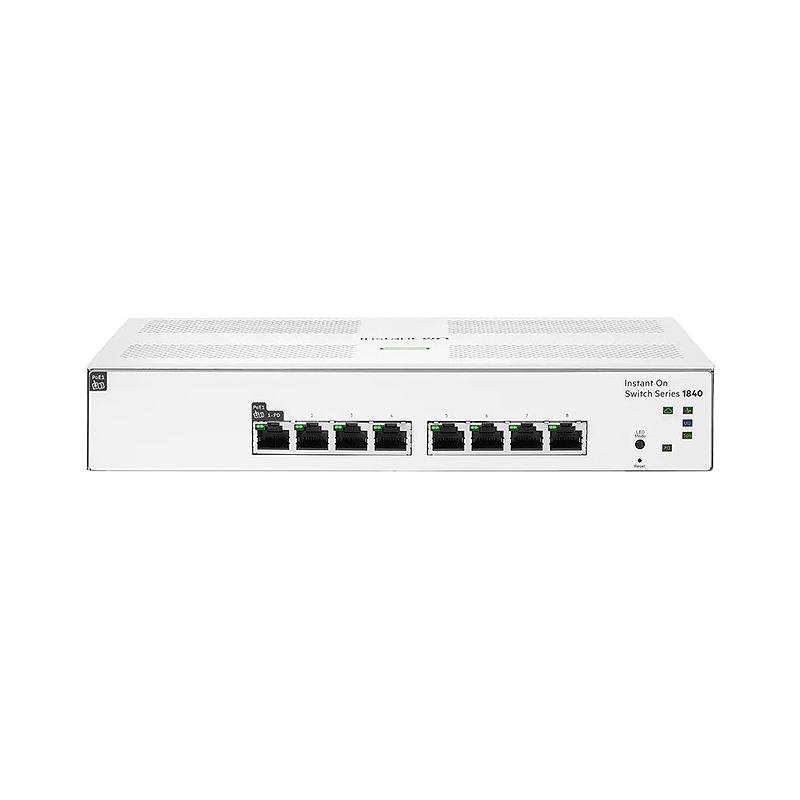

HPE S5E25A#ACC HPE Networking Instant On Switch 8p Gigabit 1p CL3 PD 1840 UK en

The HPE Networking Instant On Switch 8p Gigabit 1p CL3 PD 1840 provides eight Gigabit Ethernet connections in a compact fanless chassis for small offices, retail environments, and other locations requiring straightforward wired connectivity. Its first RJ-45 port supports IEEE 802.3af Class 3 PoE input, allowing the switch to receive up to 13W from an upstream PoE source when mains power is unavailable. The remaining seven ports provide standard 10/100/1000BASE-T connectivity, while Instant On cloud, mobile app, and local web management give administrators convenient ways to configure and monitor the network.

Key Features of HPE S5E25A#ACC

• 8-Port Gigabit Switching: Eight RJ-45 autosensing 10/100/1000BASE-T Ethernet ports provide Gigabit wired connectivity.
• PoE Powered Switch: Port 1 supports IEEE 802.3af Class 3 Powered Device input, receiving up to 13W through an upstream PoE switch.
• 16 Gbps Switching Capacity: Provides switching capacity suitable for Gigabit access networking.
• Layer 2 Switching: Supports VLANs, spanning tree, RSTP, link aggregation, IGMP snooping, LLDP and port mirroring.
• 16K MAC Address Table: Supports up to 16,000 MAC address entries.
• 64 VLANs: Supports up to 64 VLANs for network segmentation.
• Jumbo Frames: Supports frame sizes up to 9216 bytes.
• Fanless Operation: Fanless construction supports quiet operation in offices and other noise-sensitive locations.
• Instant On Management: Can be managed through the Instant On Cloud Portal, mobile application or local web interface.
• Network Security: Includes TPM 2.0, global storm control, automatic denial-of-service protection and VLAN-based controls.

Gigabit Connectivity

Eight autosensing RJ-45 ports support 10BASE-T, 100BASE-TX and 1000BASE-T connections. Each port automatically negotiates the appropriate network speed, making the switch suitable for connecting computers, printers, access points, cameras and other Ethernet devices.

Power over Ethernet Input

Unlike a conventional non-PoE switch, this model can receive power through its network connection. Port 1 accepts IEEE 802.3af Class 3 PoE input with a maximum of 13W, which can be useful in locations where a nearby mains outlet is not available. An external power adapter can also be used.

Smart Network Management

Network administrators can configure and monitor the switch through the Instant On Cloud Portal, mobile application or local web interface. The platform provides tools for device monitoring, configuration management, firmware updates, topology viewing and troubleshooting across Instant On networks.

Layer 2 Networking Features

The switch supports VLANs, 802.1D Spanning Tree Protocol, Rapid Spanning Tree Protocol, loop protection, link aggregation, LLDP, LLDP-MED, IGMP snooping and port mirroring. These features provide administrators with practical controls for organising traffic and managing connected devices.

Security and Monitoring

Built-in security capabilities include TPM 2.0-based security, automatic denial-of-service protection, global storm control and traffic filtering. Local management also provides event logs, session logging, remote syslog support, cable diagnostics and IPv4 ping testing for network administration and fault finding.
