Grandstream GWN7701PA UNMANAGED 8-PORT(8 X POE) GE SWITCH

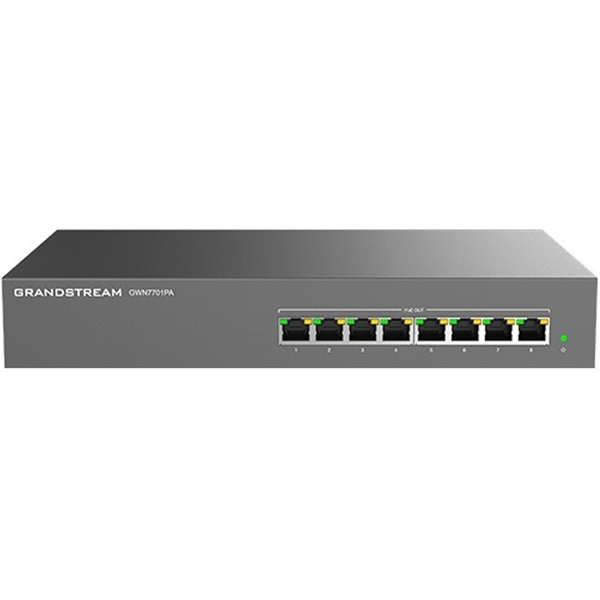

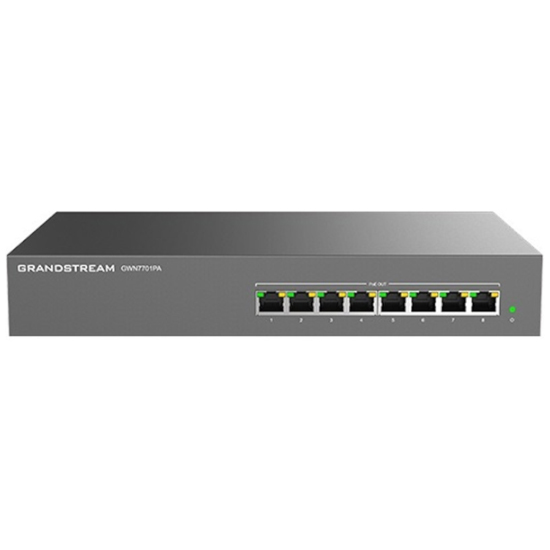

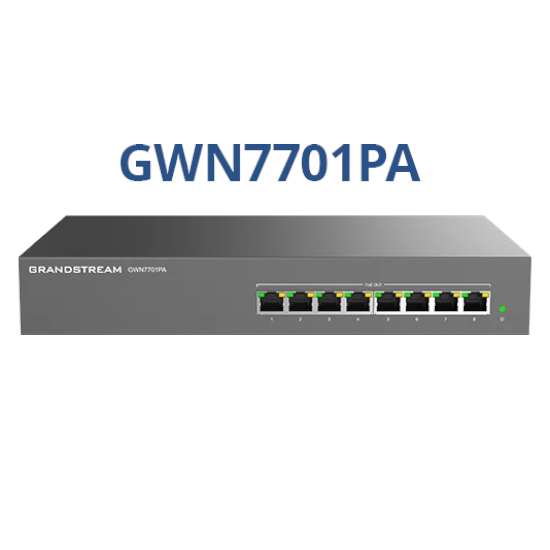

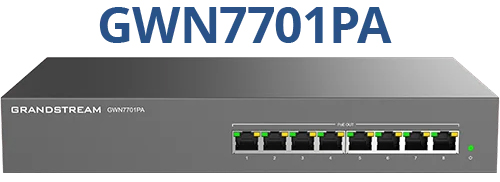

Grandstream GWN7701PA 8-Port Gigabit Unmanaged PoE Switch

The Grandstream GWN7701PA is a plug-and-play 8-port Gigabit unmanaged switch designed to add high-speed wired connectivity and high-capacity PoE power to offices and small-to-medium businesses. It provides eight 10/100/1000Mbps RJ45 ports, all supporting IEEE 802.3af/at PoE/PoE+ for powering compatible IP phones, IP cameras, wireless access points and other network devices.

Each PoE port can deliver up to 30W, supported by a 145W total PoE budget. With 16Gbps switching capacity, an 8K MAC address table and 9KB jumbo frame support, the GWN7701PA provides reliable Gigabit performance in a durable metal case suitable for desk or rack-mounted installation.

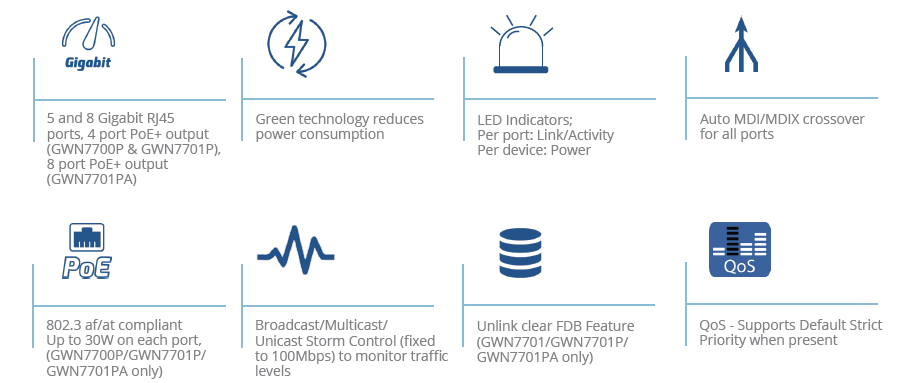

Key Features

• 8 x 10/100/1000Mbps Gigabit RJ45 ports
• 8 x IEEE 802.3af/at PoE/PoE+ output ports
• Up to 30W output per PoE port with a 145W total PoE budget
• Unmanaged plug-and-play operation for straightforward deployment
• 16Gbps switching capacity with an 8K MAC [Media Access Control] address table
• 9KB jumbo frame support for compatible high-volume network traffic
• Auto-negotiation and Auto MDI/MDIX on all ports
• Metal case for desk or rack-mounted installation
• IEEE 802.3x flow control and 802.1p/DSCP QoS [Quality of Service]
• IGMP [Internet Group Management Protocol] fast-leave, snooping, route port autolearn and query refresh member port support
• Unlink clear FDB [Forwarding Database] support
• Broadcast, multicast and unicast storm control fixed to 100Mbps
• Internal 100-240V AC power supply with 6.7W maximum base-system power consumption, excluding PoE output

8-Port Gigabit Switching with Full PoE

The GWN7701PA combines eight-port Gigabit network expansion with PoE output on every port, making it well suited to installations with multiple powered endpoints. This allows network data and electrical power to be carried over the same Ethernet cable, helping simplify deployment for IP phones, security cameras and wireless access points.

Key Benefits

• Adds eight Gigabit ports for reliable wired network expansion
• Powers up to eight compatible PoE or PoE+ devices directly from the switch
• The 145W PoE budget supports denser powered-device deployments than lower-budget models
• Combines network data and power over the same Ethernet cabling
• Automatically adapts to connected 10Mbps, 100Mbps and Gigabit devices
• Supports flexible installation on a desk, shelf or rack

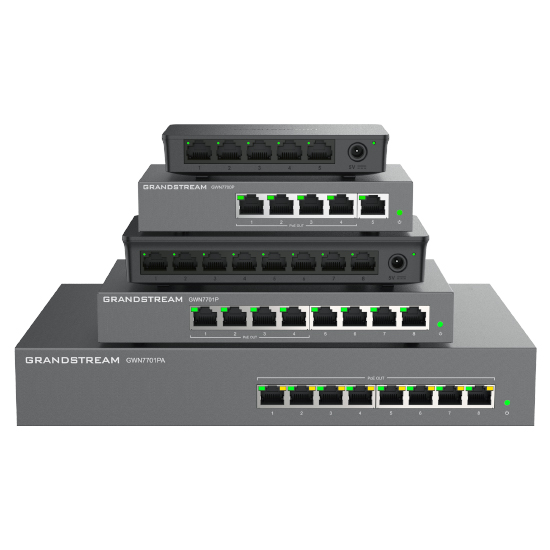

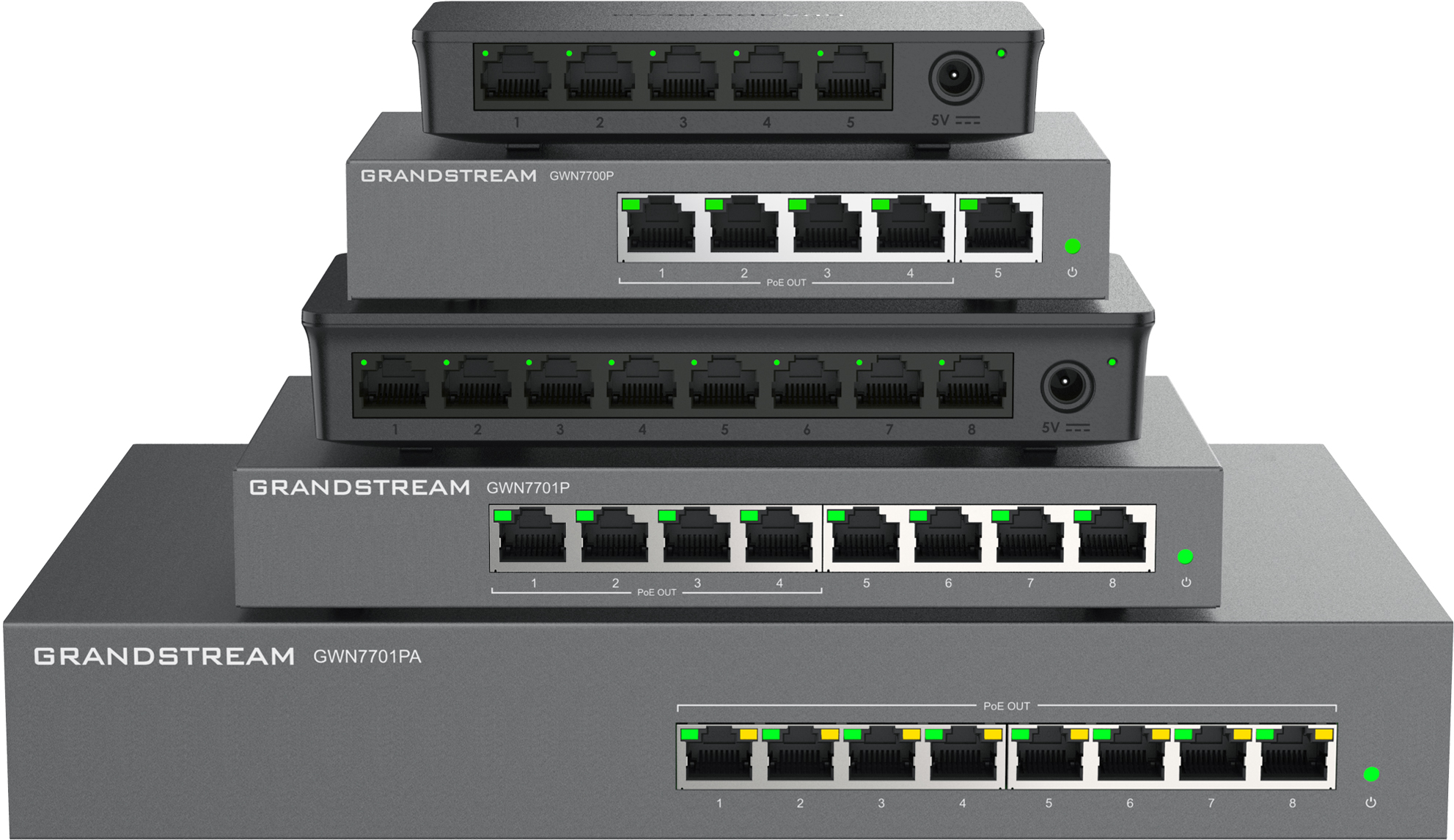

Comms Express offers GWN7701 series switches including:
GWN7701 - 8 Gigabit ports, plastic case, 16Gbps switching
GWN7701P - 8 Gigabit ports, 4 PoE/PoE+ ports, 60W PoE budget, metal case, 16Gbps switching
GWN7701PA - 8 Gigabit ports, 8 PoE/PoE+ ports, 145W PoE budget, metal case, desk/rack-mount, 16Gbps switching
GWN7701M - 8 x 2.5GbE, 1 x 1/10G SFP+, metal case, fanless, 60Gbps switching
along with many others, in Grandstream Unmanaged Switches.

For wider network builds, Comms Express also offers:
Grandstream Switches for many other Grandstream switch options
Network Switches for an impressive range of switches from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for connecting workstations, printers, routers and other wired network devices.

The package includes the GWN7701PA switch, a 1.2m AC power cable, rack-mounting standard brackets, four rubber feet and a Quick Installation Guide.

*For complete specifications see the documentation tab above
