Grandstream GWN7700 UNMANAGED 5-PORT GBE SWITCH (PLASTIC CASE)

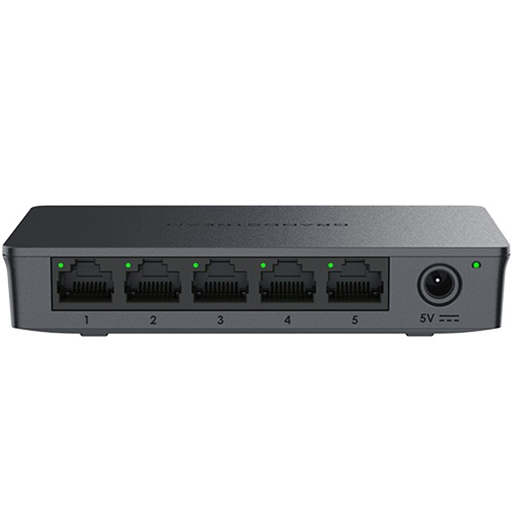

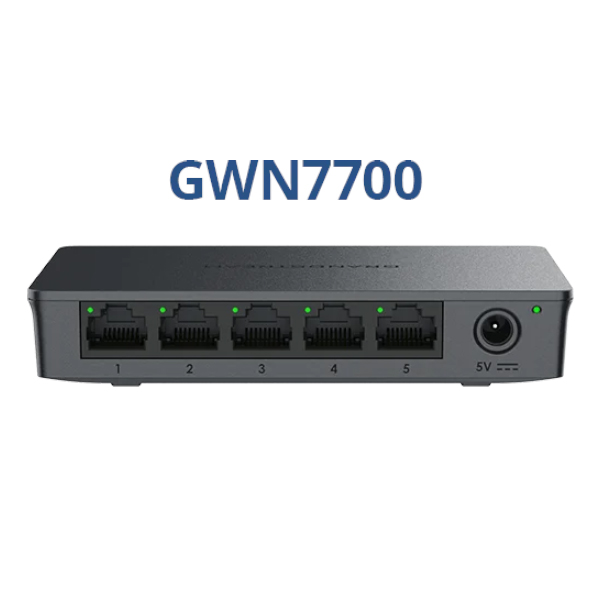

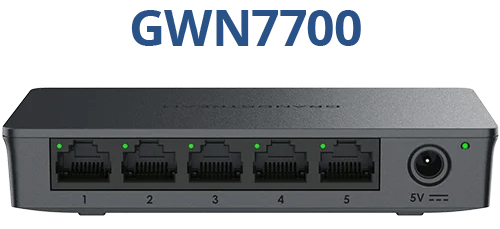

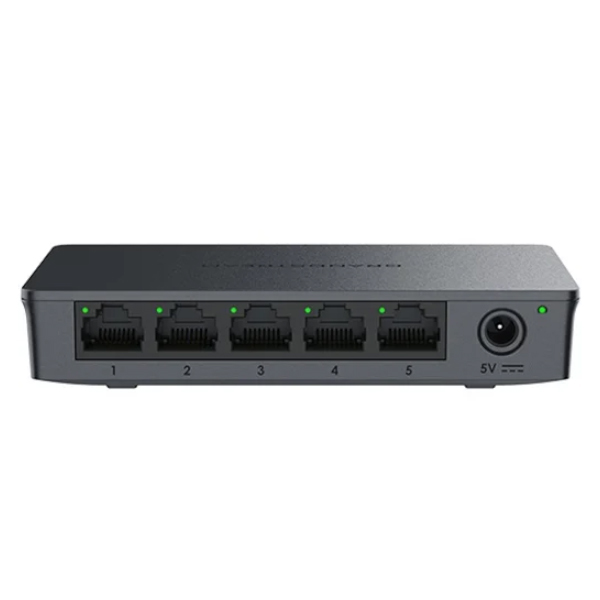

Grandstream GWN7700 5-Port Gigabit Unmanaged Switch

The Grandstream GWN7700 is a plug-and-play 5-port Gigabit unmanaged switch for small offices, home offices and simple wired network expansion. It provides five 10/100/1000Mbps RJ45 ports in a plastic desktop or wall-mountable enclosure, giving PCs, printers, small network devices and locally powered endpoints straightforward wired connectivity.

Each port supports auto-negotiation and Auto MDI/MDIX, allowing the switch to recognise connected device speeds and remove the need for crossover cables. With 10Gbps switching capacity, a 2K MAC address table, 9KB jumbo frame support, IEEE 802.3x flow control, 802.1p/DSCP QoS and IGMP support, the GWN7700 is a simple way to add reliable Gigabit capacity to a Grandstream or mixed-vendor network.

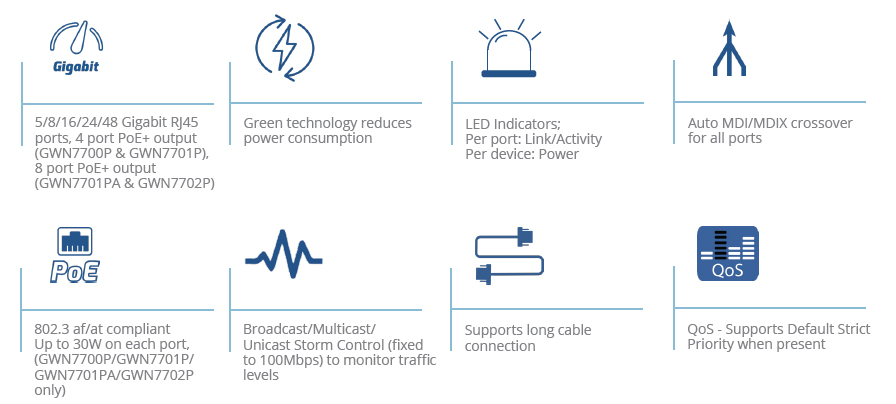

Key Features

• 5 x 10/100/1000Mbps RJ45 ports for Gigabit wired expansion
• Unmanaged plug-and-play design with simple setup
• Plastic enclosure for desktop or wall-mounted installation
• Auto-negotiation and Auto MDI/MDIX on all ports
• 10Gbps switching capacity with a 2K MAC [Media Access Control] address table
• 9KB jumbo frame support for compatible network traffic
• IEEE 802.3x flow control and 802.1p/DSCP QoS [Quality of Service]
• IGMP [Internet Group Management Protocol] fast-leave, IGMP snooping, route port autolearn and query refresh member port support
• Broadcast, multicast and unicast storm control fixed to 100Mbps
• Low 1.7W base-system power consumption

Simple Gigabit Expansion

The GWN7700 is designed for locations that need extra wired ports without the complexity of a managed switch. It is well suited to desks, small offices, reception areas, home-office networks and other spaces where a router or existing switch needs additional Gigabit Ethernet capacity.

Key Benefits

• Adds five Gigabit RJ45 ports for straightforward wired network expansion
• Supports PCs, printers, routers, small network devices and other locally powered endpoints
• Reduces installation time with plug-and-play unmanaged operation
• Supports neat placement on a desk, shelf or wall
• Provides a cost-effective entry point into the Grandstream GWN7700 unmanaged switch range

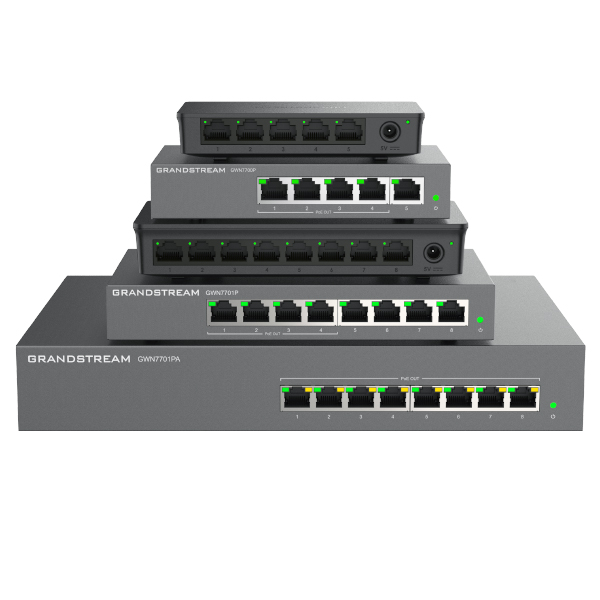

Comms Express offers a choice of closely related models in the Grandstream Unmanaged Switches range, including:
GWN7700 - 5 Gigabit ports, plastic case, desktop/wall-mount

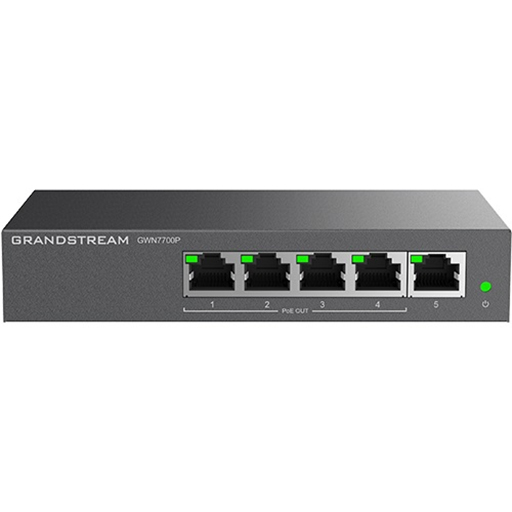

GWN7700P - 5 Gigabit ports, metal case, 4 PoE+ ports, 60W PoE budget
GWN7700M - 5 x 2.5GbE ports, 1 x SFP+ port, metal case, fanless
GWN7700MP - 5 x 2.5GbE ports, 1 x SFP+ port, 4 PoE/PoE+ ports, fanless

For wider network builds, Comms Express also offers:
Grandstream Switches for other Grandstream switching options
Network Switches for an impressive range of switches from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for connecting workstations, printers, routers and other wired network devices.

The package includes the GWN7700 switch, an external power adapter and a Quick Installation Guide.

*For complete specifications see the documentation tab above
