Grandstream GWN7664E Wi-Fi 6 Indoor Access Point

Grandstream GWN7664E Indoor AX6000 Wi-Fi 6 Access Point with 6Gbps Throughput, 4x4:4 MU-MIMO and Dual 2.5G Ports

The Grandstream GWN7664E is a high-performance enterprise-grade 802.11ax Wi-Fi 6 access point for medium-to-large businesses, multi-floor buildings, residential settings and commercial locations. It supports 6Gbps aggregate wireless throughput, dual-band 4x4:4 MU-MIMO with OFDMA, 512 concurrent Wi-Fi clients and a coverage range of up to 175 metres.

Designed for medium-to-high density indoor deployments, the GWN7664E combines AX6000 Wi-Fi 6 performance with dual 2.5G Ethernet ports for 5Gbps aggregate wired throughput. PoE/PoE+ support allows power and network data to reach the access point through one Ethernet cable, while built-in controller functionality and Grandstream cloud/on-premise management support give administrators flexible deployment options.

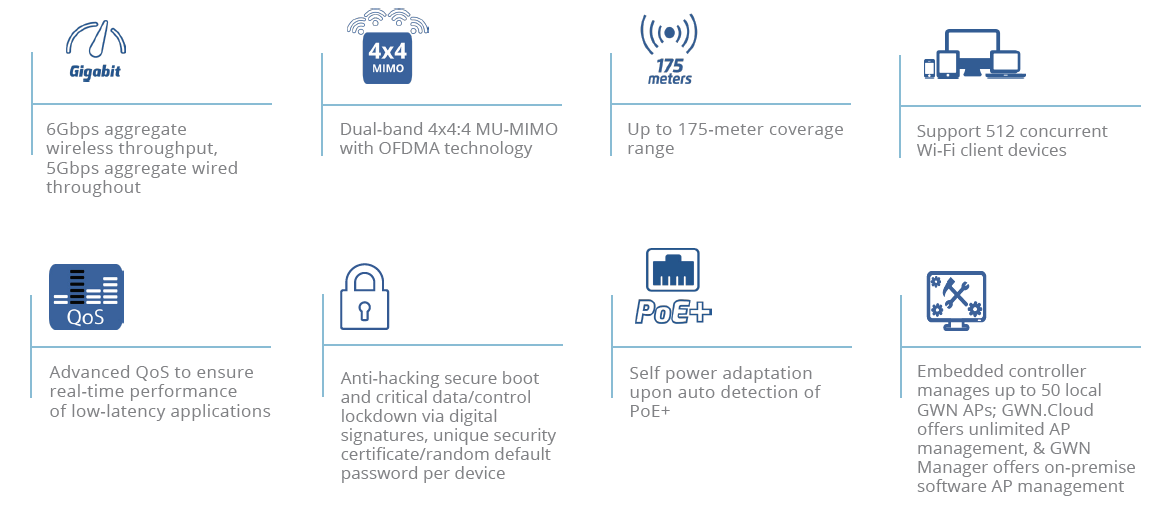

Key Features:

• High-performance indoor AX6000 802.11ax Wi-Fi 6 access point
• 6Gbps aggregate wireless throughput with dual-band 4x4:4 MU-MIMO and OFDMA technology (MU-MIMO = Multi-User Multiple Input, Multiple Output; OFDMA = Orthogonal Frequency-Division Multiple Access)
• Supports 512 concurrent Wi-Fi client devices and a coverage range of up to 175 metres, subject to environment and installation conditions
• Dual 2.5G Ethernet ports supporting 5Gbps aggregate wired throughput
• PoE/PoE+ support with self power adaptation upon auto detection (PoE = Power over Ethernet)
• 32 SSIDs in total, with up to 16 per radio across 2.4GHz and 5GHz bands (SSID = Service Set Identifier)
• Advanced QoS, mesh networking, captive portal and WPA3 security support (QoS = Quality of Service)
• Embedded controller can manage up to 50 local GWN access points, with GDMS Networking and GWN Manager also supported

The GWN7664E is well suited to offices, multi-floor buildings, hospitality, education, residential buildings and other busy indoor environments where high wireless throughput and multi-gigabit wired connectivity are important.

Key Benefits:

• AX6000 Wi-Fi 6 performance helps support demanding wireless environments
• 4x4:4 MU-MIMO helps maintain stable service across multiple users and devices
• Dual 2.5G ports help reduce wired-side bottlenecks
• PoE/PoE+ simplifies installation by carrying power and network data through one cable
• Controller-less, cloud and on-premise management options support both smaller sites and larger managed networks
• Guest access, VLAN and multi-SSID support help separate staff, visitor, voice and device traffic
• Wall and ceiling mounting kits support flexible indoor installation

The package includes the GWN7664E 802.11ax wireless access point, wall/ceiling mounting kits and a Quick Start Guide.

Comms Express offers a choice of GWN7664 models in the Grandstream Wireless Access Points range, including:
GWN7664 - indoor, 3.55Gbps, 1G + 2.5GbE, 750+ clients
GWN7664E - indoor, 6Gbps, dual 2.5G ports, 512 clients
GWN7664LR - outdoor, 3.55Gbps, 300m range, 750+ clients
GWN7664ELR - outdoor, 6Gbps, 300m range, 2.5G RJ45 + SFP, 512 clients

Our broader Wireless Access Points range includes business wireless solutions from Grandstream and many other leading manufacturers.

For wider wireless network installations, Comms Express also offers PoE Switches for Power over Ethernet cabling, and RJ45 Ethernet Cables & Patch Leads for network connections.

*For complete specifications see the documentation tab above

For VLAN setup guidance, see Grandstream's GWN76xx Multi-VLAN Configuration Guide
