Grandstream GWN7670WM In-Wall Wi-Fi 7 Access Point

Grandstream GWN7670WM In-Wall Wi-Fi 7 Access Point with 3.6Gbps Throughput, 2.5GbE and PoE/PoE+

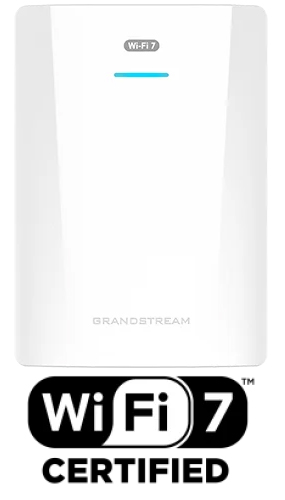

The Grandstream GWN7670WM is an enterprise-grade wall-mounted 802.11be Wi-Fi 7 access point for businesses that need next-generation wireless performance in rooms, offices, hospitality spaces, residential buildings and commercial locations. It supports 3.6Gbps aggregate wireless throughput, dual-band 2x2:2 MIMO, 256 concurrent Wi-Fi clients and a coverage range of up to 175 metres.

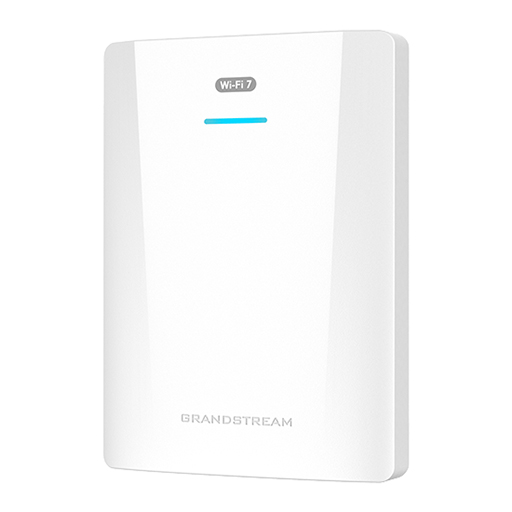

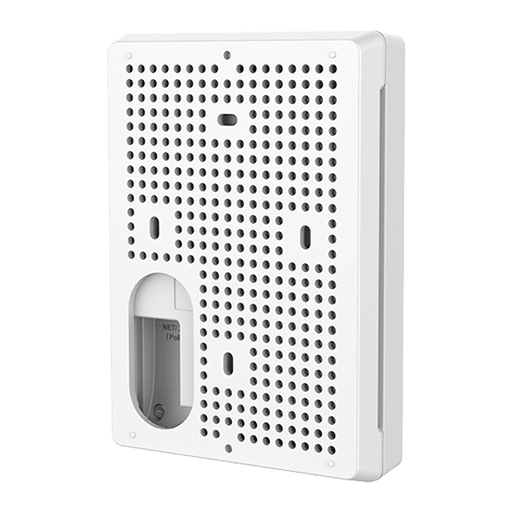

Designed for clean wall-mounted installation, the GWN7670WM has a compact appearance and a sprayable shell to help it blend into different interiors. A 2.5 Gigabit Ethernet port provides high-speed wired connectivity, while PoE/PoE+ allows power and network data to reach the access point through one Ethernet cable.

Key Features:

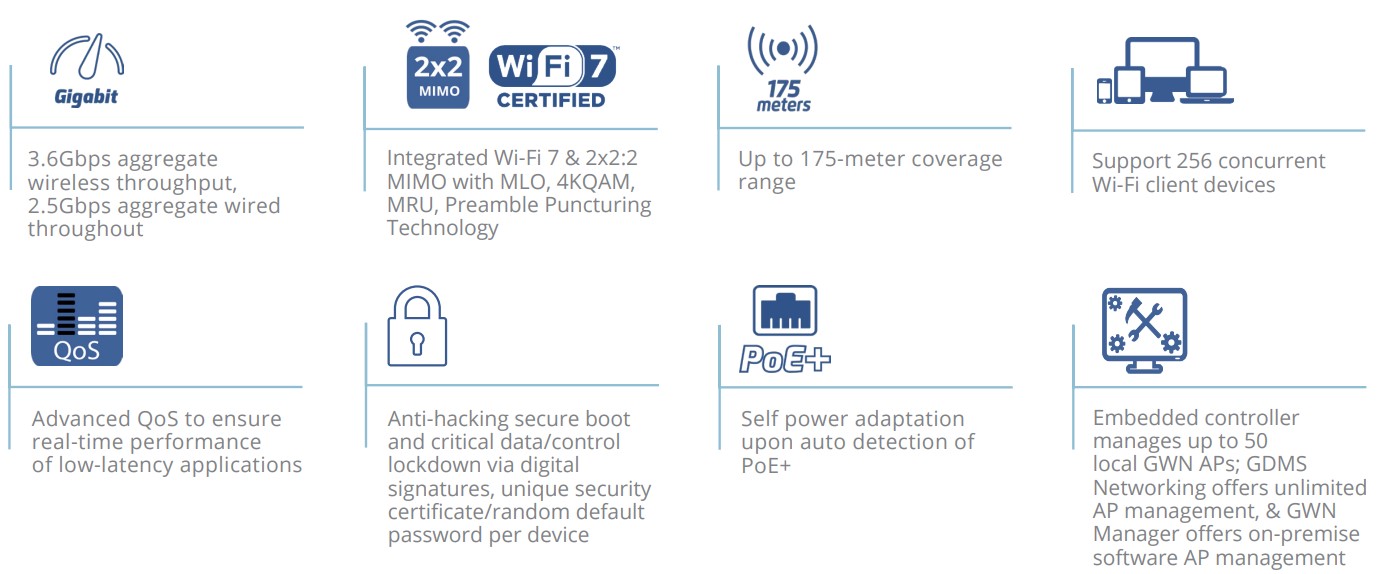

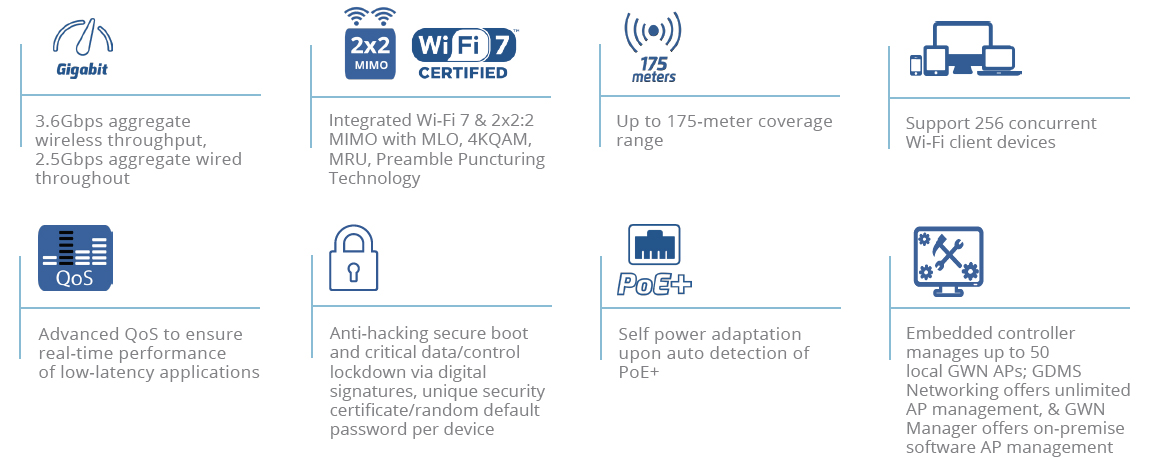

• Enterprise-grade wall-mounted dual-band Wi-Fi 7 access point
• 3.6Gbps aggregate wireless throughput with dual-band 2x2:2 MIMO and Wi-Fi 7 technologies including MLO, 4KQAM, MRU and Preamble Puncturing (MLO = Multi-Link Operation; MRU = Multi-Resource Unit)
• Supports 256 concurrent Wi-Fi client devices and a coverage range of up to 175 metres, subject to environment and installation conditions
• One 2.5 Gigabit Ethernet RJ45 port with PoE/PoE+ support (PoE = Power over Ethernet)
• 32 SSIDs in total, with up to 16 per radio across 2.4GHz and 5GHz bands (SSID = Service Set Identifier)
• Bluetooth Low Energy 5.3, advanced QoS, mesh networking, captive portal and WPA3 security support (QoS = Quality of Service)
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, plus a unique security certificate and random default password per device
• Embedded controller can manage up to 50 local GWN access points, with GDMS Networking and GWN Manager also supported

The GWN7670WM is well suited to indoor spaces where discreet installation, next-generation Wi-Fi performance and simple PoE-powered deployment are important. It is suitable for offices, hotel rooms, apartments, meeting rooms, corridors and other areas where a wall-mounted access point is preferred.

Key Benefits:

• Wi-Fi 7 helps improve wireless efficiency and performance for compatible client devices
• Wall-mounted design supports a clean, professional finish in room-based deployments
• 2.5 Gigabit Ethernet helps provide faster wired uplink capacity
• PoE/PoE+ simplifies installation by carrying power and network data through one cable
• Controller-less, cloud and on-premise management options support both smaller sites and larger managed networks
• Guest access, VLAN and multi-SSID support help separate staff, visitor, voice and device traffic

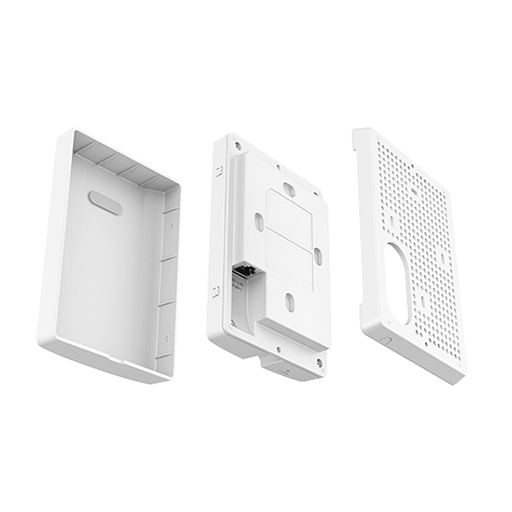

The package includes the GWN7670WM Wi-Fi 7 wireless access point, indoor wall mounting kit and a Quick Start Guide.

Comms Express offers a choice of in-wall models in the Grandstream Wireless Access Points range, including:
GWN7624 - in-wall Wi-Fi 5, 2.03Gbps, 4 Gigabit ports, 200 clients
GWN7661 - in-wall Wi-Fi 6, 1.77Gbps, 4 Gigabit ports, 500+ clients
GWN7661E - in-wall Wi-Fi 6, 3Gbps, 4 Gigabit ports, 256 clients
GWN7670WM - in-wall Wi-Fi 7, 3.6Gbps, 2.5GbE, 256 clients

Our broader Wireless Access Points range includes business wireless solutions from Grandstream and many other leading manufacturers.

For wider wireless network installations, Comms Express also offers PoE Switches for Power over Ethernet cabling, and RJ45 Ethernet Cables & Patch Leads for network connections.

*For complete specifications see the documentation tab above

For VLAN setup guidance, see Grandstream's GWN76xx Multi-VLAN Configuration Guide
