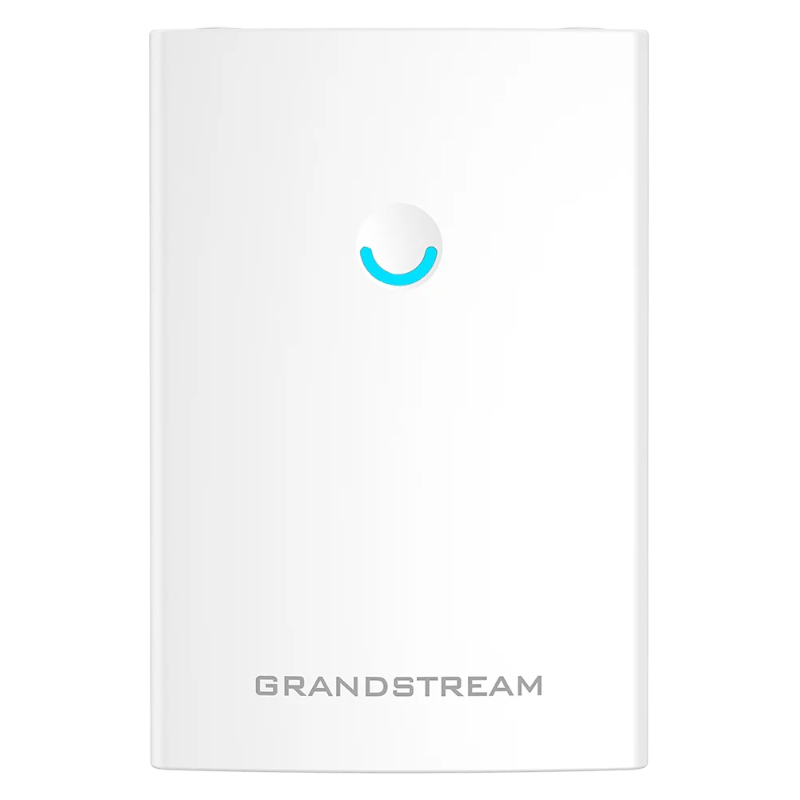

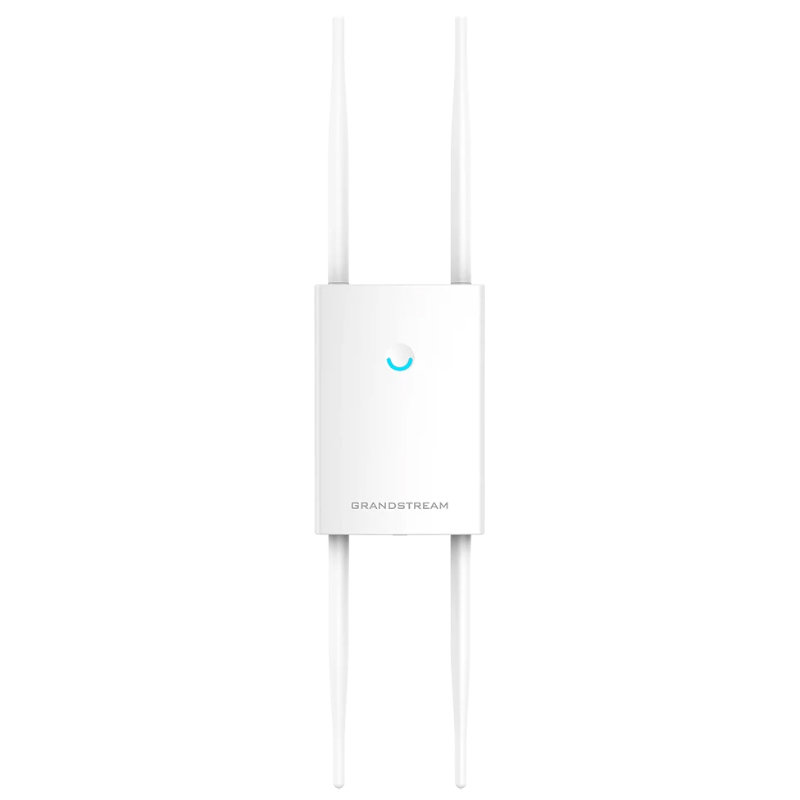

Grandstream GWN7630LR Outdoor 802.11ac Wave-2 Long-Range Wi-Fi Access Point with 4x4:4 MU-MIMO, 300m Coverage and PoE/PoE+
The Grandstream GWN7630LR is an outdoor long-range 802.11ac Wave-2 Wi-Fi access point for business wireless networks that need extended coverage indoors or outdoors. It supports dual-band 4x4:4 MU-MIMO, up to 250+ concurrent Wi-Fi clients and a coverage range of up to 300 metres.
Designed for medium to large wireless deployments, the GWN7630LR combines detachable dual-band antennas with IP66-level weatherproof capability when installed vertically. Dual Gigabit Ethernet ports support high-speed wired connectivity, while PoE/PoE+ allows power and network data to reach the access point through one Ethernet cable.
Key Features:
- Outdoor long-range 802.11ac Wave-2 Wi-Fi access point
- Dual-band 4x4:4 MU-MIMO technology for high-capacity wireless performance (MU-MIMO = Multi-User Multiple Input, Multiple Output)
- Supports up to 250+ concurrent Wi-Fi client devices
- Coverage range of up to 300 metres, subject to environment and installation conditions
- Four detachable/changeable dual-band omnidirectional antennas
- Dual 10/100/1000Mbps Gigabit Ethernet ports
- PoE/PoE+ support for power and network data through one cable (PoE = Power over Ethernet)
- IP66-level weatherproof capability when installed vertically
- Advanced QoS supports low-latency real-time applications such as voice over Wi-Fi (QoS = Quality of Service)
- Mesh network and captive portal support
- Embedded controller can manage up to 50 local GWN access points
- GWN.Cloud support for free cloud Wi-Fi management
The GWN7630LR can be installed on a wall or pole using the supplied mounting hardware, making it suitable for extending managed Wi-Fi across larger buildings, outdoor areas, warehouses, schools, hospitality spaces and mixed indoor/outdoor environments.
Key Benefits:
- Long-range coverage helps support larger areas with fewer access points
- Outdoor-rated design is suitable for demanding business and public-access wireless environments
- 4x4:4 MU-MIMO helps maintain performance where multiple users and devices are connected
- PoE/PoE+ simplifies installation by carrying power and network data through one cable
- Dual Gigabit Ethernet ports provide flexible wired network connectivity
- Detachable antennas allow the access point to be adapted for different deployment scenarios
- Embedded controller reduces the need for separate controller hardware in smaller GWN deployments
- Cloud management support helps with remote configuration, monitoring and administration
- Secure boot, critical data/control lockdown and a unique security certificate help protect the wireless network
- Wall and pole mounting options support practical outdoor and long-range installation
The package includes the GWN7630LR access point, four antennas, base bracket, four PM 3.0 x 7 screws, four expansion screws, two metal straps and a Quick Installation Guide. Wall and pole mounting kits are included.
Comms Express offers a choice of indoor and outdoor models in the Grandstream Wireless Access Points range, including Wi-Fi 5, Wi-Fi 6 and Wi-Fi 7 access point options for different performance and coverage requirements.
Our broader Wireless Access Points range includes business wireless solutions from Grandstream and many other leading manufacturers.
For wider wireless network installations, Comms Express also offers Grandstream Routers for building wired, wireless and VPN networks, and External Grade Cable suitable for outdoor network cable runs.
*For complete specifications see the documentation tab above
The GWN7630LR is an outdoor long-range 802.11 ac Wave-2 Wi-Fi access point for medium to large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4:4 MU-MIMO technology, and a sophisticated antenna design for maximum network throughput that supports 200+ clients and an expanded 300-meter coverage range.
To ensure easy installation and management, the GWN7630LR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. The GWN7630LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable voice and video IP phones.
By including support for advanced QoS, low-latency real-time applications, mesh networks and captive portals, the GWN7630LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.

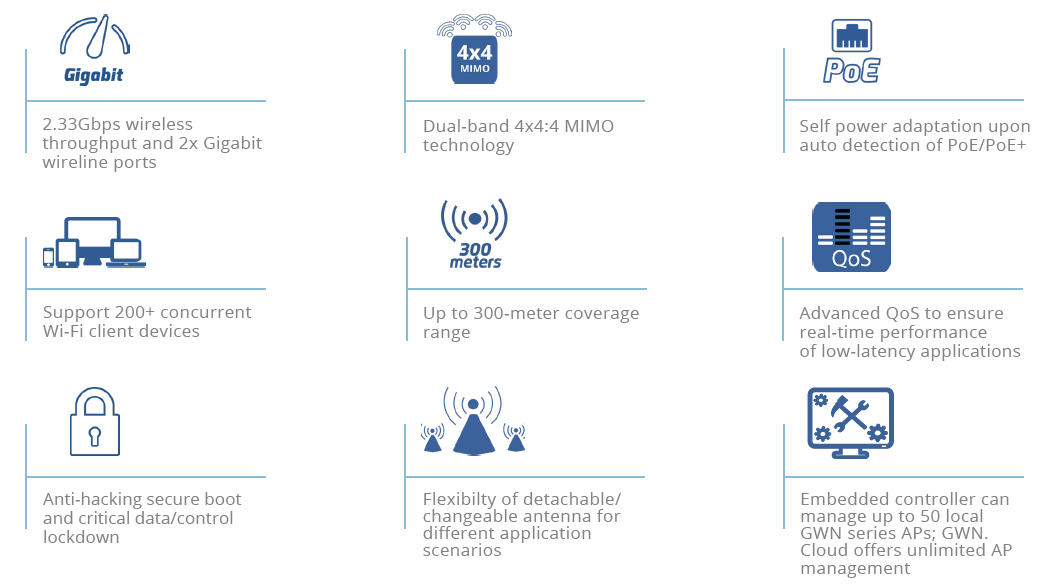

Product Features
Gigabit
|
4x4 MIMO Technology
|
PoE
|
Supports 250+ Devices
|
Advanced QoS
|
300 Meter Range
|
Encryption Security
|
Built-in Provisioning / Management Controller
|
Controller
|
|
- 2.33Gbps wireless throughput and 2x Gigabit wireline ports
- Dual-band 4x4:4 MIMO technology
- Up to 300-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Embedded controller can manage up to 50 local GWN series APs; GWN. Cloud offers unlimited AP management
- Self power adaptation upon auto detection of PoE/PoE+
- Support 200+ concurrent Wi-Fi client devices
- Anti-hacking secure boot and critical data/control lockdown
- Flexibilty of detachable/ changeable antenna for different application scenarios
