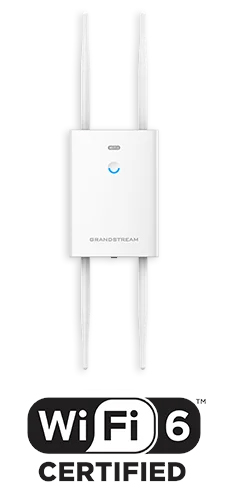

Grandstream GWN7664LR outdoor 802.11ax 4×4:4 Wi-Fi 6 Access Point

Grandstream GWN7664LR Outdoor Wi-Fi 6 Long-Range Access Point with 3.55Gbps Throughput, 300m Coverage and PoE/PoE+

The Grandstream GWN7664LR is a high-end outdoor 802.11ax 4x4:4 Wi-Fi 6 access point for medium-to-large businesses and enterprises that need long-range wireless coverage across indoor and outdoor spaces. It supports 3.55Gbps aggregate wireless throughput, dual-band 4x4:4 MU-MIMO with DL/UL OFDMA, 750+ concurrent Wi-Fi clients and a coverage range of up to 300 metres.

Designed for demanding outdoor deployments, the GWN7664LR combines IP66-level weatherproof capability when installed vertically with four detachable dual-band antennas for flexible coverage. 1G and 2.5G network ports provide wired connectivity, while PoE/PoE+ allows power and network data to reach the access point through one Ethernet cable.

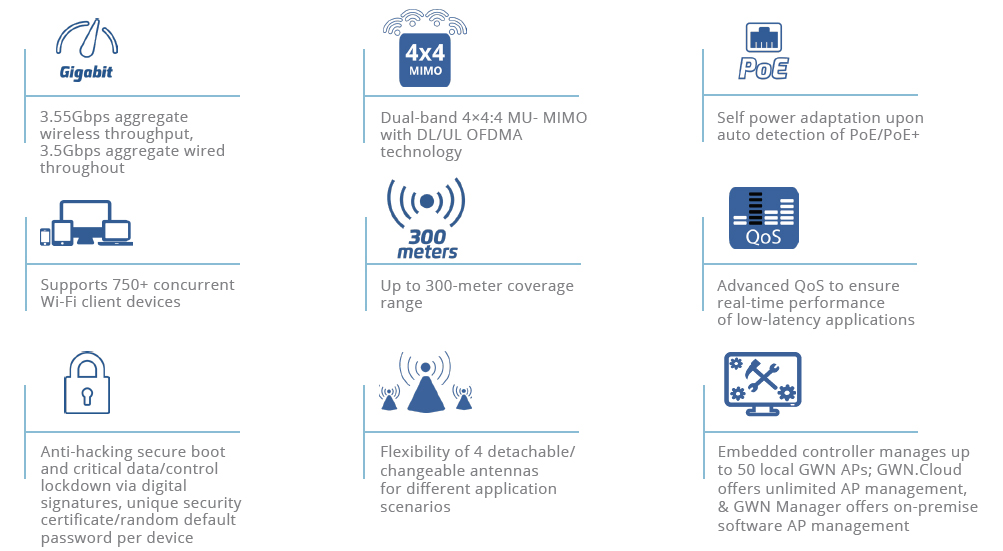

Key Features:

• High-end outdoor long-range 802.11ax Wi-Fi 6 access point
• 3.55Gbps aggregate wireless throughput with dual-band 4x4:4 MU-MIMO and DL/UL OFDMA (MU-MIMO = Multi-User Multiple Input, Multiple Output; OFDMA = Orthogonal Frequency-Division Multiple Access)
• Supports 750+ concurrent Wi-Fi client devices and a coverage range of up to 300 metres, subject to environment and installation conditions
• IP66-level weatherproof capability when installed vertically, with operation from -30°C to 60°C
• Four detachable/changeable dual-band external antennas for different deployment scenarios
• 1G and 2.5G network ports with PoE/PoE+ support (PoE = Power over Ethernet)
• 32 SSIDs in total, with up to 16 per radio across 2.4GHz and 5GHz bands (SSID = Service Set Identifier)
• Advanced QoS, mesh networking, captive portal and WPA3 security support (QoS = Quality of Service)
• Embedded controller can manage up to 50 local GWN access points, with GDMS Networking and GWN Manager also supported

The GWN7664LR is well suited to extending managed Wi-Fi across outdoor areas, warehouses, schools, healthcare sites, business campuses and mixed indoor/outdoor environments. Wall and pole mounting options help support practical installation where long-range coverage is required.

Key Benefits:

• Long-range Wi-Fi 6 helps extend managed wireless coverage across larger outdoor areas
• 750+ client support makes the access point suitable for busy wireless environments
• IP66 protection and wide operating temperature support demanding outdoor installation
• 1G and 2.5G ports provide flexible wired network connectivity
• PoE/PoE+ simplifies installation by carrying power and network data through one cable
• Guest access, VLAN and multi-SSID support help separate staff, visitor, voice and device traffic

The package includes the GWN7664LR 802.11ax wireless access point, wall/pole mounting kits and a Quick Installation Guide.

Comms Express offers a choice of GWN7664 models in the Grandstream Wireless Access Points range, including:
GWN7664 - indoor, 3.55Gbps, 1G + 2.5GbE, 750+ clients
GWN7664E - indoor, 6Gbps, dual 2.5G ports, 512 clients
GWN7664LR - outdoor, 3.55Gbps, 300m range, 750+ clients
GWN7664ELR - outdoor, 6Gbps, 300m range, 2.5G RJ45 + SFP, 512 clients

Our broader Wireless Access Points range includes business wireless solutions from Grandstream and many other leading manufacturers.

For wider wireless network installations, Comms Express also offers PoE Switches for Power over Ethernet cabling, and External Grade Cable suitable for outdoor network cable runs.

*For complete specifications see the documentation tab above

For VLAN setup guidance, see Grandstream's GWN76xx Multi-VLAN Configuration Guide
