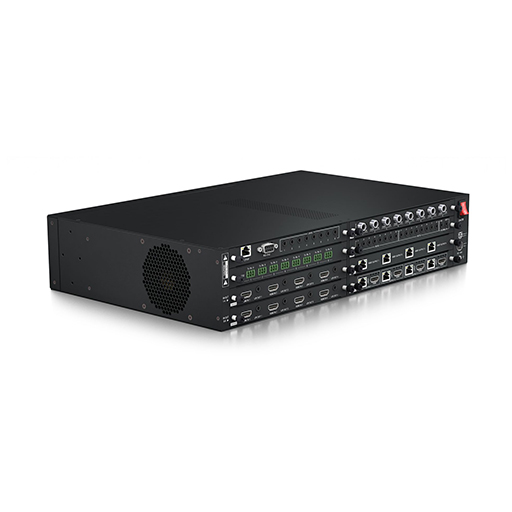

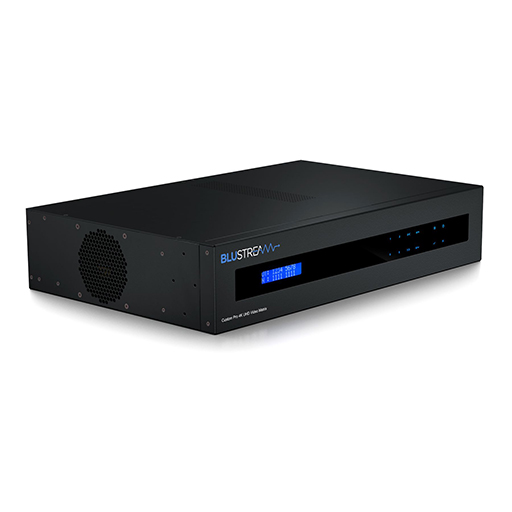

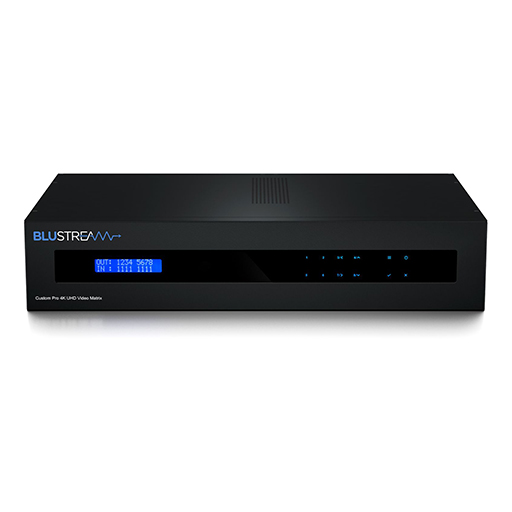

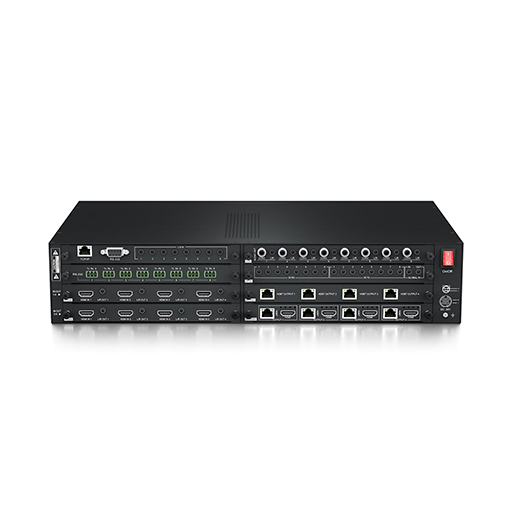

Blustream PRO88HBT100CS Custom Pro 8x8 HDBaseT™ CSC Matrix

The Blustream PRO88HBT100CS is a pre-configured 8x8 HDBaseT™ CSC matrix designed for AV installations requiring precise source routing and long-distance video distribution. It supports eight HDMI inputs routed independently to eight HDBaseT™ outputs, with four simultaneous HDMI outputs for local displays. Using HDBaseT™ Colour Space Conversion (CSC), the matrix delivers 4K UHD 60Hz 4:4:4 video over CAT cable up to 40m for full 4K signals, or 1080p up to 100m. Automatic downscaling ensures compatibility with displays that cannot handle full 4K 4:4:4. The matrix includes audio breakout, line-level pre-amp control, bi-directional IR and RS-232, and full network control via TCP/IP and web interface.

Key Features of Blustream PRO88HBT100CS

• HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 70m
• Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:
• 1080p 60Hz (for screens that do not support 4K)
• 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
• Supports 4K with HDR
• Extends HDMI 1080p video up to 100m
• 4 x Simultaneous HDMI Outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
• 8 x simultaneous coaxial digital and variable line-level analogue L/R audio outputs
• Analogue audio input can be embedded onto any HDMI input
• Web interface module for control and configuration of Matrix
• Supports bi-directional IR
• Supplied with Blustream IR receivers and emitters
• Control via front panel, IR, RS-232 and TCP/IP
• Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers
• 2U Design for 19" rack mount integration - Mounting kit included
• Advanced EDID management
• HDCP 2.2 compliant
• To be used with the HEX100CS-RX receivers

Video Distribution

Simultaneous HDBaseT™ and HDMI outputs allow connection to multiple display types while maintaining 4K video quality over long distances. HDBaseT™ Colour Space Conversion ensures all displays receive compatible signals.

Audio & Control Integration

Includes comprehensive audio management with breakout and pre-amp control, plus full IR and RS-232 routing. Control is available through multiple interfaces, including front panel, web interface, TCP/IP, and third-party drivers for commercial or residential systems.
