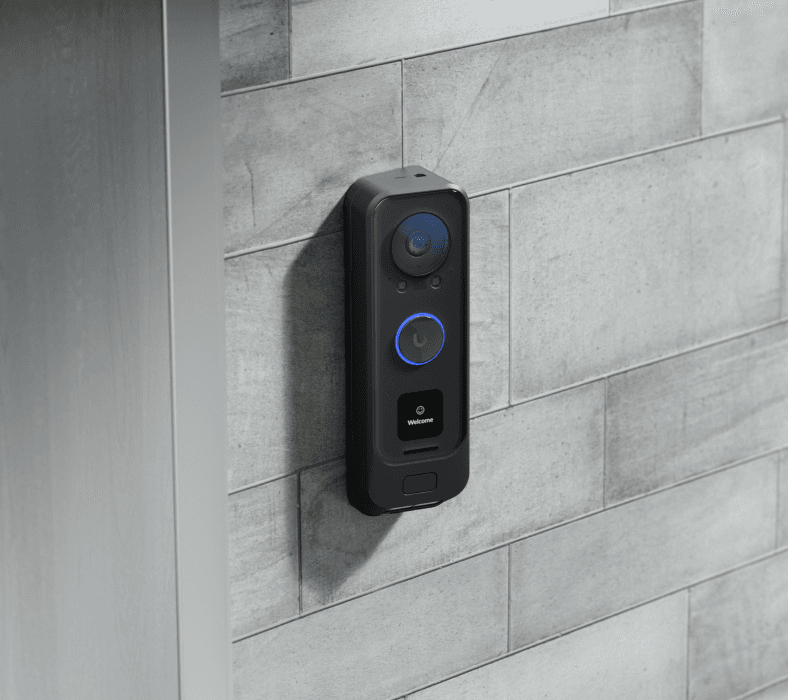

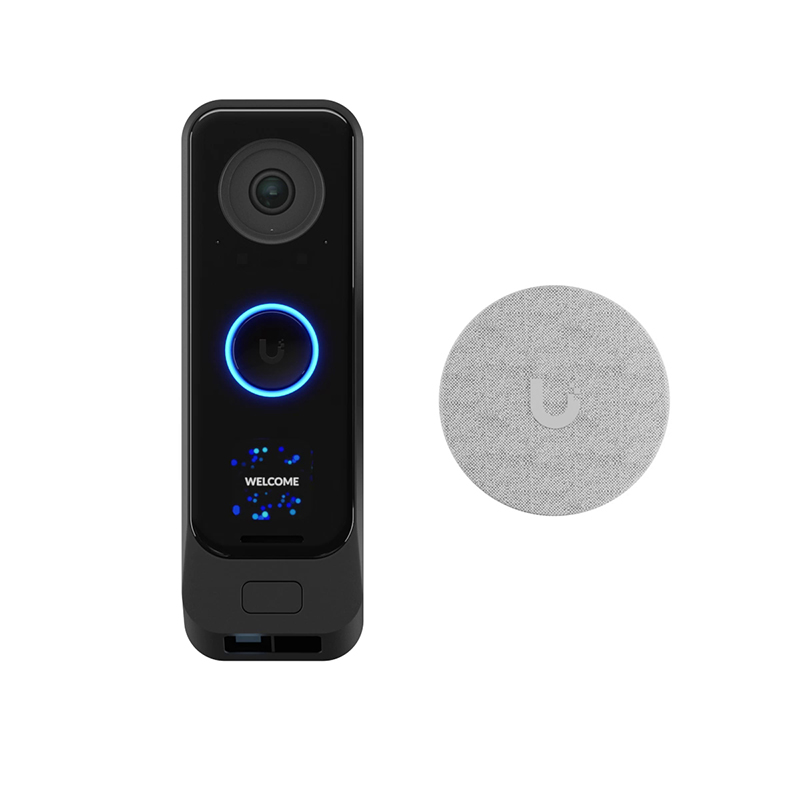

Ubiquiti UniFi G4 Doorbell Pro PoE Kit

Features

• Improved HDR and low-light performance
• Programmable welcome display and secondary package-detection camera
• AI event detections
• Connect and power using PoE
• Integrated 2-way audio
• Includes PoE Chime
• Weather-resistant (outdoor covered)

Specifications

Mechanical

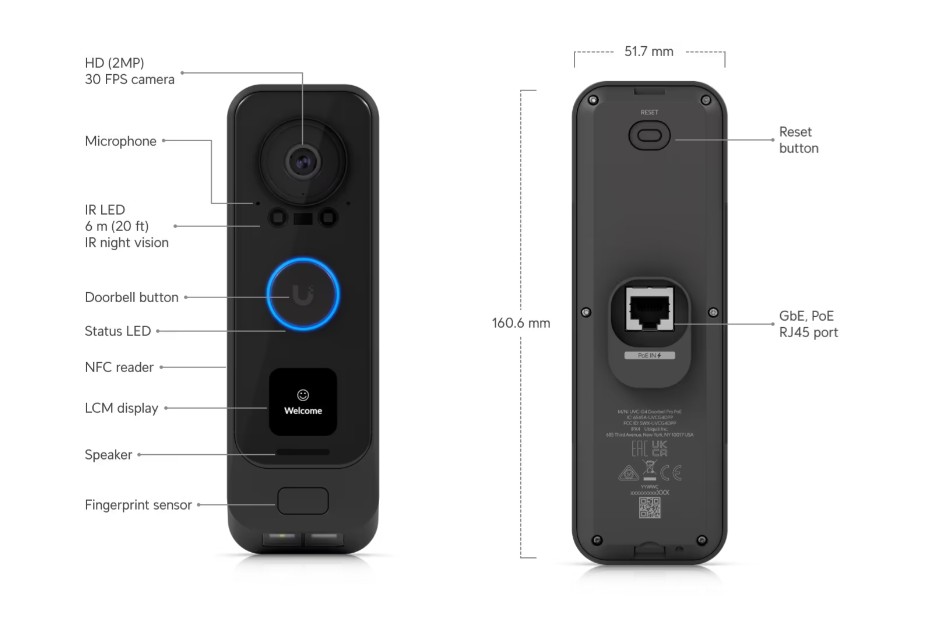

• Dimensions (UVC-G4 Doorbell Pro):
  • Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4")
  • Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7")
  • Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1")
  • On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1")

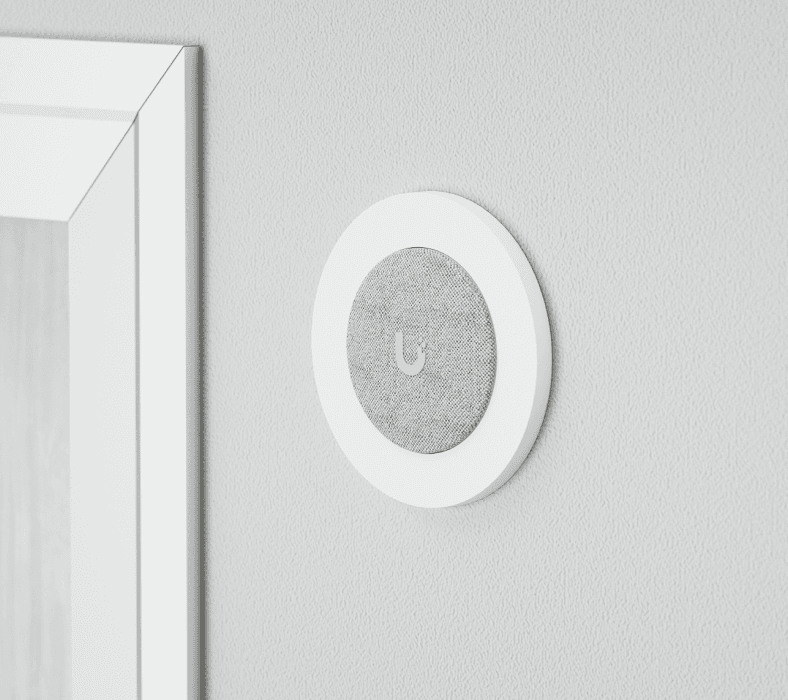

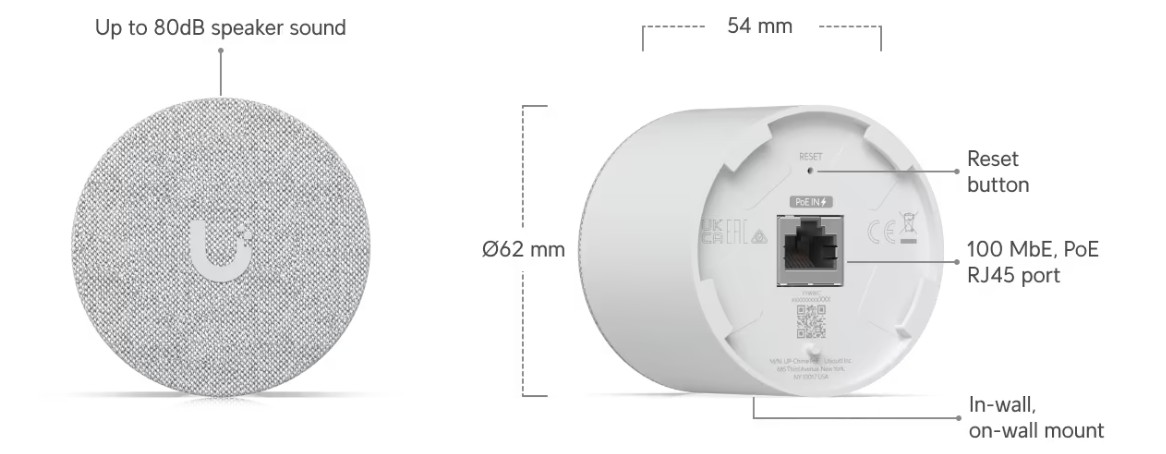

• Dimensions (UP-Chime PoE):
  • Device: Ø62 x 54 mm (Ø2.5 x 2.1")
  • In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5")
  • On-wall mount: Ø62 x 20.2 mm (Ø2.5 x 0.8")
• Weight (UVC-G4 Doorbell Pro):
• Device: 264 g (9.3 oz)
• Wall mount: 56 g (2 oz)
• Wedge: 33 g (1.2 oz)
• On-wall mount: 53 g (1.9 oz)
• Weight (UP-Chime PoE):
• Device: 158 g (5.6 oz)
• In-wall mount: 91 g (3.2 oz)
• On-wall mount: 28 g (1 oz)
• Enclosure Material: Aluminum alloy, polycarbonate
• Mount Material:
• Wall mount: aluminum alloy
• Wedge: polycarbonate
• On-wall mount: polycarbonate
• Chime mount: polycarbonate, zinc alloy
• Wetherproofing: IPX4 (UVC-G4 Doorbell Pro)

Optic

• Sensor:
• Main camera: 5MP CMOS
• Package camera: 8MP CMOS
• Lens: Fixed focal length
• View Angle:
• Main camera: H: 138°, V: 114°, D: 155° (LDC On)
• Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
• Package camera: H: 97.5°, V: 79.4°, D: 118.2°
• Night Mode: Built-in IR LED illumination and IR cut filter

Video and Audio

• Video compression: H.264
• Resolution:
• Main camera: 2MP 1600 x 1200 (4:3)
• Package camera: 2MP 1600 x 1200 (4:3)
• Max. frame rate: 30 FPS
• Microphone: Yes (Can be disabled for the Doorbell)
• Speaker: Yes
• Buzzer: Yes (UP-Chime PoE)

System

• Processor: Quad-core Arm® Cortex®-A53 based chip
• Networking interface: UVC-G4 Doorbell Pro: GbE RJ45 port. UP-Chime PoE: 10/100 MbE port
• Max. power consumption: UVC-G4 Doorbell Pro: 7W. UP-Chime PoE: 3.5W
• Power method: PoE
• Supported voltage range: UVC-G4 Doorbell Pro: 37—57V DC. UP-Chime PoE: 44–57V DC
• Ambient operating temperature: UVC-G4 Doorbell Pro: -30 to 40º C (-22 to 104º F). UP-Chime PoE: 0 to 40° C (32 to 104° F)
• Ambient operating humidity: UVC-G4 Doorbell Pro: 0 to 90% noncondensing. UP-Chime PoE: 10 to 90% noncondensing
