Easy Rack 2U metal blanking panel
Includes: (10) 2U panels, Mounting hardware
Airflow Management Blanking Panel Kit of 2U sheet metal panels to prevent air recirculation by occupying unused rack space.

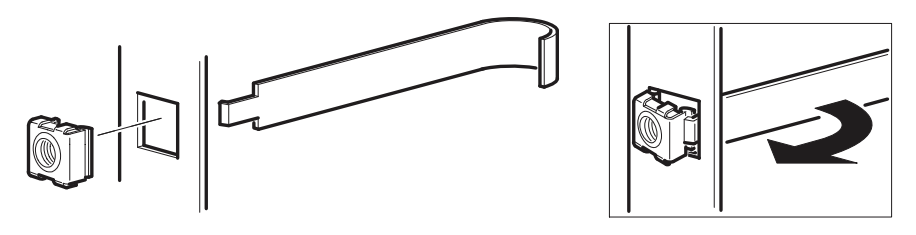

Install the cage nut:
1. From the inside of the rack, insert the cage nut into the square hole.
2. Hook one tab of the cage nut assembly through the far side of the hole
3. Place the cage nut tool on the other side of the cage nut and pull to snap into position.
Install the Blanking panel:
The 2U Blanking panel can be installed in an empty 2U space in your Easy Rack. Each blanking panel is installed to the vertical mounting rails using four (4) M6 x 12 Pan head screws and four (4) cage nuts.
Physical | |
Maximum Height | 44 mm, 4.4 cm |
Net Weight | 6.0 kg |
>Color | Black |
Installation details can be found in the Installation Guide PDF file
