| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FETSW304 |
| Manufacturer No: | TSW304 |
| Delivery: | In Stock: Next Day |
 |

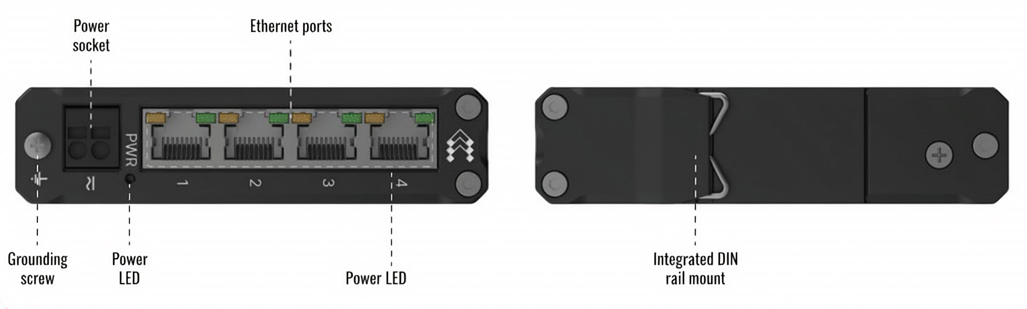

The Teltonika TSW304 is a compact unmanaged Gigabit Ethernet switch with four RJ45 ports supporting 10/100/1000 Mbps connections. It provides plug-and-play networking with auto MDI/MDIX support and an 8 Gbps non-blocking bandwidth capacity. The switch can receive power through its 2-pin industrial DC socket or via passive PoE through ETH1, while its integrated DIN rail mounting makes installation convenient in industrial cabinets and other space-constrained locations.
The four RJ45 Ethernet ports support 10/100/1000 Mbps connections, allowing compatible network equipment to communicate at Gigabit Ethernet speeds. Auto MDI/MDIX crossover support removes the need to manually determine the appropriate cable type when connecting devices.
As an unmanaged switch, the TSW304 can provide network connectivity without requiring configuration through a management interface. Connected devices can be added to the network and communicate through the switch without additional setup.
The switch supports passive Power over Ethernet input through the ETH1 port, allowing the unit to receive 9-30 VDC over an Ethernet cable. This passive PoE function is for powering the TSW304 itself and is not compatible with IEEE 802.3af, 802.3at or 802.3bt PoE standards.
The 8 Gbps of non-blocking bandwidth, a 128 KB packet buffer and support for jumbo frames up to 9216 bytes. Its 2K MAC address table allows the switch to maintain forwarding information for connected network devices.
The Teltonika TSW304 is a compact unmanaged Gigabit Ethernet switch with four RJ45 ports supporting 10/100/1000 Mbps connections. It provides plug-and-play networking with auto MDI/MDIX support and an 8 Gbps non-blocking bandwidth capacity. The switch can receive power through its 2-pin industrial DC socket or via passive PoE through ETH1, while its integrated DIN rail mounting makes installation convenient in industrial cabinets and other space-constrained locations.
The four RJ45 Ethernet ports support 10/100/1000 Mbps connections, allowing compatible network equipment to communicate at Gigabit Ethernet speeds. Auto MDI/MDIX crossover support removes the need to manually determine the appropriate cable type when connecting devices.
As an unmanaged switch, the TSW304 can provide network connectivity without requiring configuration through a management interface. Connected devices can be added to the network and communicate through the switch without additional setup.
The switch supports passive Power over Ethernet input through the ETH1 port, allowing the unit to receive 9-30 VDC over an Ethernet cable. This passive PoE function is for powering the TSW304 itself and is not compatible with IEEE 802.3af, 802.3at or 802.3bt PoE standards.
The 8 Gbps of non-blocking bandwidth, a 128 KB packet buffer and support for jumbo frames up to 9216 bytes. Its 2K MAC address table allows the switch to maintain forwarding information for connected network devices.
