| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FETSW114 |
| Manufacturer No: | TSW114 |
| Delivery: | In Stock: 7-10 Days |
 |

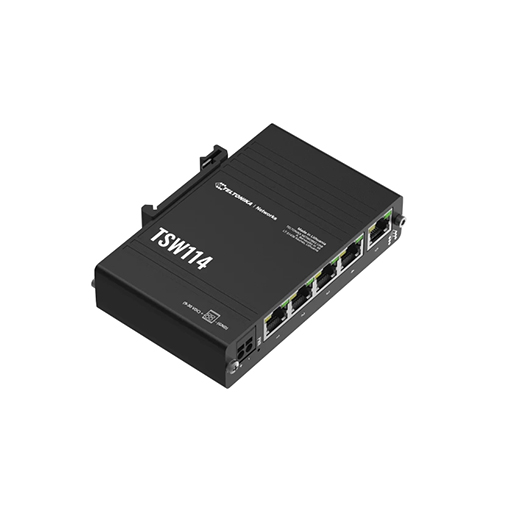

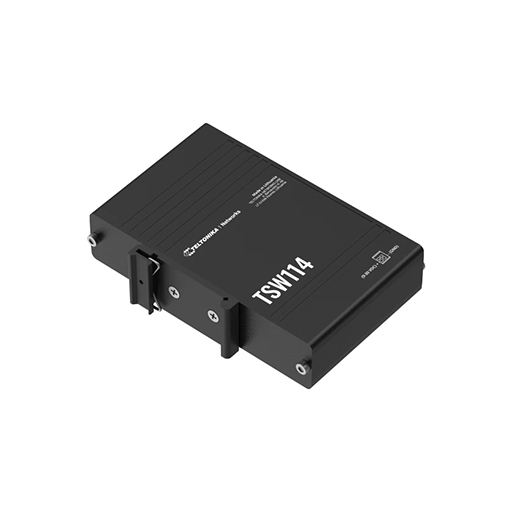

The Teltonika TSW114 is an unmanaged Gigabit Ethernet switch with five 10/100/1000 Mbps RJ45 ports for connecting multiple network devices over high-speed wired Ethernet. Its plug-and-play operation requires no additional configuration, while the integrated DIN rail bracket and front-facing connections make installation practical inside industrial control cabinets and other space-conscious environments. A 9-30 VDC power input, compact anodised aluminium housing and wide operating temperature range support use across a variety of industrial settings.

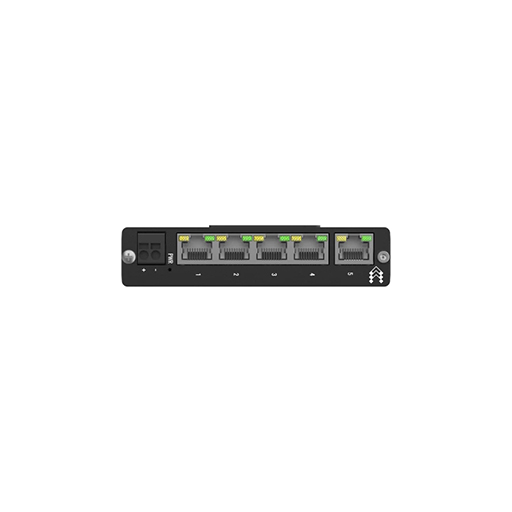

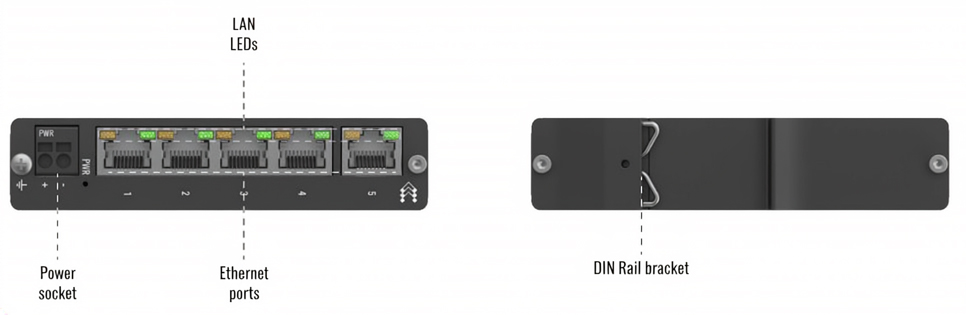

The switch provides five RJ45 Ethernet ports supporting 10/100/1000 Mbps connections, giving connected equipment access to Gigabit network speeds. Auto MDI/MDIX crossover support allows the ports to automatically accommodate different Ethernet cable configurations.
As an unmanaged Ethernet switch, the unit can be installed and used without additional configuration. The five ports provide straightforward network connectivity for industrial equipment, computers, controllers and other Ethernet-enabled devices.
A 10 Gbps non-blocking bandwidth capacity supports simultaneous traffic across the five Gigabit Ethernet ports. The switch also provides a 128 KB packet buffer, a 2K-entry MAC address table and jumbo frame support for frames up to 9216 bytes.
The switch accepts a 9-30 VDC supply through its 2-pin industrial DC power socket. It can also receive passive PoE power through the ETH1 port using 9–30 VDC. This passive PoE input is not compatible with IEEE 802.3af, 802.3at or 802.3bt power sources.
The Teltonika TSW114 is an unmanaged Gigabit Ethernet switch with five 10/100/1000 Mbps RJ45 ports for connecting multiple network devices over high-speed wired Ethernet. Its plug-and-play operation requires no additional configuration, while the integrated DIN rail bracket and front-facing connections make installation practical inside industrial control cabinets and other space-conscious environments. A 9-30 VDC power input, compact anodised aluminium housing and wide operating temperature range support use across a variety of industrial settings.
The switch provides five RJ45 Ethernet ports supporting 10/100/1000 Mbps connections, giving connected equipment access to Gigabit network speeds. Auto MDI/MDIX crossover support allows the ports to automatically accommodate different Ethernet cable configurations.
As an unmanaged Ethernet switch, the unit can be installed and used without additional configuration. The five ports provide straightforward network connectivity for industrial equipment, computers, controllers and other Ethernet-enabled devices.
A 10 Gbps non-blocking bandwidth capacity supports simultaneous traffic across the five Gigabit Ethernet ports. The switch also provides a 128 KB packet buffer, a 2K-entry MAC address table and jumbo frame support for frames up to 9216 bytes.
The switch accepts a 9-30 VDC supply through its 2-pin industrial DC power socket. It can also receive passive PoE power through the ETH1 port using 9–30 VDC. This passive PoE input is not compatible with IEEE 802.3af, 802.3at or 802.3bt power sources.
