| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FETSF010 |
| Manufacturer No: | TSF010 |
| Delivery: | In Stock: Next Day |
 |

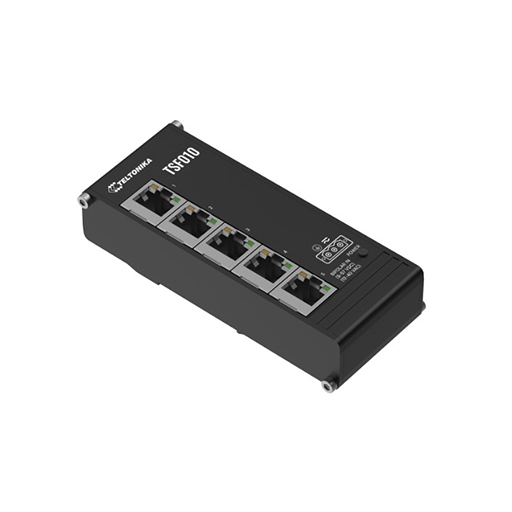

The Teltonika TSF010 is a compact unmanaged Ethernet switch providing five 10/100 Mbps RJ45 ports for connecting multiple network devices in industrial and space-constrained installations. Its flat form factor measures 113 x 28 x 50 mm and weighs 142 g, while the integrated DIN rail bracket allows straightforward mounting inside cabinets and equipment enclosures. A 3-pin industrial power connector accepts 7–57 VDC, giving the switch flexibility across a range of industrial power systems. Plug-and-play operation means the switch can provide network connectivity without requiring configuration.

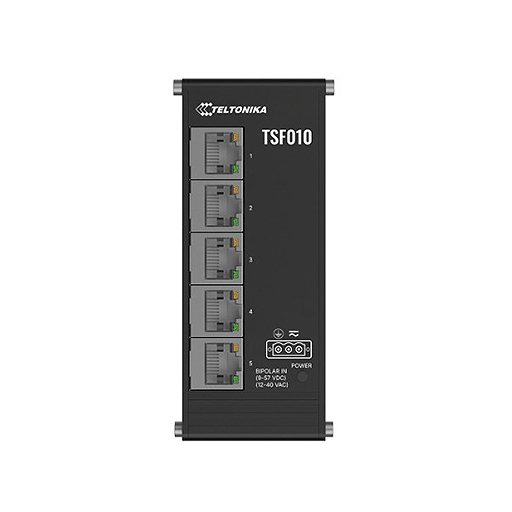

The switch provides five front-facing RJ45 Ethernet ports supporting 10/100 Mbps connections. Auto MDI/MDIX crossover support allows compatible network devices to connect without requiring crossover cables, making installation straightforward across a range of wired network configurations.

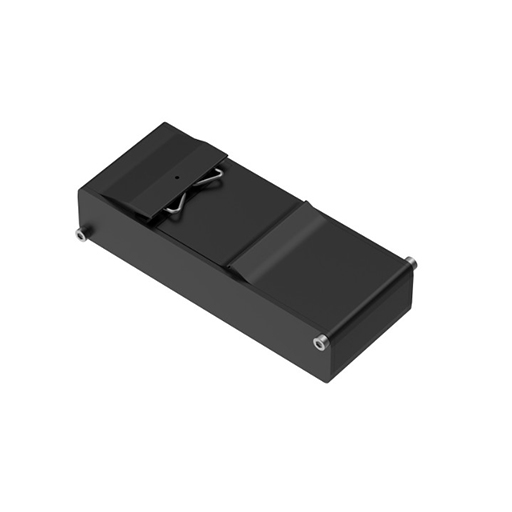

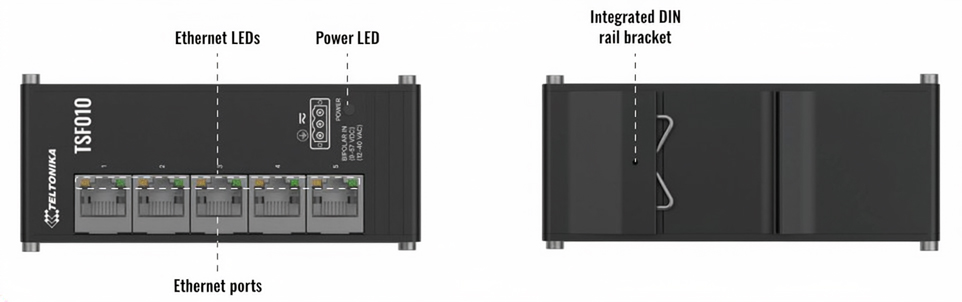

With dimensions of 113 x 28 x 50 mm and a weight of 142 g, the switch occupies little space inside cabinets, terminals and other equipment. Its flat construction places the Ethernet ports opposite the integrated DIN rail bracket, helping it fit into installations where available space is restricted.

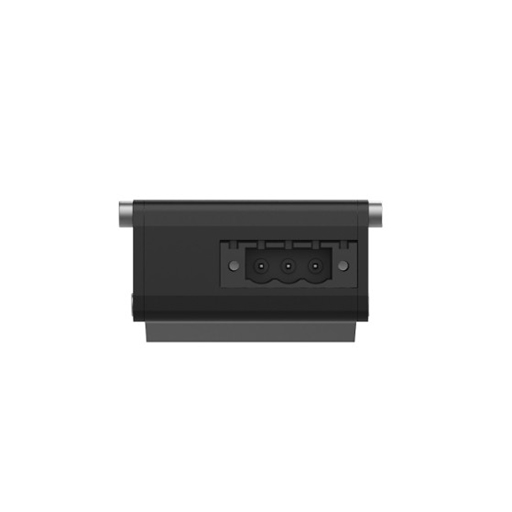

A 3-pin industrial DC power socket accepts an input voltage range of 7-57 VDC. The power input also incorporates overvoltage, reverse-polarity and surge protection features, providing additional protection for the switch when installed in industrial electrical environments.
The unmanaged configuration allows the switch to provide Ethernet connectivity without software setup or network management configuration. A 2K-entry MAC address table, 9216-byte jumbo frame support and 10 Gbps non-blocking bandwidth provide the switching capacity required for its five Ethernet ports.
The Teltonika TSF010 is a compact unmanaged Ethernet switch providing five 10/100 Mbps RJ45 ports for connecting multiple network devices in industrial and space-constrained installations. Its flat form factor measures 113 x 28 x 50 mm and weighs 142 g, while the integrated DIN rail bracket allows straightforward mounting inside cabinets and equipment enclosures. A 3-pin industrial power connector accepts 7–57 VDC, giving the switch flexibility across a range of industrial power systems. Plug-and-play operation means the switch can provide network connectivity without requiring configuration.
The switch provides five front-facing RJ45 Ethernet ports supporting 10/100 Mbps connections. Auto MDI/MDIX crossover support allows compatible network devices to connect without requiring crossover cables, making installation straightforward across a range of wired network configurations.
With dimensions of 113 x 28 x 50 mm and a weight of 142 g, the switch occupies little space inside cabinets, terminals and other equipment. Its flat construction places the Ethernet ports opposite the integrated DIN rail bracket, helping it fit into installations where available space is restricted.
A 3-pin industrial DC power socket accepts an input voltage range of 7-57 VDC. The power input also incorporates overvoltage, reverse-polarity and surge protection features, providing additional protection for the switch when installed in industrial electrical environments.
The unmanaged configuration allows the switch to provide Ethernet connectivity without software setup or network management configuration. A 2K-entry MAC address table, 9216-byte jumbo frame support and 10 Gbps non-blocking bandwidth provide the switching capacity required for its five Ethernet ports.
