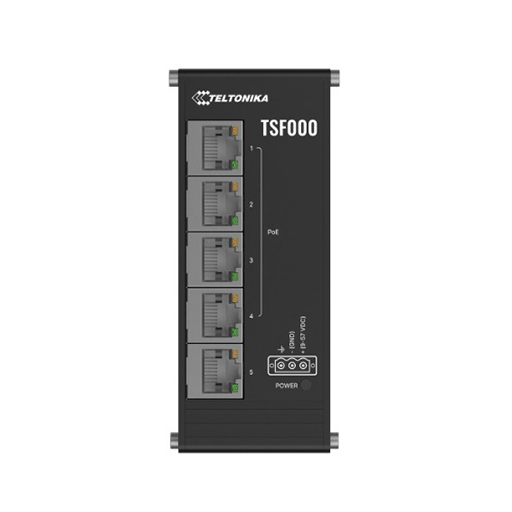

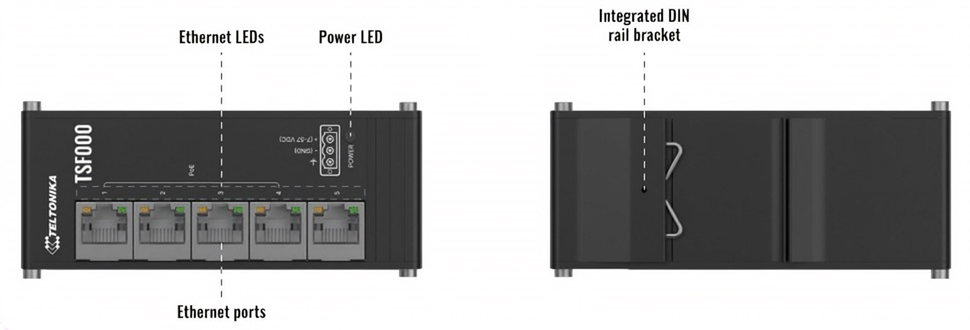

The Teltonika TSF000 is a compact unmanaged Ethernet switch built for installations where cabinet space is limited. It provides five 10/100 Mbps Ethernet ports, including four PoE+ ports capable of supplying up to 30 W each, with a combined PoE power budget of 120 W. Its flat aluminium housing, integrated DIN rail bracket and front-facing Ethernet connections allow convenient installation in industrial cabinets, control panels and other confined areas. A 7-57 VDC power input provides flexibility for different industrial power systems, while plug-and-play operation allows connected devices to communicate without switch configuration.

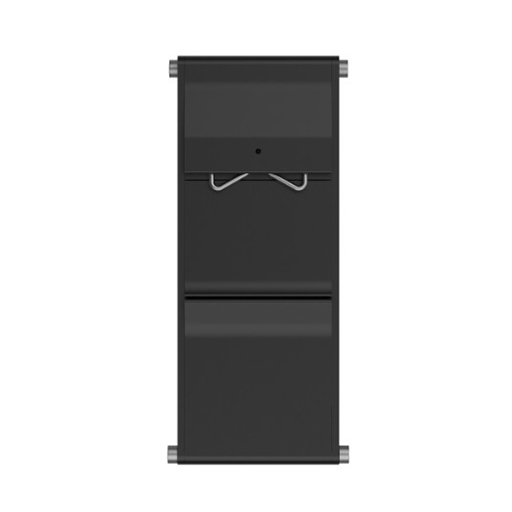

The low-profile form factor measures 113 x 28 x 50 mm and weighs 142 g, making the switch suitable for locations where available cabinet depth is restricted. Its integrated DIN rail bracket provides a practical mounting method for industrial control cabinets and equipment panels.
Four of the five Ethernet ports provide PoE+ output using IEEE 802.3af and IEEE 802.3at standards. Each PoE port can provide up to 30 W, with a total available PoE power budget of 120 W for connected equipment such as IP cameras, access points and other compatible network devices.

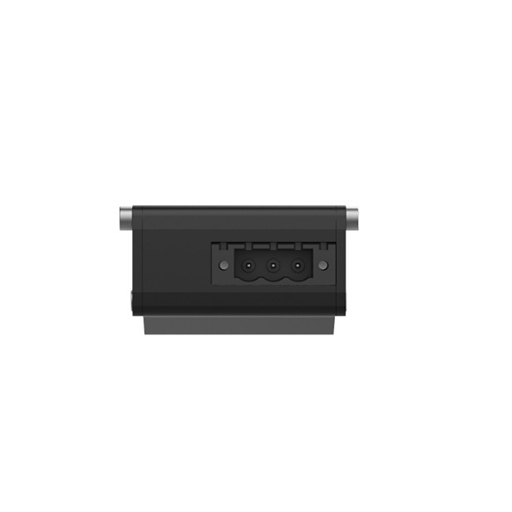

The switch accepts a 7-57 VDC input through its 3-pin industrial DC power connector. PoE output requires an input voltage within the 44–57 VDC range, while the wider input range allows the switch itself to operate with different DC power sources.
As an unmanaged switch, the unit provides straightforward plug-and-play networking without requiring software configuration. The five 10/100 Mbps Ethernet ports support automatic MDI/MDIX crossover, while a 2K-entry MAC address table and 9216-byte jumbo frame support provide additional network handling capabilities.
The Teltonika TSF000 is a compact unmanaged Ethernet switch built for installations where cabinet space is limited. It provides five 10/100 Mbps Ethernet ports, including four PoE+ ports capable of supplying up to 30 W each, with a combined PoE power budget of 120 W. Its flat aluminium housing, integrated DIN rail bracket and front-facing Ethernet connections allow convenient installation in industrial cabinets, control panels and other confined areas. A 7-57 VDC power input provides flexibility for different industrial power systems, while plug-and-play operation allows connected devices to communicate without switch configuration.
The low-profile form factor measures 113 x 28 x 50 mm and weighs 142 g, making the switch suitable for locations where available cabinet depth is restricted. Its integrated DIN rail bracket provides a practical mounting method for industrial control cabinets and equipment panels.
Four of the five Ethernet ports provide PoE+ output using IEEE 802.3af and IEEE 802.3at standards. Each PoE port can provide up to 30 W, with a total available PoE power budget of 120 W for connected equipment such as IP cameras, access points and other compatible network devices.
The switch accepts a 7-57 VDC input through its 3-pin industrial DC power connector. PoE output requires an input voltage within the 44–57 VDC range, while the wider input range allows the switch itself to operate with different DC power sources.
As an unmanaged switch, the unit provides straightforward plug-and-play networking without requiring software configuration. The five 10/100 Mbps Ethernet ports support automatic MDI/MDIX crossover, while a 2K-entry MAC address table and 9216-byte jumbo frame support provide additional network handling capabilities.
