2U 19in Hinged Wall Mount Bracket for Patch Panels
Wall mount a patch panel or network switch while providing hinged access to the back of the device(s)

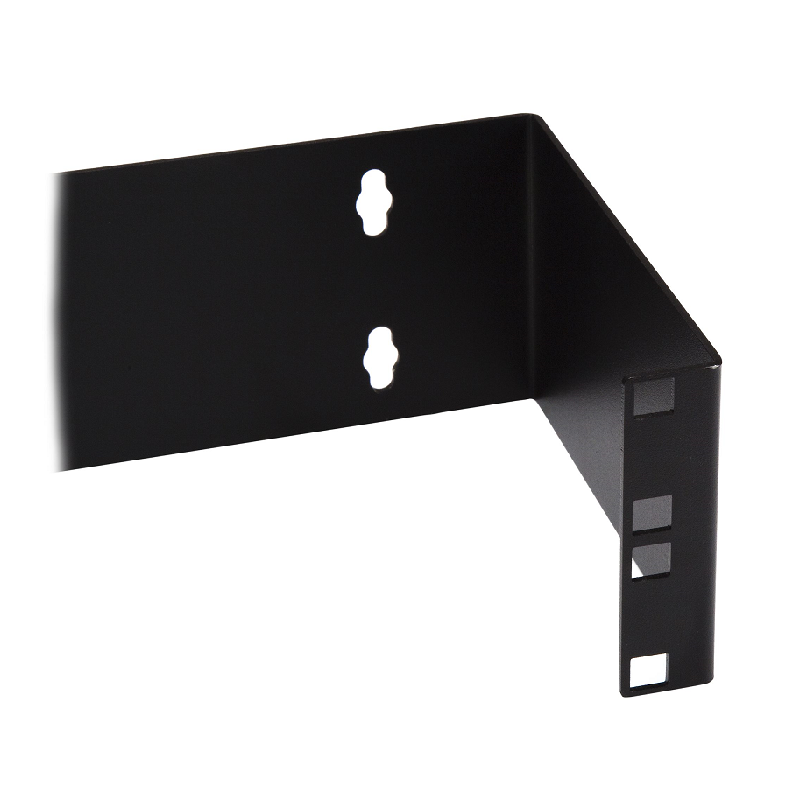

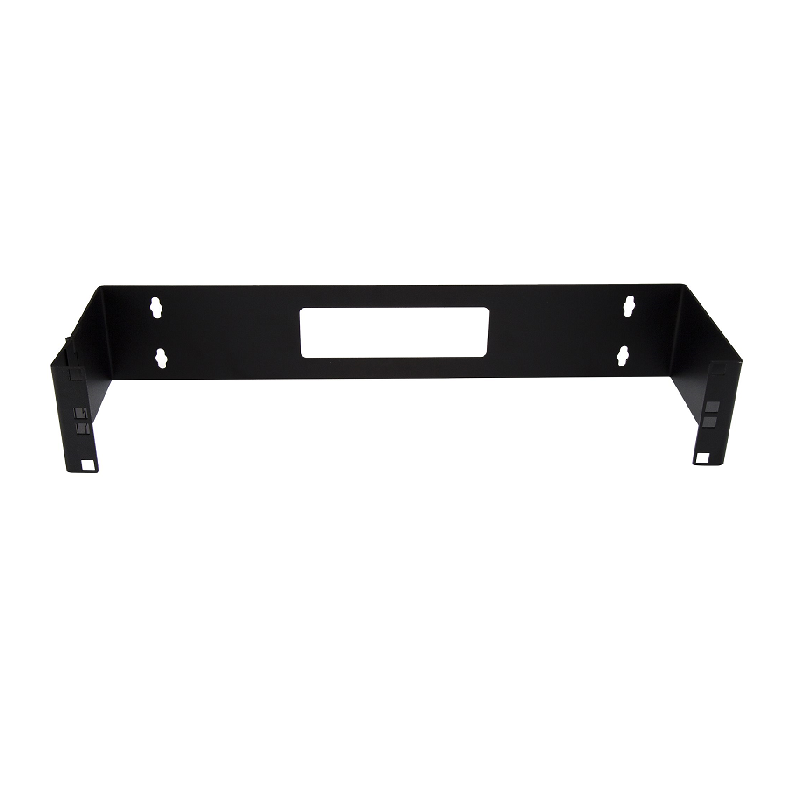

The WALLMOUNTH2 2U 19in Hinged Wall Mounting Bracket for Patch Panels is 6in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.

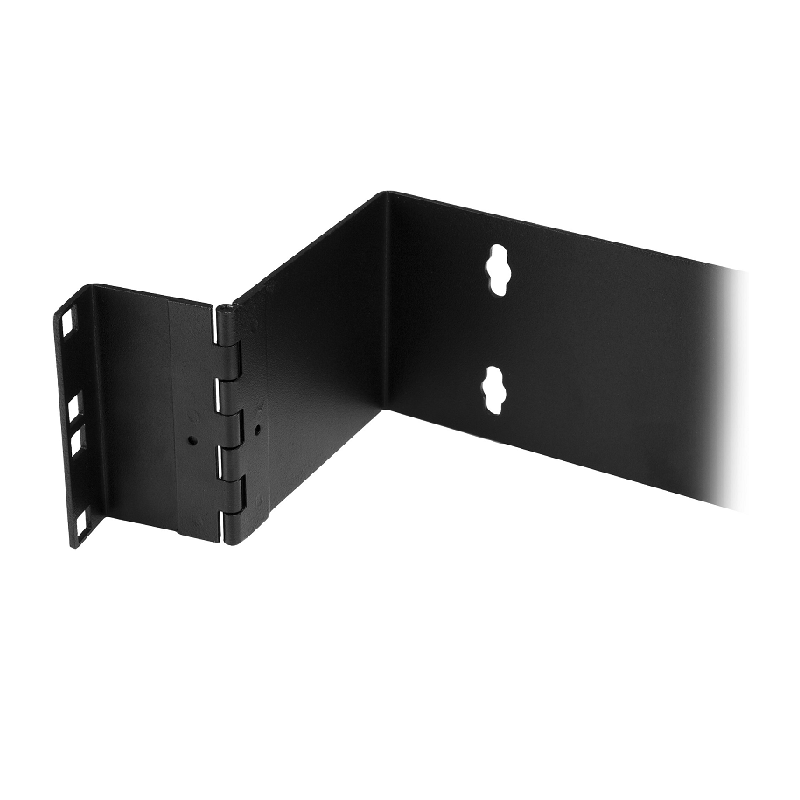

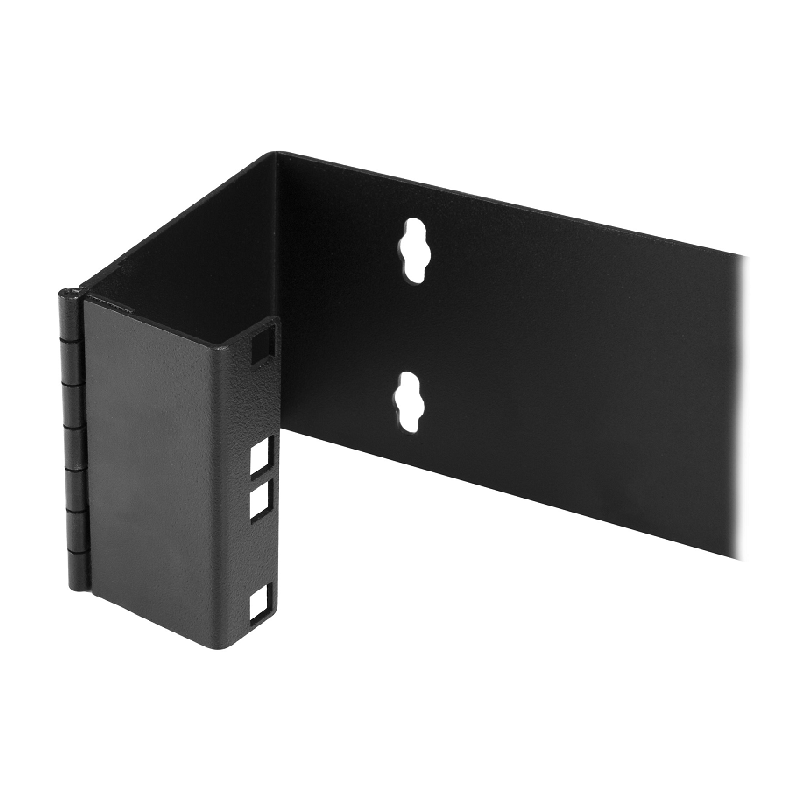

The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.
Backed by a StarTech.com 2-year warranty.
| Features | |
| Frame type | Open |
| Design | 2-post |
| Rack capacity | 2U |
| Castor wheels | No |
| Adjustable mounting rails | No |
| Cable management | No |
| Mounting hole shape | Square |
| Type | Wall mounted rack |
| Maximum weight capacity | 10 kg |
| Material | Aluminium, Steel |
| Product colour | Black |
| Certification | REACH, CE |
| Technical details | |
| Type | Wall mounted rack |
| Compliance industry standards | EIA/ECA-310-E |
| Sustainability certificates | RoHS |
| Rack capacity | 2U |
| Weight & dimensions | |
| Width | 501 mm |
| Height | 88 mm |
| Depth | 151 mm |
| Weight | 1.2 kg |
| Mounting depth (max) | 14.8 cm |
| Maximum weight capacity | 10 kg |
| Packaging data | |
| Package width | 178 mm |
| Package height | 101 mm |
| Package depth | 514 mm |
| Package weight | 1 kg |

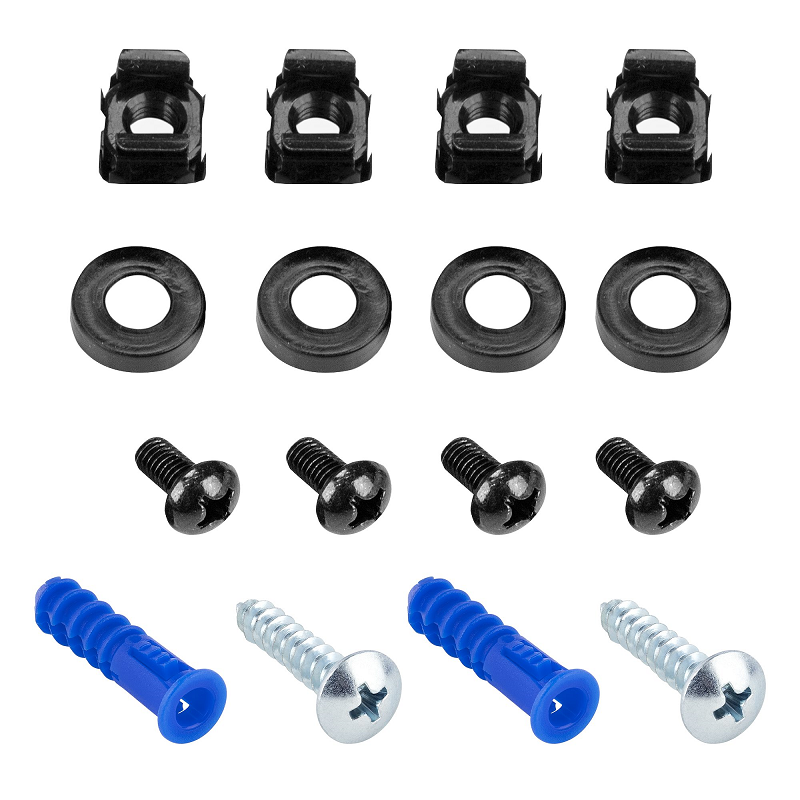

| Nuts included | Yes |
| Number of nuts | 4 |
| Screws included | Yes |
| Number of screws | 8 |
| Number of washers included | 4 |
| Manual | Yes |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file

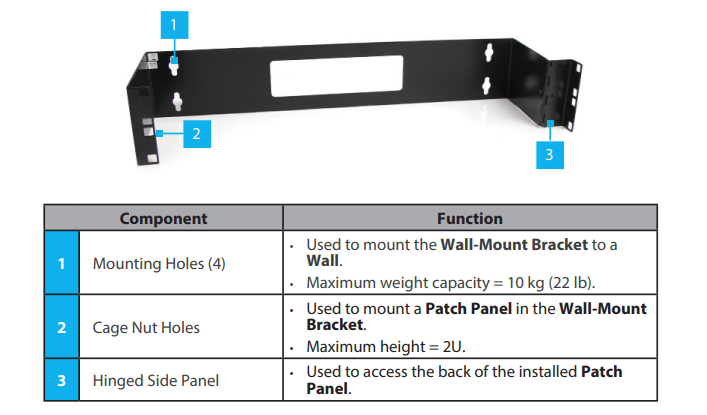

A product diagram can be found in the PDF file
