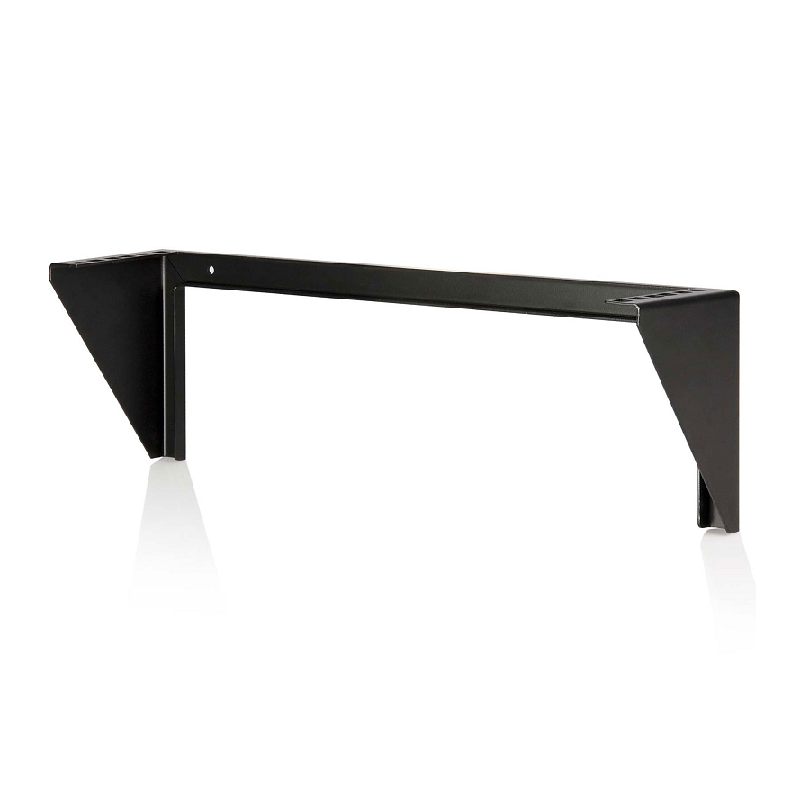

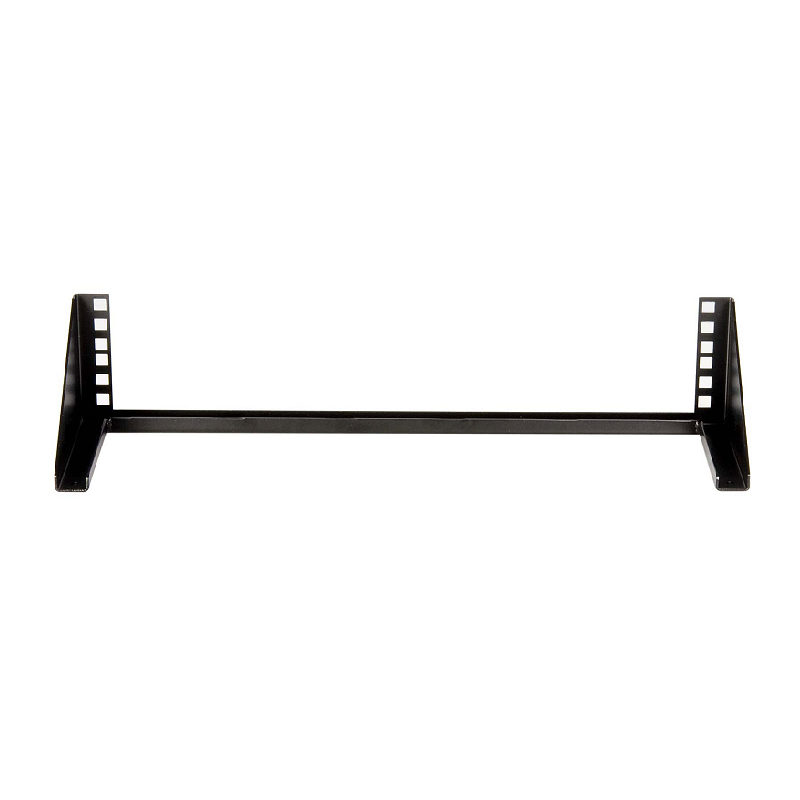

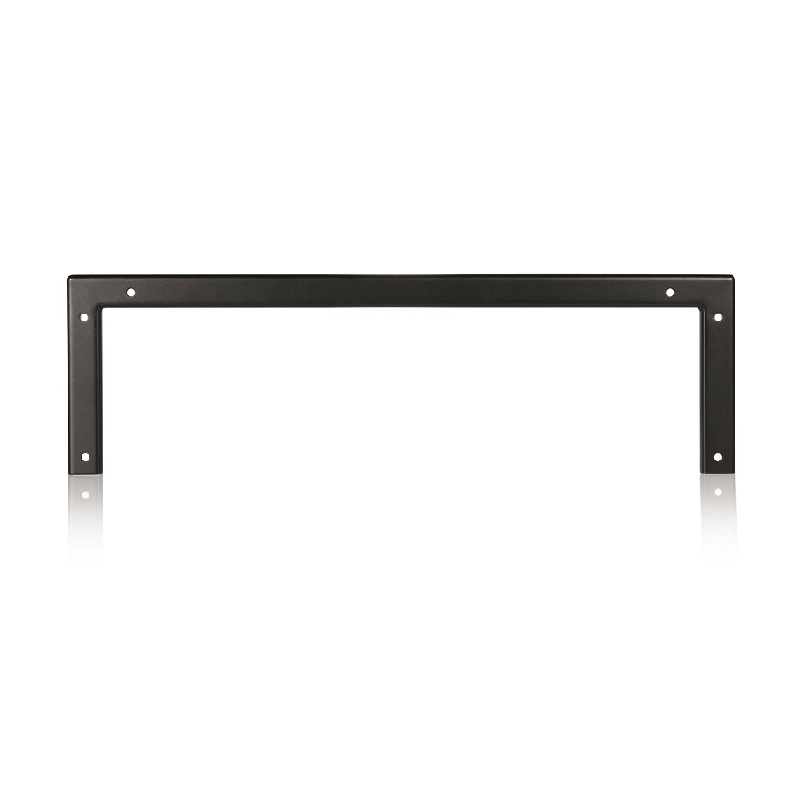

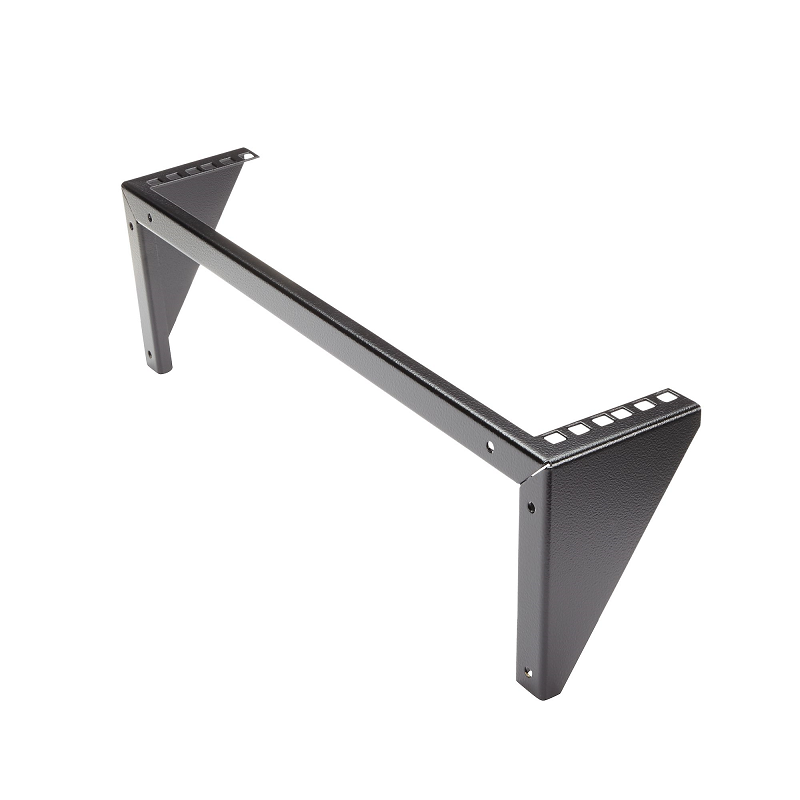

2U 19in Steel Vertical Wall Mount Equipment Rack Bracket

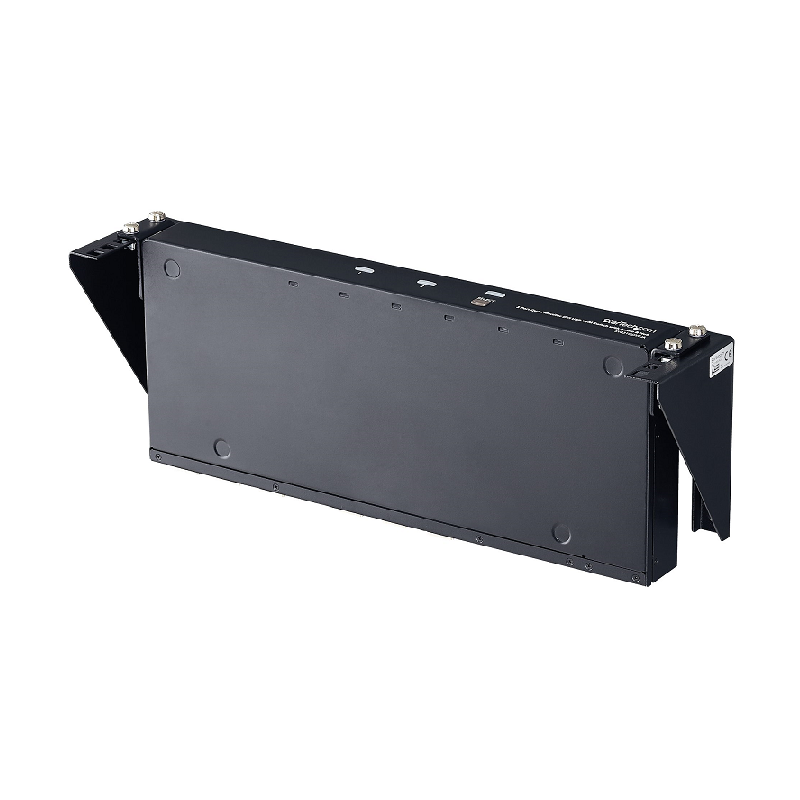

Mount a server, network or telecommunications device vertically with this 2U wall-mountable rack

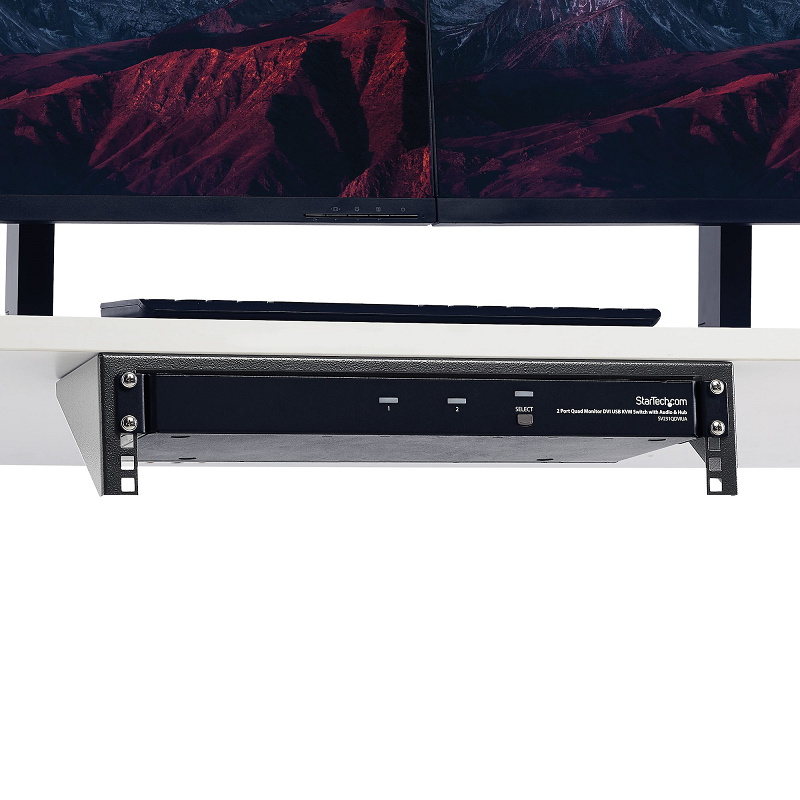

The RK219WALLV 2U 19in Steel Vertical Wall Mount Equipment Rack Bracket offers a versatile storage solution allowing rackmount equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with wall) to save space. Alternatively, the 2U bracket can be installed horizontally under a desk, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Perfect for SoHo (small office, home office) environments, the wallmount bracket features a sturdy steel design constructed to EIA-310 19in rack standards, and offers space-savings for environments lacking the footprint space for a full size server equipment rack. Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes are positioned at exactly 16in apart, matching standard construction framework.
Backed by a StarTech.com Lifetime Warranty.
Features | |
Size (imperial) | 48.3 cm (19") |
Frame type | Open |
Design | 2-post |
Rack capacity | 2U |
Rack capacity | Square |
Type | Wall mounted rack |
Maximum weight capacity | 56.7 kg |
Material | Steel |
Product colour | Black |
Certification | CE, REACH, TAA |
Technical details | |
Type | Wall mounted rack |
Size (imperial) | 48.3 cm (19") |
Compliance industry standards | EIA/ECA-310-E |
Sustainability certificates | RoHS |
Rack capacity | 2U |
Weight & dimensions | |
Width | 504 mm |
Height | 105 mm |
Depth | 151 mm |
Size (imperial) | 48.3 cm (19") |
Weight | 748.7 g |
Inner width | 450 mm |
Maximum weight capacity | 56.7 kg |
Packaging data | |
Package width | 168 mm |
Package height | 116 mm |
Package depth | 533 mm |
Package weight | 1.2 kg |
Manual | Yes |

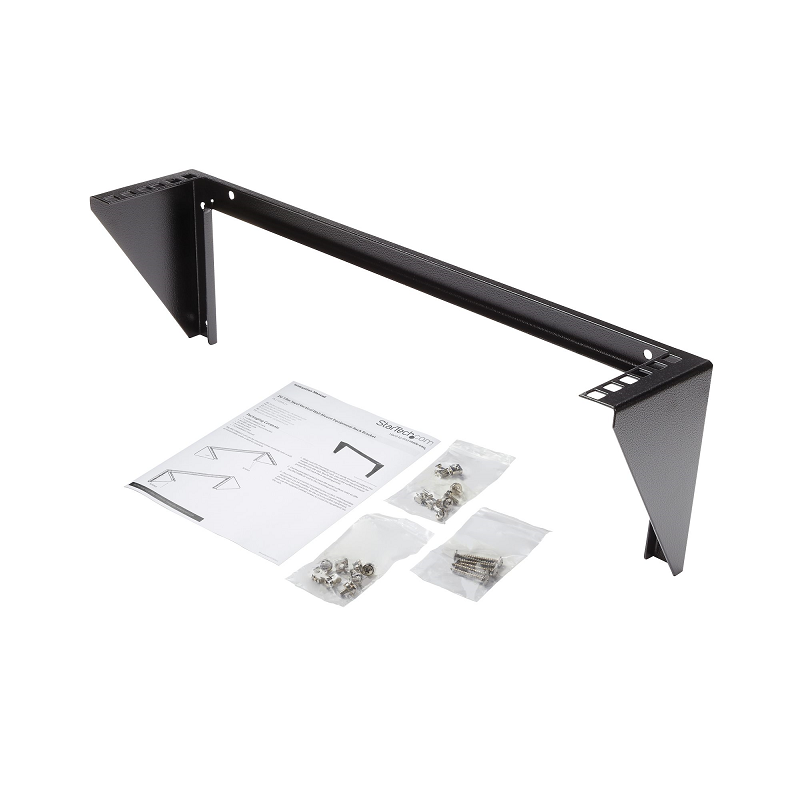

Mounting kit | Yes |
Wall mounting kit | Yes |
Nuts included | Yes |
Number of nuts | 8 |
Screws included | Yes |
Number of screws | 14 |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file

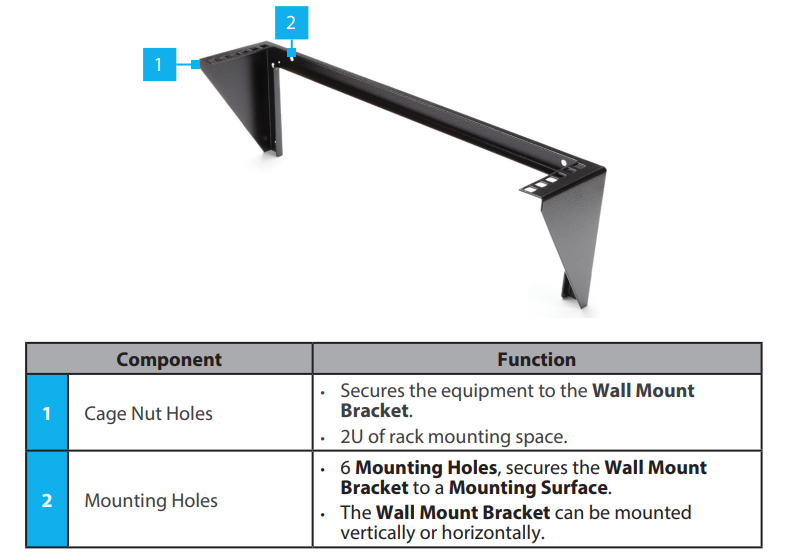

A product diagram can be found in the PDF file
