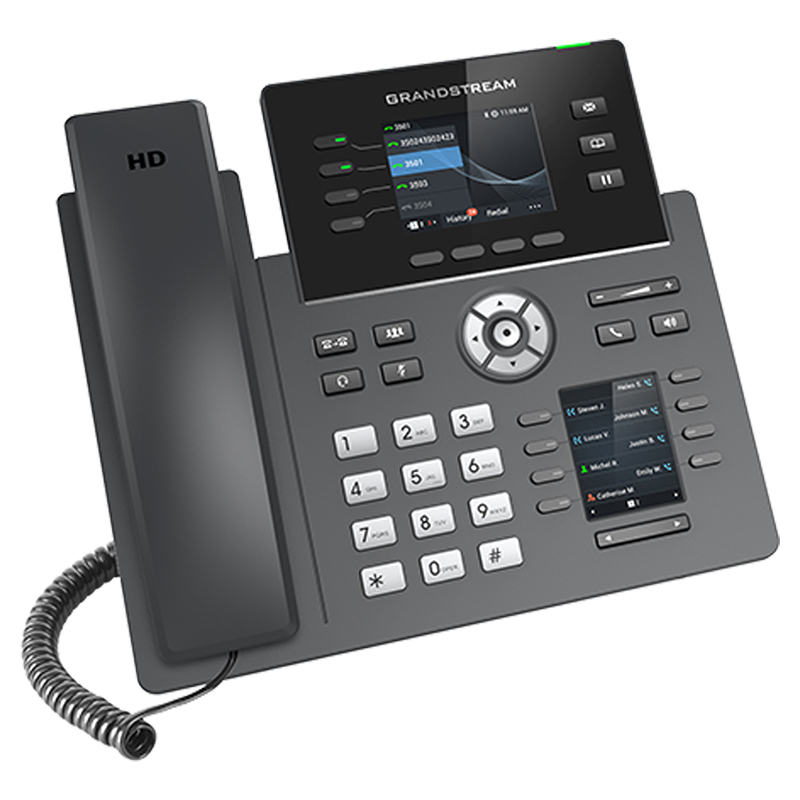

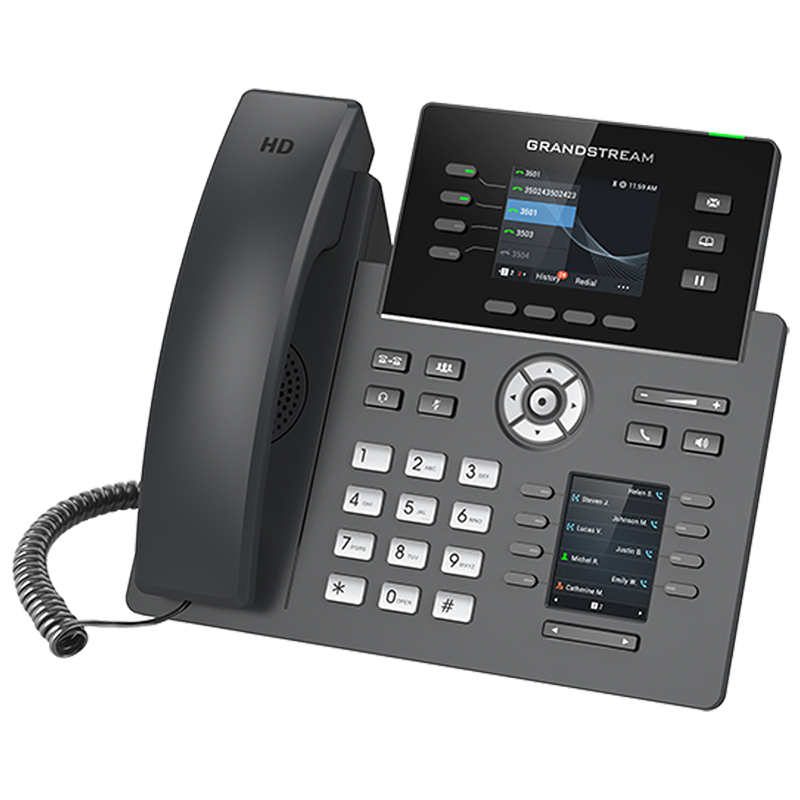

The GRP2614 is a 4-line carrier-grade IP phone designed with zero-touch provisioning for mass deployment and easy management. Built for the needs of busy desktop workers and designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2614 offers an easy-to-use and easy-to-deploy voice platform.

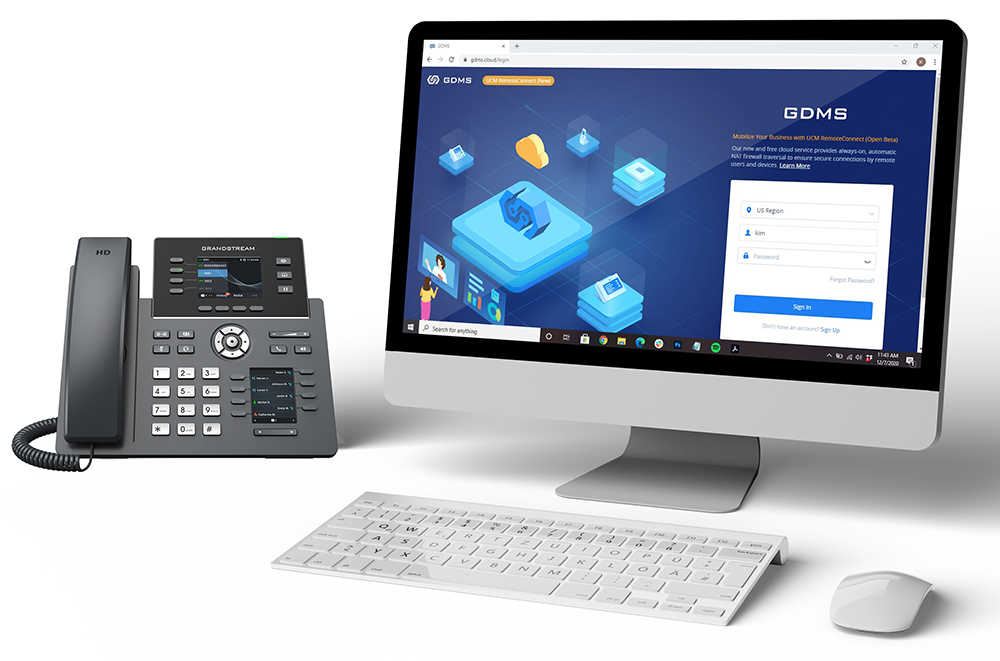

The GRP2614 features a sleek design and a suite of next-generation features including dual LCD screens with 40 virtual multi-purpose keys (VPKs), integrated WiFi, Bluetooth support, dual Gigabit ports and more. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralised management, the GRP2614 is supported by Grandstream’s Device Management System (GDMS), which provides a centralised interface to configure, provision, manage and monitor deployments of Grandstream endpoints.
Features:
Carrier Grade IP Phone Comparison
 |
 |
 |
 |
 |
| Model | GRP2612 (P/W) | GRP2613 | GRP2614 | GRP2615 |
| SIP Accounts | 2 | 3 | 4 | 16 |
| Line & MP Keys | 2+2 | 3+3 | 4+8 | 5+5 |
| Screen Size | 2.4 inch (320x240) | 2.8 inch (320x240) | 2.8 in. (320x240) + 2.4 in | 4.3 inch (480x272) |
| Network Ports | Dual 10/100MBps | Dual Gigabit | Dual Gigabit | Dual Gigabit |
| WiFi | Yes (GRP2612W) | No | Yes | Yes |
| PoE | Yes (GRP2612P) | Yes | Yes | Yes |
| Bluetooth | No | No | Yes, integrated | Yes, integrated |
| Opus Support | Yes | Yes | Yes | Yes |
| Compatible with EXT Module | No | No | No | Yes |
| Swappable Face Plate | Yes | Yes | No | Yes |
| Audio | HD handset, hands-free speakerphone | |||
| Name (Alias) based Config XML | Yes | |||
| Supported by GDMS (Grandstream Device Management Sytem | Yes | |||
Specifications
| Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
| Network Interfaces | Dual switched auto-sensing 10/100 Mbps Ethernet ports |
| Bluetooth | Yes, integrated |
| Wi-Fi | Yes, integrated dual-band WiFi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz) |
| Graphic Display | 2.8 inch (320x240) TFT colour LCD,2.4 inch (320x240) additional screen |
| Feature Keys | 4 line keys with up to 4 SIP accounts, 8MPK extension keys with dual-colour LED with 2 Left/Right keys, 4 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for:MESSAGE(with LED indicator), phonebook, transfer, conference, hold, headset, mute, send/redial, speakerphone, vol+, vol- |
| Voice Codecs | Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS, in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO) |
| Telephony Features | Hold, transfer, forward, 3-way conference, call park, call pickup, shared-call-appearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 1000 records), XML customisation of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalised music ringtones and music on hold, server redundancy and fail-over |
| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets) |
| HD Audio | Yes, HD handset and speakerphone with support for wideband audio |
| Base Stand | Yes, 2 angle positions available, Wall Mountable (Wall Mount *sold separately) |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot. |
| Power & Green Energy Efficiency | Universal power adapter included - Input:100-240V ; Output: +12VDC, 1A ; Integrated Power-over-Ethernet(802.3af), Max power consumption 3.5W(power adapter) or 4W(PoE) |
| Physical | Unit weight: 950g ; Package weight: 1460g Dimension: 234mm x 213mm x 82.2mm |
| Package Content | GRP2614 phone, handset with cord, phone stand, 12V power adapter, network cable, Quick Installation Guide, GPL license |
The GRP2614 is a 4-line carrier-grade IP phone designed with zero-touch provisioning for mass deployment and easy management. Built for the needs of busy desktop workers and designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2614 offers an easy-to-use and easy-to-deploy voice platform.
The GRP2614 features a sleek design and a suite of next-generation features including dual LCD screens with 40 virtual multi-purpose keys (VPKs), integrated WiFi, Bluetooth support, dual Gigabit ports and more. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralised management, the GRP2614 is supported by Grandstream’s Device Management System (GDMS), which provides a centralised interface to configure, provision, manage and monitor deployments of Grandstream endpoints.
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6.
Dual switched auto-sensing 10/100 Mbps Ethernet ports.
Yes, integrated.
Yes, integrated dual-band WiFi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz).
2.8 inch (320x240) TFT colour LCD,2.4 inch (320x240) additional screen.
4 line keys with up to 4 SIP accounts, 8MPK extension keys with dual-colour LED with 2 Left/Right keys, 4 XML programmable context-sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for MESSAGE(with LED indicator), phonebook, transfer, conference, hold, headset, mute, send/redial, speakerphone, vol+, vol-.
Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS, in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO).
Hold, transfer, forward, 3-way conference, call park, call pickup, shared-call-appearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 1000 records), XML customisation of the screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalised music ringtones and music on hold, server redundancy and fail-over.
RJ9 headset jack (allowing EHS with Plantronics headsets).
Yes, HD handset and speakerphone with support for wideband audio.
Yes, 2 angle positions available, Wall Mountable (Wall Mount *sold separately).
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS.
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS.
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot.
Universal power adapter included - Input:100-240V ; Output: +12VDC, 1A ; Integrated Power-over-Ethernet(802.3af), Max power consumption 3.5W(power adapter) or 4W(PoE).
Unit weight: 950g ; Package weight: 1460g Dimension: 234mm x 213mm x 82.2mm.
GRP2614 phone, handset with cord, phone stand, 12V power adapter, network cable, Quick Installation Guide, GPL license.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
