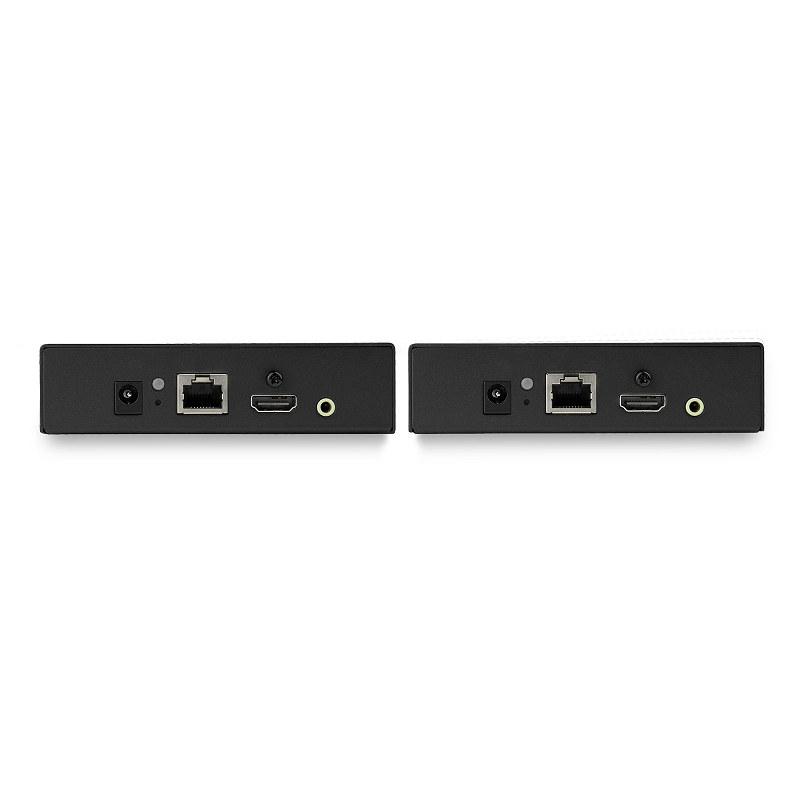

HDMI over IP Extender Kit with Video Wall Support - 1080p
HDMI® Video over Cat5e or Cat6 |Multiple Sources to Multiple Displays | Mobile Control App
This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, Android for a smartphone or tablet, and Google Chrome browser for a desktop.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Features | |
| Audio output channels | 7.1 channels |
| Rack mounting | Yes |
| Daisy chain | Yes |
| Maximum refresh rate | 60 Hz |
| Certification | CE, FCC, TAA, REACH |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Supported video modes | 720p, 1080p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| LED indicators | Link, Network, Power, Status |
| Product colour | Black |
| Rubber feet | Yes |
| Technical details | |
| Audio output channels | 7.1 channels |
| Rack mounting | Yes |
| Daisy chain | Yes |
| Maximum refresh rate | 60 Hz |
| Certification | CE, FCC, TAA, REACH |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Supported video modes | 720p, 1080p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Product colour | Black |
| Sustainability certificates | RoHS |

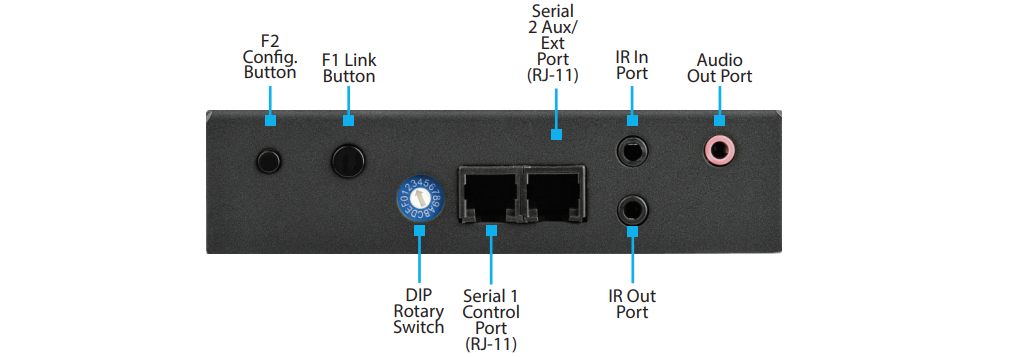

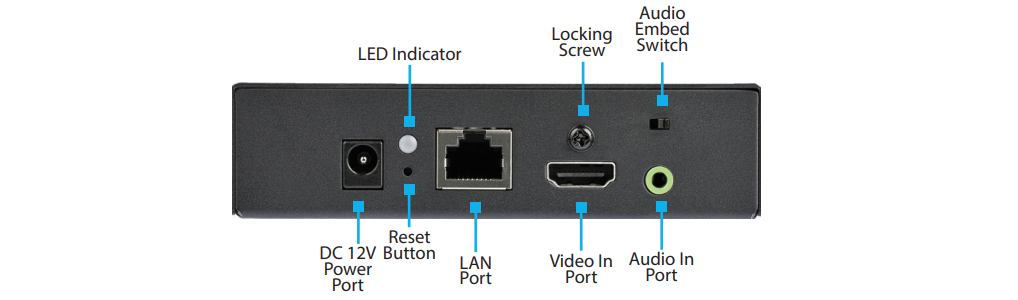

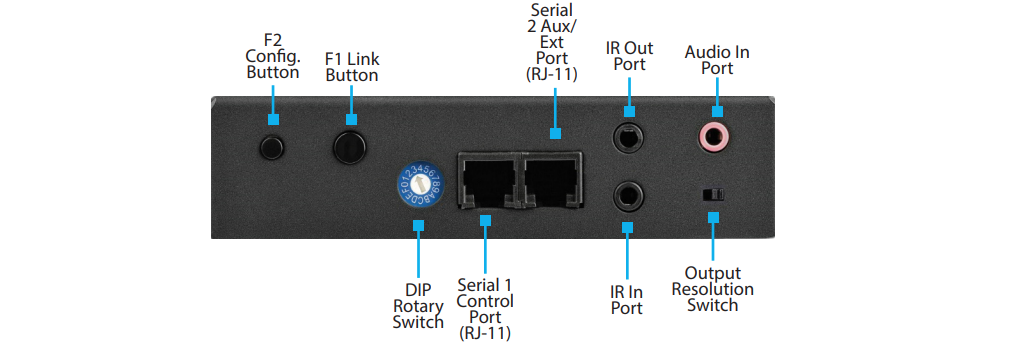

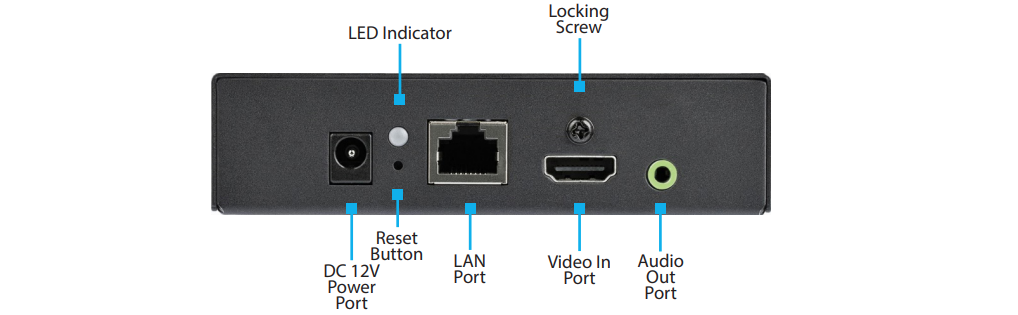

| Ports & interfaces | |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| RJ-11 ports quantity | 4 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Audio output | 2 x 3.5 mm |
| Audio input | 2 x 3.5 mm |
| Power | |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 10 W |
| External power adapter | Yes |
| Operating voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions (Transmitter & Receiver) | |
| Width | 118 mm |
| Height | 31 mm |
| Depth | 131 mm |
| Weight | 1.2 kg |
| Packaging data | |
| Package width | 235 mm |
| Package height | 75 mm |
| Package depth | 365 mm |
| Package weight | 2.3 kg |

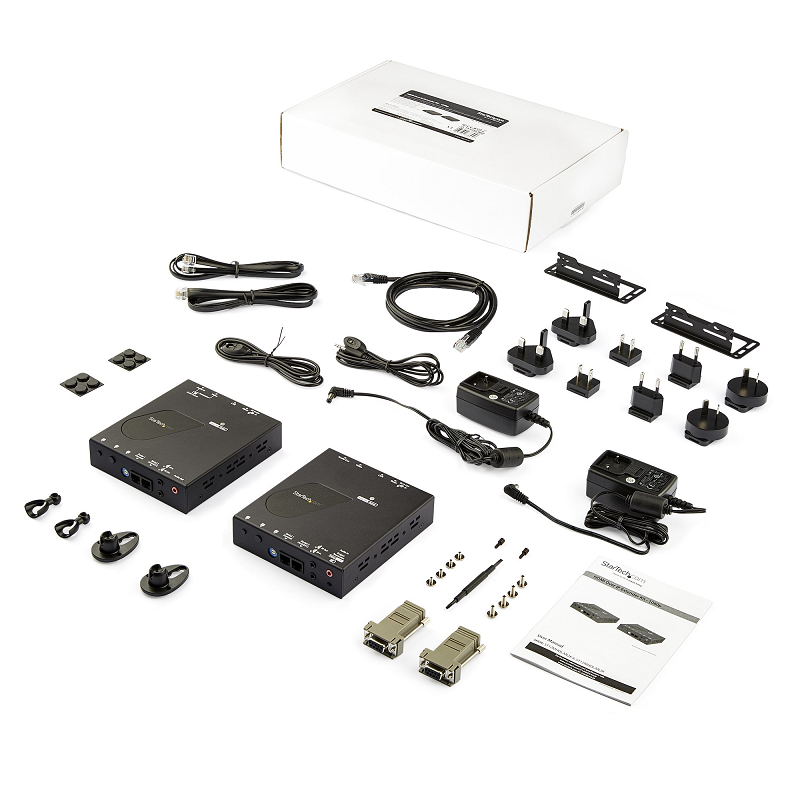

| Manual | Yes |
| AC adapter included | Yes |
| IR receiver included | Yes |
| IR blaster included | Yes |
| Mounting kit | Yes |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| Included power plug types | ANZ, EU, JP, NA, UK, US |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
