| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEST121HD20V |
| Manufacturer No: | ST121HD20V |
| Delivery: | In Stock: Next Day |
 |

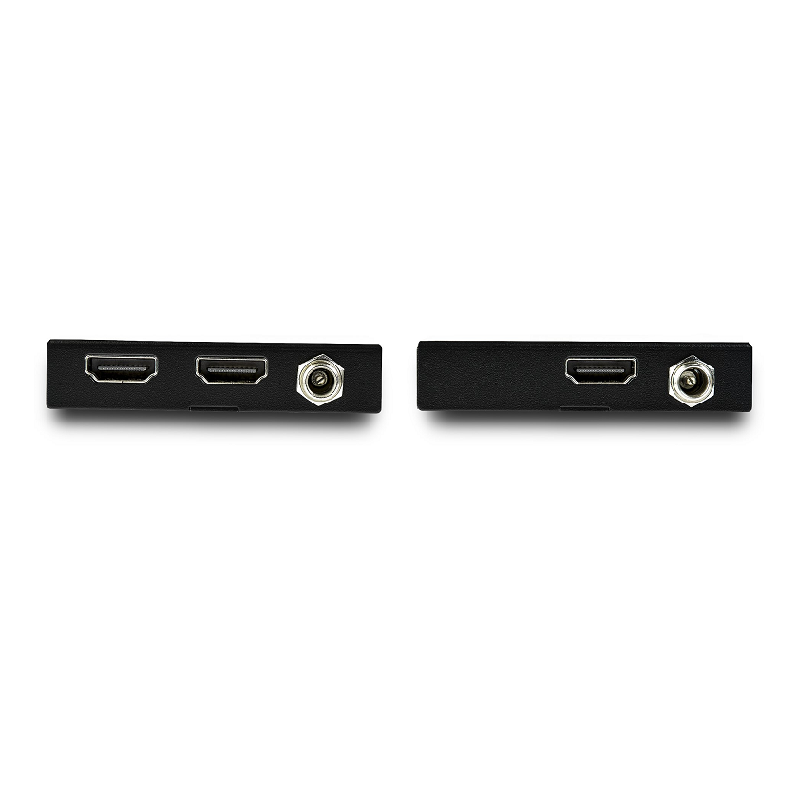

HDMI over CAT6 Extender Kit - 4K 60Hz
HDMI® Balun Kit | HDR | 4:4:4 | 7.1 Audio Support | 165 ft. (50 m)
This HDMI over CAT6 extender lets you transmit your 4K 60Hz signal up to 165 ft. (50 m) over a single CAT6 cable, with the added benefit of a local HDMI output. The extender supports High Dynamic Range (HDR), providing high contrast images with enhanced video.
This HDMI Ethernet extender supports a 4K 60Hz (3840 x 2160) resolution, providing four times the picture quality of high-definition (1080p). The extender supports HDMI 2.0 capabilities, offering 4:4:4 chroma subsampling. This ensures a crystal-clear picture that's ideal for delivering video content. With HDR support, you can enjoy increased contrast, color brightness and greater luminosity in your images.
Extend an HDMI signal to up to 165 ft. (50 m) with the HDMI to CAT6 converter. Use your existing CAT6 cable infrastructure with a direct connection to the converter for an easy run through walls and ceilings, saving you on installation costs.
Connect your HDMI 2.0 devices and displays with confidence, knowing this extender is HDCP 2.2 compliant. This lets you harness the capabilities of HDMI-enabled devices such as Blu-ray players or online streaming devices in higher resolutions. It is also backward compatible with previous generations of HDMI and HDCP.
ST121HD20V is backed by 2-year StarTech.com warranty with free lifetime technical support.
| Technical details | |
| HDCP | Yes |
| Audio output channels | 7.1 channels |
| Maximum refresh rate | 60 Hz |
| Certification | CE, FCC, REACH |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 50 m |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Product colour | Black |
| Connectivity technology | Wired |
| HDCP version | 2.2 |
| Sustainability certificates | RoHS |

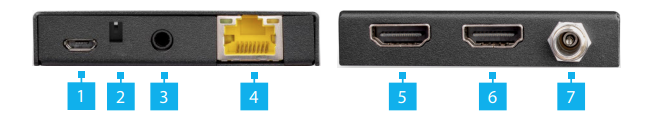

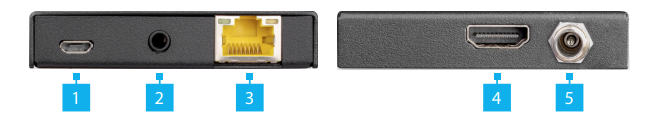

| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| HDMI version | 2.0 |
| Connectivity technology | Wired |
| Power | |
| Input current | 0.3 A |
| Output current | 1 A |
| Power plug type | Type M |
| Operating voltage (transmitter) | 12 V |
| Operating voltage (receiver) | 12 V |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80 % |
| Weight & dimensions | |
| Width | 70 mm |
| Height | 13 mm |
| Depth | 97 mm |
| Weight | 156 g |
| Packaging data | |
| Package width | 130 mm |
| Package height | 70 mm |
| Package depth | 220 mm |
| Package weight | 777 g |
| Quick start guide | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file
