| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEST121HDBTDK |
| Manufacturer No: | ST121HDBTDK |
| Delivery: | In Stock: Next Day |
 |

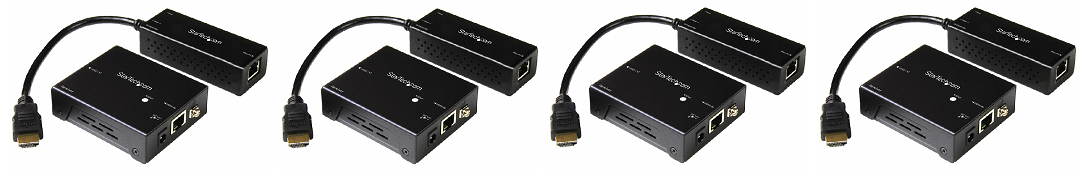

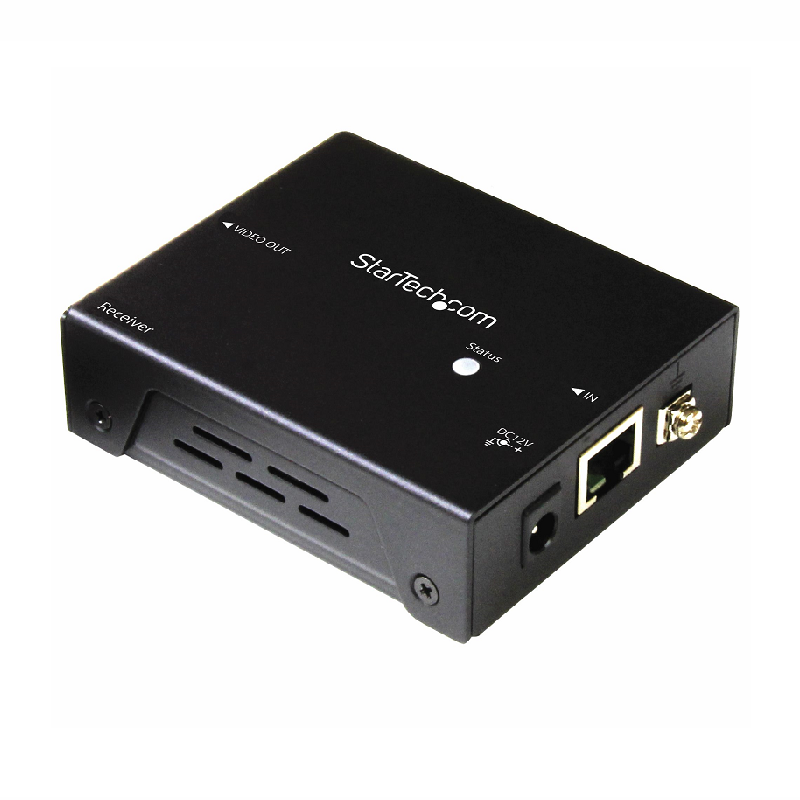

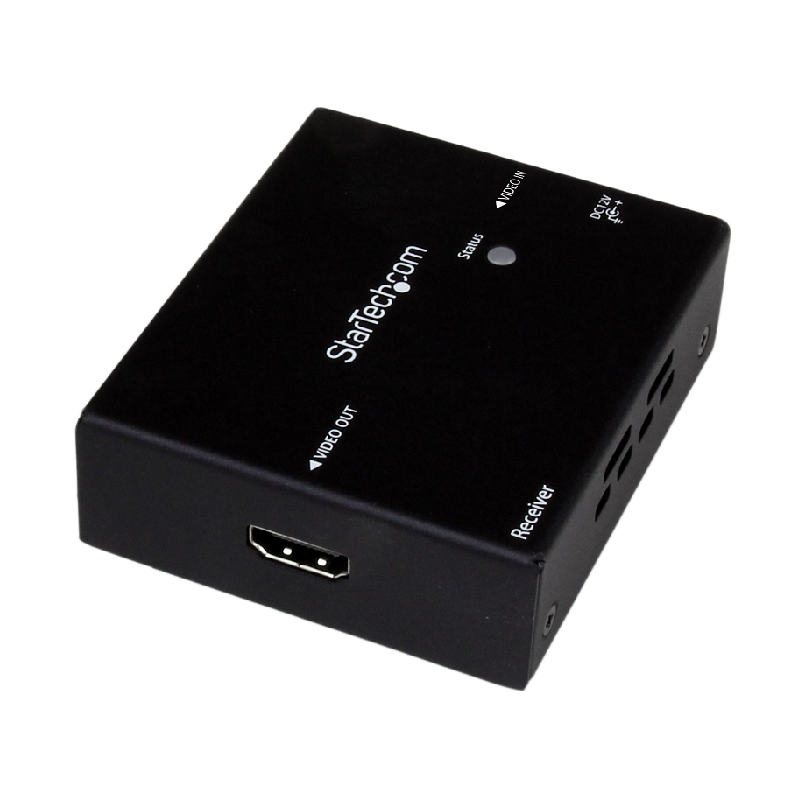

4K HDMI Extender with Compact Transmitter - HDBaseT - UHD 4K
HDBaseT Extender Kit | 7.1 Audio | Mounting Hardware Included | Up to 70 m (230 ft.)
This 4K HDMI extender uses HDBaseT to transmit your HDMI A/V signal to a remote location up to 70 m (230 ft.) away.

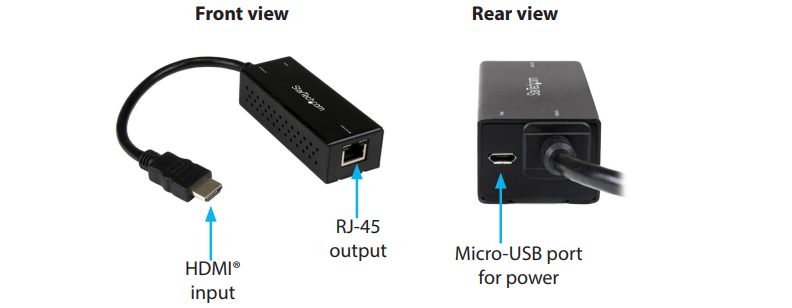

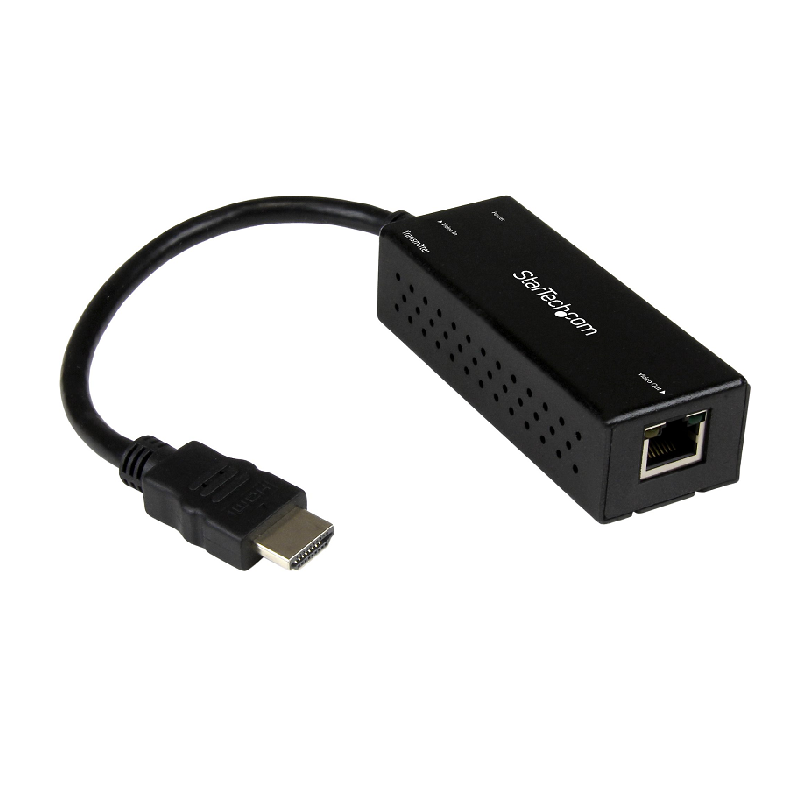

The transmitter in this HDMI HDBaseT extender kit features a small footprint and built-in HDMI cable that connects directly to your source for reduced clutter. It’s powered from a USB port on your source device, which makes it easier to install in areas where power outlets may be limited. Mounting hardware is included for the receiver for a discreet, professional installation.
This HDMI over CAT6 extender maintains your UHD 4K picture quality, even at 130 feet away from your video source. Because the extender is backward compatible with 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great. The extender also supports 7.1 audio to ensure all audio channels are captured.
The kit extends HDMI over a single cable, unlike some HDMI extenders that require two cables, reducing potential failure points and lowering your cabling costs. Ideal for digital signage, the HDMI over CAT6 extender uses standard CAT5e, CAT6 or CAT7 cables to extend HDMI video over the Ethernet infrastructure that's already in your building.
The ST121HDBTDK is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Features | |
| Audio output channels | 7.1 channels |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| HDBaseT certified | Yes |
| Certification | CE, FCC, TAA, REACH |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Audio system | Multichannel |
| LED indicators | Status |
| Cable length | 0.1 m |
| Product colour | Black |
| Technical details | |
| Audio output channels | 7.1 channels |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| HDBaseT certified | Yes |
| Certification | CE, FCC, TAA, REACH |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Audio system | Multichannel |
| Cable length | 0.1 m |
| Product colour | Black |
| Connectivity technology | Wired |
| Sustainability certificates | RoHS |

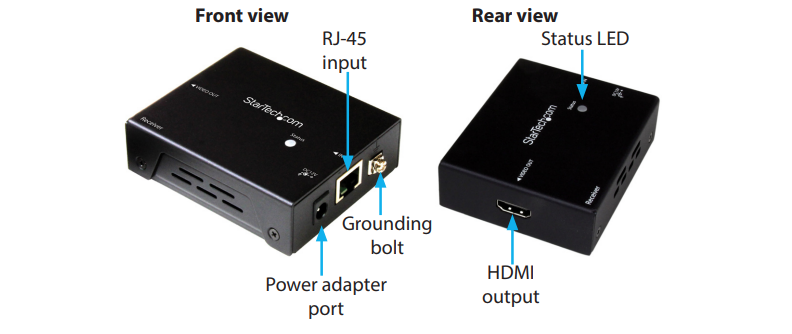

| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Connectivity technology | Wired |
| Power | |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Operating voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80 % |
| Weight & dimensions | |
| Width | 68 mm |
| Height | 25 mm |
| Depth | 80 mm |
| Weight | 252 g |
| Packaging data | |
| Package width | 196 mm |
| Package height | 74 mm |
| Package depth | 293 mm |
| Package weight | 1.6 kg |

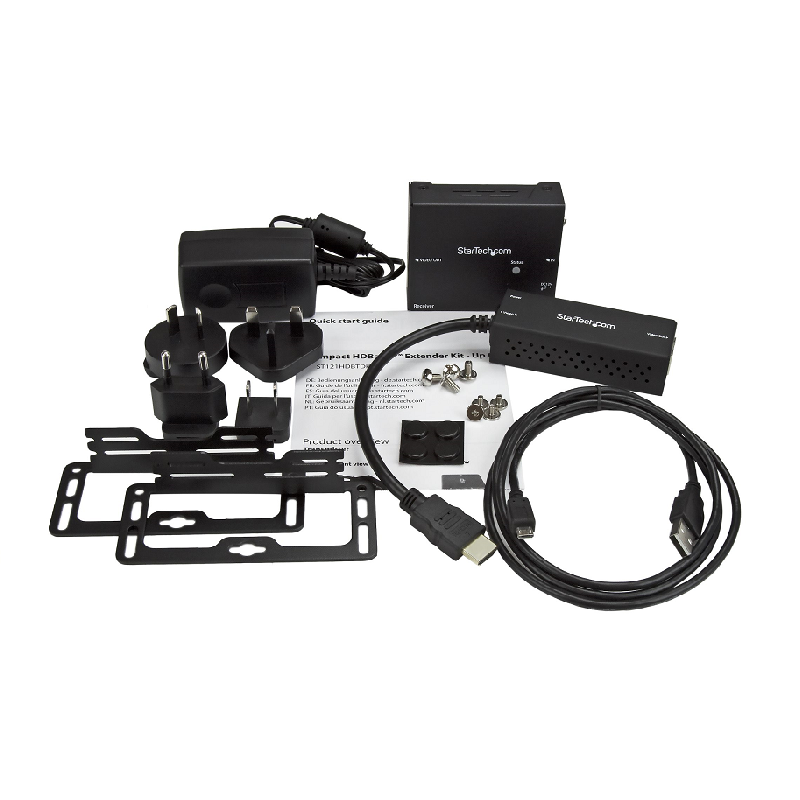

| Quick start guide | Yes |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Cables included | USB |
| Included power plug types | ANZ, EU, NA, UK |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
4K HDMI Extender with Compact Transmitter - HDBaseT - UHD 4K
HDBaseT Extender Kit | 7.1 Audio | Mounting Hardware Included | Up to 70 m (230 ft.)
This 4K HDMI extender uses HDBaseT to transmit your HDMI A/V signal to a remote location up to 70 m (230 ft.) away.
The transmitter in this HDMI HDBaseT extender kit features a small footprint and built-in HDMI cable that connects directly to your source for reduced clutter. It’s powered from a USB port on your source device, which makes it easier to install in areas where power outlets may be limited. Mounting hardware is included for the receiver for a discreet, professional installation.
This HDMI over CAT6 extender maintains your UHD 4K picture quality, even at 130 feet away from your video source. Because the extender is backward compatible with 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great. The extender also supports 7.1 audio to ensure all audio channels are captured.
The kit extends HDMI over a single cable, unlike some HDMI extenders that require two cables, reducing potential failure points and lowering your cabling costs. Ideal for digital signage, the HDMI over CAT6 extender uses standard CAT5e, CAT6 or CAT7 cables to extend HDMI video over the Ethernet infrastructure that's already in your building.
The ST121HDBTDK is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Features | |
| Audio output channels | 7.1 channels |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| HDBaseT certified | Yes |
| Certification | CE, FCC, TAA, REACH |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Audio system | Multichannel |
| LED indicators | Status |
| Cable length | 0.1 m |
| Product colour | Black |
| Technical details | |
| Audio output channels | 7.1 channels |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| HDBaseT certified | Yes |
| Certification | CE, FCC, TAA, REACH |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Audio system | Multichannel |
| Cable length | 0.1 m |
| Product colour | Black |
| Connectivity technology | Wired |
| Sustainability certificates | RoHS |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Connectivity technology | Wired |
| Power | |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Operating voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80 % |
| Weight & dimensions | |
| Width | 68 mm |
| Height | 25 mm |
| Depth | 80 mm |
| Weight | 252 g |
| Packaging data | |
| Package width | 196 mm |
| Package height | 74 mm |
| Package depth | 293 mm |
| Package weight | 1.6 kg |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Cables included | USB |
| Included power plug types | ANZ, EU, NA, UK |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
