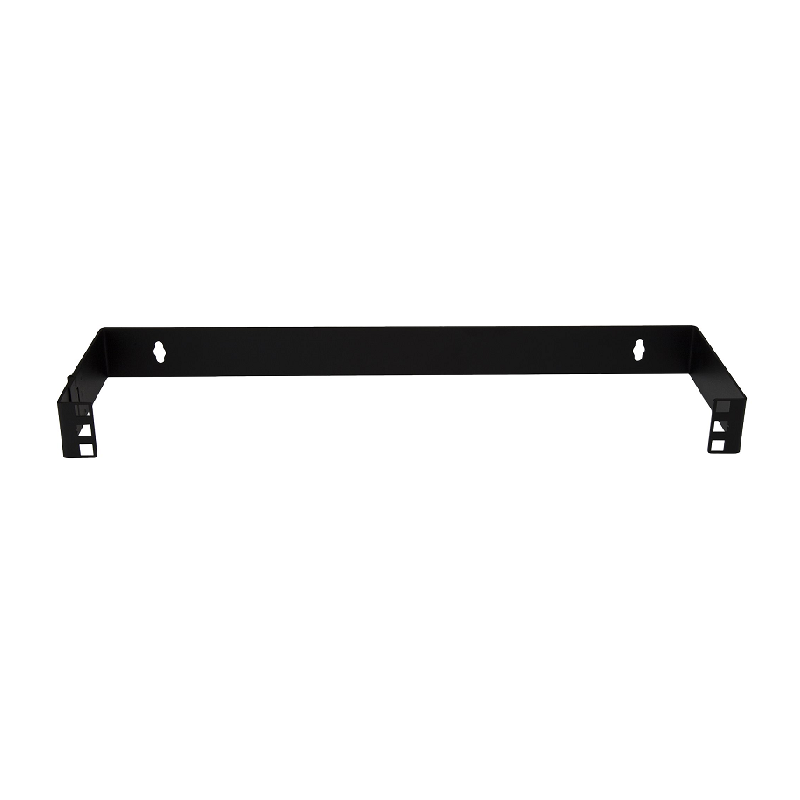

1U 19in Hinged Wall Mounting Bracket for Patch Panels
Wall mount a patch panel or network switch while providing hinged access to the back of the device
The WALLMOUNTH1 1U 19in Hinged Wall Mounting Bracket for Patch Panels is 4in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.

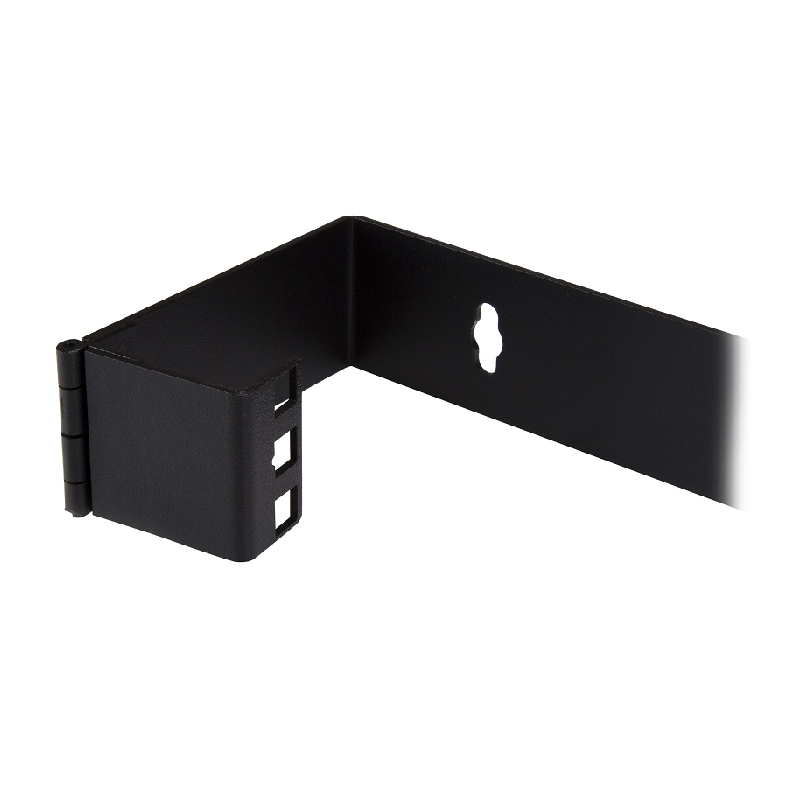

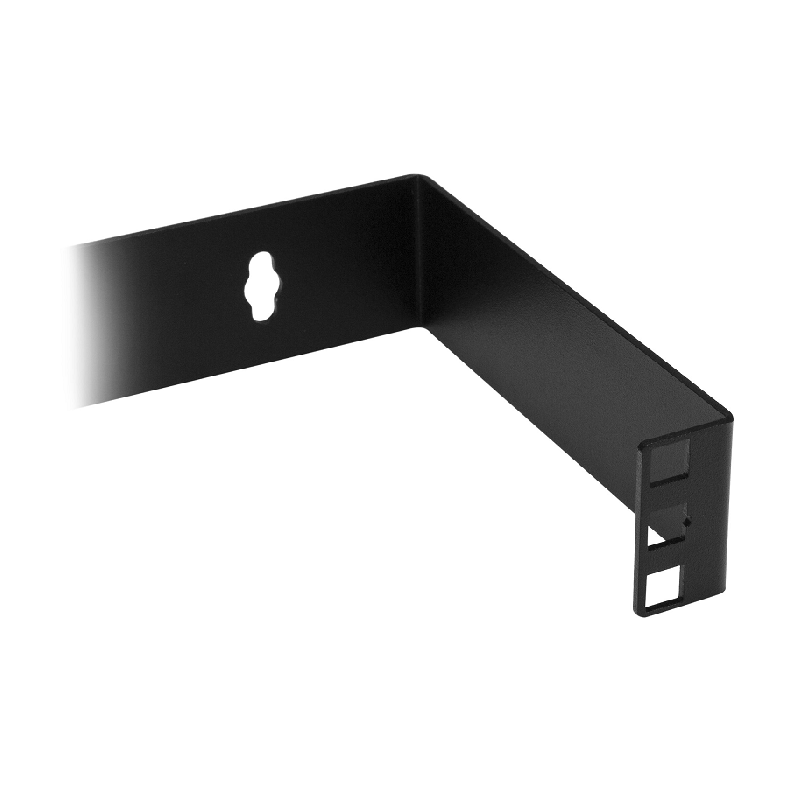

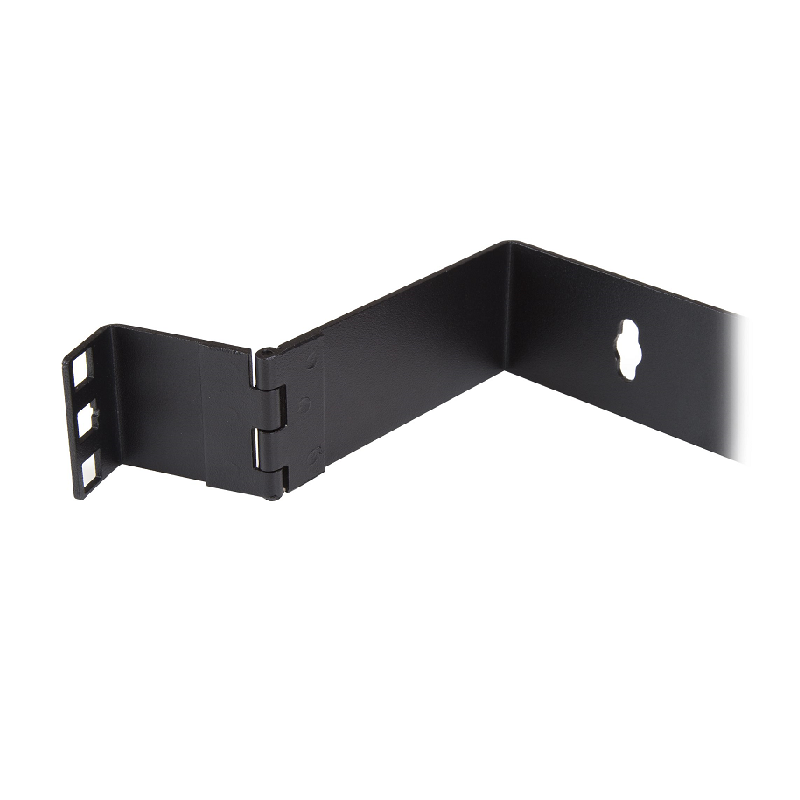

The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.
Backed by a StarTech.com 2-year warranty.
Features | |
Certification | RoHS |
Type | Wall mounted rack |
Size (imperial) | 48.3 cm (19") |
Rack capacity | 1U |
Maximum weight capacity | 8 kg |
Product colour | Black |
Compliance industry standards | EIA-310-D |
Mounting hole shape | Square |
Frame type | Open |
Castor wheels | No |
Technical details | |
Type | Wall mounted rack |
Size (imperial) | 48.3 cm (19") |
Rack capacity | 1U |
Weight & dimensions | |
Width | 501 mm |
Height | 44 mm |
Depth | 152 mm |
Size (imperial) | 48.3 cm (19") |
Mounting depth (min) | 15.2 cm |
Maximum weight capacity | 8 kg |
Packaging data | |
Package width | 200 mm |
Package height | 60 mm |
Package depth | 515 mm |
Package weight | 843 g |

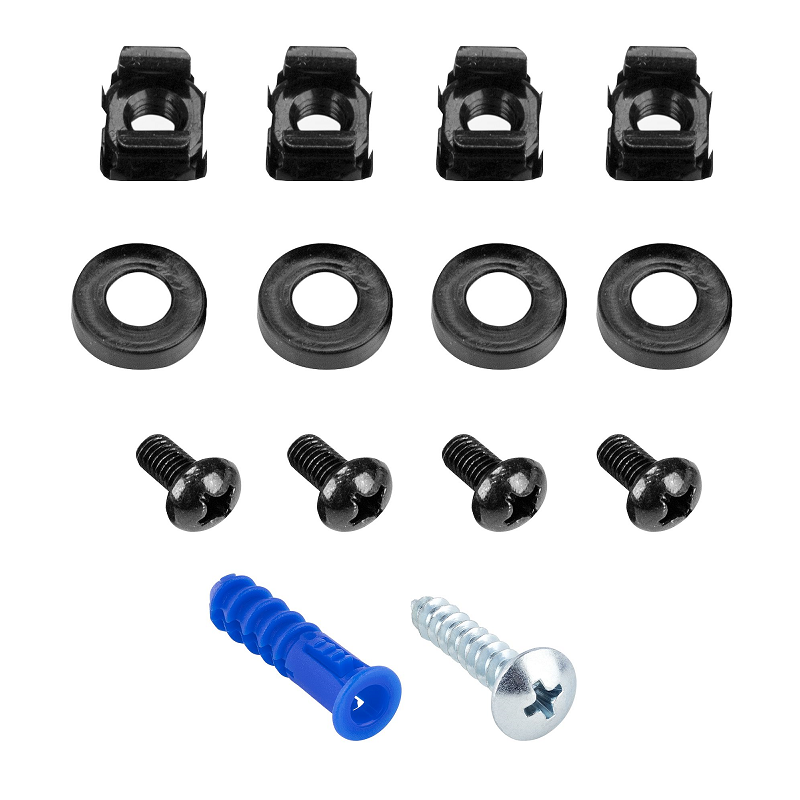

Nuts included | Yes |
Number of nuts | 4 |
Screws included | Yes |
Number of screws | 6 |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file

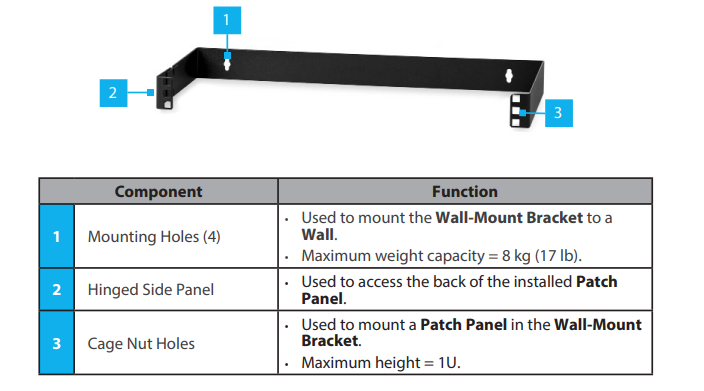

A product diagram can be found in the PDF file
