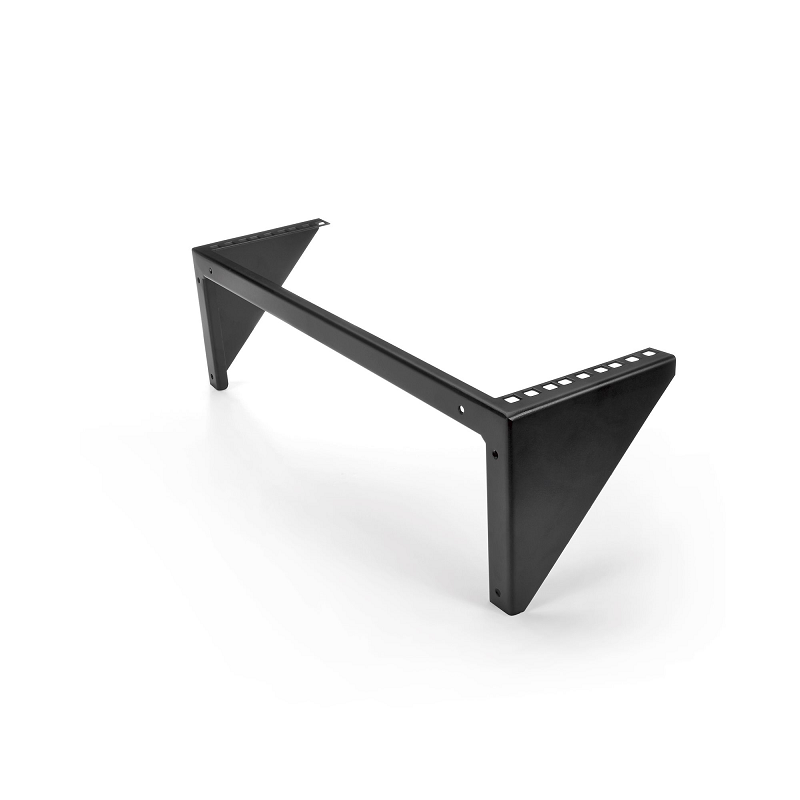

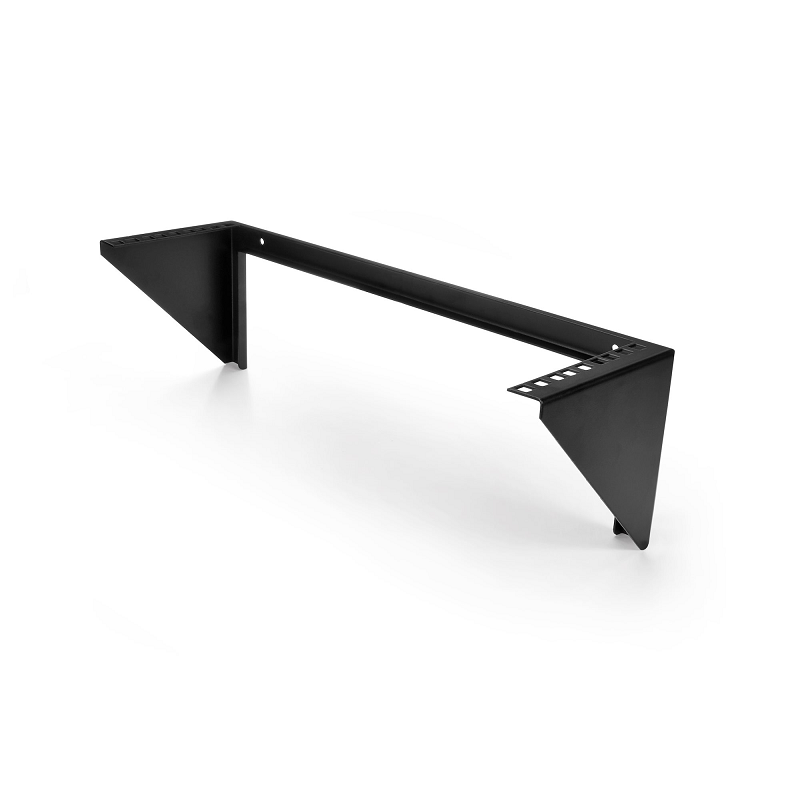

3U 19in Steel Vertical Wall Mount Equipment Rack Bracket
Mount server, network or telecommunications devices vertically with this 3U wall-mountable rack

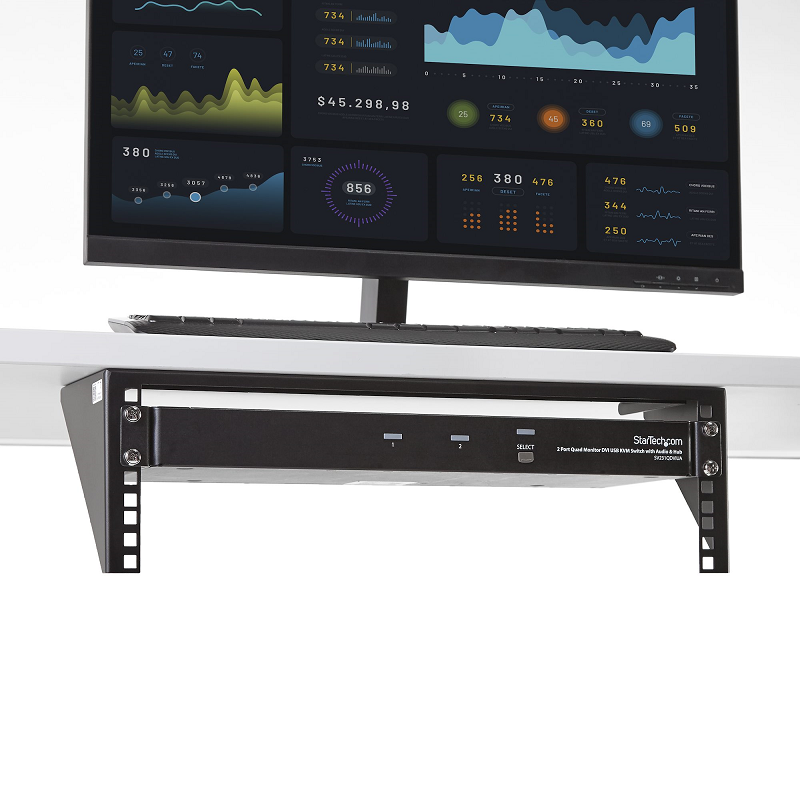

The RK319WALLV 3U 19in Steel Vertical Wall Mount Equipment Rack Bracket offers a versatile storage solution, allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with wall) to save space. Alternatively, the 3U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Constructed to EIA-310 19in rack standards, the wallmount bracket features a sturdy steel design, perfect for SoHo (small office, home office) environments. The wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack.
Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework.
Backed by a StarTech.com lifetime warranty.
Features | |
Frame type | Open |
Design | 2-post |
Rack capacity | 3U |
Mounting hole shape | Square |
Type | Wall mounted rack |
Maximum weight capacity | 56.7 kg |
Material | Steel |
Product colour | Black |
Certification | REACH, CE, UL, TAA |
Technical details | |
Type | Wall mounted rack |
Compliance industry standards | EIA/ECA-310-E |
Sustainability certificates | RoHS |
Rack capacity | 3U |
Weight & dimensions | |
Width | 503 mm |
Height | 149 mm |
Depth | 151 mm |
Weight | 921 g |
Inner width | 465 mm |
Maximum weight capacity | 56.7 kg |
Packaging data | |
Package width | 165 mm |
Package height | 160 mm |
Package depth | 518 mm |
Package weight | 1.4 kg |
Manual | Yes |

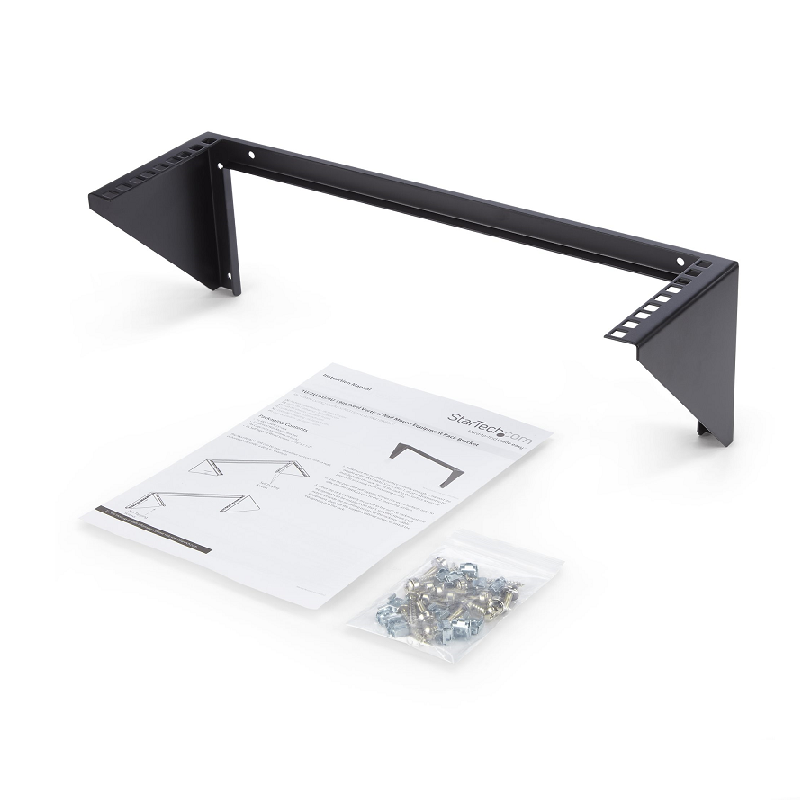

Mounting kit | Yes |
Wall mounting kit | Yes |
Nuts included | Yes |
Number of nuts | 12 |
Screws included | Yes |
Number of screws | 18 |
Full specification and details can be found in the PDF file

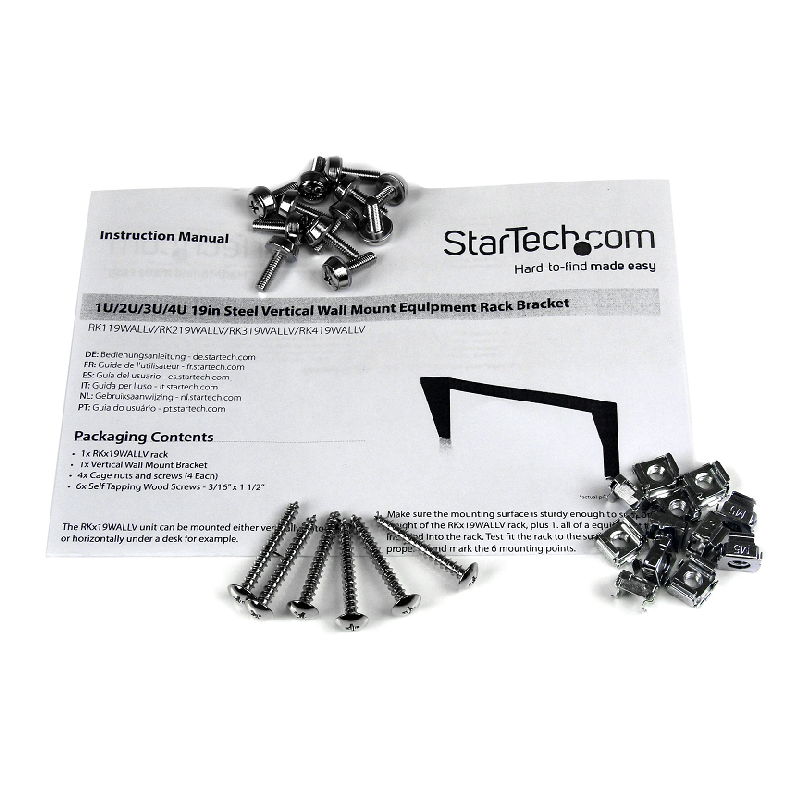

An instruction manual can be found in the PDF file
A product diagram can be found in the PDF file
