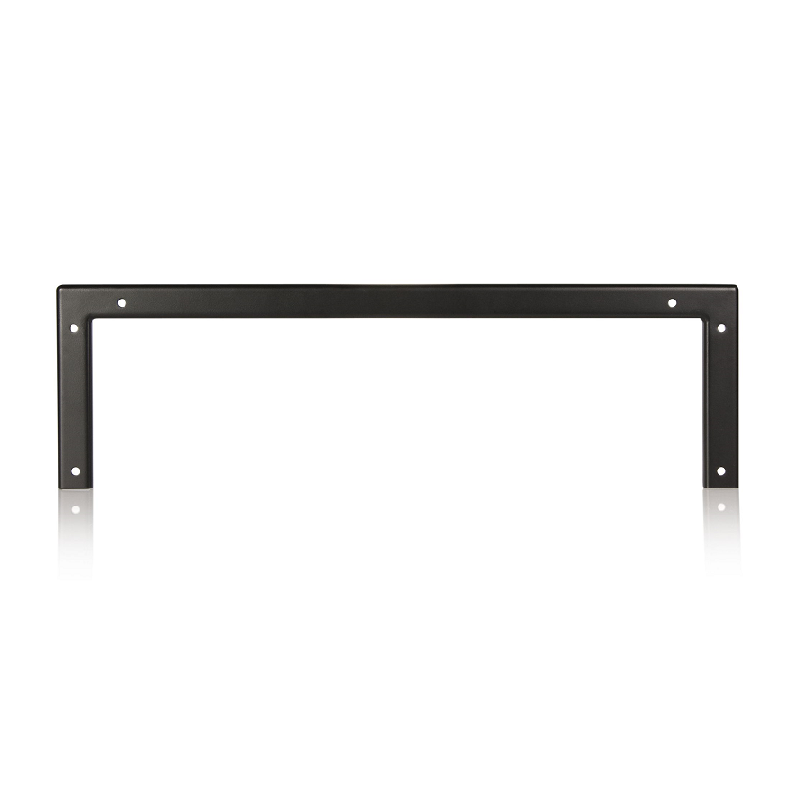

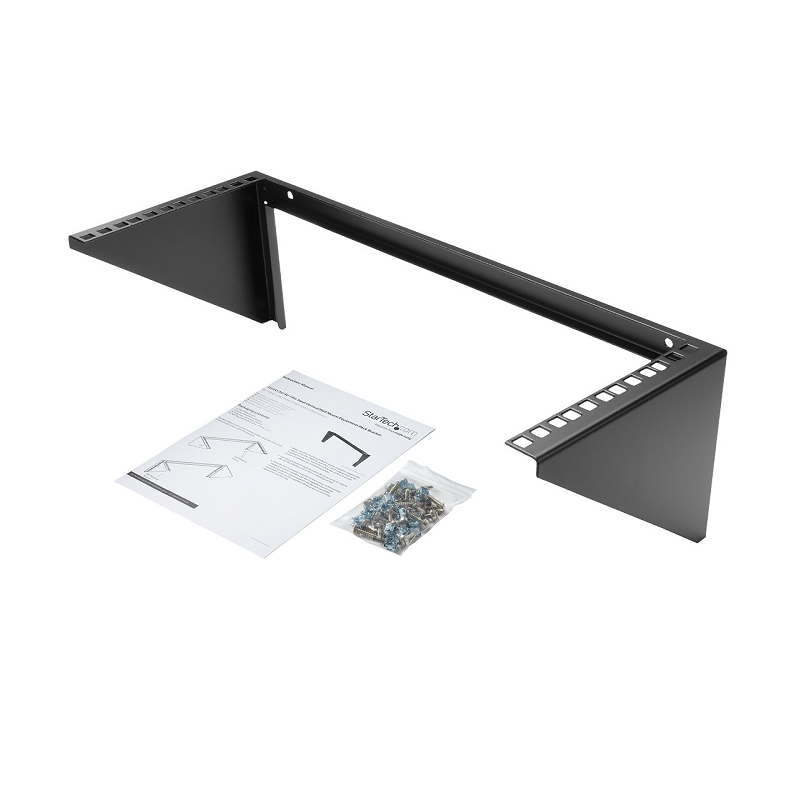

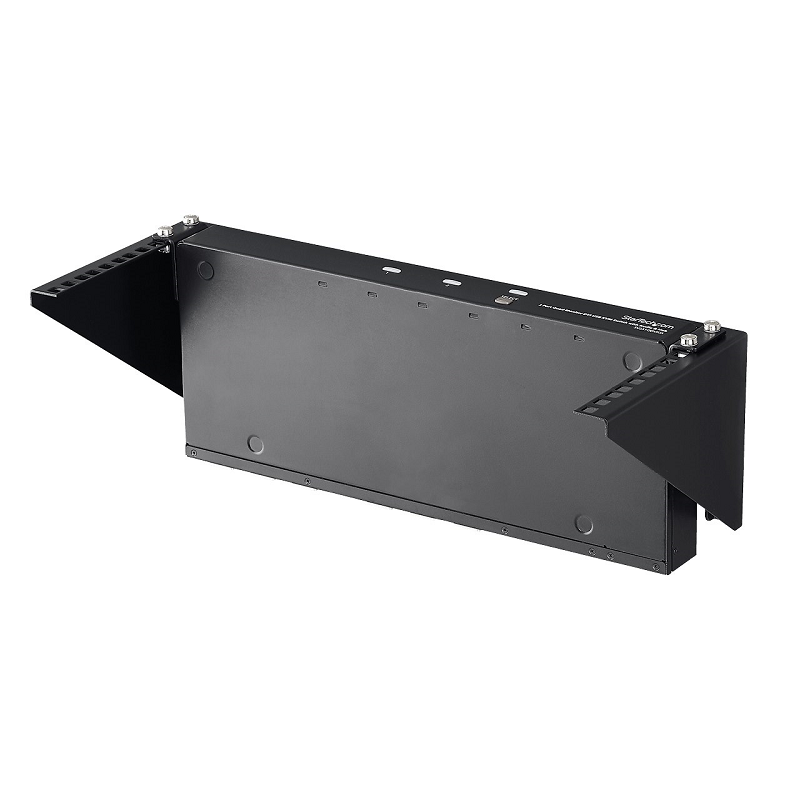

4U 19in Steel Vertical Wall Mount Equipment Rack Bracket
Mount server, network or telecommunications devices vertically with this 4U wall-mountable rack
The RK419WALLV 4U Wallmount Rack Bracket offers a versatile storage solution, allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with the wall) to save space. Alternatively, the 4U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack.
Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework.
Constructed to EIA-310 19in rack standards, the wallmount bracket features a sturdy steel design and is backed by StarTech.com's Lifetime Warranty.
| Features | |
| Size (imperial) | 48.3 cm (19") |
| Frame type | Open |
| Design | 2-post |
| Rack capacity | 4U |
| Castor wheels | No |
| Adjustable mounting rails | No |
| Cable management | No |
| Mounting hole shape | Square |
| Back door key lock | No |
| Front door key lock | No |
| Side panel key lock | No |
| Type | Wall mounted rack |
| Maximum weight capacity | 56.7 kg |
| Material | Steel |
| Product colour | Black |
| Certification | TAA, CE, UL, REACH |
| Technical details | |
| Type | Wall mounted rack |
| Size (imperial) | 48.3 cm (19") |
| Compliance industry standards | EIA/ECA-310-E |
| Sustainability certificates | RoHS |
| Rack capacity | 4U |
| Weight & dimensions | |
| Width | 504 mm |
| Height | 151 mm |
| Depth | 193 mm |
| Weight | 1.1 kg |
| Inner width | 450 mm |
| Maximum weight capacity | 56.7 kg |
| Size (imperial) | 48.3 cm (19") |
| Packaging data | |
| Package width | 211 mm |
| Package height | 162 mm |
| Package depth | 519 mm |
| Package weight | 1.69 kg |
| Wall mounting kit | Yes |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 16 |

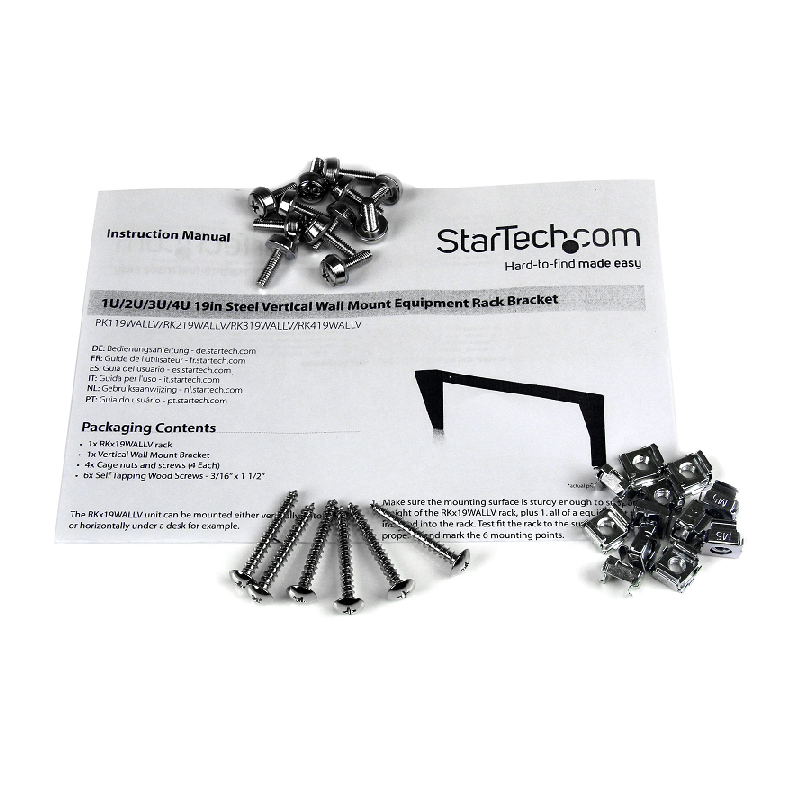

| Screws included | Yes |
| Number of screws | 22 |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file
