| Part No: | MT-UN7213 |
| Manufacturer No: | UN7213 |
| Delivery: | In Stock: 5-7 Days |
 |

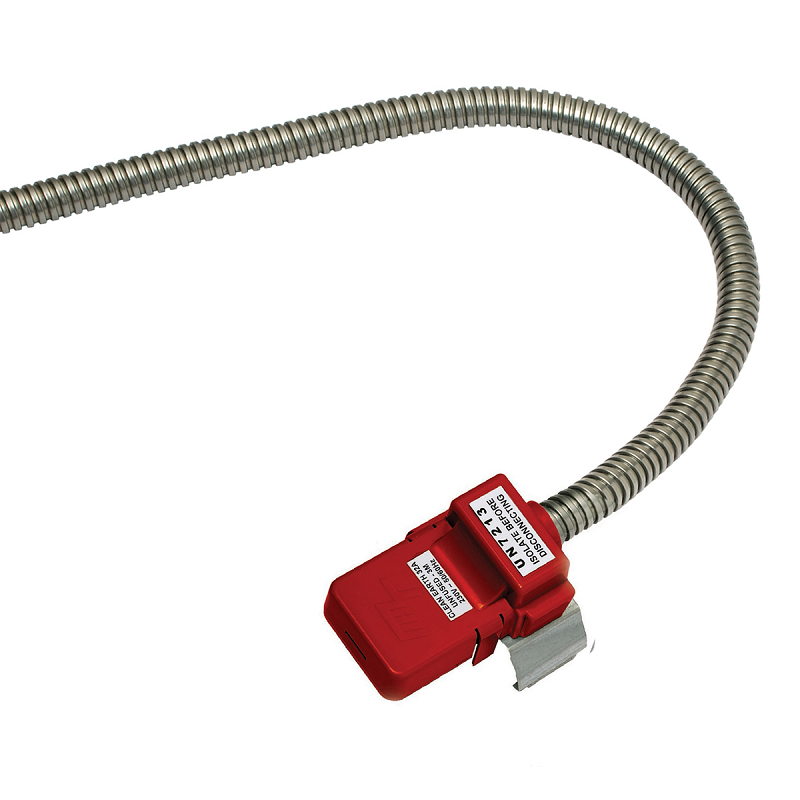

TAP-OFF UNIT CE 32A
Clean Earth Tap-off unit. Unfused 32Amp, Length 3m / 5m for use with Powertrack system.
• Fused and unfused options
• Keyed to fit Grey power track only
• Press fit clip for excellent earth bond
• Requires Tool to remove from track
| UN7213 | UN7215 | |
| Version | Clean Earth | Clean Earth |
| Variation | Tap-off | Tap-off |
| Colour | Silver | Silver |
| Pack | 1 | 1 |
| Dimensions | Tap-off head 33mm high x 80mm long x 61mm wide | Tap-off head 33mm high x 80mm long x 61mm wide |
| Materials | Galvanised steel Conduit, PVC BASEC 4mm² cable, Copper Contacts and Polycarbonate Housing / Nylon 6 MT32 | Galvanised steel Conduit, PVC BASEC 4mm² cable, Copper Contacts and Polycarbonate Housing / Nylon 6 MT32 |
| Compliance / Standards | CE & UKCA Marked Low Voltage Directive 2014/35/EU The Electrical Equipment (Safety) Regulations 2016 BS 7671:2018 BS EN 61534-1:2011+A1:2014 BS EN 61534-22:2014 All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C |
CE & UKCA Marked Low Voltage Directive 2014/35/EU The Electrical Equipment (Safety) Regulations 2016 BS 7671:2018 BS EN 61534-1:2011+A1:2014 BS EN 61534-22:2014 All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C |
| Rated voltage (Un) | 230 volts | 230 volts |
| Operating voltage range | 50 – 253V | 50 – 253V |
| Rated Current | 32A (Unfused) | 32A (Unfused) |
Full specification and details can be found in the Product Datasheet PDF file
Additional details can be found in the Product Catalogue PDF file
