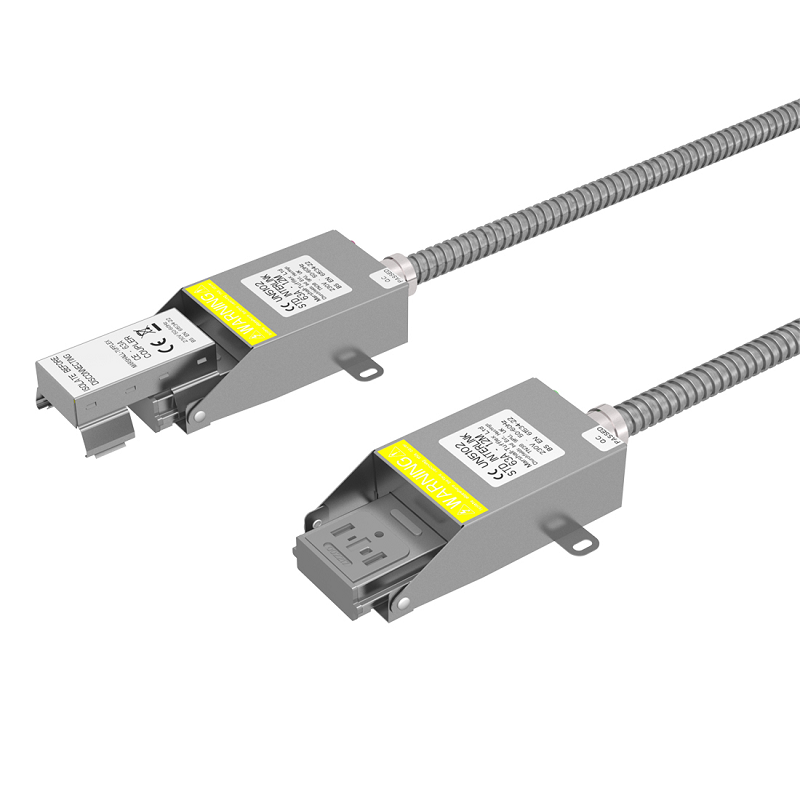

Powertrack Interlink STD
Interlink Standard – Length 1.2m / 2.4m for use with Powertrack system.
• Keyed to fit Grey powertrack only
• Press fit clip for excellent earth bond
• Requires Tool to remove from track
UN5102 | UN5104 | |
Version | Standard | Standard |
Variation | Interlink | Interlink |
Colour | Silver | Silver |
Pack | 1 | 1 |
Recycled PVC-U Content | N/A | N/A |
Materials | Galvanised steel Conduit, PVC BASEC 4mm² cable, Galvanised steel Case, Copper Contacts with PC & PBT mouldings | Galvanised steel Conduit, PVC BASEC 4mm² cable, Galvanised steel Case, Copper Contacts with PC & PBT mouldings |
Compliance / Standards | CE & UKCA Marked Low Voltage Directive 2014/35/EU The Electrical Equipment (Safety) Regulations 2016 BS 7671:2018 BS EN 61534-1:2011+A1:2014 BS EN 61534-22:2014 All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C |
CE & UKCA Marked Low Voltage Directive 2014/35/EU The Electrical Equipment (Safety) Regulations 2016 BS 7671:2018 BS EN 61534-1:2011+A1:2014 BS EN 61534-22:2014 All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C |
Rated voltage (Un) | 230 volts | 230 volts |
Operating voltage range | 50 – 253V | 50 – 253V |
Rated Current | 63A | 63A |
Full specification and details can be found in the Product Datasheet PDF file
Additional details can be found in the Product Catalogue PDF file
