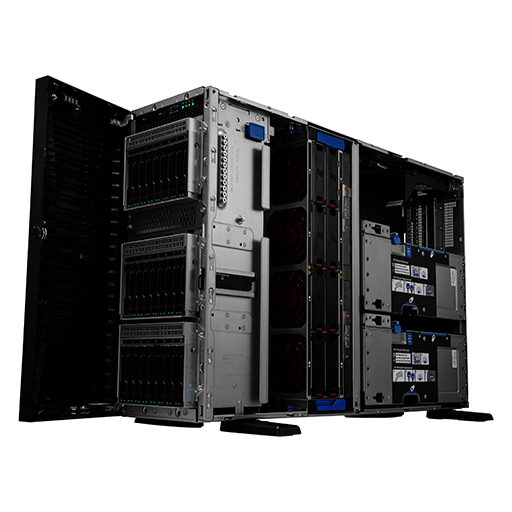

HPE P83113-425 ProLiant ML350 EU Server

The HPE ProLiant ML350 Gen11 Tower Server featuring the Intel Xeon Silver 4510 is purpose-built for small to mid-sized businesses and branch environments that demand performance, security, and scalability. Powered by a 12-core, 2.40 GHz processor with 30 MB L3 cache and 32 GB of DDR5 Smart Memory, this 4U tower system is optimized for growing compute needs with flexibility for storage, I/O, and acceleration options. With a resilient design, enterprise-grade components, and integrated management capabilities, it provides a dependable backbone for diverse applications and workloads.

Key Features:

• 1x Intel Xeon Silver 4510 processor with 12 cores, 2.40 GHz base frequency, and 30 MB L3 cache
• 32 GB HPE DDR5 Smart Memory (1x32 GB, 5600 MT/s), expandable to support higher capacities
• 2x 4TB SATA 6G Business Critical 7.2K LFF HDDs included, with RAID via Intel VROC SATA Hybrid Controller
• Expandable with up to 10 PCIe Gen5 slots (2 OCP 3.0), ideal for high-throughput networking or GPUs
• GPU-ready system with optional support for NVIDIA L40, A16, L4, and RTX 4000 Ada accelerators
• Redundant 2x 1000W Flex Slot Titanium Hot Plug Power Supplies for high-availability deployments
• 4-port 1Gb Broadcom BCM5719 Ethernet controller (OCP3) for robust networking out of the box
• Integrated Lights-Out (iLO 6) with HPE Intelligent Provisioning and OneView management readiness
• 4U Tower chassis form factor with 3x standard fans for consistent system cooling
• Security-first architecture: Silicon Root of Trust, TPM 2.0, UEFI Secure Boot, and lock-ready chassis

Compute Optimized for Performance

Equipped with the Intel Xeon Silver 4510, the ML350 Gen11 is tailored to handle data-driven workloads with a 12-core CPU and high memory bandwidth. Perfect for office virtualization, business applications, and infrastructure support, this tower server balances price and capability efficiently.

Built-In Redundancy and Expansion Flexibility

The dual hot-plug 1000W power supplies and RAID-protected storage ensure continuous availability, while ten Gen5 PCIe slots accommodate high-performance peripherals and future growth. The optional GPU support allows for AI modeling, visualization, or VDI acceleration within the same chassis.

Enterprise-Grade Storage and Management

Preconfigured with dual 4TB LFF HDDs and Intel VROC RAID support, the ML350 Gen11 is storage-ready and scalable. Remote setup and monitoring are simplified using HPE iLO 6 and HPE OneView, with licensing options for advanced lifecycle management through HPE Compute Ops Management.

Security Features That Matter

From boot integrity to physical chassis protection, the ML350 Gen11 includes enterprise security tools such as Silicon Root of Trust, TPM 2.0, UEFI Secure Boot, and optional locking mechanisms for operational assurance in secure or shared spaces.

---

I/O Diagram (Front 4LFF "4 Bays")

Key	Component
1	DisplayPort 1.1a
2	USB 3.2 Gen1 port
3	iLO service port
4	UID button/LED
5	NIC status LED 1
6	Health LED
7	Power on/Standby button and system power LED
8	Optical drive bay
9	Media bay filler panel
10	Serial number/iLO information pull tab
11	Box3: Default drive cage for 4LFF
12	Box2: Optional drive cage for 8SFF/4LFF
13	Box1: Optional drive cage for 8SFF/4LFF, or internal LTO tape drive

Notes:1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's

---

I/O Diagram (Front 8SFF "8 Bays")

Key	Component
1	DisplayPort 1.1a
2	USB 3.2 Gen1 port
3	iLO service port
4	UID button/LED
5	NIC status LED
6	Health LED
7	Power on/Standby button and system power LED
8	Optical drive bay
9	Media bay filler panel
10	Serial number/iLO information pull tab
11	Box3: Default drive cage for 8SFF*
12	Box2: Optional drive cage for 8SFF
13	Box1: Optional drive cage for 8SFF, or internal LTO tape drive

Notes: *Optional for 8SFF x4 U.3 drive kit or 12 EDSFF drive kit

---

I/O Diagram (Side)

Key	Component
1	CPU Socket 1 & 2
2	Dual USB port (Stacked, Top: USB 3.2 Gen1 port, Bottom: USB 2.0 port)
3	Megacell battery holder (Under)
4	HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
5	Secondary riser connector
6	Tertiary riser sideband connector
7	Serial port cable connector
8	Slot 15 OCP 2 (Optional for NIC adapter)
9	HPE NS204i-u power connector
10	Primary riser connector
11	Slot 14 OCP 1 (Optional for OROC/NIC adapter)

Notes:
1 CPU1 (bottom) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
2 CPU2 (top) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)

---

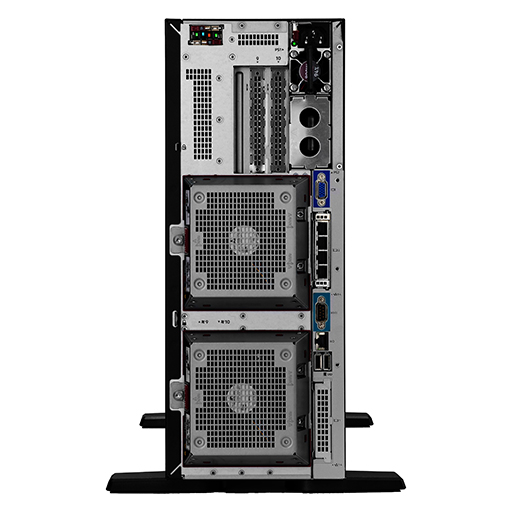

I/O Diagram (Back)

Key	Component
1	HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
2	PCIe Slots 9-10 (Optional tertiary riser, 2nd processor required for expansion card installation)
3	Flexible Slot power supply 1
4	Flexible Slot power supply 2 (Optional)
5	VGA Port
6	External Fan connector 9
7	Slot 15 OCP 2 (Optional for NIC adapter)
8	Serial port (Optional)
9	iLO management port
10	USB 3.2 Gen 1 ports x2
11	External Fan connector 10
12	Slot 14 OCP 1 (Optional for OROC/NIC adapter)
13	PCIe Slots 1-4 (Primary riser)
14	Padlock eye
15	PCIe Slots 5-8 (Secondary riser)
16	Kensington slot
