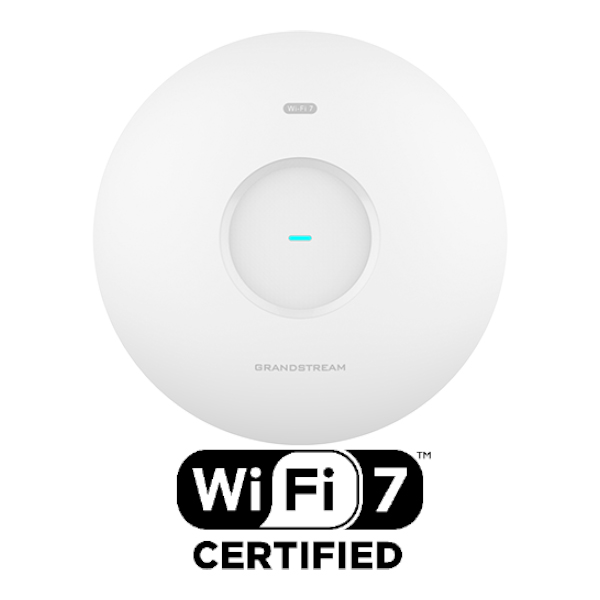

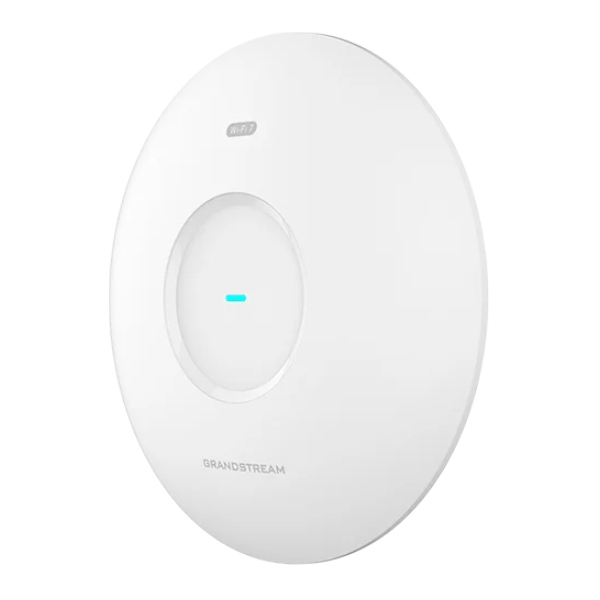

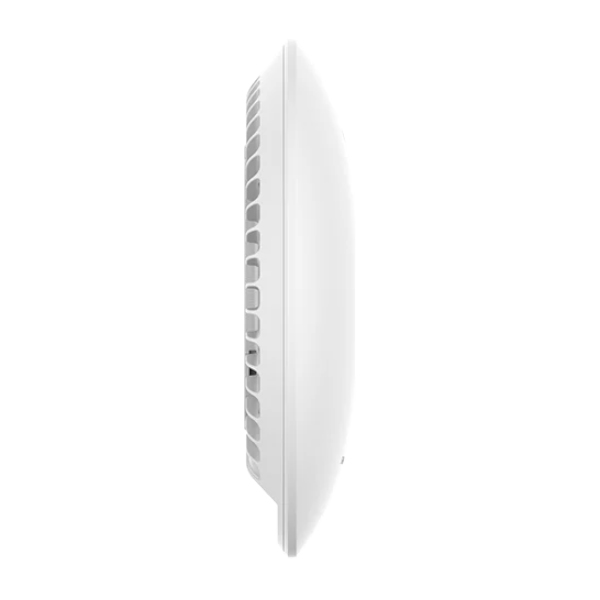

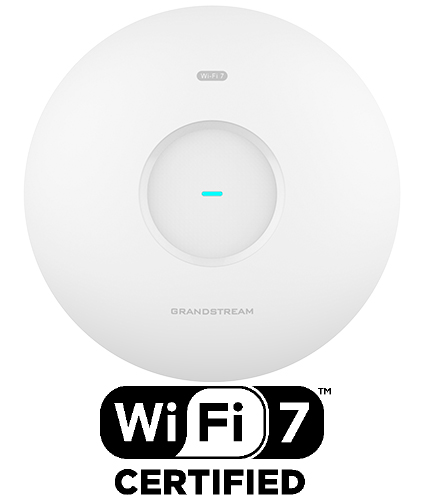

Grandstream GWN7670 Wi-Fi 7 Indoor Dual-Band Access Point

Grandstream GWN7670 Indoor Dual-Band Wi-Fi 7 Access Point with 3.6Gbps Throughput and Dual 2.5G Ports

The Grandstream GWN7670 is a powerful enterprise-grade Wi-Fi 7 access point for businesses that need next-generation wireless performance in indoor environments. It supports 3.6Gbps aggregate wireless throughput, dual-band 2x2:2 MIMO, 256 concurrent Wi-Fi clients and a coverage range of up to 175 metres.

Designed for medium wireless network deployments with medium-to-high user density, the GWN7670 combines Wi-Fi 7 performance with dual 2.5 Gigabit Ethernet ports for high-speed wired connectivity. PoE+ support allows power and network data to reach the access point through one Ethernet cable, while built-in controller functionality, GDMS Networking and GWN Manager support flexible management options.

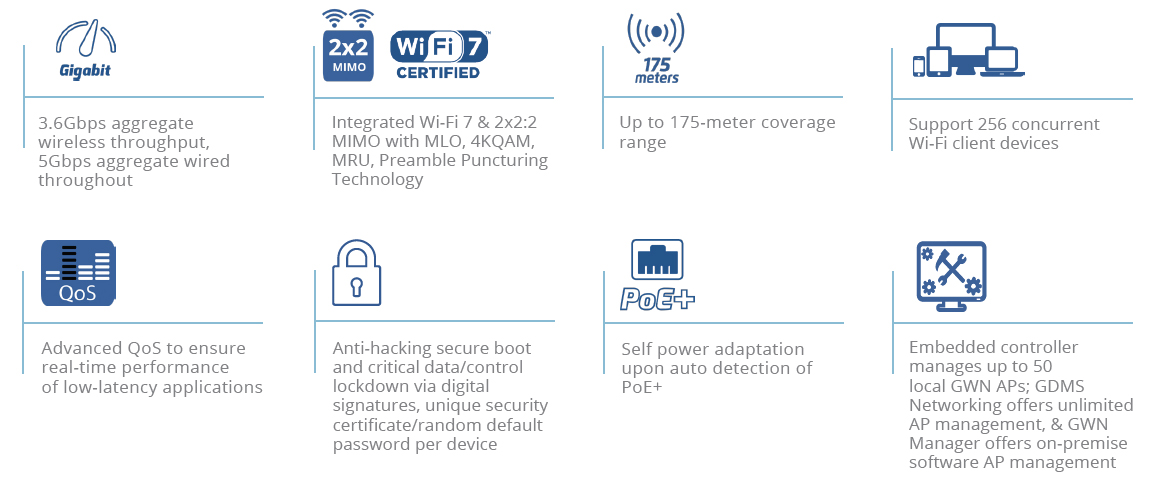

Key Features:

• Enterprise-grade indoor dual-band Wi-Fi 7 access point
• 3.6Gbps aggregate wireless throughput with dual-band 2x2:2 MIMO and Wi-Fi 7 technologies including MLO, 4KQAM, MRU and Preamble Puncturing (MLO = Multi-Link Operation; MRU = Multi-Resource Unit)
• Supports 256 concurrent Wi-Fi client devices and a coverage range of up to 175 metres, subject to environment and installation conditions

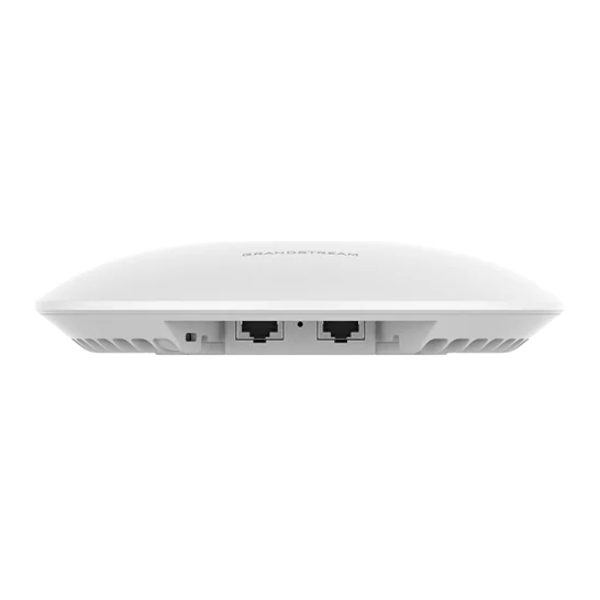

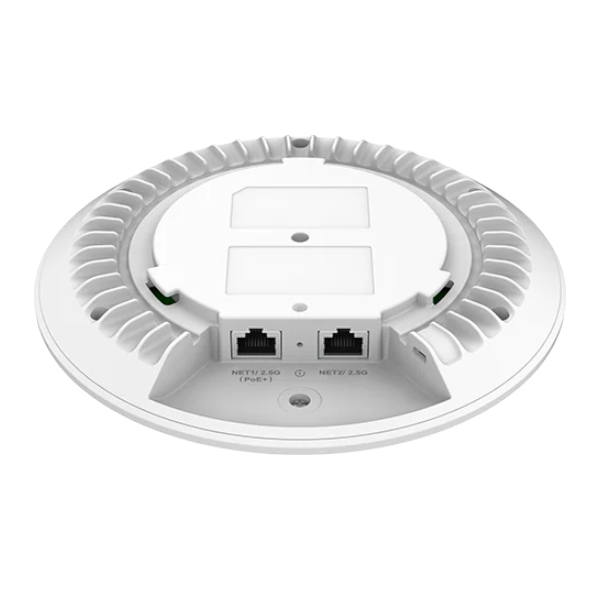

• Two 2.5 Gigabit Ethernet RJ45 ports with PoE+ support (PoE = Power over Ethernet)
• 32 SSIDs in total, with up to 16 per radio across 2.4GHz and 5GHz bands (SSID = Service Set Identifier)
• Bluetooth Low Energy 5.3, advanced QoS, mesh networking, captive portal and WPA3 security support (QoS = Quality of Service)
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, plus a unique security certificate and random default password per device
• Embedded controller can manage up to 50 local GWN access points, with GDMS Networking and GWN Manager also supported

The GWN7670 is well suited to indoor wireless networks where next-generation performance, efficient spectrum use and strong wired uplink capacity are important. It is suitable for offices, commercial spaces, hospitality environments and other business locations with medium-to-high user density.

Key Benefits:

• Wi-Fi 7 helps improve wireless efficiency and performance for compatible client devices
• Dual 2.5 Gigabit Ethernet ports help support faster wired connectivity
• Medium-to-high client capacity makes the access point suitable for busy indoor environments
• PoE+ simplifies installation by carrying power and network data through one cable
• Controller-less, cloud and on-premise management options support both smaller sites and larger managed networks
• Guest access, VLAN and multi-SSID support help separate staff, visitor, voice and device traffic
• Wall and ceiling mounting kits support flexible indoor installation

The package includes the GWN7670 Wi-Fi 7 wireless access point, indoor wall/ceiling mounting kits and a Quick Start Guide.

Comms Express offers a choice of indoor models in the Grandstream Wireless Access Points range, including:
GWN7662 - indoor Wi-Fi 6, 5.38Gbps, 1G + 2.5GbE, 256 clients
GWN7664E - indoor Wi-Fi 6, 6Gbps, dual 2.5G ports, 512 clients
GWN7665 - indoor Wi-Fi 6E, tri-band, 5.4Gbps, 384 clients
GWN7670 - indoor Wi-Fi 7, 3.6Gbps, dual 2.5GbE, 256 clients

Our broader Wireless Access Points range includes business wireless solutions from Grandstream and many other leading manufacturers.

For wider wireless network installations, Comms Express also offers PoE Switches for Power over Ethernet cabling, and RJ45 Ethernet Cables & Patch Leads for network connections.

*For complete specifications see the documentation tab above

For VLAN setup guidance, see Grandstream's GWN76xx Multi-VLAN Configuration Guide
