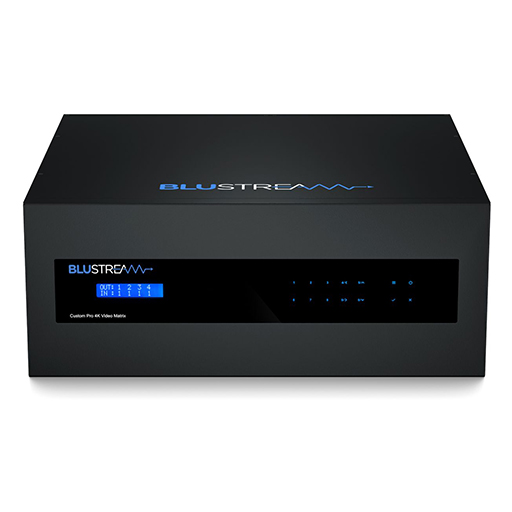

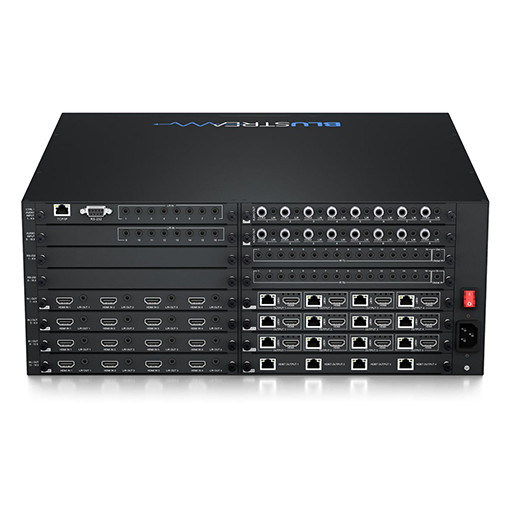

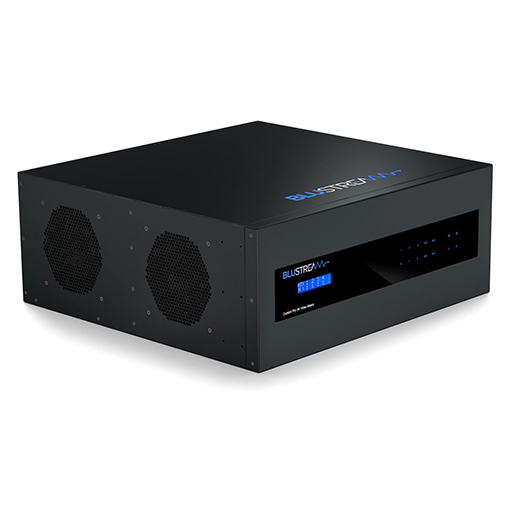

Blustream PRO16HBT100CS Custom Pro 16x16 HDBaseT™ CSC Matrix

The Blustream PRO16HBT100CS is a pre-configured 16x16 HDBaseT™ CSC matrix designed for large-scale AV installations. It allows sixteen HDMI sources to be independently routed to sixteen HDBaseT™ outputs with simultaneous HDMI outputs, supporting long-distance transmission up to 70m for 4K UHD 60Hz 4:4:4 signals or 100m at 1080p. The matrix includes automatic Colour Space Conversion (CSC) for compatibility with displays of varying capabilities, a 24x16 audio matrix with Dolby and DTS support, HDMI audio breakout, 16 analogue L/R audio inputs, and full IR/RS-232 integration. Control is available via front panel, RS-232, TCP/IP, and web interface, making it suitable for complex commercial and residential AV systems.

Key Features of BlueStream PRO16HBT100CS

• Pre-configured Custom Pro matrix bundle with 16 video inputs, 16 video outputs, audio breakout, and 2-way IR control
• Supports 4K UHD video up to 4K 60Hz 4:4:4 (18Gbps) over HDBaseT™ using Colour Space Conversion up to 70m at 4K 60Hz 4:4:4, or up to 100m at 1080p
• HDBaseT™ CSC output boards feature independent automatic downscaling of up to 4K 60Hz 4:4:4 video input to the following formats:
  • 1080p@60Hz (for screens that do not support 4K)
  • 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
• 16 analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• Extend 16 IR outputs for routed control of local source equipment
• 16 IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
• Optional RS-232 control board for bi-directional serial control with equipment connected to Blustream HDBaseT™ receivers (PRO-8RS232 cards sold separately)
• Audio breakout board with line-level volume control
• Web browser interface for control and configuration of matrix
• Control via front panel, RS-232, TCP/IP, and Web GUI / App
• Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ receivers
• 3rd party drivers available for major commercial & residential control brands
• Advanced EDID management
• HDCP 2.2 compliant

Video Distribution & Colour Management

Supports simultaneous HDBaseT™ and HDMI outputs, with independent video scaling and automatic Colour Space Conversion to ensure compatibility with displays that do not support full 4K 60Hz 4:4:4.

Audio & Control Integration

Features a 24x16 audio matrix with Dolby and DTS support, ARC, and flexible breakout options. Full control is available via front panel, IR, RS-232, TCP/IP, or web interface, with optional third-party integration and PoC for connected receivers.

Installation & Compatibility

Rack-mountable 4U design with included mounting kit. Compatible with Blustream HDBaseT™ receivers such as HEX100CS-RX and HEX70CS-RX, supporting high-quality video, audio, and control distribution across large installations.
