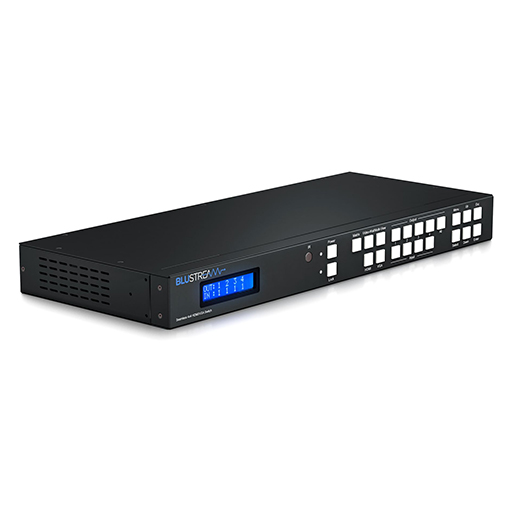

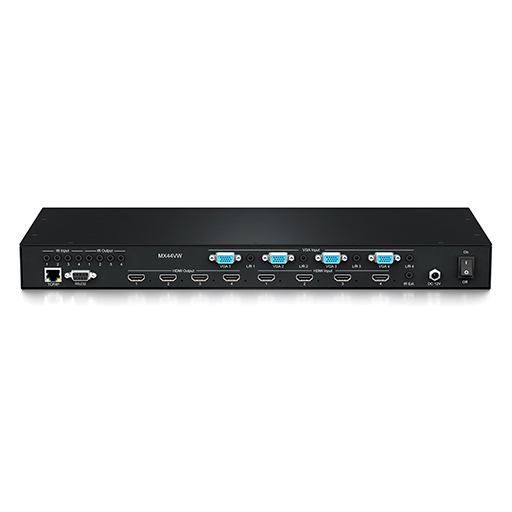

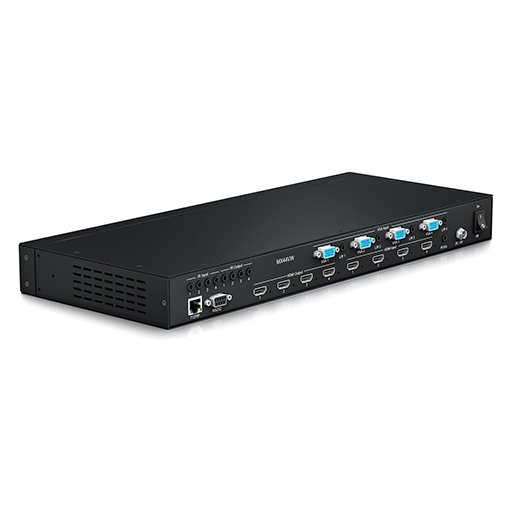

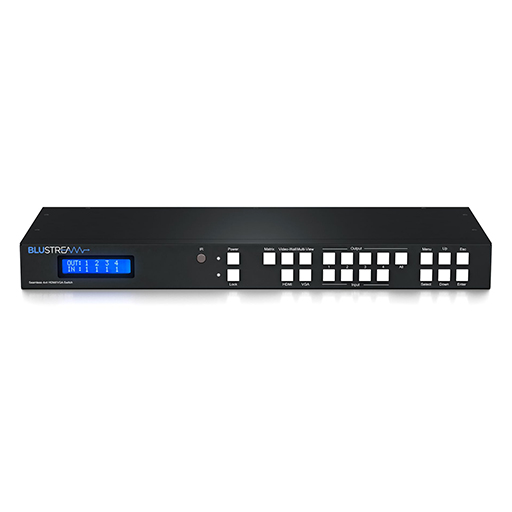

Blustream MX44VW 4x4 Seamless Switching HDMI / VGA Matrix

The Blustream MX44VW is a 4x4 HDMI/VGA matrix switch that combines flexible video routing with advanced display modes. It can operate as a seamless switching matrix, a configurable video wall processor, or a multi-viewer system. Inputs can be assigned as either HDMI or VGA with associated L/R analogue audio with control of the switcher via the front-panel push buttons, Blustream Matrix App, IR remote control, RS-232 interface and TCP/IP.

Key Features of BlueStream MX44VW

• Features 3 operational modes:
  • 4x4 Seamless Switching Matrix (HDMI or VGA inputs)
  • Video Wall (2x2, 4x1, or 1x4 configuration)
  • Multi-Viewer mode with preset layouts
• 4 video inputs configurable as HDMI or VGA with associated L/R analogue audio for instantaneous seamless switching (Matrix and Video Wall modes)
• Video inputs support industry standard resolutions including VGA-WUXGA (up to 1920x1200 @60Hz) and 480i-4K (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4)
• HDMI output resolution fixed to 1080p @60Hz
• Supports HDMI 2-channel PCM audio only
• Discreet IR routing
• Supplied with Blustream IR receivers and emitters
• Control via front panel, IR, RS-232, TCP/IP, and Blustream matrix App
• 3rd party control drivers available for all major home control brands
• Advanced EDID management
• HDCP 1.4 compliant

Flexible Display Modes

The MX44VW provides multiple display configurations, including seamless switching, video wall arrangements, and multi-viewer layouts. This versatility allows users to adapt the system to a variety of AV setups and presentation environments.

Audio and Control

The matrix supports HDMI 2-channel PCM audio and analogue L/R routing, with discrete IR management for multiple zones. Control options include front panel, IR, RS-232, TCP/IP, and the Blustream Matrix App, with third-party drivers enabling integration into larger AV control systems.
