| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEMC220L |
| Manufacturer No: | MC220L |
| Delivery: | In Stock: Next Day |
 |
The MC220L is a media converter designed to convert 1000BASE-SX/LX fibre to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX standards, the MC220L is designed for use with multi-mode/single-mode fibre cable utilising the LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fibre and 1310nm on both transmitting and receiving data when adopting single-mode.

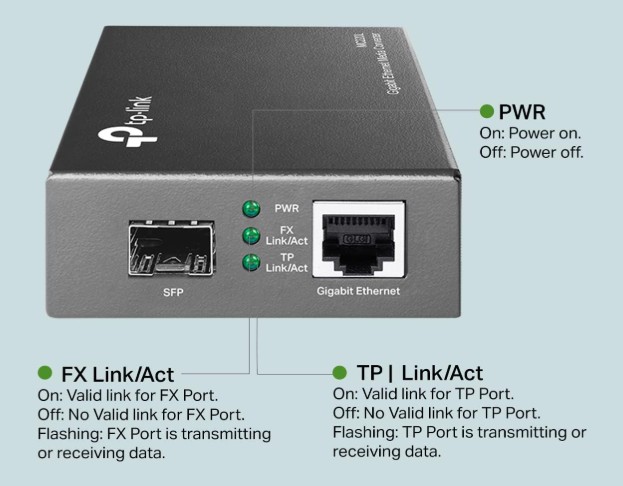

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19 inch system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fibre optic distances utilising multi-mode fibre up to 0.55 kilometres and 10 kilometres when utilising single-mode fibre.
| MC200CM v4 |
MC210CS v4 |
MC220L v4 |
MC100CM v5 |
MC110CS v6 |
MC111CS v5 |
MC112CS v5 |
||
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z | IEEE 802.3i, IEEE 802.3u | ||||||
| Interface | 1 1000Mbps SC port 1 10/100/1000Mbps RJ45 port | 1 SFP port 1 10/100/1000 Mbps RJ45 port | 1 100Mbps SC port 10/100Mbps RJ45 port | |||||
| Transmission Distance | 0.55km (50/125um), 0.22km (62.5/125um) | 15km | Depends on the inserting SFP module | 2km | 20km | |||
| Transmission Media | Multi-mode Fibre, TP | Single-mode Fibre, TP | Multi/ Single-mode Fibre, TP | Multi-mode Fibre, TP | Single-mode Fibre, TP | |||
| Wave Length | 850nm | 1310nm | Depend on used SFP module | 1310nm | 1310nm | 1550nmTX 1310nmRX |
1310nmTX 1550nmRX |
|
| Dimensions | 3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm) |
|||||||
| Environment | Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing |
|||||||
| Power Supply | 9V/0.6A | |||||||
| Max Power Consumption | 1.66W | 1.8W | 1.7W | 2.4W | 2.4W | 1.49W | 1.44W | |
| Certifications | CE, FCC | |||||||
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19 inch system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fibre optic distances utilising multi-mode fibre up to 0.55 kilometres and 10 kilometres when utilising single-mode fibre.
