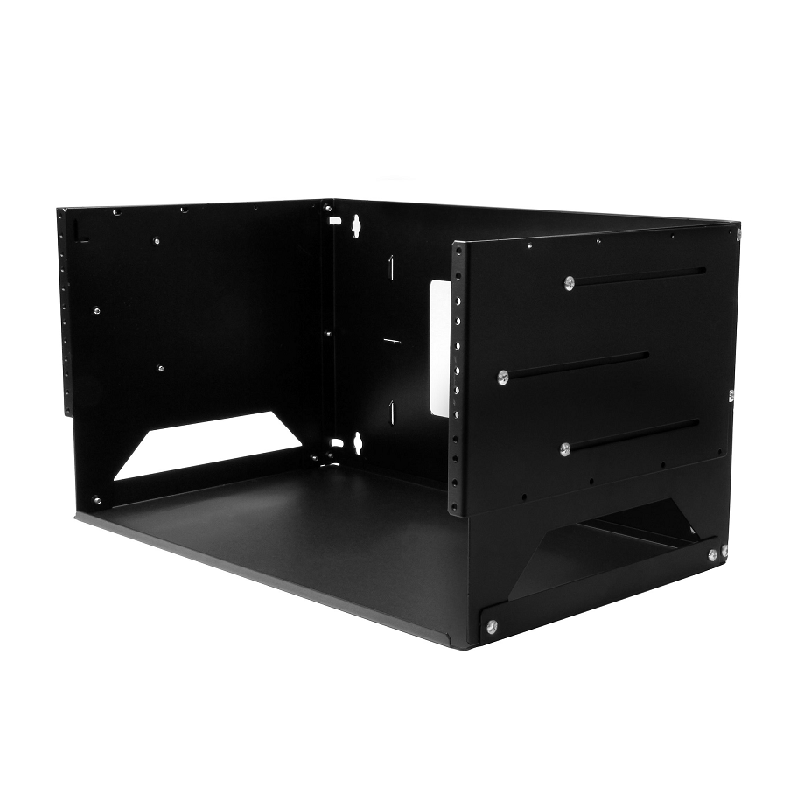

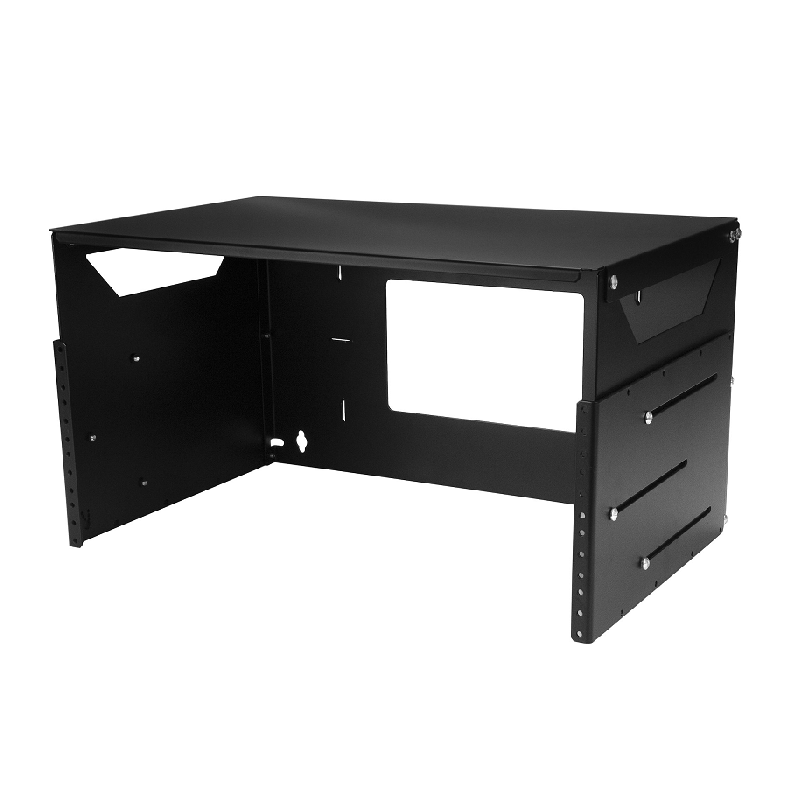

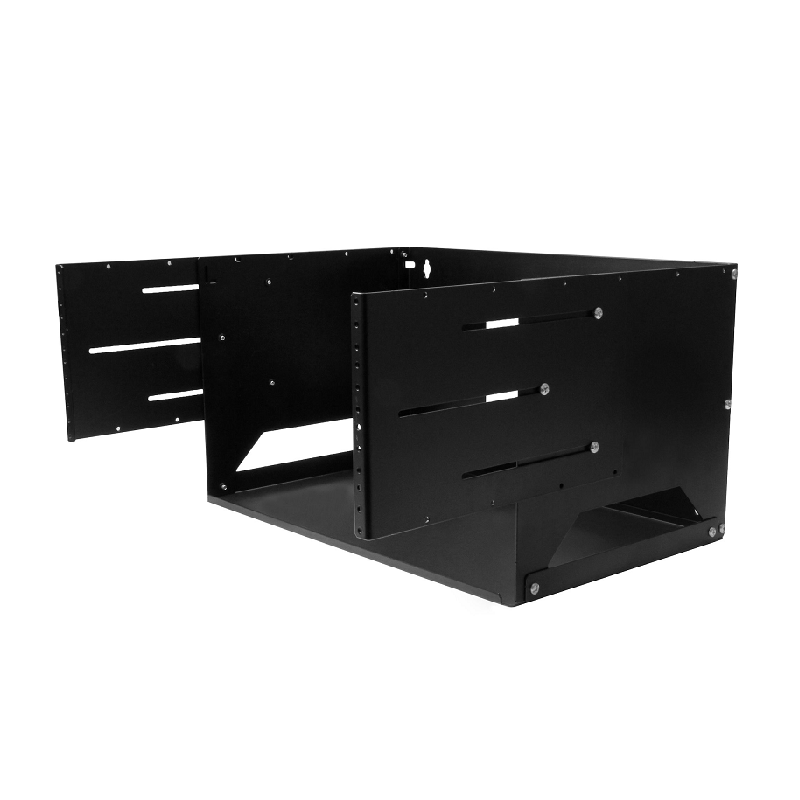

Wall-Mount Server Rack with Built-in Shelf - Solid Steel - 4U
Mount your server, network and telecom devices to the wall, while storing your non-rackmountable equipment on the built-in shelf
This wall-mount rack provides 4U of space for mounting your servers or A/V equipment to a wall. The rack also has a built-in shelf to create a sturdy surface for storing equipment that is not rack-mountable.

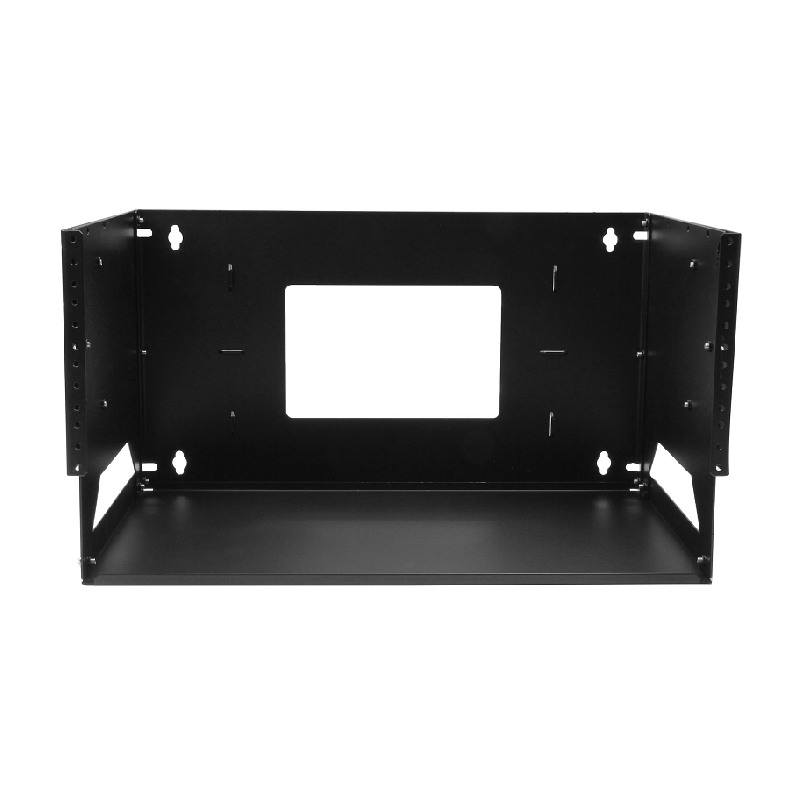

The wall-mount bracket features an adjustable mounting depth of 12 inches to 18 inches as well as a dual-position 12 in. shelf that can be at either the top or the bottom depending on rack’s positioning. These two features allow you to customize both depth and layout to best fit your equipment and cables, ensuring that the rack suits your space.
The 4U rack wall mounting feature allows you to free up desk or floor space -- perfect for your SoHo (small office, home office) environment, server room or any other location with limited space available.

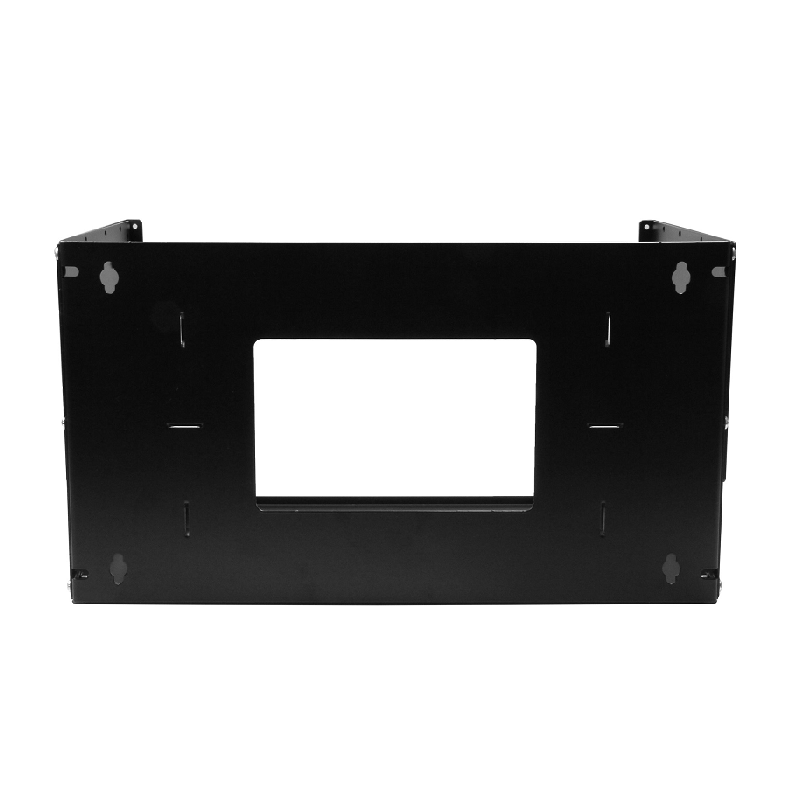

The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment and with the wall mounting holes positioned 16” apart, it exactly matches standard drywall construction framework, to ensure simple and secure wall-stud anchoring.
For hassle-free equipment installation, the rack features 10-32 tapped rails, so you can mount your equipment directly to the rail and avoid the hassle of using cage nuts.

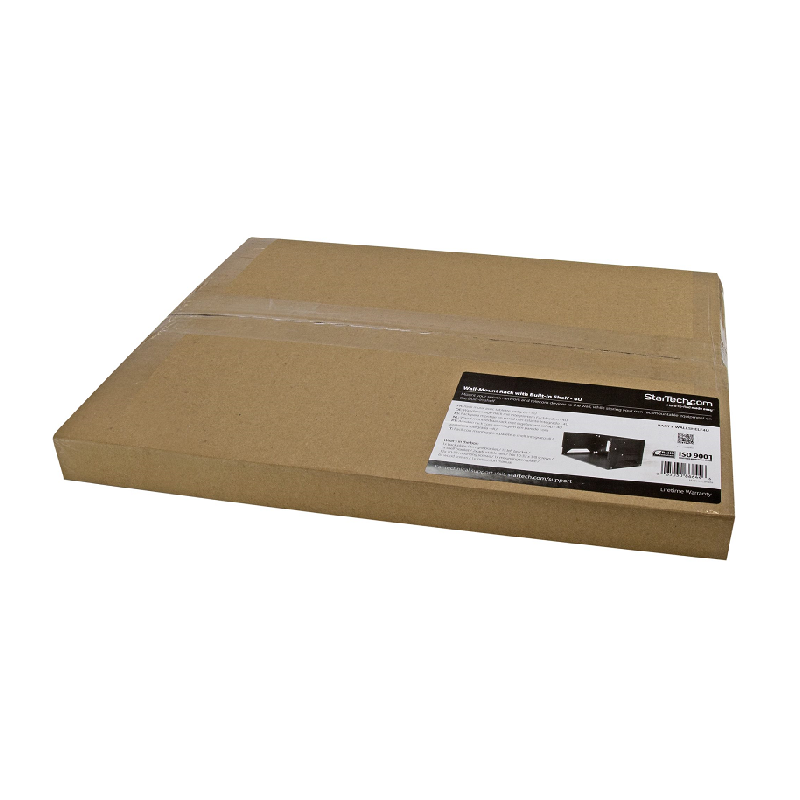

The wall-mount rack comes in a flat-packed box to reduce shipping volume, which significantly reduces your costs in shipping while also providing greater protection than offered by pre-assembled racks. Packaged efficiently, you can easily store and transport the rack for deployment at a later date or in a different location than where it's received.
The WALLSHELF4U is backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Features | |
| Frame type | Open |
| Design | 2-post |
| Rack capacity | 4U |
| Castor wheels | No |
| Adjustable mounting rails | Yes |
| Cable management | No |
| Mounting hole shape | Round |
| Type | Wall mounted rack |
| Maximum weight capacity | 34 kg |
| Material | Steel |
| Product colour | Black |
| Certification | RoHS, TAA |
| Technical details | |
| Type | Wall mounted rack |
| Compliance industry standards | EIA-310-D, EIA RS310-C |
| Rack capacity | 4U |
| Weight & dimensions | |
| Width | 483 mm |
| Height | 268 mm |
| Depth | 305 mm |
| Weight | 6.2 kg |
| Inner width | 474 mm |
| Inner depth | 451 mm |
| Mounting depth (min) | 45.1 cm |
| Maximum weight capacity | 34 kg |
| Packaging data | |
| Package width | 386 mm |
| Package height | 43 mm |
| Package depth | 506 mm |
| Package weight | 7.69 kg |
| Manual | Yes |

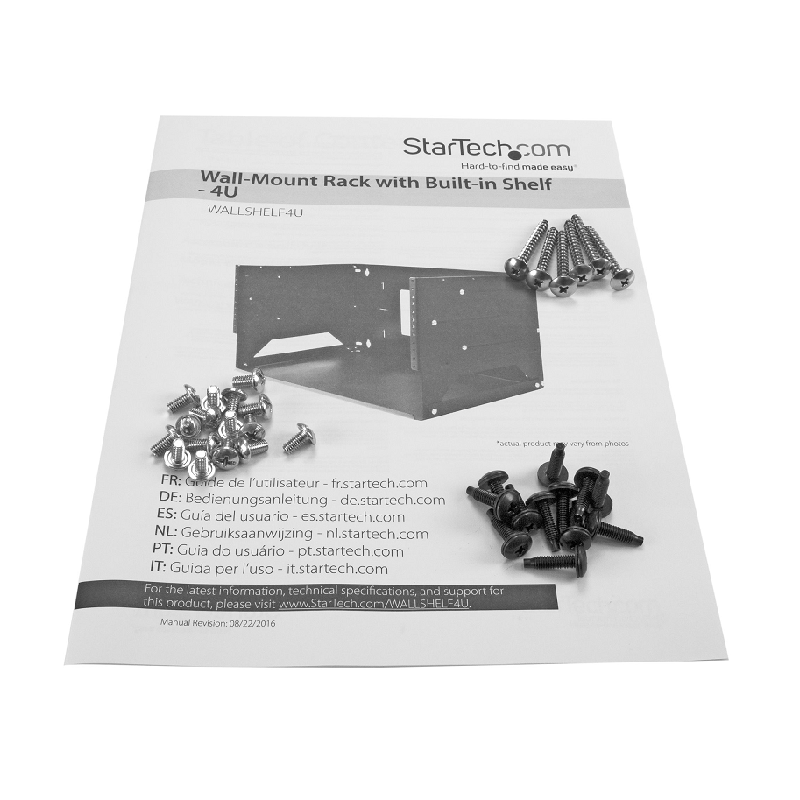

| Nuts included | Yes |
| Screws included | Yes |
| Number of screws | 34 |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
