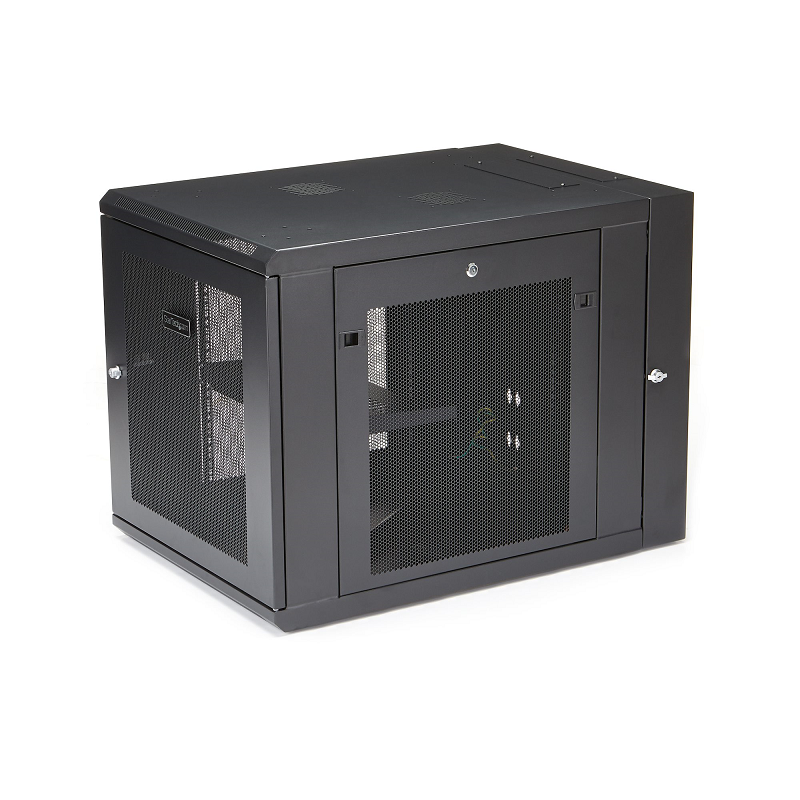

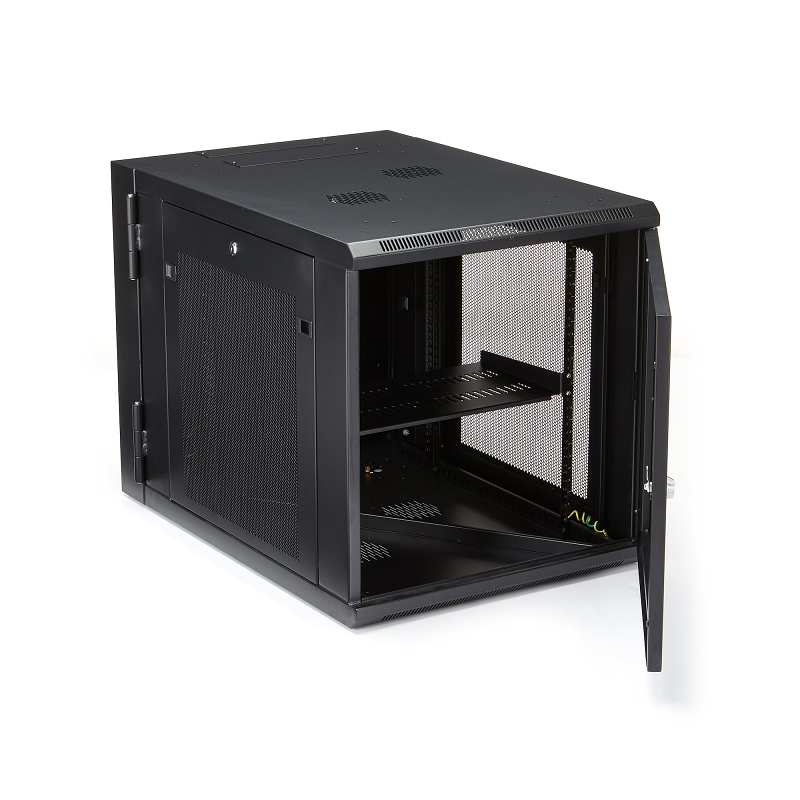

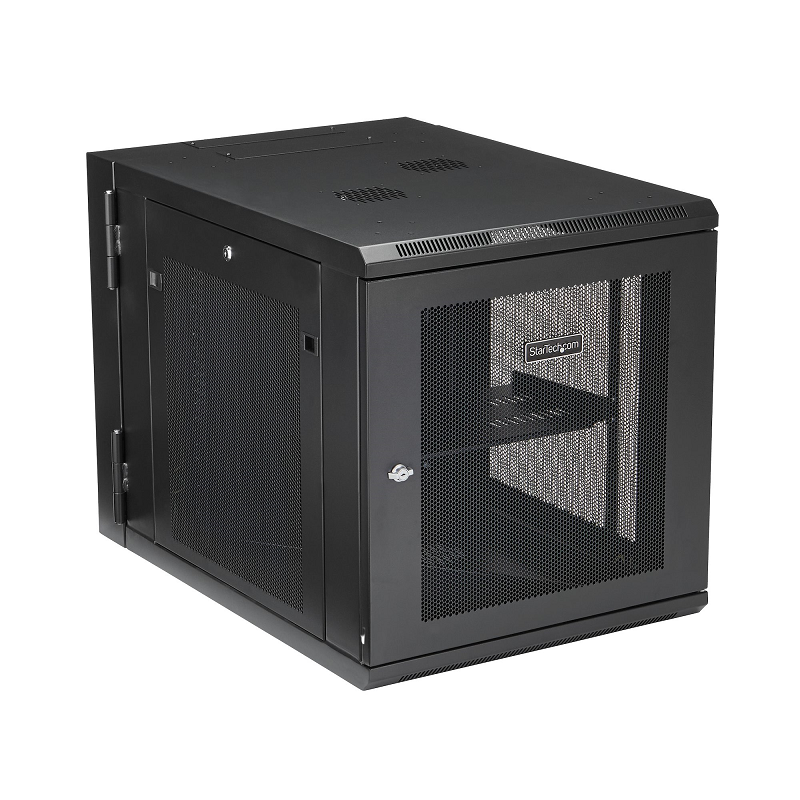

12U 19" Wall Mount Network Cabinet - 4 Post 24" Deep Hinged Server Room Data Cabinet- Locking Computer Equipment Enclosure w/Shelf - Flexible Vented IT Rack - Pre-Assembled
Use this wall mount network cabinet to mount your server or networking equipment to the wall with a hinged enclosure for easy access
This 12U server or network rack cabinet lets you mount your EIA-310 compliant equipment to the wall, in a secure enclosure that has a hinged rear door for easy access to your equipment. The enclosure features adjustable mounting depth from 3 to 23.8 in. to provide a robust storage solution for your rack-mount equipment.
To provide secure stability for your heaviest equipment, this rack offers 4-post mounting, supporting a higher weight capacity per U than 2-post racks and supporting a total load capacity of up to 200 lb. (90 kg).
Save valuable floor space by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for placing equipment that's not rack-mountable or storing your tools.

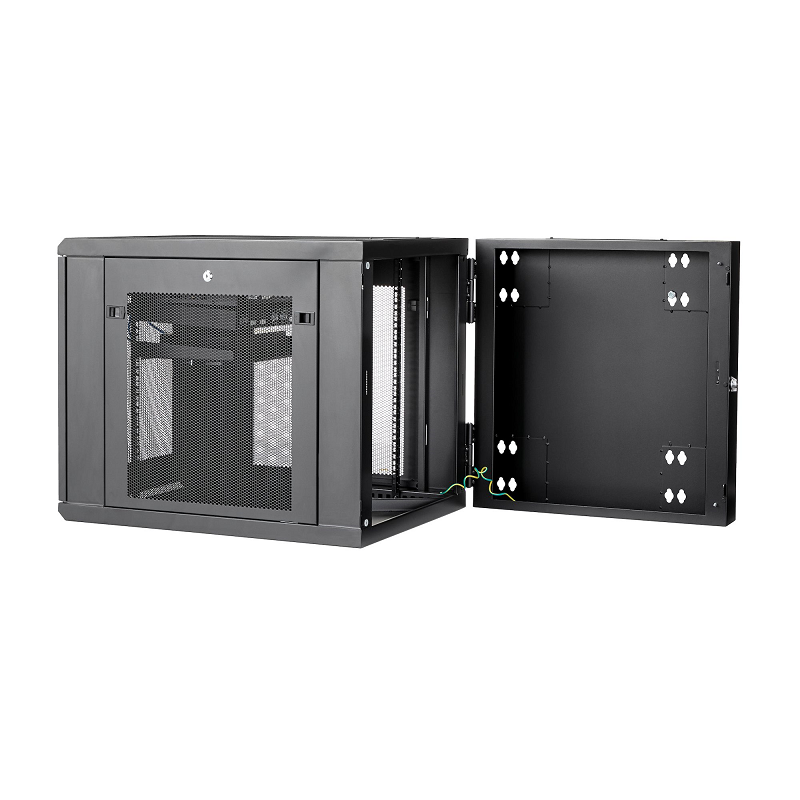

The wall-mount network rack makes it easy to access your equipment and cabling, with a rear hinge that swings the enclosure away from the wall. By flipping the enclosure 180 degrees upon installation, you can reverse the direction of the hinge so that the enclosure can swing open from left or the right, depending on your preference.
To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.
For simple and sturdy mounting, the rack’s mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.
This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. The enclosure is 33.4 in. deep to maximize compatibility with your deeper rack-mountable equipment.
To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.
For simple and sturdy mounting, the rack’s mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.
The RK1232WALHM is backed by a StarTech.com 5-year warranty and free lifetime technical support.

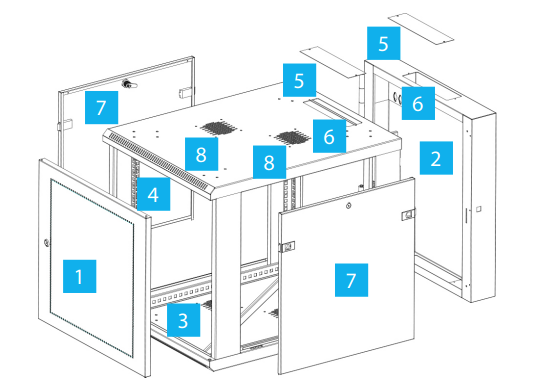

1. Front door
2. Rear door
3. Horizontal mounting rail
4. Vertical mounting rail
5. Cable access cover
6. Cable access opening
7. Side panel
8. Vent
Features | |
Key lock | Yes |
Frame type | Closed |
Product design | 4-post |
Rack capacity | 12U |
Castor wheels | No |
Adjustable mounting rails | Yes |
Removable front door | Yes |
Removable side panels | Yes |
Back door construction | Steel |
Front door construction | Steel |
Side panel construction | Steel |
Cable management | Yes |
Mounting hole shape | Square |
Front door key lock | Yes |
Front door key lock | Yes |
Type | Wall mounted rack |
Maximum weight capacity | 90 kg |
Material | Steel |
Product colour | Black |
Certification | REACH, CE |
Technical details | |
Type | Wall mounted rack |
Compliance industry standards | EIA/ECA-310-E |
Rack capacity | 12U |
Sustainability certificates | CE, RoHS |
Weight & dimensions | |
Width | 610 mm |
Height | 640 mm |
Depth | 854 mm |
Weight | 45.1 kg |
Inner width | 595 mm |
Inner depth | 848 cm |
Mounting depth (max) | 60.5 cm |
Mounting depth (min) | 6 cm |
Maximum weight capacity | 90 kg |
Packaging data | |
Package width | 890 mm |
Package height | 785 mm |
Package depth | 640 mm |
Package weight | 59 kg |

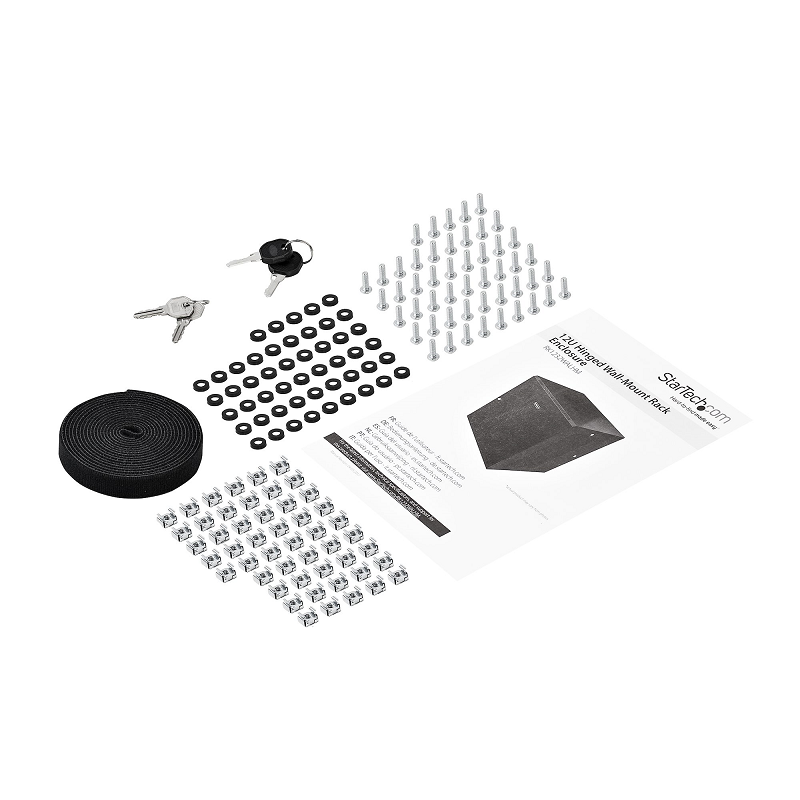

Manual | Yes |
Nuts included | Yes |
Number of nuts | 50 |
Screws included | Yes |
Number of screws | 50 |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A product diagram can be found in the PDF file
