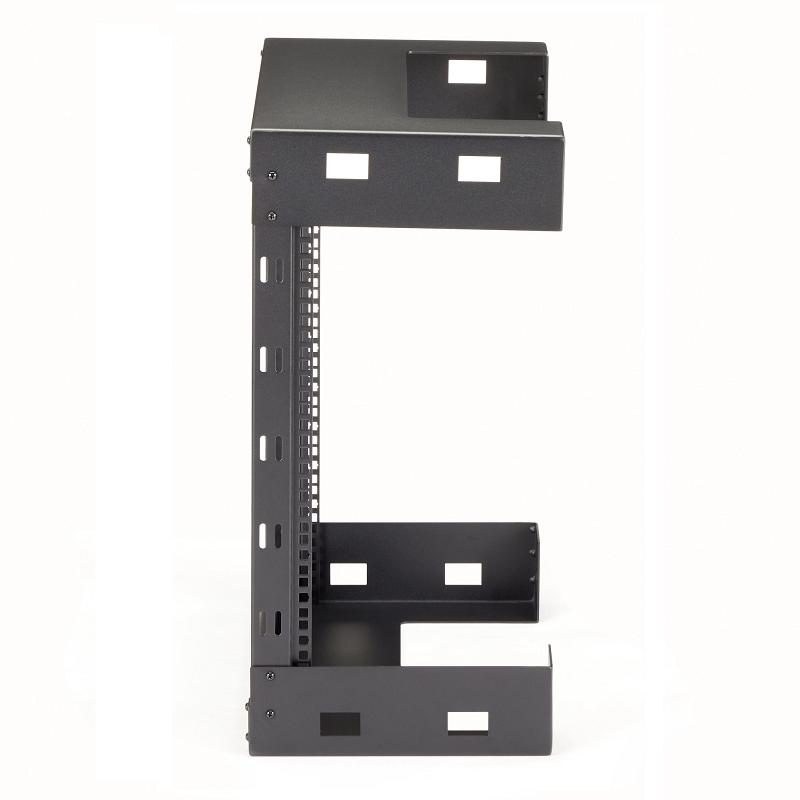

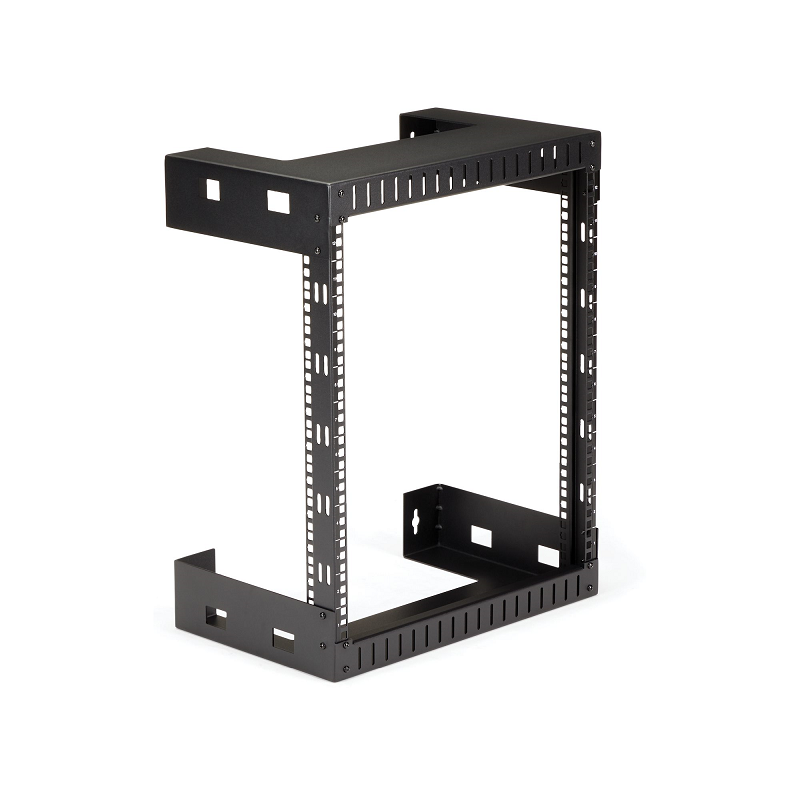

12U 19" Wall Mount Network Rack - 12" Deep 2 Post Open Frame Server Room Rack for Data/AV/IT/Computer Equipment/Patch Panel with Cage Nuts & Screws 200lb Capacity, Black

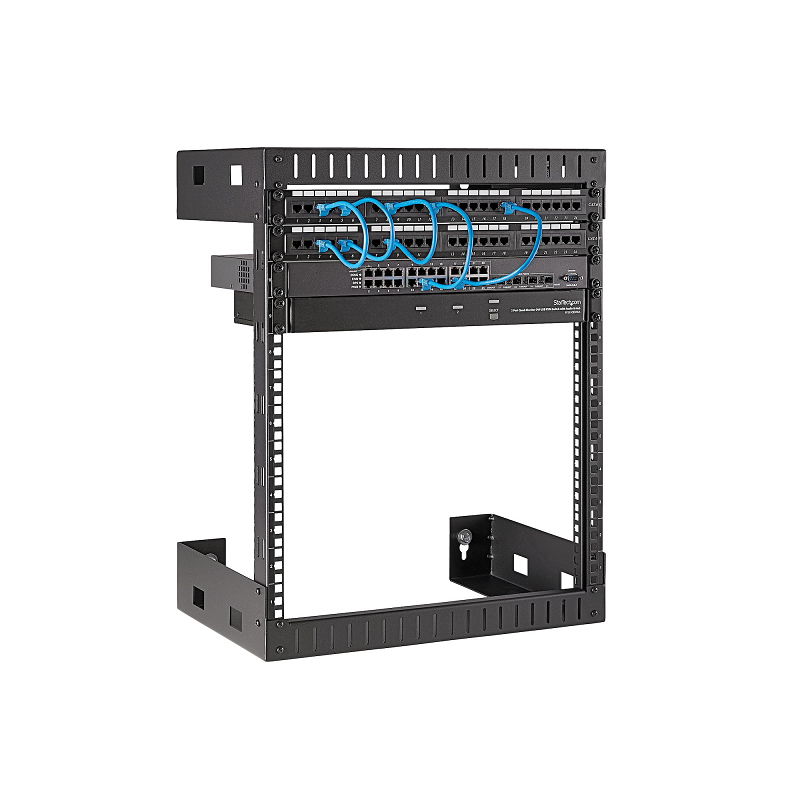

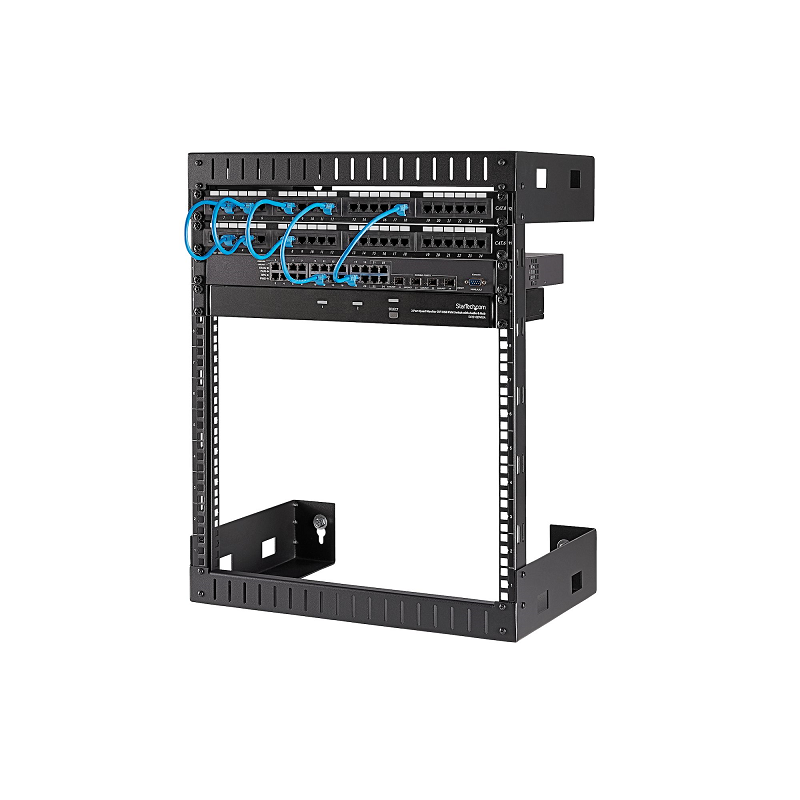

Mount your server or networking equipment using this 12U wall mount rack
This open-frame wall-mount server rack provides 12U of storage, allowing you to save space and stay organized. The equipment rack can hold up to 198 lb. (90 kg).

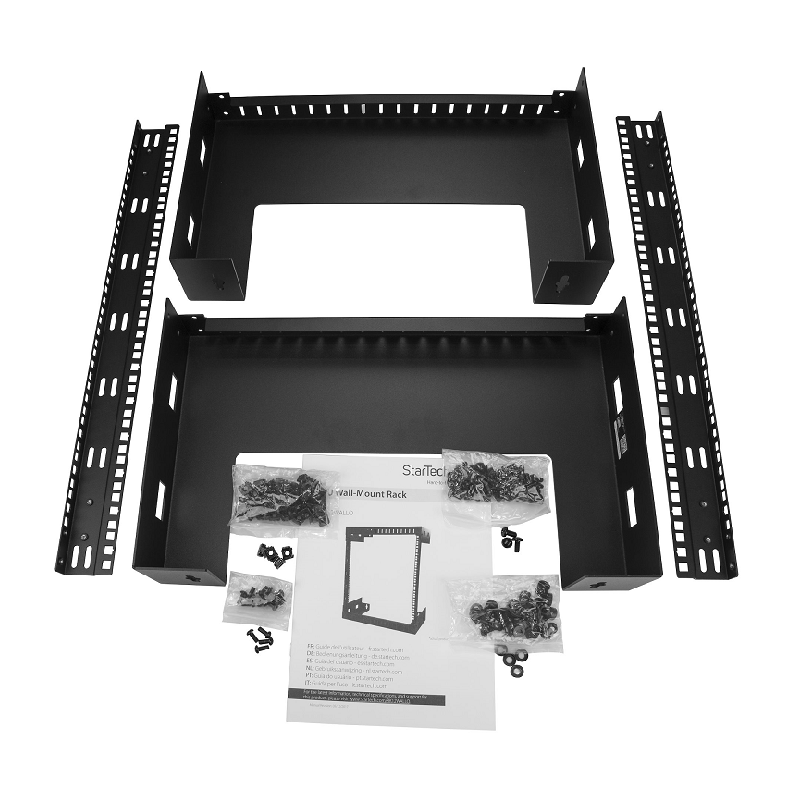

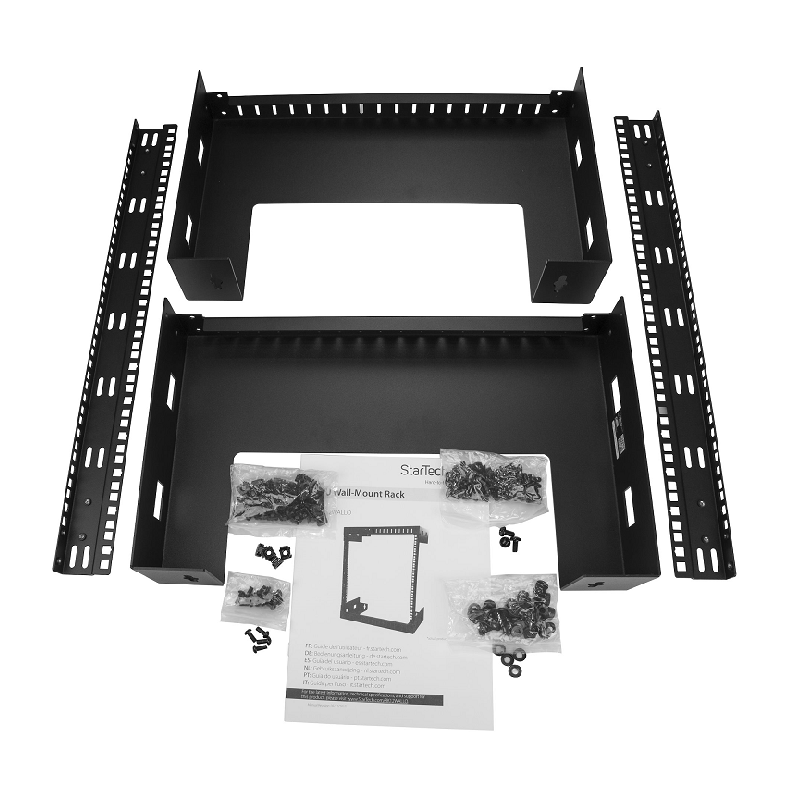

The network rack is 12 in. (30.4 cm) deep, so it’s perfect for smaller spaces. It’s easy to assemble and features mounting holes that are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing. The wall-mount rack comes in a flat-pack which makes it easy to transport and reduces shipping costs.
You can mount the open-frame rack where space is limited, such as on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.
By having an open frame the server rack provides passive cooling to equipment. Additionally, the open frame provides easy access and configurability to your equipment, allowing you to maximize productivity.
The RK12WALLO is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Features | |
Frame type | Open |
Product design | 2-post |
Rack capacity | 12U |
Cable management | No |
Mounting hole shape | Square |
Type | Wall mounted rack |
Maximum weight capacity | 90 kg |
Material | Steel |
Product colour | Black |
Certification | CE, REACH |
Rack rails | Yes |
Technical details | |
Type | Wall mounted rack |
Compliance industry standards | EIA/ECA-310-E |
Rack capacity | 12U |
Sustainability certificates | RoHS |
Weight & dimensions | |
Width | 504 mm |
Height | 641 mm |
Depth | 305 mm |
Weight | 8.6 kg |
Inner height | 53.4 cm |
Mounting depth (max) | 30.5 cm |
Maximum weight capacity | 90 kg |
Packaging data | |
Package width | 530 mm |
Package height | 130 mm |
Package depth | 670 mm |
Package weight | 11 kg |
Manual | Yes |
Nuts included | Yes |
Number of nuts | 48 |
Screws included | Yes |
Number of screws | 64 |
Number of washers included | 48 |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
