| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FERK1224WALHM |
| Manufacturer No: | RK1224WALHM |
| Delivery: | In Stock: Next Day |
 |

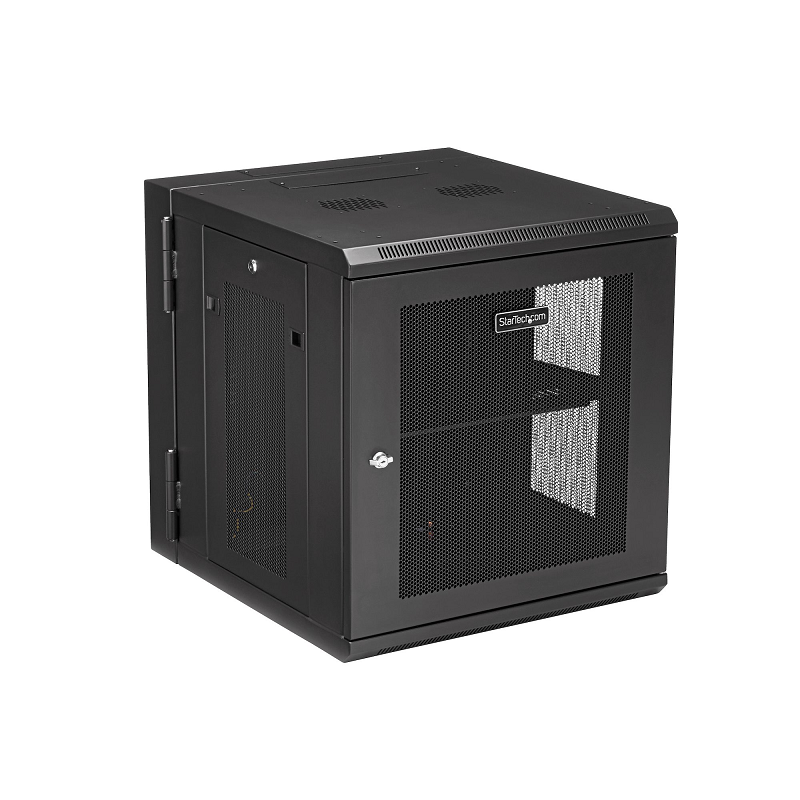

12U 19" Wall Mount Network Cabinet - 20" Deep 4 Post Hinged Locking IT Computer Equipment Enclosure w/Shelf - Flexible Vented Switch Depth Data Rack Cisco 3850, 2960 Series
Use this wall mount network cabinet to mount your server or networking equipment to the wall with a hinged enclosure for easy access
This 12U server or network rack cabinet lets you mount your EIA-310 compliant equipment to the wall, in a secure enclosure that has a hinged rear door for easy access to your equipment. The enclosure features adjustable mounting depth from 2.4 to 19.7 in. to provide a robust storage solution for your rack-mount equipment.
To provide secure stability for your heaviest equipment, this rack offers 4-post mounting, supporting a higher weight capacity per U than 2-post racks and supporting a total load capacity of up to 200 lb. (90 kg).

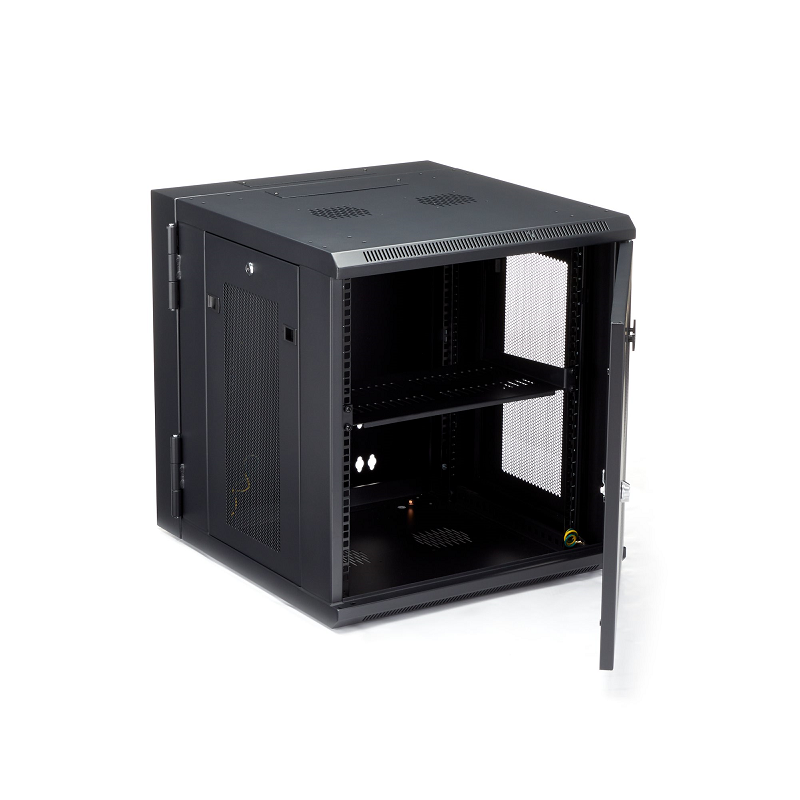

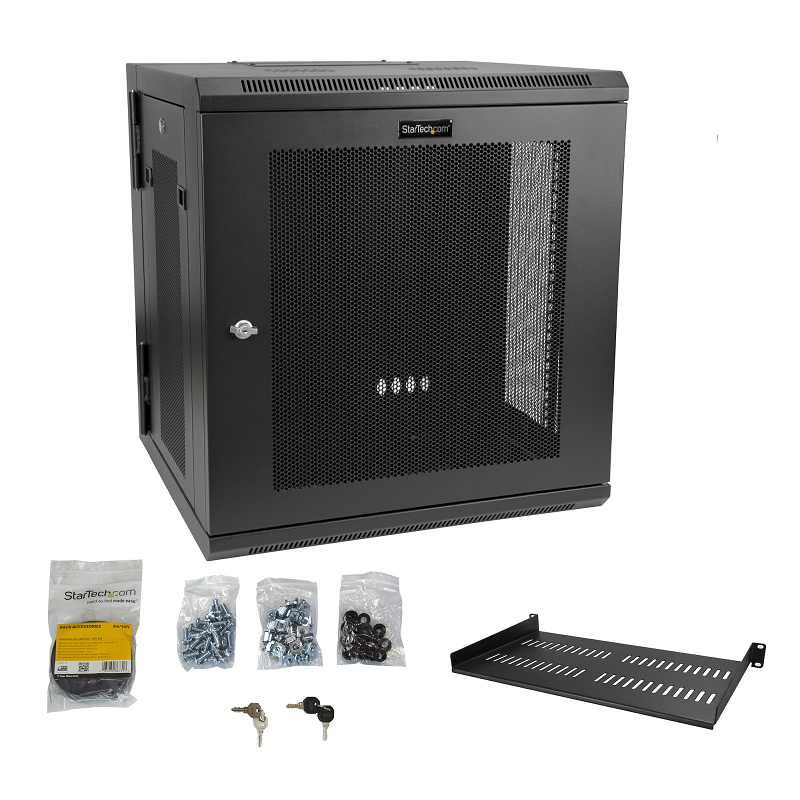

Save valuable floor space by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for placing equipment that's not rack-mountable or storing your tools.

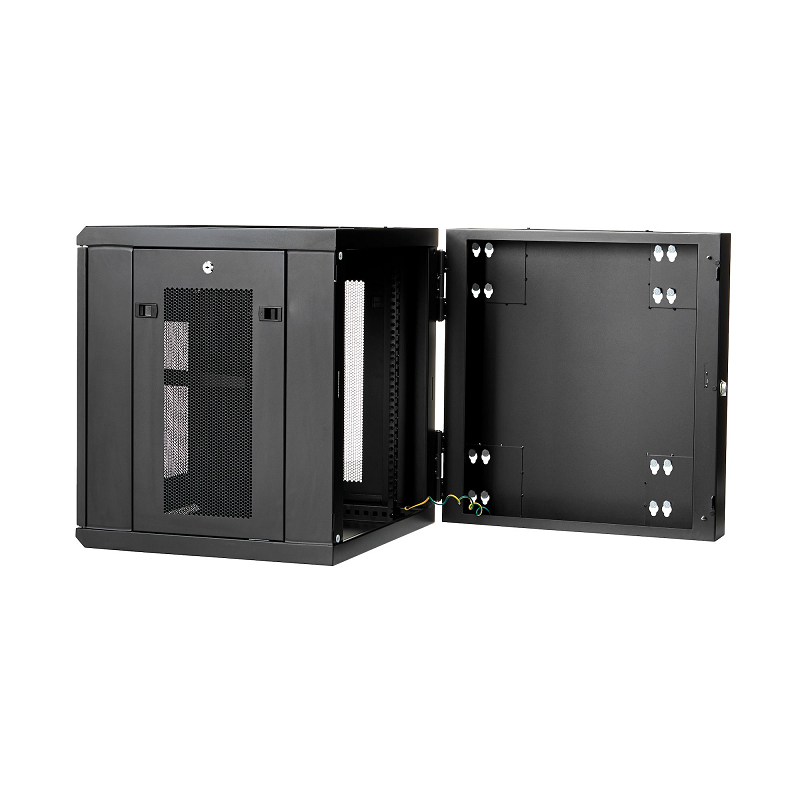

The wall-mount network rack makes it easy to access your equipment and cabling, with a rear hinge that swings the enclosure away from the wall. By flipping the enclosure 180 degrees upon installation, you can reverse the direction of the hinge so that the enclosure can swing open from left or the right, depending on your preference.
The 12U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure.
For hassle-free cable management, the rack includes a 3 meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.
This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.

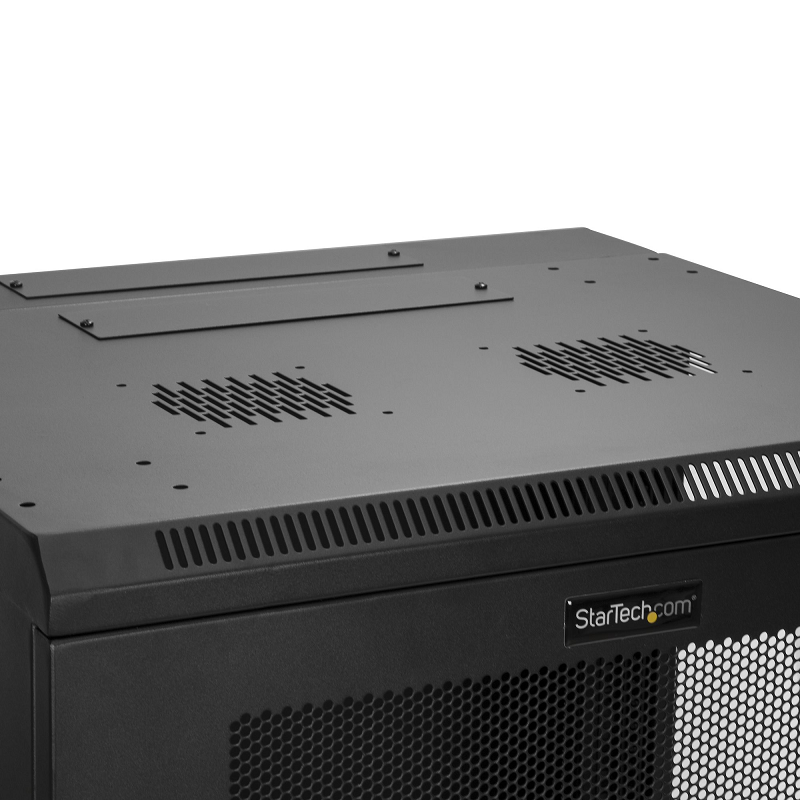

To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.
For simple and sturdy mounting, the rack’s mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.
The RK1224WALHM is backed by a StarTech.com 5-year warranty and free lifetime technical support.

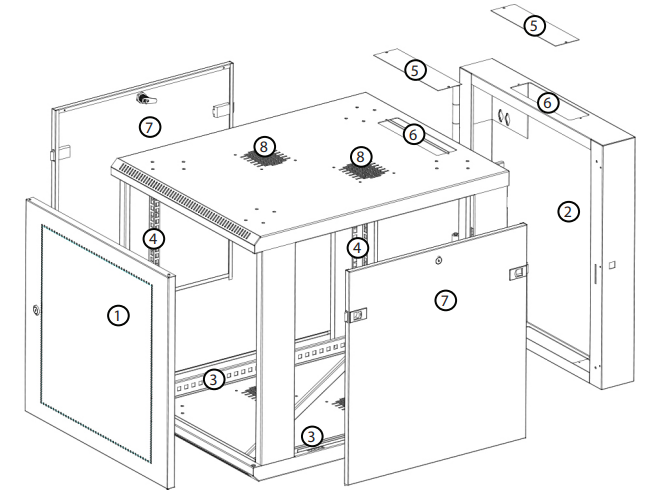

1. Front door
2. Rear door
3. Horizontal mounting rail
4. Vertical mounting rail
5. Cable access cover
6. Cable access opening
7. Side panel
8. Vent
| Features | |
| Key lock | Yes |
| Frame type | Closed |
| Product design | 4-post |
| Rack capacity | 12U |
| Castor wheels | No |
| Adjustable mounting rails | Yes |
| Removable front door | No |
| Removable side panels | Yes |
| Back door construction | Steel |
| Front door construction | Steel |
| Side panel construction | Steel |
| Cable management | Yes |
| Mounting hole shape | Square |
| Back door key lock | Yes |
| Front door key lock | Yes |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Maximum weight capacity | 90 kg |
| Product colour | Black |
| Certification | CE, REACH |
| Rack rail thickness | 2 mm |
| Technical details | |
| Type | Wall mounted rack |
| Compliance industry standards | EIA/ECA-310-E |
| Rack capacity | 12U |
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
| Width | 556 mm |
| Height | 640 mm |
| Depth | 655 mm |
| Weight | 37.4 kg |
| Inner width | 595 mm |
| Inner height | 54 cm |
| Inner depth | 652 mm |
| Mounting depth (max) | 50 cm |
| Mounting depth (min) | 6 cm |
| Maximum weight capacity | 90 kg |
| Packaging data | |
| Package width | 722 mm |
| Package height | 720 mm |
| Package depth | 675 mm |
| Package weight | 41.2 kg |
| Manual | Yes |
| Nuts included | Yes |
| Number of nuts | 50 |
| Screws included | Yes |
| Number of screws | 50 |
| Side panels included | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A product diagram can be found in the PDF file
